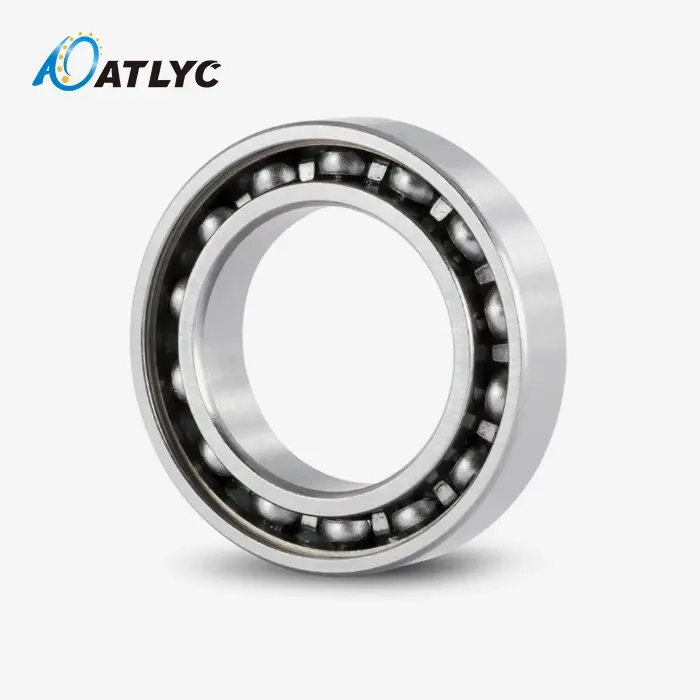

61812 Deep groove ball bearing

61812 Deep Groove Ball Bearing - Precision Thin-Section Solution

The 61812 Deep groove ball bearing represents an engineered solution for space-constrained applications requiring high precision and compact design. This thin-section bearing features a 60mm inner diameter, 78mm outer diameter, and remarkably slim 10mm width, making it ideal for lightweight rotating assemblies. You'll find this bearing particularly valuable when your design demands minimal radial space while maintaining structural integrity through a larger shaft diameter. The 61812 configuration addresses critical engineering challenges in mesh belt furnaces, cleaning machinery, and binding equipment where conventional bearings would compromise system efficiency.

Design Structure and Working Principle

Core Components

The 61812 bearing comprises of four essential components: inward ring, external ring, steel balls, and stamped steel cage. The profound groove geometry gives ideal raceway contact points for both spiral and constrained hub stack transmission.

Operating Mechanism

Steel balls roll along precision-ground raceways, making point contact that minimizes grinding and wear. The cage keeps up legitimate ball dividing and avoids sliding amid operation. This setup empowers smooth revolution whereas obliging direct loads in both bearings.

Thin-Section Advantage

The 10mm width significantly reduces bearing cross-section compared to standard designs. This reduction decreases rotational inertia and overall assembly weight while maintaining adequate load capacity for specified applications.

Performance Characteristics

Load Handling Capability

Deep groove geometry enables the bearing to support primarily radial loads with moderate axial load capacity in both directions. The optimized raceway design distributes stress evenly across contact surfaces.

Speed Performance

Low friction coefficient and lightweight ball complement allow for high-speed operation. The steel cage design ensures stable ball retention even at elevated rotational speeds.

Precision and Vibration Control

Manufacturing to Z2V2 or Z3V3 vibration standards ensures smooth operation with minimal noise generation. Precision grinding of raceways maintains consistent running accuracy throughout the bearing's service life.

Application Areas

Industrial Equipment

You'll find the 61812 Deep groove ball bearing extensively used in mesh belt furnaces where space constraints and temperature resistance are critical factors. The thin profile allows integration into compact conveyor systems without compromising load capacity.

Cleaning Machinery

High-speed cleaning equipment benefits from the bearing's low friction characteristics and vibration control. The sealed variants (2RS) provide protection against contaminants common in cleaning applications.

Binding Equipment

Printing and packaging machinery utilize these bearings in paper handling mechanisms where precise rotation and compact design enable efficient operation in confined spaces.

Material and Manufacturing

Bearing Steel Properties

GCr15 steel provides excellent wear resistance and fatigue life through controlled carbon content and heat treatment. This material maintains dimensional stability under varying operating conditions.

Cage Configuration

Steel stamped cages offer durability and cost-effectiveness for standard applications. The M/TN designation indicates standard cage clearances suitable for most operating conditions.

Sealing Options

• Open: Maximum speed capability with external sealing
• ZZ: Metal shields for dust protection
• 2RS: Contact seals for complete contamination protection

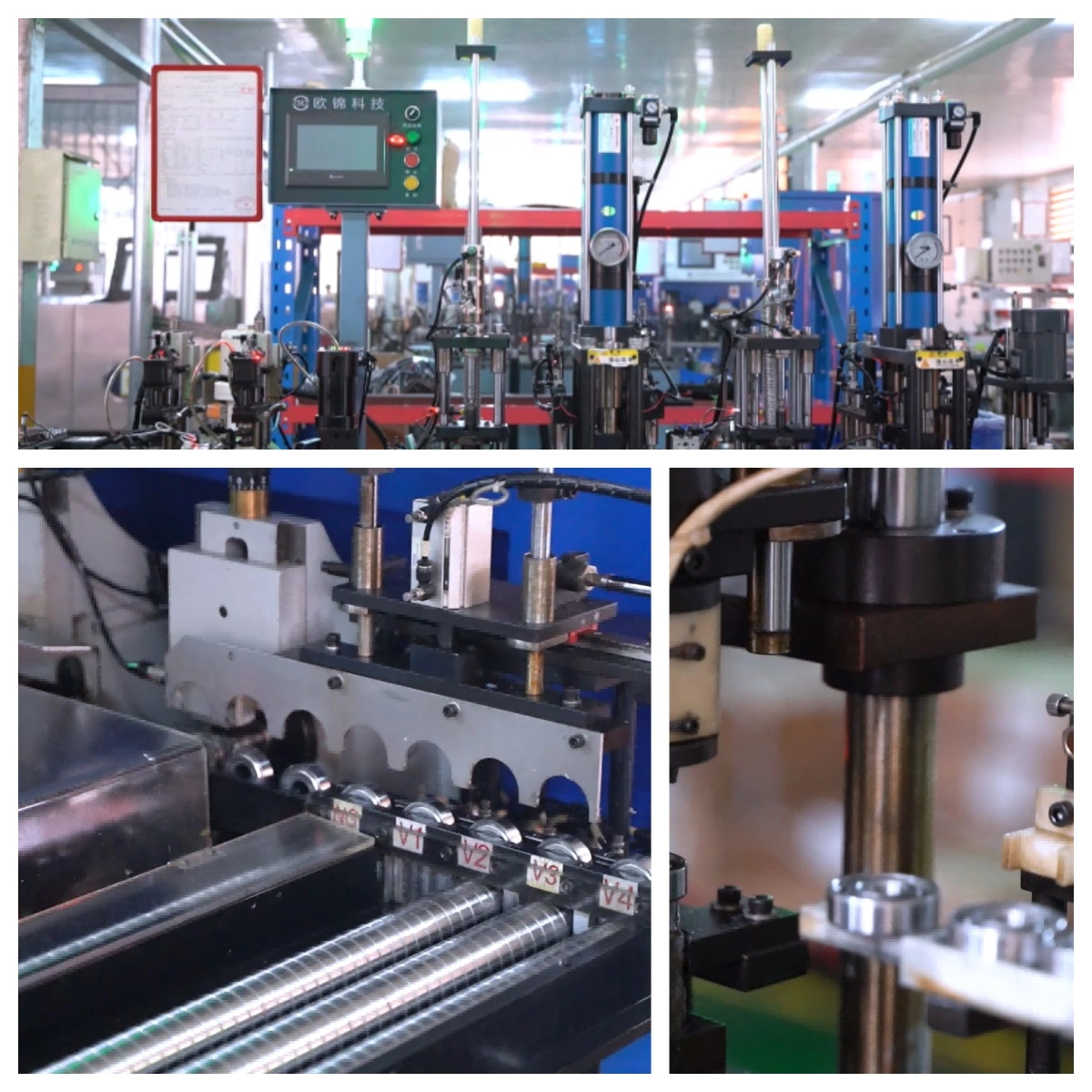

Quality Control and Standards

Our fabricating handle joins thorough quality control at each organize. Each bearing experiences dimensional confirmation, vibration testing, and surface wrap up assessment some time recently shipment. We keep up compliance with ISO 492 dimensional guidelines and ISO 199 stack rating calculations.

The three-level quality control framework guarantees steady item execution. Crude fabric assessment confirms steel composition and warm treatment. In-process observing keeps up pounding accuracy and get together resiliences. Last review affirms all execution parameters meet indicated prerequisites.

Installation and Maintenance Guidelines

Mounting Considerations

Proper installation requires clean mounting surfaces and appropriate tools. Ensure shaft and housing fits comply with ISO 286 tolerance recommendations. Apply mounting force through the loaded ring to prevent raceway damage.

Lubrication Requirements

Standard applications use lithium-based grease with operating temperature range -20°C to +120°C. Sealed bearings come pre-lubricated for immediate installation. Open bearings require initial lubrication before operation.

Service Life Optimization

Normal review of vibration levels and temperature checking expand bearing life. Supplant heading when vibration surpasses unique determinations or bizarre temperature rise happens amid operation.

Supply and Customization Services

We keep up stock stock of standard item arrangements for fast conveyance inside 7 working days. Our supply chain capabilities back both little amount prototyping and expansive volume generation requirements.

Custom adjustments incorporate extraordinary cage materials, upgraded fixing, or accuracy grades past standard details. Our designing group gives specialized bolster for application-specific prerequisites and bearing determination optimization.

For technical assistance or custom bearing solutions, contact our engineering team at auto@lyautobearing.com. We provide comprehensive support from initial design consultation through production delivery and after-sales service.

The 61812 Deep groove ball bearing delivers proven performance for demanding thin-section applications where space efficiency and reliability are paramount requirements.
