61814 Single Row Ball Bearing

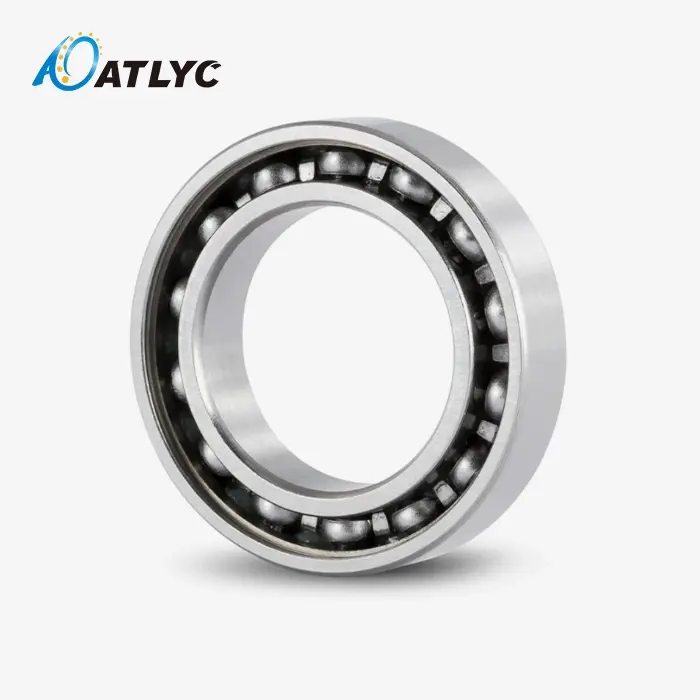

61814 Single Row Ball Bearing - Compact Precision Solution for Space-Critical Applications

When your design requires a large 70mm bore diameter but faces severe radial space constraints, the 61814 Single Row Ball Bearing delivers the perfect engineering solution. This thin-section deep groove ball bearing combines robust load capacity with an exceptionally compact 10mm width profile. You get the structural benefits of a large shaft diameter without compromising your equipment's space efficiency. The product addresses the critical design challenge where traditional bearing series would create unacceptable bulk in precision machinery applications.

Design Structure and Working Principle

The 61814 features a specialized thin-section architecture optimized for space-constrained applications. The bearing consists of precision-ground inner and outer rings with deep raceway grooves that accommodate steel balls in a point-contact configuration.

Key structural elements include:

• Optimized raceway curvature that distributes loads evenly across the contact points
• Precision steel balls manufactured to strict sphericity tolerances
• Stamped steel cage that maintains proper ball spacing and guidance
• Compact cross-section design achieving maximum bore-to-width ratio

The working principle relies on rolling contact between the balls and raceways. This configuration generates minimal friction while supporting both radial and moderate axial loads simultaneously. The deep groove geometry provides inherent axial location capability in both directions.

Performance Advantages

Space Optimization

The 10mm width conveys greatest compactness without relinquishing the 70mm bore prerequisite. You accomplish ideal space utilization in congregations where each millimeter matters.

Low Grinding Operation

Reduced rolling component measure and optimized contact geometry result in lower beginning torque and running grinding compared to standard arrangement orientation. This interprets to progressed vitality productivity and decreased warm generation.

Versatile Stack Handling

Despite its compact profile, the bearing handles noteworthy outspread loads and direct pushed loads in both bearings. The profound raceway plan gives steady pivotal positioning.

High-Speed Capability

Lightweight development and adjusted cage plan empower dependable operation at speeds up to 6,000 RPM with appropriate grease, making it appropriate for high-performance applications.

Manufacturing Precision

Manufactured to ISO 492 guidelines with discretionary accuracy grades accessible. Steady dimensional exactness guarantees solid fit and execution in basic applications.

Primary Applications

Robotics and Automation

In robot joint actuators and harmonic drive systems, the 61814 Single Row Ball Bearing enables hollow-shaft designs. Cables and pneumatic lines pass through the 70mm bore while maintaining compact joint geometry.

Precision Textile Machinery

Thread guide drums and winding equipment benefit from the bearing's smooth operation and space efficiency. The thin profile allows close component spacing while maintaining reliable rotation.

Medical and Optical Equipment

CT scanner gantries and large-aperture optical mounts utilize these bearings for smooth, precise rotation without interfering with imaging geometry or patient clearance requirements.

Machine Tools and Construction Equipment

Spindle assemblies and compact drive mechanisms leverage the bearing's ability to handle substantial loads while minimizing assembly weight and inertia.

Quality Assurance and Manufacturing Standards

Our manufacturing process ensures consistent quality through comprehensive controls. Each bearing undergoes material verification, dimensional inspection, and performance testing.

Material Standards

We use premium GCr15 chrome steel hardened to 60-64 HRC for optimal durability and wear resistance. Heat treatment processes are precisely controlled to achieve uniform hardness distribution.

Precision Manufacturing

Advanced grinding technology creates raceway surfaces with exceptional smoothness and dimensional accuracy. Ball sorting ensures consistent load distribution and smooth operation.

Quality Testing

Every production batch undergoes vibration analysis, load testing, and dimensional verification. Our three-tier inspection process maintains over 99.9% qualification rates.

Supply and Delivery

Standard Inventory

We maintain ready stock of common 61814 configurations for immediate shipment. Standard orders ship within 48 hours from our distribution centers.

Custom Solutions

Need specific cage materials, special clearances, or unique seal configurations? Our engineering team provides customized solutions with delivery typically within 15-20 days.

Technical Support

Our experienced bearing engineers offer application consulting, installation guidance, and ongoing technical support throughout your product lifecycle.

Conclusion

The 61814 Single Row Ball Bearing represents the optimal solution when you need large bore capability in minimal radial space. Its proven performance in demanding applications from robotics to medical equipment demonstrates reliable engineering value.

Whether you're designing next-generation automation systems or upgrading existing equipment for improved efficiency, this bearing delivers the space optimization and performance characteristics your application demands.

Contact our technical team at auto@lyautobearing.com for detailed specifications, custom configurations, or application engineering support. We're here to help you achieve optimal performance in your most demanding designs.
