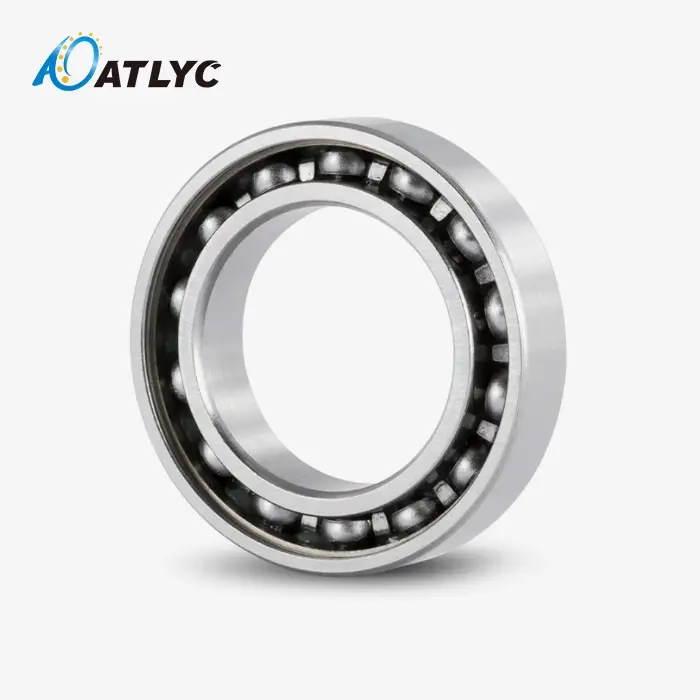

Deep Groove Ball Bearing 618 series

Deep Groove Ball Bearing 618 Series - Precision Thin-Section Solutions

The Deep Groove Ball Bearing 618 series represents the pinnacle of thin-section radial ball bearing engineering. This specialized series delivers maximum bore diameter efficiency within minimal external cross-sections. When you need space-critical applications requiring low friction and precision operation, the product provides the optimal balance between compact design and reliable performance. These bearings solve critical design challenges in modern mechatronic systems where weight reduction and space optimization are paramount.

Product Structure and Working Principle

The 618 series follows a refined structural approach that maximizes space efficiency. Each bearing consists of four primary components: inner ring, outer ring, precision balls, and cage assembly.

Core Structure:

• Inner Ring: Hardened bearing steel with precision-ground raceway geometry
• Outer Ring: Thin-section design maintaining structural integrity
• Ball Elements: High-grade steel spheres ensuring smooth rolling motion
• Cage: Steel stamped or polymer construction for optimal ball guidance

Operating Principle:

The profound groove geometry makes ideal contact points between balls and raceways. This plan empowers the bearing to oblige both spiral and direct hub loads at the same time. The thin-section profile diminishes rotational idleness whereas keeping up stack capacity through optimized push dispersion over the raceway surfaces.

Performance Advantages

Space Optimization:

The 618 arrangement minimizes outspread envelope whereas maximizing shaft breadth capacity. This thin-section plan empowers bigger empty shafts for cable directing or diminished by and large get together weight without compromising bearing performance.

Low Contact Operation:

Point contact geometry between balls and raceways creates negligible beginning torque. This characteristic demonstrates fundamental for battery-powered applications and accuracy situating frameworks where vitality productivity straightforwardly impacts operational costs.

High-Speed Capability:

Optimized cage plan and diminished mass empower prevalent high-speed execution. The arrangement handles rotational speeds surpassing standard heading of comparable stack evaluations, making it reasonable for shaft applications and exactness instruments.

Precision Retention:

Available in numerous exactness grades (P4 through P0), the arrangement keeps up dimensional steadiness beneath shifting operational conditions. This consistency guarantees repeatable situating exactness in estimation gear and optical frameworks.

Primary Applications

Precision Instruments:

Measuring devices, optical equipment, and laboratory instruments benefit from the series' low vibration characteristics and dimensional stability. The thin profile accommodates compact instrument housings while maintaining measurement accuracy.

Ultra-High-Speed Spindles:

Machine tool spindles and grinding equipment utilize the 618 series for reduced rotational inertia and enhanced surface finish quality. The bearing's speed capability directly translates to improved machining precision and productivity.

Medical Equipment:

Diagnostic imaging systems and surgical instruments require quiet operation with minimal vibration transmission. The Deep Groove Ball Bearing 618 series delivers these performance characteristics while meeting stringent cleanliness requirements.

Robotics and Automation:

Joint mechanisms and precision actuators leverage the series' compact design for increased payload capacity and reduced energy consumption. The low starting torque enhances control system responsiveness and positioning accuracy.

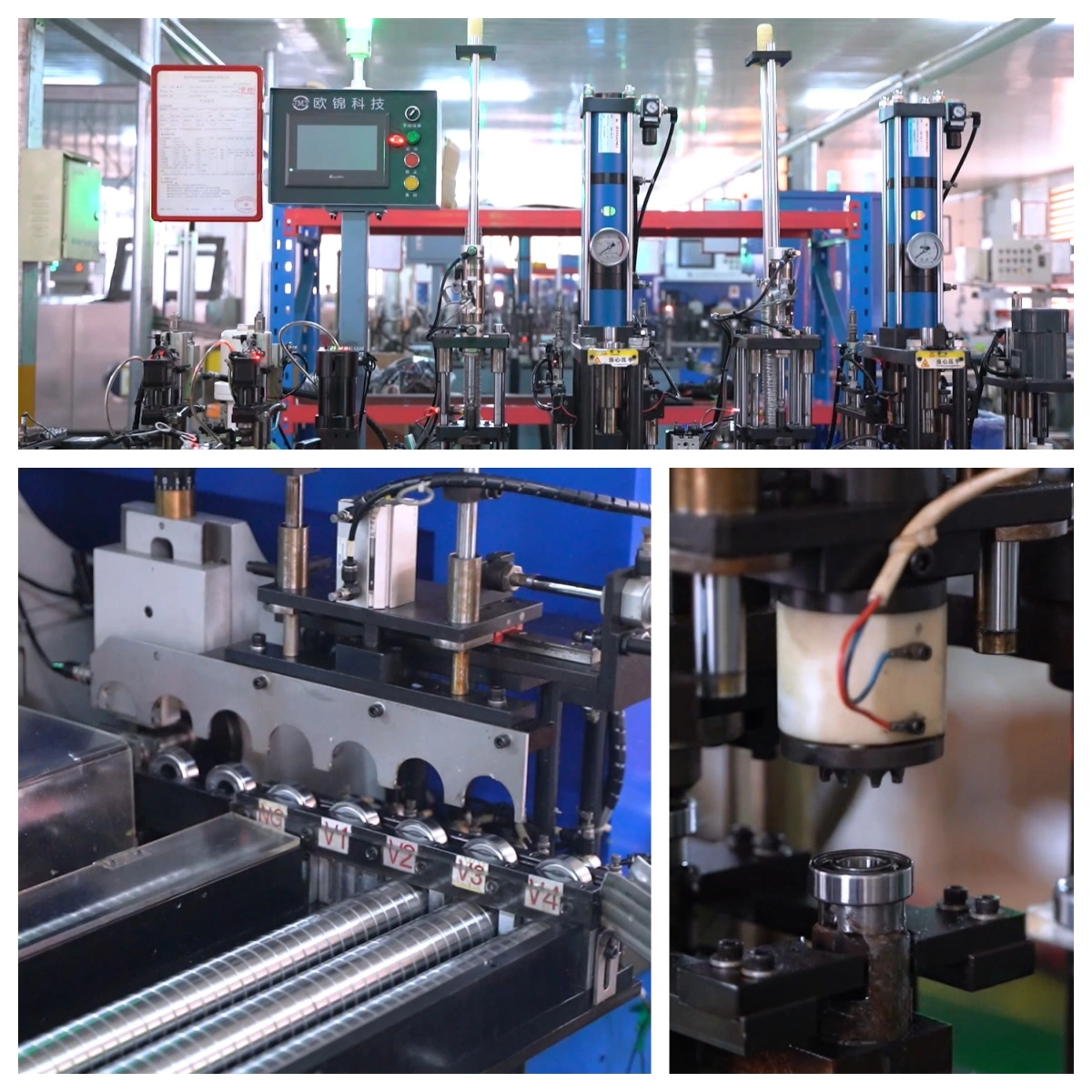

Quality Assurance and Manufacturing

Our 30 years of bearing industry experience ensures consistent quality across every 618 series bearing. We implement a comprehensive three-level inspection system covering raw material verification, in-process monitoring, and finished product testing.

Manufacturing Standards:

• High-purity bearing steel processing
• Precision grinding to achieve specified tolerances
• Heat treatment optimization for enhanced durability
• Vibration testing validation per ISO standards

Quality Metrics:

• Ex-factory qualification rate exceeds 99.9%
• Dimensional accuracy verified through coordinate measuring
• Surface finish testing ensures optimal lubrication retention
• Life testing validation under simulated operating conditions

Customization and Support

Beyond standard configurations, we provide comprehensive customization services for specialized applications. Our engineering team analyzes your specific requirements to recommend optimal bearing solutions, whether standard 618 series configurations or modified designs.

Available Services:

• Custom dimension modification
• Special cage materials for unique environments
• Enhanced sealing solutions for contaminated conditions
• Precision grade upgrades for critical applications

Technical Support and Delivery

Our global technical support network provides installation guidance, maintenance recommendations, and troubleshooting assistance. With over 1,000 standard Deep Groove Ball Bearing 618 series types in stock, we ensure rapid delivery for urgent requirements while maintaining flexibility for custom orders.

Contact our engineering team at auto@lyautobearing.com for detailed technical specifications, application guidance, or custom bearing solutions. Our expertise in precision bearing technology helps you optimize equipment performance while reducing total cost of ownership.

Whether you need standard 618 series bearings for immediate delivery or require customized solutions for unique applications, our comprehensive capabilities ensure you receive optimal bearing performance for your critical applications.
