Deep Groove Ball Bearing 61813

Deep Groove Ball Bearing 61813 - Precision Thin-Section Ball Bearing

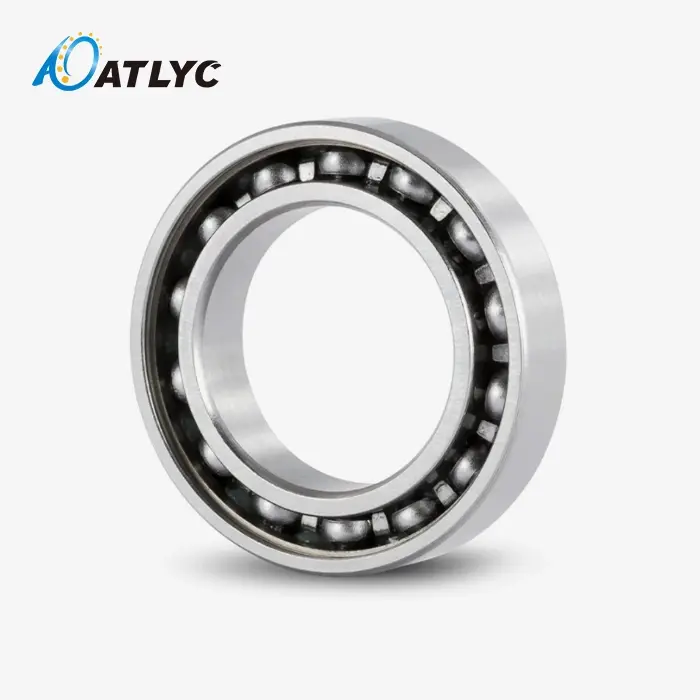

The Deep Groove Ball Bearing 61813 delivers exceptional performance in space-constrained applications. This metric bearing features precise dimensions of 65mm inner diameter, 85mm outer diameter, and 10mm width. The thin-section design makes it ideal for applications requiring large shaft diameters while maintaining minimal radial space requirements. Whether you need standard configurations or custom solutions, this bearing provides the reliability your equipment demands. Contact our technical team for personalized bearing solutions.

Design Structure and Working Principle

The 61813 bearing highlights a classic profound groove ball bearing structure optimized for thin-section applications. The plan comprises of four fundamental components:

Inner Ring: Made from high-quality GCr15 steel with precision-ground raceways. The profound groove geometry guarantees ideal stack conveyance over the contact area.

Outer Ring: Highlights coordinating raceway geometry with the internal ring. The thin-section plan diminishes generally bearing weight whereas keeping up auxiliary integrity.

Ball Components: Exactness steel balls give smooth rolling contact between internal and external raceways. The ball estimate is optimized for the thin-section profile.

Cage Gathering: Steel stamped cage keeps up appropriate ball dividing and avoids ball-to-ball contact amid operation. This guarantees reliable execution and expanded benefit life.

The working guideline depends on rolling contact between the balls and raceways. This setup minimizes grinding whereas empowering both outspread and direct pivotal stack capacity in both headings.

Performance Advantages

Compact Design Benefits

The thin-section profile provides significant advantages in space-critical applications. You can achieve large bore diameters without increasing the overall equipment envelope. This design characteristic makes it particularly valuable in robotic joints and precision machinery where weight reduction is essential.

Load Capacity and Speed Performance

Despite its compact profile, this bearing delivers reliable load capacity. The deep groove geometry distributes loads effectively across the raceway contact area. The bearing supports moderate radial loads while handling bidirectional axial forces.

Operating speeds reach up to 7,500 RPM with grease lubrication and 9,000 RPM with oil lubrication. The optimized ball-to-raceway contact reduces operating temperatures and extends bearing life.

Low Friction Operation

The point contact design between balls and raceways minimizes starting torque and running friction. This characteristic proves essential in battery-powered equipment and precision positioning systems where energy efficiency matters.

Primary Applications

Industrial Machinery

The bearing excels in mixers where consistent rotation and reliable operation are required. The 65mm bore accommodates substantial drive shafts while the thin profile fits into compact housing designs.

Knitting machinery benefits from the bearing's smooth operation and low vibration characteristics. The precision manufacturing ensures consistent textile quality through stable spindle rotation.

Injection Molding Equipment

Injection molding machines utilize this bearing in various rotating assemblies. The combination of load capacity and compact design suits the demanding requirements of plastic processing equipment.

Precision Equipment Applications

Medical scanning equipment relies on the bearing's low torque ripple for smooth, stutter-free rotation. The thin profile allows integration into space-constrained scanner housings.

Robotic applications benefit from the bearing's lightweight design and hollow shaft compatibility. The Deep Groove Ball Bearing 61813 enables cable routing through the joint while maintaining precise positioning accuracy.

Quality Control and Manufacturing

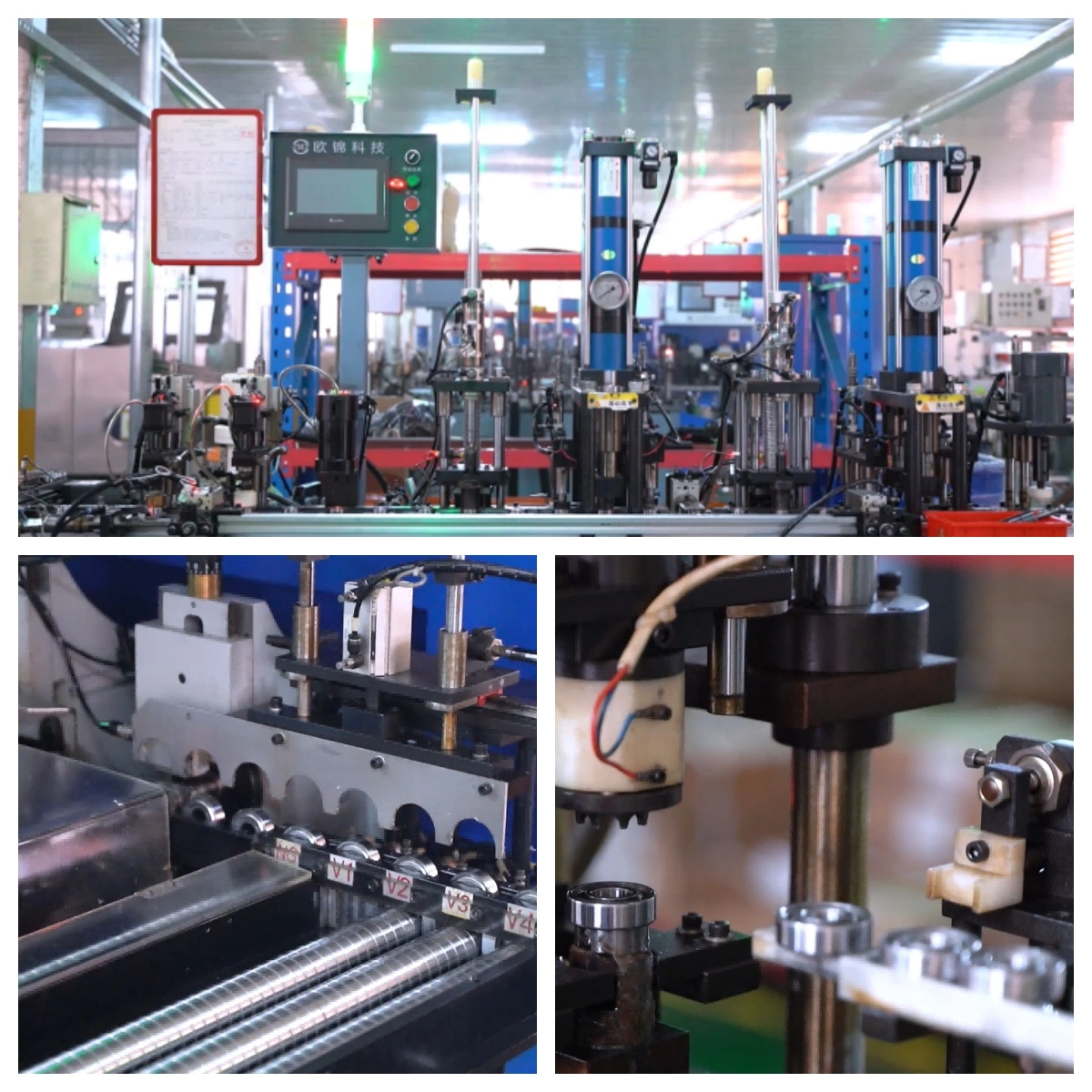

Our manufacturing process follows strict quality control standards developed over 30 years of bearing industry experience. Each bearing undergoes comprehensive testing including vibration analysis, dimensional verification, and load capacity validation.

The three-level quality control system ensures consistent product performance:

• Raw material inspection verifies steel quality and composition
• In-process monitoring maintains manufacturing precision
• Final inspection confirms all specifications before shipment

This systematic approach achieves an ex-factory qualification rate exceeding 99.9%.

Supply Chain and Delivery

We keep up broad stock of standard setups to guarantee fast conveyance. Normal orders transport inside 48 hours from our territorial warehousing centers. For custom determinations, our measured generation handle diminishes lead times to 70% of industry averages.

The effective supply chain organize covers worldwide markets through vital coordinations organizations. This guarantees dependable conveyance notwithstanding of your location.

Technical Support Services

Our building group gives comprehensive specialized bolster all through your bearing choice and execution prepare. Administrations include:

Application Investigation: We assess your particular working conditions to suggest ideal bearing configurations.

Installation Direction: Specialized back guarantees legitimate bearing establishment and starting setup.

Performance Observing: Continuous back makes a difference optimize bearing execution and anticipate support requirements.

Custom Arrangements: Our R&D capabilities back non-standard necessities counting adjusted measurements, uncommon materials, and improved execution details.

Ordering Information

When ordering the Deep Groove Ball Bearing 61813, specify your required seal configuration, quantity, and any special requirements. Our sales team provides detailed quotations and delivery schedules based on your specific needs.

For technical consultations or custom bearing solutions, contact our engineering team at auto@lyautobearing.com. We provide application-specific recommendations and comprehensive bearing solutions for your equipment requirements.
