Deep Groove Ball Bearing 63 Series - Medium Load Industrial Solution

Overview

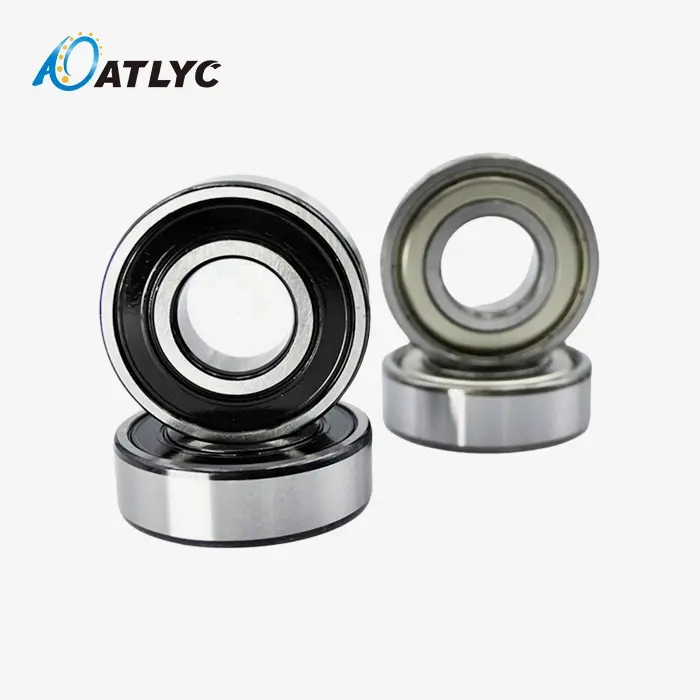

The Deep Groove Ball Bearing 63 series speaks to the medium stack classification inside the metric outspread ball bearing family. Designed with bigger external breadths and more extensive races compared to 60 and 62 arrangement orientation of proportionate bore sizes, the item conveys predominant stack capacity through optimized steel ball components and fortified raceway cross-sections. This heavyweight geometry addresses basic industry challenges counting untimely weakness disappointment in heavy-duty applications and inadequately stack taking care of in combined radial-axial stacking conditions.

Technical Structure and Design

Core Components

The 63 series maintains the fundamental deep groove ball bearing architecture while incorporating enhanced dimensional specifications:

• Inner Ring: Precision-ground raceway with optimized geometry for larger ball elements
• Outer Ring: Increased wall thickness providing higher static load capacity
• Steel Balls: Larger diameter rolling elements manufactured from high-grade bearing steel
• Cage: Available in steel stamped, brass machined, or polyamide configurations

Working Principle

The deep raceway grooves accommodate rolling elements that maintain point contact with both inner and outer raceways. This design enables accommodation of radial loads as the primary load direction while supporting moderate axial loads in both directions. The larger ball complement in the 63 series increases the effective load distribution area, resulting in enhanced dynamic load ratings.

Performance Advantages

The structural enhancements deliver measurable engineering benefits:

• Higher Load Capacity: Basic dynamic load rating (Cr) typically 40-60% greater than equivalent 62 series
• Extended Service Life: Improved L10 life under equivalent operating conditions
• Enhanced Durability: Thicker raceway sections resist deformation under shock loads
• Versatile Mounting: Accommodates moderate misalignment and thermal expansion

Industrial Applications

Primary Use Cases

• Industrial Gearboxes: Main shaft and intermediate shaft positions requiring extended service intervals
• Electric Motors: Medium and heavy-duty motors where enhanced load capacity justifies dimensional trade-offs
• Conveyor Systems: Drive and idler positions subject to continuous operation and moderate shock loads
• Automotive Transmissions: Secondary shaft applications requiring durability under varying load conditions
• Agricultural Equipment: Implements and machinery operating in contaminated environments with periodic overloads

Performance in Service Conditions

The Deep Groove Ball Bearing 63 series excels in applications where standard light series bearings approach their load limitations. The enhanced cross-sectional geometry provides resistance to edge stress concentrations while maintaining the operational simplicity of single-row deep groove designs.

Quality Control and Manufacturing

Production Standards

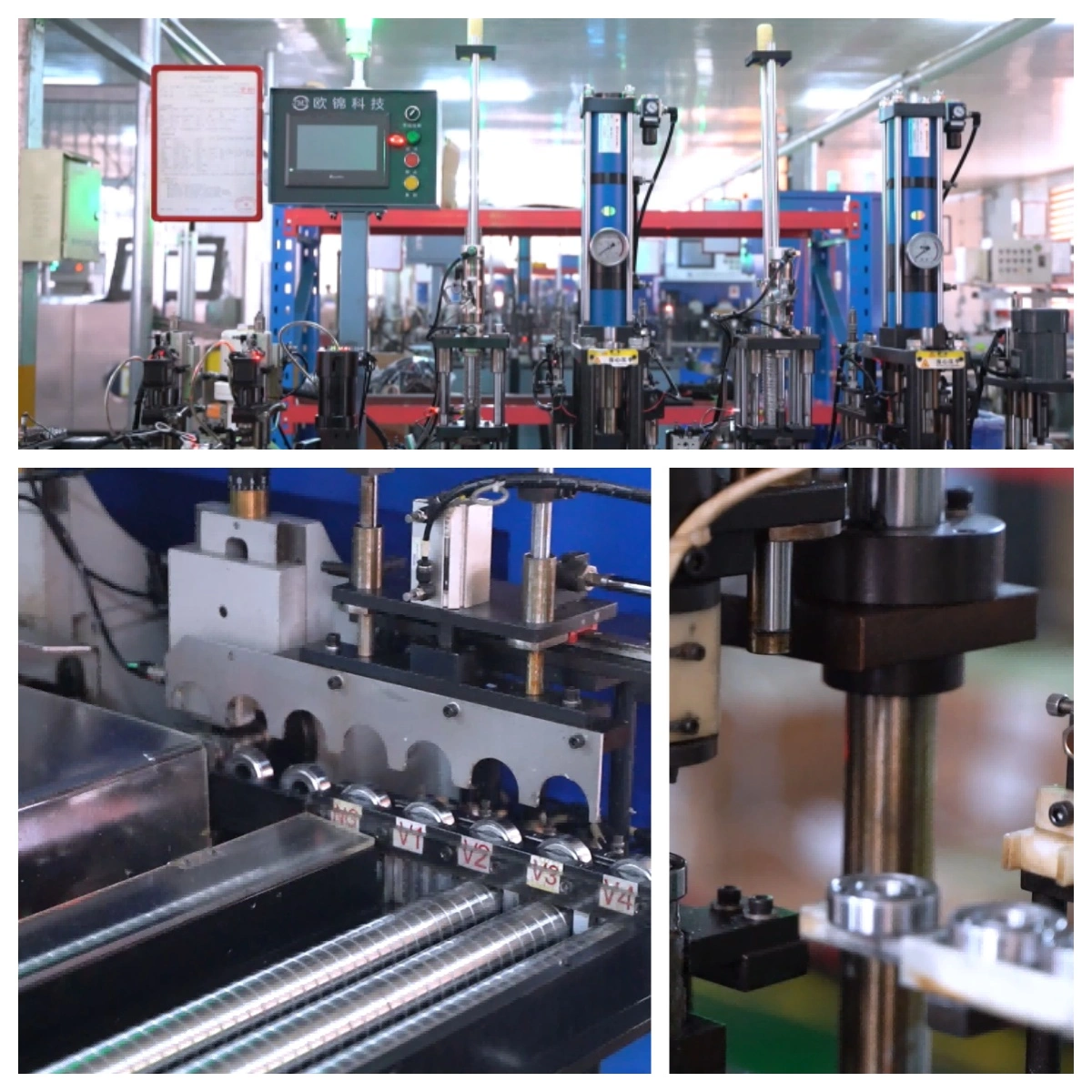

Our manufacturing process incorporates precision grinding operations and heat treatment protocols specific to bearing steel applications. Each bearing undergoes dimensional verification and performance testing including:

• Vibration amplitude measurement
• Geometric running accuracy assessment
• Load capacity verification testing
• Lubrication retention evaluation

Quality Assurance

We maintain a comprehensive quality control system with raw material inspection, in-process monitoring, and finished product verification. Our qualification rate exceeds 99.9% through systematic application of statistical process control methods.

Supply and Delivery

Inventory Management

We keep up stock of over 1,000 standard bearing setups, empowering 48-hour conveyance for standard orders. Our secluded generation framework decreases custom bearing conveyance times to 70% of normal industry standards.

Technical Support

Our building group gives application examination, establishment direction, and upkeep suggestions. For complex establishments, we offer on-site mapping administrations and specialized discussion to guarantee appropriate bearing choice and usage.

The Deep Groove Ball Bearing 63 series provides the optimal balance of load capacity, reliability, and cost-effectiveness for medium-duty industrial applications. Contact our technical team at auto@lyautobearing.com for application-specific recommendations and delivery scheduling.
