Needle Roller Bearing BK series

Needle Roller Bearing BK Series - High-Performance Drawn Cup Solution

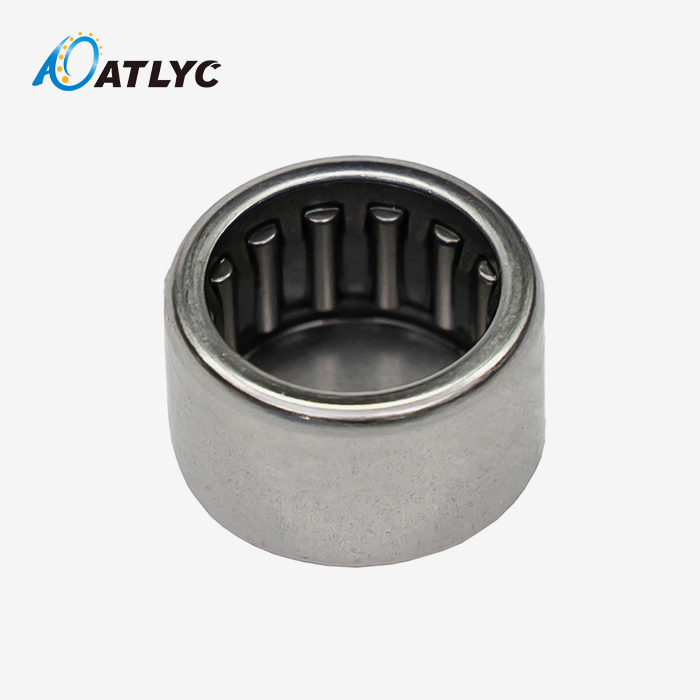

The Needle Roller Bearing BK series speaks to a specialized category of drawn container needle roller heading designed for requesting shaft-end applications. Recognized by its closed-end plan, this bearing arrangement conveys extraordinary outspread stack capacity inside an amazingly compact spiral envelope. The BK arrangement highlights a deep-drawn, thin-walled external ring with one side totally fixed, dispensing with the require for partitioned conclusion caps whereas giving coordinates fixing assurance. This imaginative plan addresses basic industry challenges counting space imperatives, weight diminishment, and disentangled lodging machining requirements.

Technical Design and Structure

Core Development Features

The BK arrangement utilizes a accuracy deep-drawn external ring made from cold-rolled strip steel, regularly ST14 or comparable fabric. The external ring experiences case-hardening treatment to accomplish ideal surface hardness of 58-64 HRC, guaranteeing toughness beneath high-stress conditions.

Key structural components include:

• Thin-walled outer ring: Acts as the raceway for needle rollers while maintaining minimal radial space requirements
• High-density needle roller arrangement: Maximizes load capacity through optimized roller-to-space ratio
• Closed-end design: Provides integrated sealing and eliminates need for additional components
• Precision cage system: Available in steel stamped or PA66 configurations for specific application requirements

Working Principle

The bearing works through the interaction between the needle rollers, cage, and external ring raceway. The closed-end setup makes a fixed chamber that bolsters outspread loads whereas anticipating oil spillage and contaminant entrance. The thin-walled plan permits for obstructions fit establishment, streamlining lodging bore prerequisites to essential through-hole or blind-hole machining.

Performance Advantages and Engineering Benefits

Load Capacity Excellence

Despite its compact profile, the item conveys amazing energetic and inactive stack appraisals comparable to solid-machined orientation. The tall roller thickness arrangement empowers predominant stack dispersion over the contact surfaces.

Space Optimization

The greatly moo spiral cross-section empowers engineers to plan compact gearboxes and lightweight congregations. This space productivity demonstrates especially important in applications with extreme dimensional constraints.

Integrated Fixing Solution

The closed-end plan serves as an successful obstruction against natural defilement whereas holding grease at basic shaft positions. This kills complex fixing courses of action and diminishes by and large framework complexity.

Installation Efficiency

The impedances fit mounting strategy streamlines establishment strategies and diminishes lodging machining necessities. No extra pivotal area gadgets such as snap rings or shoulders are vital.

Technical Specifications

Primary Applications

Automotive Industry

• Transmission systems requiring compact bearing solutions
• Universal joint assemblies
• Starter motor applications
• Differential mechanisms

Motorcycle Components

• Gearbox assemblies with space limitations
• Engine compartment applications
• Transmission end-bearing positions

Industrial Machinery

• Compact gearbox designs
• Shaft-end bearing arrangements
• Equipment requiring integrated sealing solutions

Quality Assurance and Manufacturing Excellence

Our manufacturing process incorporates precision grinding technology and special heat treatment processes to ensure consistent quality. Each bearing undergoes comprehensive testing including vibration analysis and load capacity verification.

Quality control measures include:

• Raw material inspection protocols
• In-process dimensional verification
• Finished product performance testing
• 99.9% ex-factory qualification rate

Customization and Engineering Support

We provide comprehensive customization services for non-standard Needle Roller Bearing BK series applications. Our engineering team offers technical consultation for bearing selection, housing design optimization, and application-specific modifications.

Standard delivery time is 7 working days, with expedited options available for urgent requirements. Sample services are provided to validate performance in your specific application before full-scale implementation.

Installation Guidelines

Proper installation ensures optimal bearing performance and service life. The bearing requires accurate housing bore preparation with H7 tolerance for optimal geometric accuracy. Press-fit installation should be performed using appropriate tooling to prevent damage to the thin-walled outer ring.

Key installation considerations:

• Housing bore accuracy directly affects bearing performance
• Controlled press-fit force prevents outer ring deformation
• Proper lubrication during installation extends service life
• Shaft surface finish should meet specified requirements

For technical consultation and product specifications tailored to your application, contact our engineering team at auto@lyautobearing.com. Our experienced professionals provide comprehensive support for Needle Roller Bearing BK series from initial design consultation through installation guidance and ongoing technical assistance.
