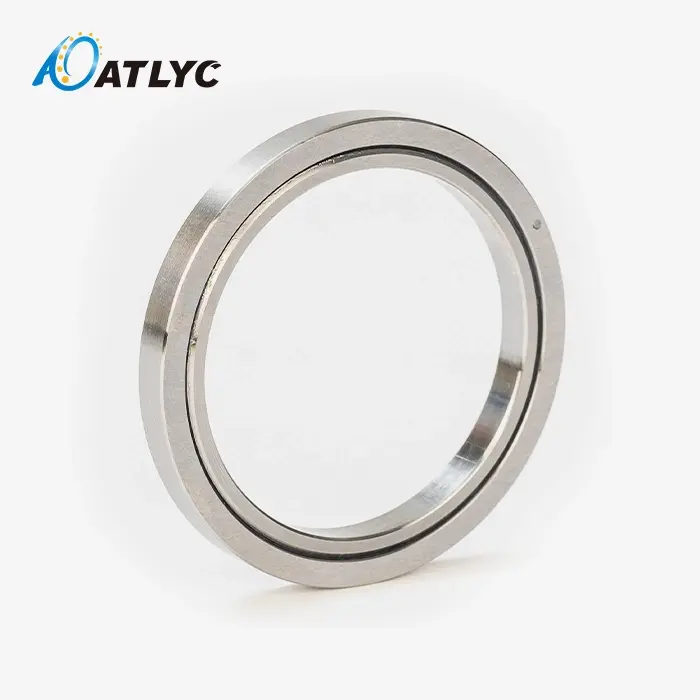

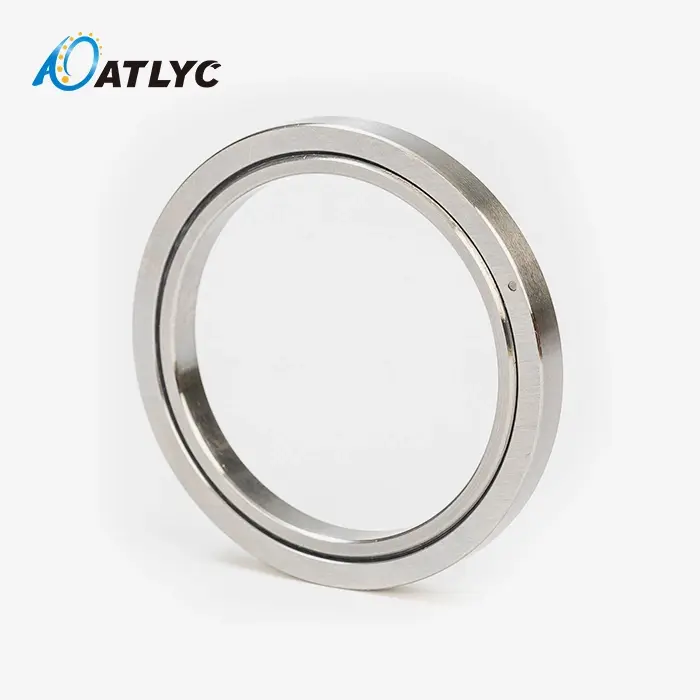

RB Cross Roller Bearing: High-Precision Solution for Demanding Applications

When your industrial application demands exceptional precision and load capacity, RB Cross Roller Bearing technology delivers unmatched performance in a compact design. These specialized bearings feature a unique crossed-roller configuration that enables simultaneous handling of radial, axial, and moment loads within a single unit. With inner and outer ring integrity and an outer ring equipped with a plug design, the products provide the rigidity and accuracy required for critical positioning applications across robotics, machine tools, and precision equipment.





Technical Specifications

Design Structure and Working Principle

Crossed-Roller Configuration

The distinctive feature of RB bearings lies in their crossed-roller arrangement. Cylindrical rollers are positioned perpendicular to each other at 90-degree angles within precision-machined raceways. This configuration creates optimal contact geometry for multi-directional load distribution.

Integral Ring Design

The inner and outer rings maintain structural integrity throughout the bearing assembly. The outer ring incorporates a plug system that facilitates installation while ensuring proper roller retention and lubrication management.

Load Path Optimization

Each roller contacts both rings along line contact patterns, creating efficient load transmission paths. This design minimizes stress concentrations and distributes forces evenly across the bearing structure.

Performance Advantages

Multi-Directional Load Capacity

Your equipment benefits from consolidated load handling in a single bearing unit. The crossed-roller design eliminates the need for multiple bearing arrangements typically required for complex loading conditions.

Superior Rigidity

High contact ratios between rollers and raceways provide exceptional stiffness characteristics. This rigidity minimizes deflection under load and maintains precise positioning accuracy during operation.

Reduced Friction Performance

Optimized roller geometry and precision manufacturing result in low friction coefficients. This efficiency translates to smoother rotation, reduced energy consumption, and extended operational life.

Exceptional Runout Accuracy

Precision grinding and quality control processes ensure minimal runout variation. Your applications achieve consistent rotational accuracy essential for high-precision positioning tasks.

Industrial Applications

Robotics and Automation

Industrial robot joints and manipulator assemblies rely on RB Cross Roller Bearing units for precise motion control. The compact design allows integration into space-constrained robot configurations while providing the rigidity needed for accurate positioning.

Machine Apparatus Systems

Rotary tables and ordering components in machining centers utilize these heading for exact workpiece situating. The multi-directional stack capacity handles cutting powers whereas keeping up situating accuracy.

Medical Equipment

Precision therapeutic gadgets, counting imaging hardware and surgical robots, depend on the smooth operation and exactness these heading give. Moo clamor characteristics and solid execution meet rigid therapeutic gear requirements.

Precision Instrumentation

Measuring rebellious and IC fabricating gear join RB heading for basic situating capacities where exactness and repeatability are essential.

Quality Assurance and Manufacturing Excellence

Advanced Materials and Processing

Our items utilize premium Gcr15 and Gcr15SiMn bearing steels. Extraordinary warm treatment forms and accuracy pounding innovation guarantee ideal hardness dissemination and surface wrap up quality.

Comprehensive Quality Control

Each bearing experiences thorough testing through our three-level quality control framework. Vibration testing, life testing, and 12 center execution markers confirm that each unit meets determination necessities some time recently delivery.

Precision Fabricating Capabilities

With 30 a long time of bearing industry involvement, our fabricating forms accomplish reliable exactness over the total measure extend. Progressed pounding and wrapping up operations guarantee dimensional exactness and surface quality that meet P4-level requirements.

Technical Support and Service

Application Engineering

Our specialized group gives comprehensive bolster for bearing choice and application optimization. We analyze your particular working conditions to suggest the most appropriate RB bearing setup for your requirements.

Custom Solutions

Beyond standard determinations, we offer customized item arrangements for special applications. Our designing capabilities empower alterations to measurements, exactness classes, and uncommon highlights to meet particular execution requirements.

Delivery and Availability

Standard RB heading are accessible for quick conveyance through our comprehensive stock framework. Custom setups are made utilizing optimized generation forms that diminish lead times altogether compared to industry benchmarks.

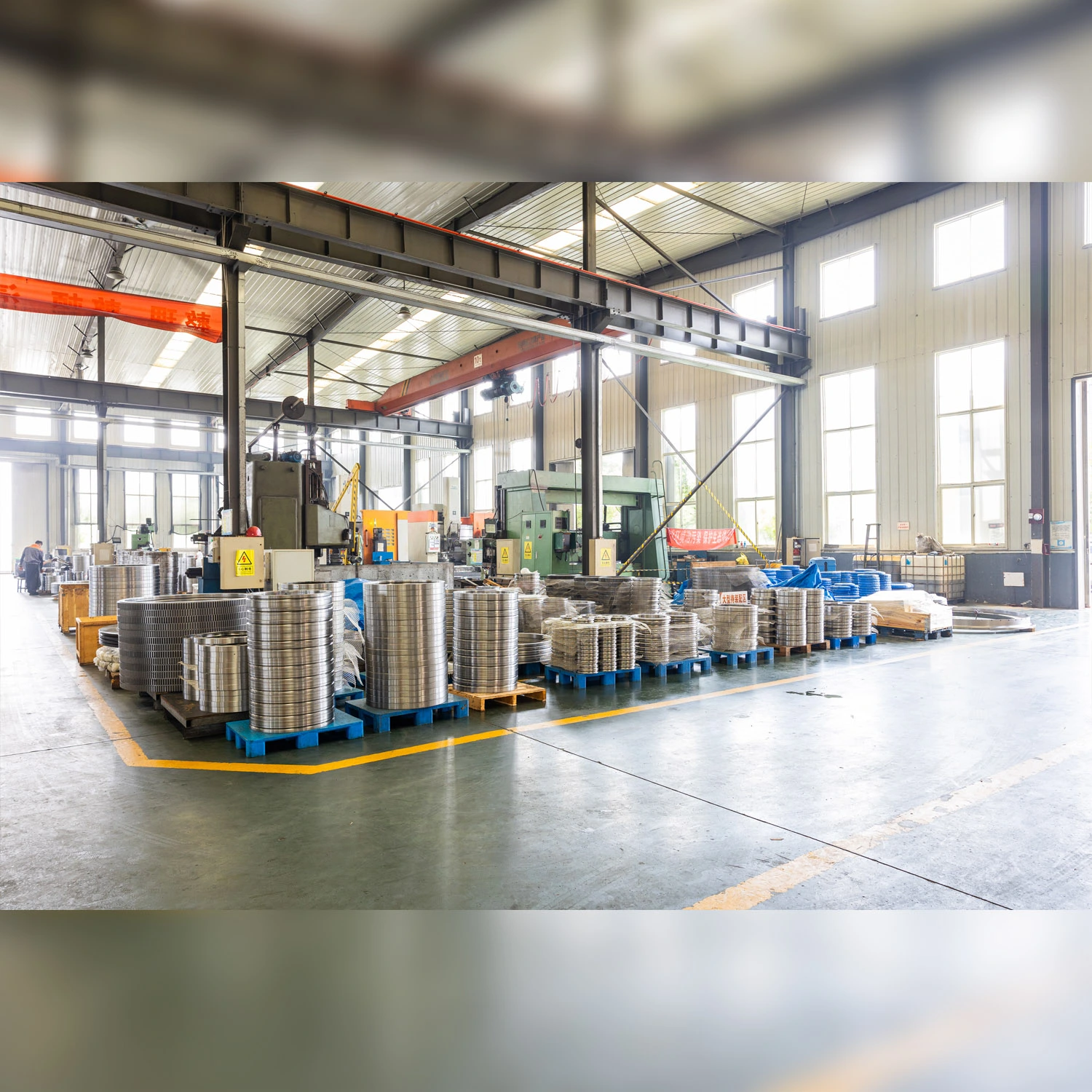

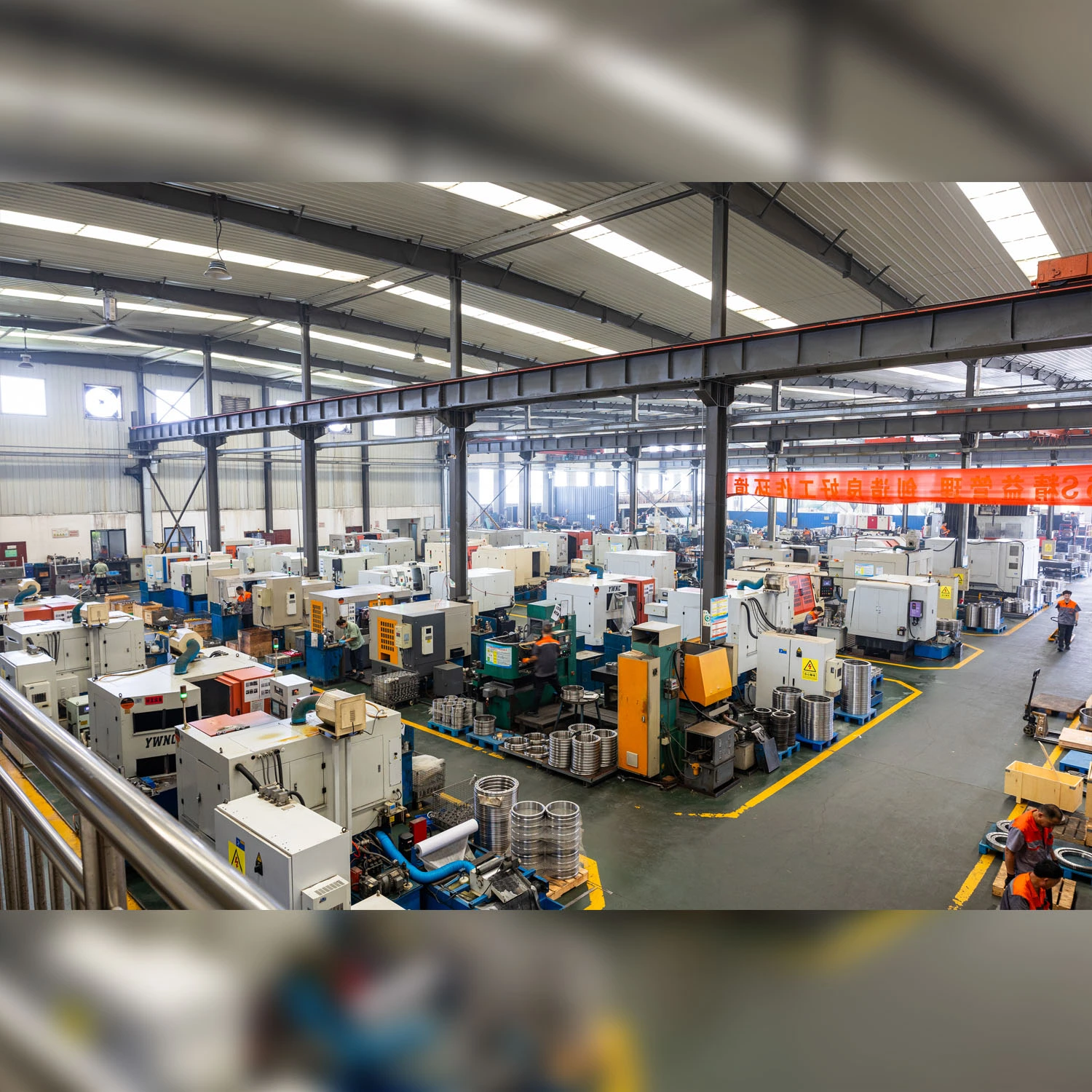

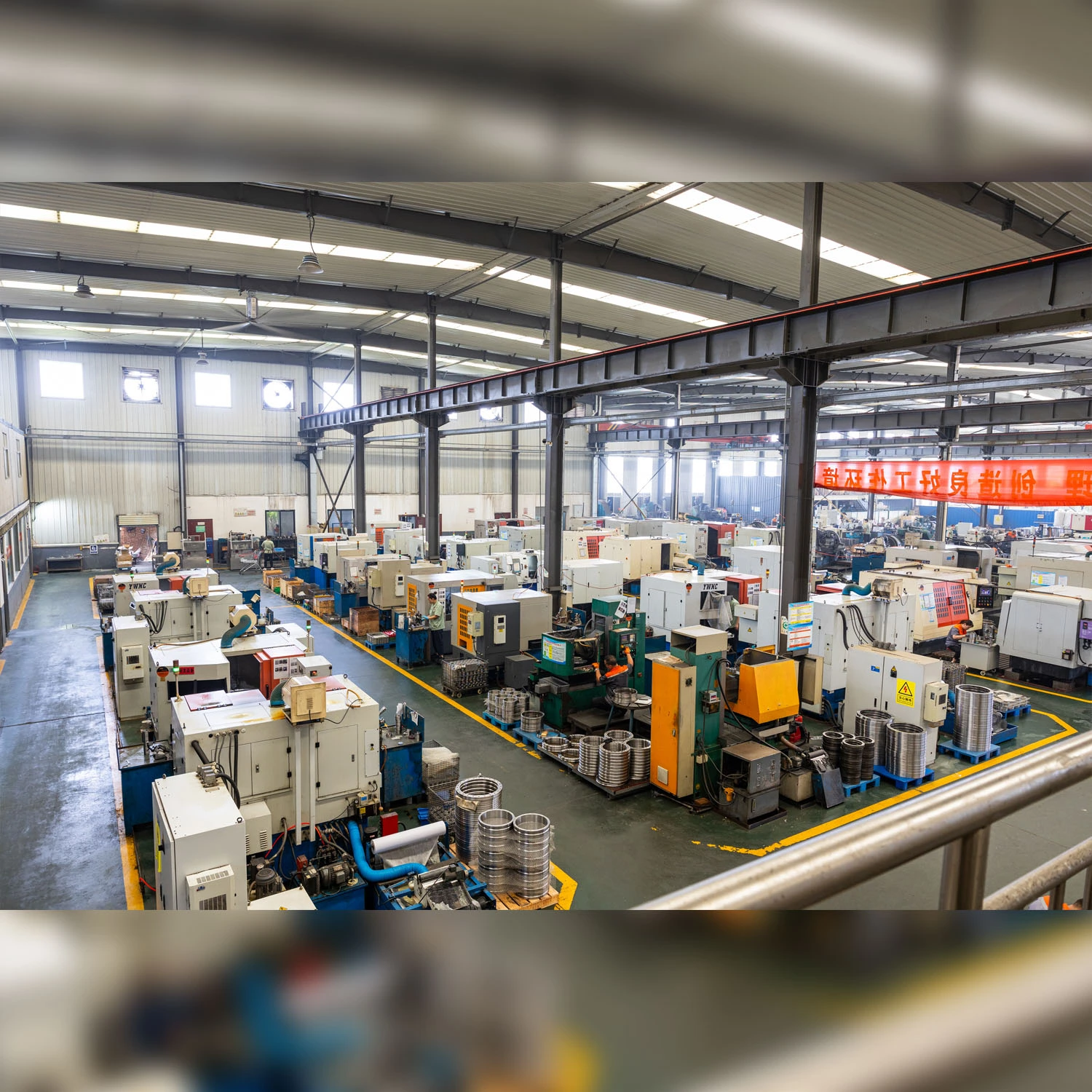

Our Factory



.

Contact Us

For detailed technical specifications and application guidance for your RB Cross Roller Bearing requirements, contact our engineering team at auto@lyautobearing.com. Our experts are ready to assist with bearing selection, installation support, and performance optimization for your specific application needs.
