Wind Turbine Slewing Bearing - Heavy-Duty Solution for Renewable Energy Systems

The Wind Turbine Slewing Bearing represents a critical component in modern renewable energy infrastructure, specifically engineered to handle complex load combinations in harsh environmental conditions. These specialized large-diameter bearings serve as primary rotational support systems in wind turbine yaw and pitch mechanisms. With the ability to simultaneously manage axial loads, radial forces, and massive tilting moments exceeding several thousand kilonewton-meters, our product solutions ensure reliable operation throughout the demanding 20-year operational lifecycle required by modern wind farm applications.

Understanding Wind Turbine Slewing Bearing Applications

Wind turbine applications demand exceptional bearing performance due to unique operating challenges. The yaw system requires precise nacelle positioning to optimize wind capture efficiency, while the pitch system controls blade angle for both power optimization and emergency braking. Our bearings address critical industry pain points including false brinelling from oscillatory movements, extreme temperature variations (-40°C to +50°C), and the need for minimal maintenance in difficult-to-access installations.

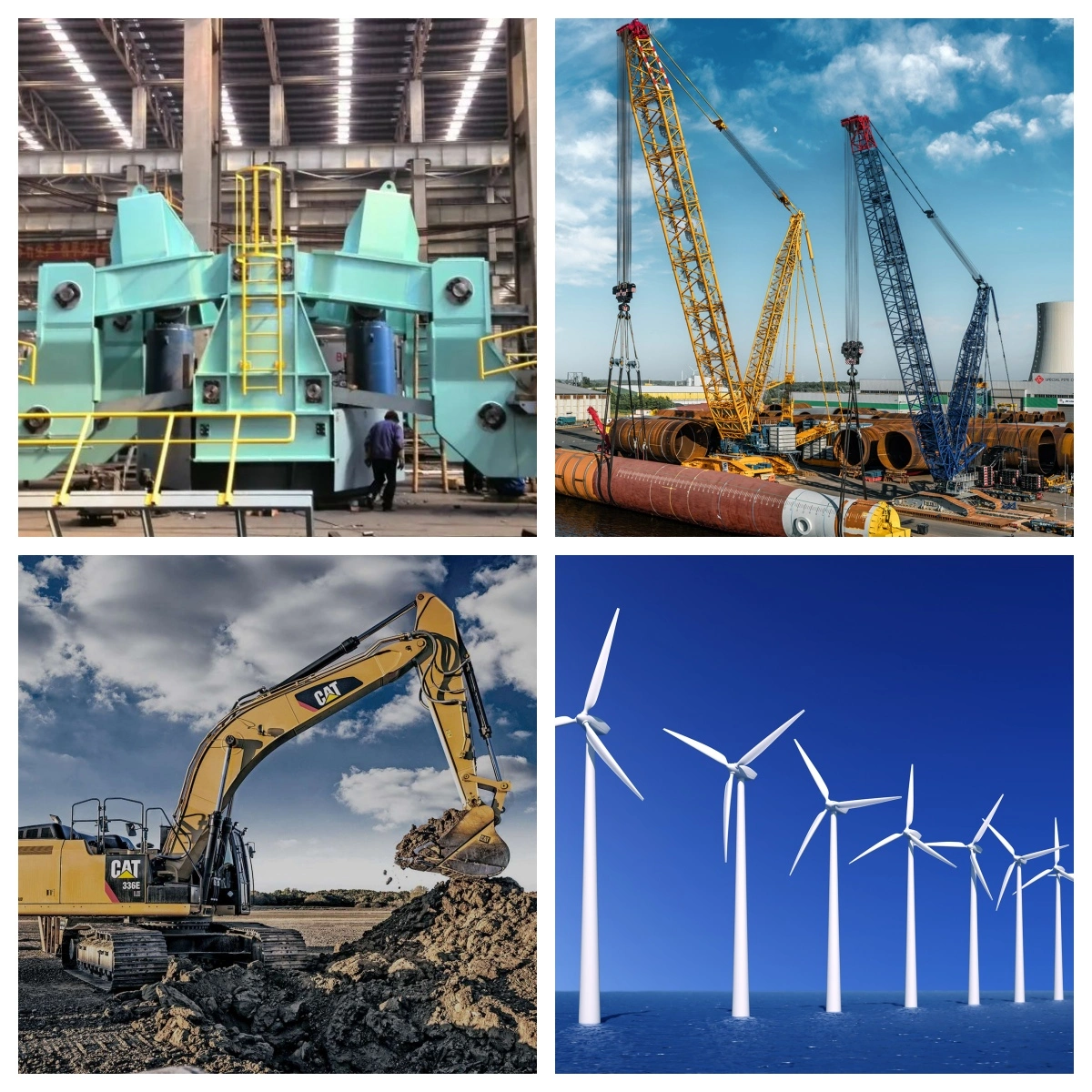

These bearings find application beyond wind energy systems, supporting heavy equipment such as bucket-wheel excavators, wheeled cranes, ship cranes, harbor cranes, and ladle turrets where similar load characteristics exist.

Technical Specifications

Advanced Triple-Row Roller Design

Our triple-row roller setup speaks to the apex of slewing bearing designing. The plan highlights three unmistakable seating rings that isolated upper, lower, and outspread raceways. This course of action empowers exact stack conveyance over specialized roller sets.

The two pivotal roller columns handle bidirectional pushed loads and tilting minutes, with rollers arranged parallel to the bearing's pivotal course. The outspread roller push oversees outspread loads through opposite arrangement. This stack specialization dispenses with impedances between distinctive drive vectors and maximizes bearing efficiency.

The 90° crossed course of action for pivotal lines guarantees full line contact with raceways, comparable to single-row cross roller orientation. This arrangement improves unbending nature and minimizes versatile misshapening beneath overwhelming loads, basic for keeping up positional precision in wind turbine applications.

Superior Load Management Capabilities

The strong multi-ring structure ordinarily joins three precision-machined rings: inward ring, external ring, and halfway ring. Each ring obliges particular roller columns, dispensing with the complexity of partitioned bearing gatherings whereas decreasing establishment space requirements.

Line contact between rollers and raceways over all three columns gives remarkable inflexibility, essentially beating ball-type or single-row choices. This plan empowers taking care of of ultra-heavy combined loads, counting outspread loads up to a few hundred tons and tilting minutes coming to thousands of kN·m.

Engineering Performance Advantages

Enhanced Inflexibility and Accuracy: The three-row line contact plan minimizes diversion beneath overwhelming loads or quick movement changes. This characteristic keeps up positional exactness basic for wind turbine effectiveness and gear longevity.

Shock and Affect Resistance: The strong roller plan and indeed stack dispersion empower withstanding tall stun loads and energetic strengths normal in wind turbine environments.

Extended Benefit Life: Stack specialization decreases wear and push concentrations over roller columns. Combined with accuracy fabricating and high-quality bearing steel, this plan upgrades weakness resistance and amplifies operational life.

Compact Establishment Profile: In spite of heavy-duty execution capabilities, the coordinates three-row structure offers a more compact impression than multi-bearing gatherings, profitable for space-constrained wind turbine plans.

Customization Options for Specific Applications

Our Wind Turbine Slewing Bearing solutions offer comprehensive customization to match specific operational requirements:

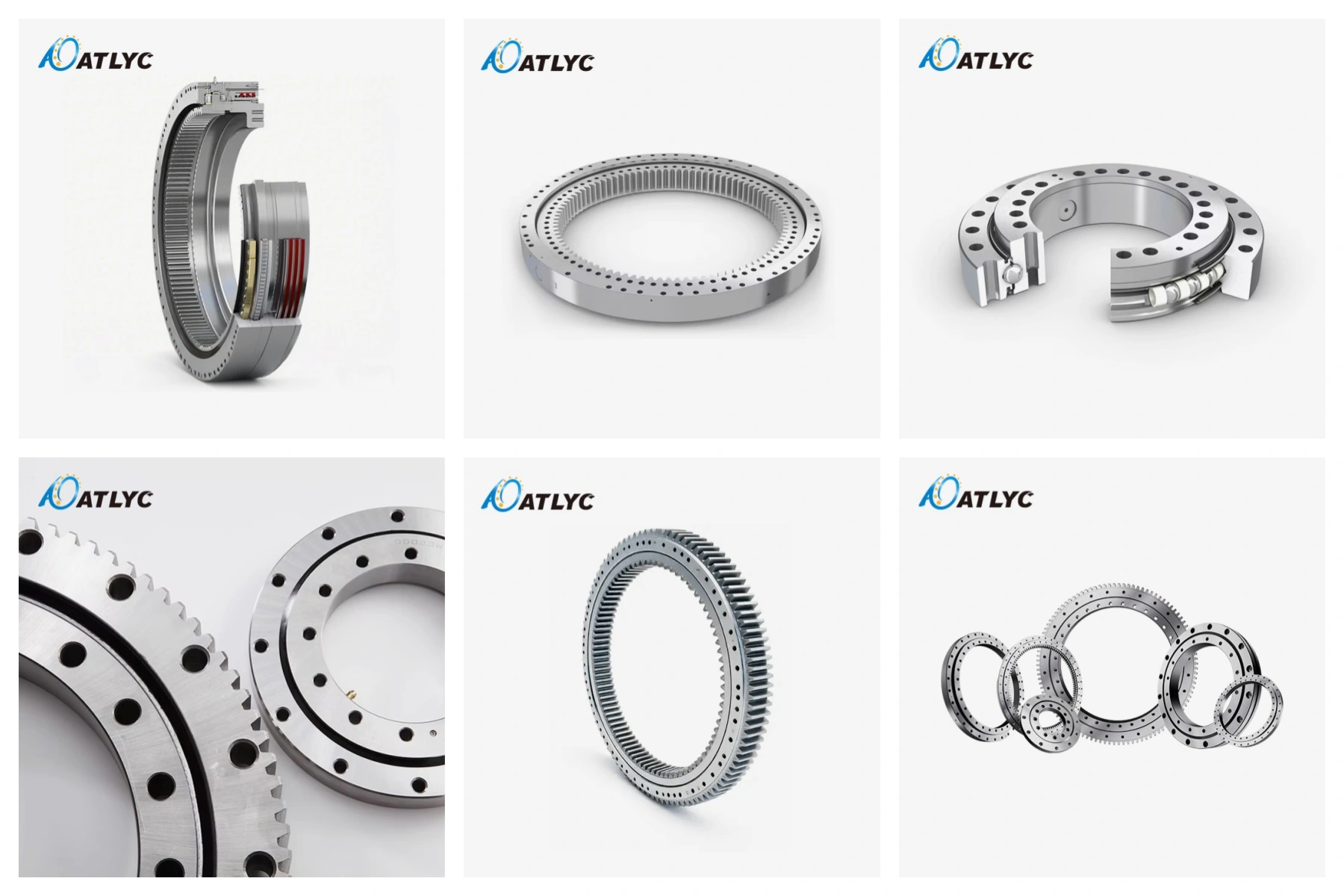

Gear Integration: Available with internal gear, external gear, or gearless designs. Geared variants support direct torque transmission for precise rotational control in heavy-duty applications.

Sealing and Protection: Double-lip sealed variants come pre-lubricated with high-temperature grease and provide dust/water resistance. Open-type configurations suit clean, controlled environments.

Material and Coating: High-strength chromium steel with carburizing/quenching heat treatment represents our standard offering. Optional stainless steel or zinc/nickel plating provides enhanced corrosion resistance for marine and offshore installations.

Lubrication Systems: Equipped with circumferential oil grooves and grease nipples for simplified maintenance. Oil-lubricated variants with W33 oil holes support high-speed or continuous-operation scenarios.

Quality Assurance and Manufacturing Excellence

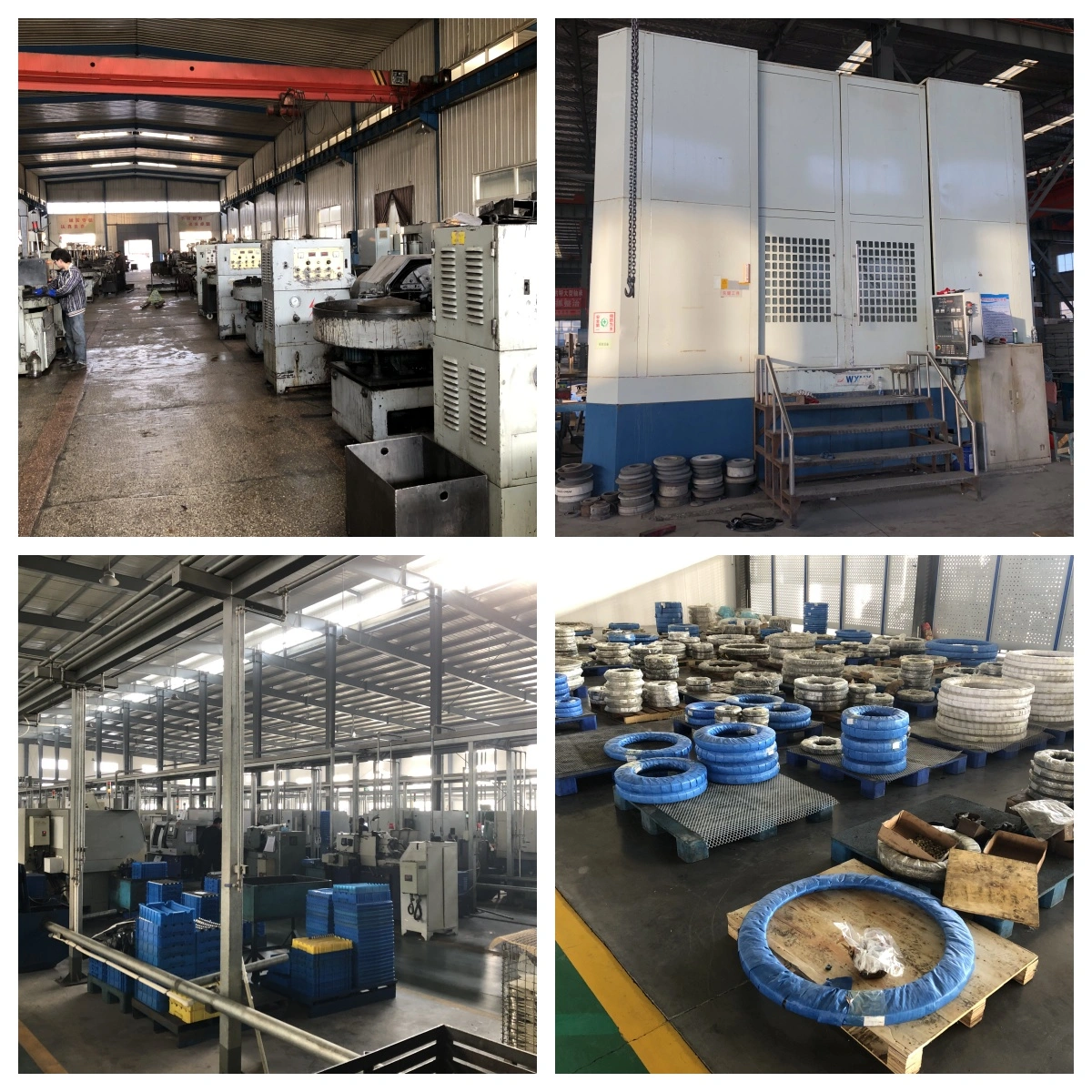

Our 30 years of bearing industry experience ensures comprehensive quality control throughout the manufacturing process. We maintain a three-level quality control system covering raw material inspection, in-process monitoring, and finished product verification.

Each bearing undergoes verification of 12 core performance indicators including vibration testing and life cycle validation. Our ex-factory qualification rate exceeds 99.9%, providing confidence for harsh industrial applications.

The modular production process enables customization cycle reduction to 70% of industry averages. For example, large non-standard bearings with φ3000mm diameter maintain delivery cycles of 15-20 days while ensuring full compliance with specifications.

Comprehensive Technical Support Services

We provide complete technical support throughout the bearing lifecycle, from initial selection through installation, operation, and maintenance. Our team of senior engineers with over 10 years of industry experience offers on-site mapping services for equipment adaptation, installation guidance, and regular inspection programs.

The Wind Turbine Slewing Bearing represents our commitment to supporting renewable energy infrastructure with reliable, high-performance bearing solutions engineered for the unique demands of wind power generation.

For detailed specifications and application consultation, contact our technical team at auto@lyautobearing.com to discuss your specific wind turbine bearing requirements.
