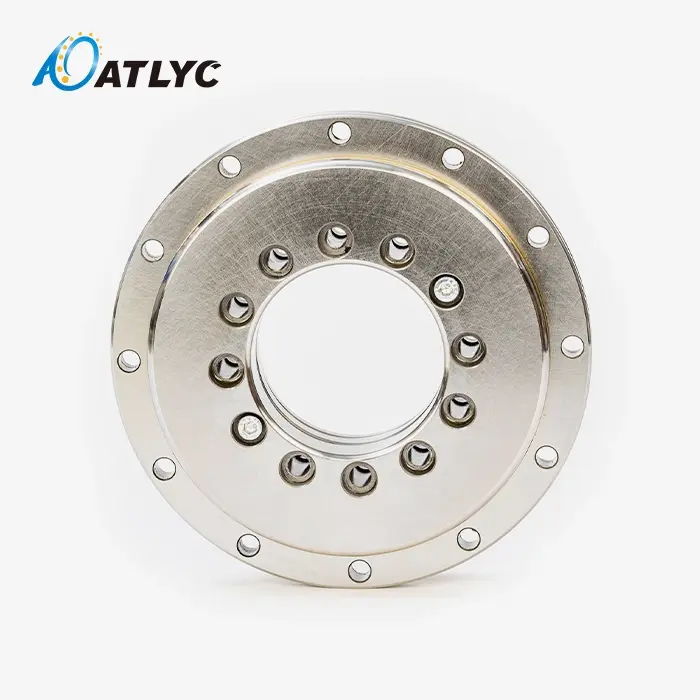

YRTC High-Speed Rotary Table Bearing

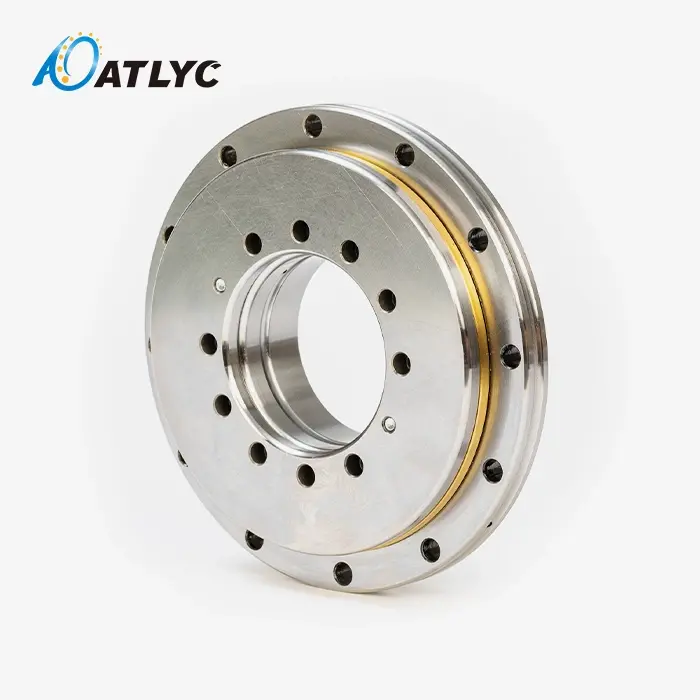

YRTC High-Speed Rotary Table Bearing: Precision Engineering for High-Performance Applications

When your CNC machining center demands both extreme rigidity and high rotational speeds, the YRTC High-Speed Rotary Table Bearing provides the critical solution. This specialized bearing represents an evolution of standard YRT technology, engineered specifically to overcome thermal and kinematic limitations in high-RPM applications. Unlike conventional bearing assemblies, the product integrates advanced cage materials and optimized internal geometry to achieve significantly higher limiting speeds while maintaining the multi-directional load capacity essential for precision machining operations.

Product Structure and Working Principle

Integrated Three-in-One Design

The YRTC bearing features a compact structure that combines thrust, radial, and moment load capabilities in a single unit. The assembly consists of:

• Outer ring (fixed ring) - provides mounting interface
• Inner ring (rotating ring) - connects to rotating components
• Precision rollers - arranged in axial and radial rows
• Advanced cage system - optimized for high-speed operation

This integrated approach eliminates complex multi-bearing arrangements. You benefit from simplified installation and reduced overall machine footprint.

High-Speed Optimization Features

The "C" designation indicates specific modifications for reduced friction torque:

• Modified cage design - minimizes rolling friction coefficient
• Optimized roller guidance - prevents skidding at high speeds
• Precision-ground raceways - ensure smooth operation with minimal vibration

Load Distribution Mechanism

The multi-row roller arrangement handles complex loading conditions:

• Two axial roller rows - manage thrust loads and tilting moments
• One radial roller row - carries radial forces
• Integrated moment capacity - resists cutting force reactions

Technical Specifications

Performance Advantages

Thermal Management

Heat generation represents the primary limitation in high-speed rotary applications. The YRTC High-Speed Rotary Table Bearing addresses this through reduced rolling friction, preventing thermal expansion that compromises positioning accuracy in 5-axis simultaneous machining.

Speed Capability

The optimized internal design allows limiting speeds significantly higher than standard YRT bearings. This enables direct-drive rotary tables to achieve turning speeds while maintaining milling rigidity.

Precision Retention

Precision-ground raceways and controlled manufacturing tolerances ensure:

• Minimal axial and radial runout
• Consistent rotational accuracy
• Long-term precision stability

Primary Applications

Direct-Drive CNC Rotating Tables

In high-speed processing and turning centers, you require both quick revolution for turning operations and extraordinary unbending nature for overwhelming cuts. The YRTC bearing gives this double capability, taking care of complex tilting minutes from cutting strengths whereas keeping up smooth rotation.

Precision Adapt Grinding

Gear fabricating requests uncommon concentricity and vibration concealment. The bearing guarantees workpiece turn meets DIN/AGMA quality benchmarks through prevalent runout control.

Medical and Metrology Equipment

High-end CT scanners and arrange measuring machines require smooth, calm operation. The item conveys the exactness required for precise information securing whereas supporting overwhelming turning components.

Machine Instrument Axle Applications

Where ordinary axle heading cannot handle the minute loads, YRTC heading bridge the crevice between shaft speed prerequisites and auxiliary unbending nature needs.

Installation and Mounting Considerations

Surface Preparation

Mounting surface levelness must coordinate the bearing's accuracy review. Uneven surfaces exchange misshapening to raceways, compromising the item accuracy.

Orientation Requirements

Standard mounting introduction is level pivot (vertical revolution). Elective introductions require interview with respect to cage solidness and oil maintenance.

Lubrication Strategy

For maximum speed operation:

• Oil-air lubrication - preferred for heat dissipation
• Grease lubrication - 30-40% fill to prevent churning
• Cooling integration - essential for continuous operation

Why Choose Luoyang Auto Bearing?

With 30 a long time of bearing industry involvement, we get it the basic part exactness heading play in your generation gear. Our comprehensive fabricating capabilities cover standard orientation up to φ5000mm distance across, with solid customization back for extraordinary requirements.

Our quality control framework guarantees each bearing experiences confirmation of 12 center execution pointers, accomplishing over 99.9% capability rates. We keep up stock of more than 1,000 standard bearing sorts, empowering 48-hour conveyance for normal orders.

Summary

The YRTC High-Speed Rotary Table Bearing represents the optimal solution when your application demands both high-speed capability and multi-directional load capacity. Through advanced engineering and precision manufacturing, these bearings enable direct-drive rotary tables to achieve the performance levels required in modern precision machining applications.

For technical consultation or custom bearing solutions, contact our engineering team at auto@lyautobearing.com. Our experienced engineers provide worldwide support for bearing selection, installation guidance, and ongoing maintenance planning.
