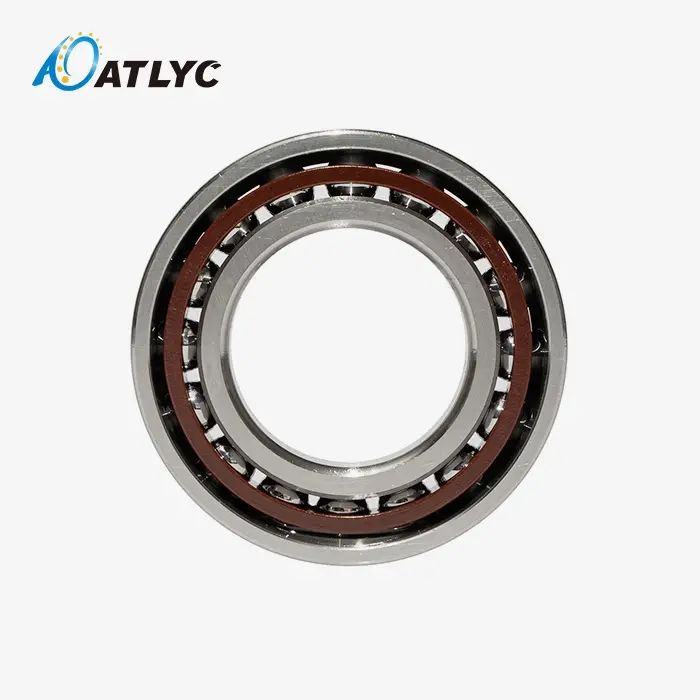

Precision Angular Contact Ball Bearing 71900C - Ultra-Compact Design for High-Speed Applications

When your CNC spindle or precision equipment demands maximum performance within minimal space, the Precision Angular Contact Ball Bearing 71900C delivers exceptional results. This ultra-light series bearing combines a compact 10mm inner diameter design with P4/P2 precision standards, making it ideal for high-speed rotating machinery where space constraints cannot compromise accuracy. The 15° contact angle configuration optimizes radial load capacity while maintaining excellent high-speed characteristics, addressing critical engineering challenges in modern precision equipment.

Technical Overview

The 71900C has a place to the ISO Measurement Arrangement 19, speaking to the most slender cross-section accessible in accuracy precise contact heading. This plan reasoning empowers you to maximize shaft distance across for expanded framework unbending nature without growing your lodging envelope.

Key Design Features

Contact Point Optimization: The 15° contact point (addition C) gives an ideal adjust between outspread stack capacity and high-speed execution. This point diminishes grinding torque compared to more extreme points, empowering supported operation at lifted speeds whereas keeping up precision.

Ultra-Light Cross-Section: The negligible 6mm width permits for improved cooling channel integration inside your axle lodging. This include gets to be basic when warm development debilitates dimensional steadiness in exactness applications.

Material Fabulousness: Fabricated from high-carbon chromium steel (GCr15), the bearing components experience specialized warm treatment forms to accomplish steady hardness and dimensional solidness over temperature variations.

Performance Advantages

High-Speed Capability: The decreased rolling component mass minimizes centrifugal powers, permitting steady operation at speeds surpassing 30,000 RPM. This characteristic demonstrates basic in CNC pounding shafts where surface wrap up quality depends on vibration-free rotation.

Thermal Administration: Lower grinding torque era decreases warm buildup amid persistent operation. This warm proficiency keeps up bearing clearances inside plan limits, avoiding untimely wear or seizure.

Precision Maintenance: P4 and P2 resilience classes guarantee running exactness inside sub-micron levels. This accuracy straightforwardly interprets to made strides portion quality in your fabricating forms.

Primary Applications

CNC Machine Tools

Small CNC lathes and machining centers utilize the 71900C in spindle assemblies where space limitations demand compact bearing solutions. The bearing's high-speed capability supports aggressive cutting parameters while maintaining surface finish requirements.

High-Speed Engraving Machines

Engraving applications require precise tool positioning at elevated speeds. The Precision Angular Contact Ball Bearing 71900C enables rapid traverse rates while eliminating tool path deviations that compromise engraving quality.

Precision Measuring Instruments

Coordinate measuring machines and optical inspection equipment depend on vibration-free rotation. The bearing's precision class ensures measurement repeatability critical for quality control applications.

Robotic Systems

Small robot joints benefit from the bearing's compact design and precision characteristics. The low friction torque reduces actuator power requirements while maintaining positional accuracy.

Mounting Configurations

Back-to-Back (DB): Gives most extreme unbending nature for applications with combined outspread and bidirectional pivotal loads. Common in shaft front bearing positions.

Face-to-Face (DF): Offers settlement for warm development whereas keeping up stack back. Regularly utilized in raise bearing positions of spindles.

Tandem (DT): Maximizes hub stack capacity in one heading. Connected in applications with tall unidirectional pushed loads.

Quality Assurance

Our comprehensive quality control framework guarantees each bearing meets rigid execution measures. Crude fabric review confirms steel composition and hardness consistency. In-process checking tracks dimensional exactness all through fabricating stages. Last assessment incorporates vibration testing, clearance estimation, and torque verification.

The three-tier quality framework accomplishes over 99.9% capability rates, giving unwavering quality basic for basic applications. Each clump experiences confirmation of 12 center pointers, counting life testing beneath genuine working conditions.

Engineering Support

With 30 a long time of bearing industry encounter, we give comprehensive specialized back for your application prerequisites. Our building group helps with bearing choice, mounting suggestions, and oil details to optimize execution in your particular working environment.

For complex establishments, we offer on-site specialized bolster counting dimensional confirmation, mounting direction, and execution approval. This benefit guarantees appropriate establishment and greatest bearing life in your hardware.

Customization Capabilities

Standard Precision Angular Contact Ball Bearing 71900C specifications meet most application requirements. However, our manufacturing capabilities support custom modifications including special cage materials, enhanced precision classes, and modified internal geometries for unique operating conditions.

Our modular production approach reduces customization lead times to 70% of industry standards while maintaining quality consistency. Custom bearing solutions undergo the same rigorous testing protocols as standard products.

Contact our technical team at auto@lyautobearing.com for detailed application analysis and bearing recommendations tailored to your specific requirements.
