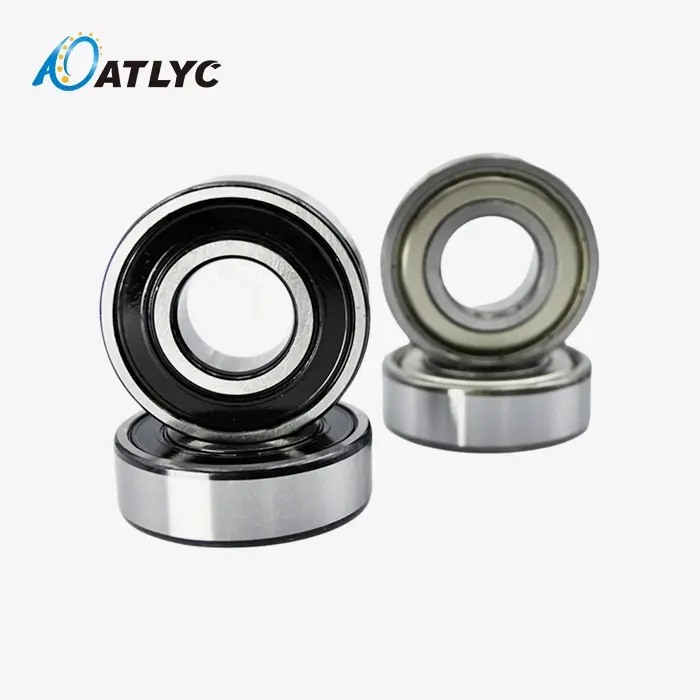

6206 Deep Ball Groove Bearing - Precision Engineered for Reliable Performance

When you require tried and true rotational back in your hardware, the 6206 deep ball groove bearing conveys demonstrated designing arrangements. This metric arrangement bearing combines standardized measurements (30mm ID × 62mm OD × 16mm width) with vigorous load-carrying capabilities. Our profound groove ball orientation highlight precision-machined raceways and high-grade chrome steel development, making them perfect for applications extending from electric engines to little control instruments. With over 30 a long time of bearing fabricating involvement, we get it the basic part these components play in your equipment's execution and unwavering quality.

Engineering Design and Working Principle

The 6206 bearing utilizes deep groove raceway geometry where the groove radius slightly exceeds the ball radius. This design creates optimal contact angles for handling combined loads.

Structural Components

Inner Ring: Precision-ground raceway with optimized surface finish for minimal friction

Outer Ring: Deep groove design enabling high radial load capacity

Steel Balls: Chrome steel spheres providing point contact for smooth rotation

Cage: Steel stamped design maintaining proper ball spacing and guidance

Load Distribution Mechanism

The deep groove configuration distributes radial forces evenly across the contact area. When axial loads are applied, the contact angle automatically adjusts within the groove, allowing bidirectional thrust load support without preloading requirements.

Performance Advantages in Real Applications

Superior Load Handling

Your equipment benefits from excellent radial load capacity due to the optimized raceway geometry. The bearing also handles moderate axial loads in both directions, eliminating the need for additional thrust bearings in many applications.

High-Speed Capability

Precision-balanced steel cages enable speeds up to 11,000 RPM with grease lubrication. This makes the 6206 deep ball groove bearing suitable for electric motor applications where consistent high-speed performance is essential.

Low Maintenance Operation

The standardized design requires minimal maintenance when properly lubricated. Sealed versions (2RS) provide internal lubrication protection, extending service intervals in contaminated environments.

Vibration Control

Our manufacturing process ensures tight dimensional tolerances, resulting in low vibration levels. This characteristic proves particularly valuable in precision equipment and office machinery applications.

Primary Application Areas

Electric Motors

The bearing's high-speed capability and low noise characteristics make it ideal for small to medium electric motors. The balanced design reduces vibration transmission to motor housings.

Small Power Tools

Robust construction handles the intermittent shock loads typical in portable power tools while maintaining smooth operation under varying load conditions.

Office Equipment

Low noise operation and precise rotational control support the demanding requirements of printers, copiers, and scanning equipment where quiet operation is essential.

Medical Devices

The bearing's precision and low vibration characteristics support sensitive medical equipment requiring smooth, reliable motion control.

Material Engineering and Quality Control

High-Grade Steel Construction

We use GCr15 chrome steel, equivalent to AISI 52100, providing excellent hardness retention and fatigue resistance. Special heat treatment processes optimize the microstructure for extended bearing life.

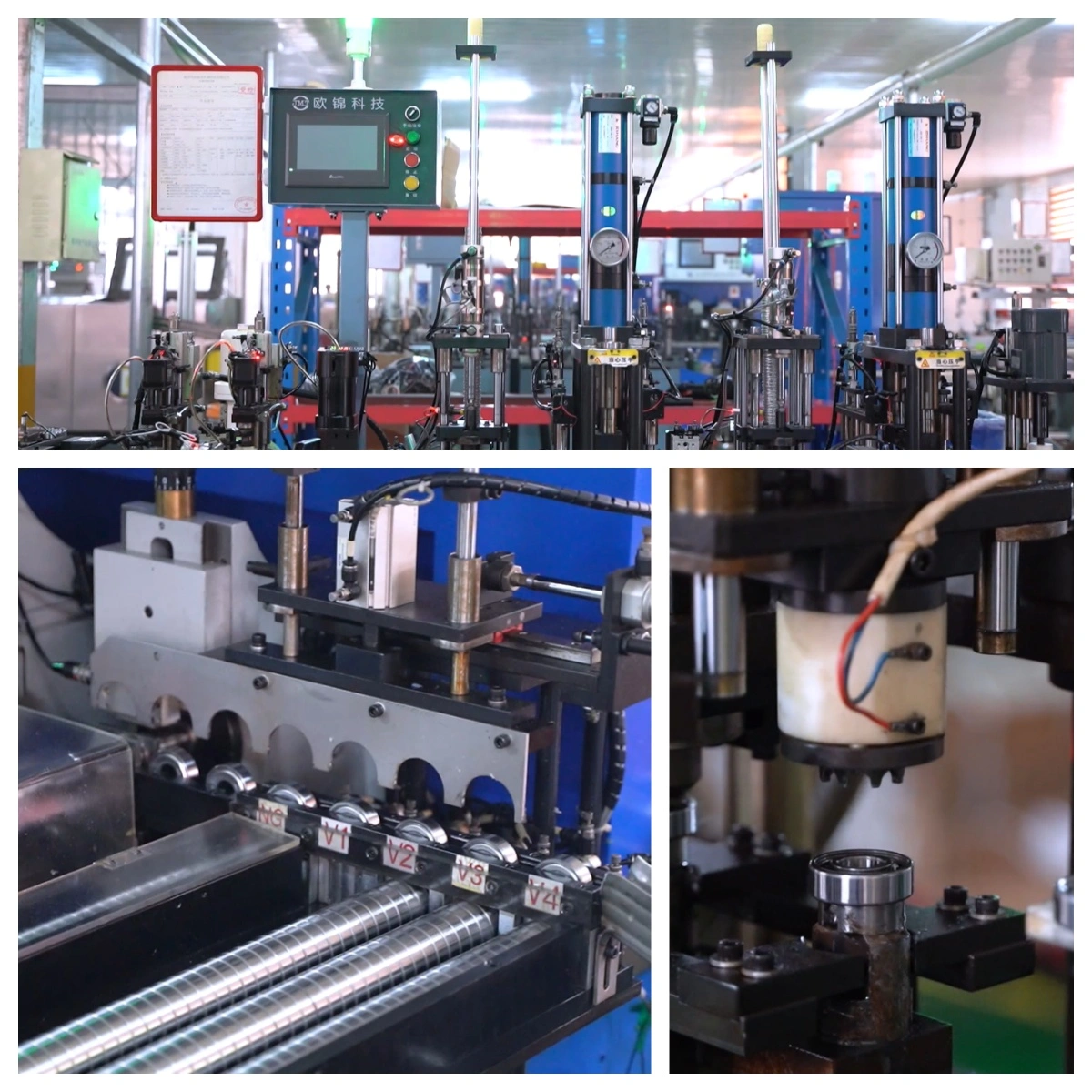

Precision Manufacturing

Each bearing undergoes precision grinding operations to achieve tight dimensional tolerances. Our three-level quality control system ensures consistent performance across all production batches.

Surface Treatment

Advanced grinding techniques create optimal surface finishes on raceways, reducing friction and wear while improving lubrication film formation.

Seal and Lubrication Options

Open Configuration

Provides maximum speed capability and allows for application-specific lubrication systems. Suitable for environments with external sealing and clean operating conditions.

Metal Shields (ZZ)

Non-contact shields protect against solid contaminants while maintaining relatively high speed capability. Ideal for dusty environments with external lubrication systems.

Rubber Seals (2RS)

Contact seals provide maximum protection against contamination and retain internal lubrication. Best choice for applications requiring extended maintenance intervals.

Why Choose Our 6206 Deep Ball Groove Bearing?

Three Decades of Manufacturing Excellence

Our 30-year focus on bearing manufacturing has developed proven processes and quality systems. We combine independent production capabilities with comprehensive supply chain integration to meet your diverse requirements.

Comprehensive Technical Support

Our engineering team provides application analysis and bearing selection guidance. We support both standard requirements and custom modifications to meet specific application needs.

Reliable Supply Chain

We maintain inventory of over 1,000 standard bearing types, enabling 48-hour delivery for regular orders. Our modular production processes reduce custom bearing lead times to 70% of industry averages.

Quality Assurance

Each bearing group experiences 12-point assessment counting vibration testing and life cycle confirmation. Our quality frameworks keep up over 99.9% manufacturing plant capability rates.

Custom Solutions and OEM Services

We get it that standard heading do not continuously meet interesting application prerequisites. Our building group can alter cage materials, alter inside clearances, or apply uncommon coatings to optimize bearing execution for your particular working conditions.

For technical consultation or custom 6206 deep ball groove bearing requirements, contact our engineering team at auto@lyautobearing.com. We're ready to help you select the optimal bearing solution for your application needs.
