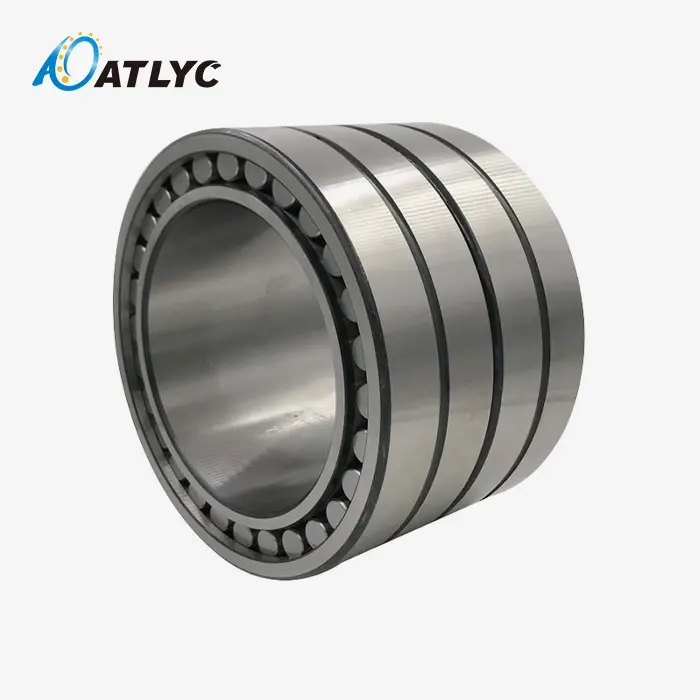

Four Row Cylindrical Roller Bearing FC series

Four Row Cylindrical Roller Bearing FC Series - Heavy-Duty Rolling Mill Solutions

When your rolling mill operations demand maximum radial load capacity within confined spaces, the Four Row Cylindrical Roller Bearing FC series delivers the engineered solution you need. This specialized bearing configuration features two outer rings with double raceways and a single solid inner ring housing four parallel rows of cylindrical rollers. The FC series excels in metal rolling mills, calendering machinery, and other high-load industrial applications where bearing stiffness directly impacts product quality and operational efficiency.

Technical Structure and Design Principles

Core Architecture

The FC arrangement utilizes a interesting auxiliary plan that maximizes load-carrying capacity through ideal roller course of action. The single internal ring development gives predominant inflexibility compared to split-ring options, whereas the four-row roller arrangement disseminates loads equitably over numerous contact points.

Working Principle

Linear contact between round and hollow rollers and raceways empowers extraordinary outspread stack dissemination. The distinguishable plan permits the internal ring to keep up obstructions fit on roll necks whereas encouraging clear mounting and getting off amid schedule upkeep cycles.

Performance Advantages

• Maximum radial load capacity among rolling element bearings
• Enhanced structural stiffness minimizing roll deflection
• High-speed capability with reduced friction compared to tapered alternatives
• Simplified maintenance through separable design

Industrial Applications and Use Cases

Rolling Mill Operations

The Four Row Cylindrical Roller Bearing FC series serves as the primary bearing solution for work rolls in hot and cold rolling mills. The bearing absorbs immense rolling forces while maintaining precise positioning under extreme operating conditions.

High-Speed Wire Rod Mills

In wire rod production, these bearings operate in challenging environments with high contamination levels and rotational speeds exceeding 60 m/s. The FC series accommodates thermal expansion while preventing shaft seizure.

Calendering Machinery

Paper and plastic processing equipment requires exceptional radial runout accuracy. The bearing's high stiffness prevents deflection under hydraulic pressure, ensuring uniform sheet thickness.

Material Properties and Manufacturing Standards

Advanced Metallurgy

Our bearings utilize vacuum-degassed GCr15 steel with specialized heat treatment achieving 58-64 HRC hardness for optimal fatigue resistance. Roller crowning prevents edge stress concentration under heavy loads.

Precision Manufacturing

Manufactured to ISO 492 standards with P6 or P5 precision classes ensuring minimal runout. Quality control includes vibration testing and life cycle verification with 99.9% qualification rates.

Frequently Asked Questions

Q: Does the FC arrangement handle pivotal loads?

A: The FC arrangement is planned only for spiral loads. Hub strengths require partitioned pushed bearing courses of action in your bearing framework design.

Q: What recognizes FC from FCD series?

A: The FC arrangement highlights a single strong internal ring, whereas FCD employments two part inward rings. This gives superior auxiliary judgment for more extensive roll neck applications.

Q: What oil strategies work best?

A: Oil-mist or air-oil grease frameworks successfully oversee warm scattering and defilement evacuation in high-speed applications, in spite of the fact that oil grease remains reasonable for standard operations.

Why Choose Luoyang Auto Bearing?

With 30 years of bearing industry experience, we provide comprehensive solutions through integrated R&D, manufacturing, and supply chain capabilities. Our facility produces standard bearings up to φ5000mm outer diameter while offering customized non-standard solutions.

Quality Assurance

• Three-level quality control system
• 12-point inspection protocol
• P4-level precision capabilities
• Temperature resistance up to 500℃

Supply Chain Excellence

• Stock of 1,000+ standard bearing types
• 48-hour delivery for regular orders
• Customization cycle reduced to 70% of industry average
• Global logistics network

The Four Row Cylindrical Roller Bearing FC series represents our commitment to engineering excellence in heavy-duty applications. Contact our technical team at auto@lyautobearing.com for application-specific guidance and custom solutions tailored to your operational requirements.
