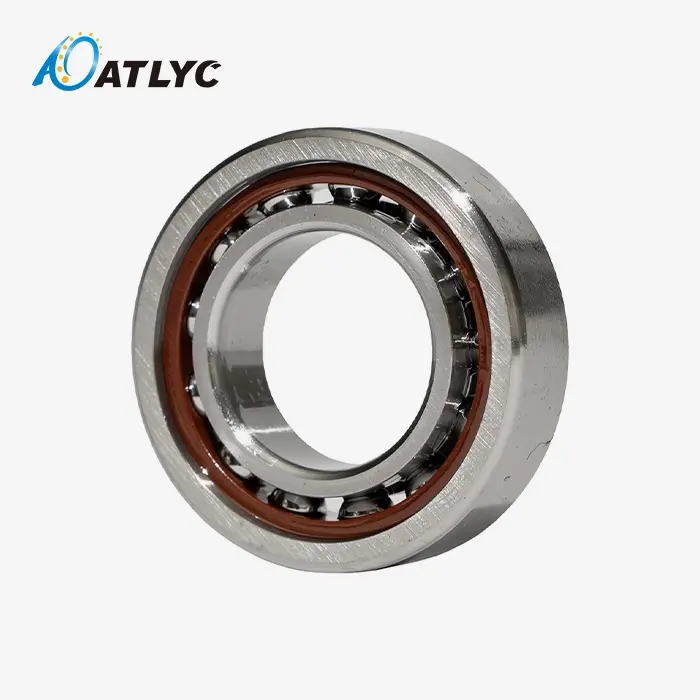

7211AC Angular Contact Ball Bearing

7211AC Angular Contact Ball Bearing - Precision Engineering for Critical Applications

When your machinery demands exceptional precision and reliable performance under combined loads, the 7211AC Angular Contact Ball Bearing delivers the engineering solution you need. This single-row angular contact bearing features a precisely engineered 25° contact angle that optimizes both radial and axial load capacity while maintaining high-speed capabilities. With dimensions of 55mm inner diameter, 100mm outer diameter, and 21mm width, this bearing represents the ideal balance between load capacity and speed performance for demanding industrial applications.

The design philosophy behind this bearing addresses critical challenges in modern machinery. You'll find it particularly valuable when dealing with complex loading conditions where standard deep groove bearings fall short. The 25° contact angle provides superior axial rigidity compared to standard radial bearings while offering better high-speed characteristics than steeper angle variants.

Engineering Advantages and Performance Benefits

Optimized Contact Point Design

The 25° contact point speaks to cautious building optimization. This point gives you with an perfect compromise between pivotal stack capacity and speed capability. Not at all like 15° heading that exceed expectations as it were in speed or 40° variations constrained to overwhelming hub loads, this setup handles both necessities effectively.

Superior Fabric Properties

Manufactured from vacuum-degassed high-carbon chromium bearing steel (GCr15), these orientation convey remarkable weariness resistance. The fabric experiences specialized warm treatment to accomplish 60-64 HRC hardness, guaranteeing long benefit life indeed beneath requesting working conditions.

Precision Fabricating Standards

Available in different exactness classes (P5, P4, P2), you can select the correct resistance level your application requires. Higher accuracy classes offer moved forward running exactness, decreased vibration, and improved shaft situating accuracy.

Cage Innovation Options

The bearing joins progressed cage plans utilizing either Bakelite or Nylon materials. Bakelite cages give fabulous high-speed execution and dimensional soundness, whereas Nylon cages offer prevalent affect resistance and calmer operation.

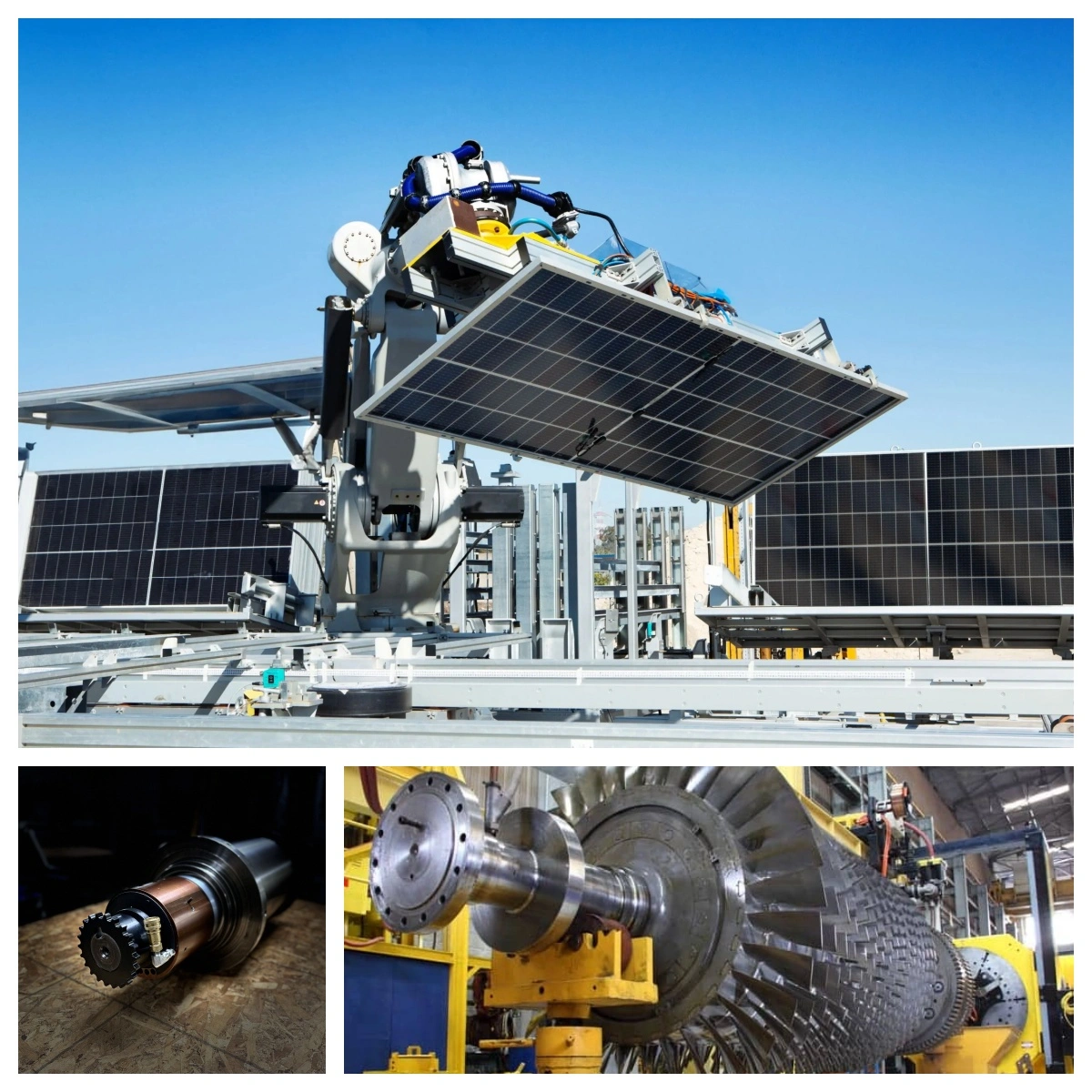

Primary Applications

Machine Tool Spindles

In CNC machining applications, these bearings excel when mounted in back-to-back (DB) configurations. They effectively manage cutting forces while maintaining precise shaft alignment at speeds exceeding 10,000 RPM. The design prevents thermal issues common with tighter contact angles.

Electric Motor Applications

For high-performance electric motors, the 7211AC Angular Contact Ball Bearing provides the axial location and radial support necessary for efficient operation. The balanced load capacity ensures smooth rotation while handling magnetic forces and thermal expansion.

Precision Pumps and Fluid Machinery

In centrifugal pumps and similar equipment, these bearings manage both the radial loads from rotating impellers and axial thrust from fluid pressure differentials. The design ensures low vibration operation that protects seals and extends equipment life.

Construction and Heavy Machinery

When your equipment faces variable loads and harsh operating conditions, this bearing's robust design provides reliable performance. The combination of load capacity and precision makes it suitable for hydraulic systems, gear reducers, and other critical components.

Mounting Configurations and Installation

Back-to-Back (DB) Arrangement

This setup gives most extreme pivotal unbending nature and is favored for applications requiring exact shaft situating. Both heading share outspread loads whereas taking care of pivotal powers in inverse directions.

Face-to-Face (DF) Arrangement

DF mounting offers great pivotal unbending nature with the advantage of obliging warm development. This setup works well when shaft warm development is a consideration.

Installation Considerations

Proper preload application is basic for ideal execution. Deficiently preload can cause ball slipping and clamor, whereas over the top preload leads to overheating and untimely disappointment. Our building group can give particular preload proposals for your application.

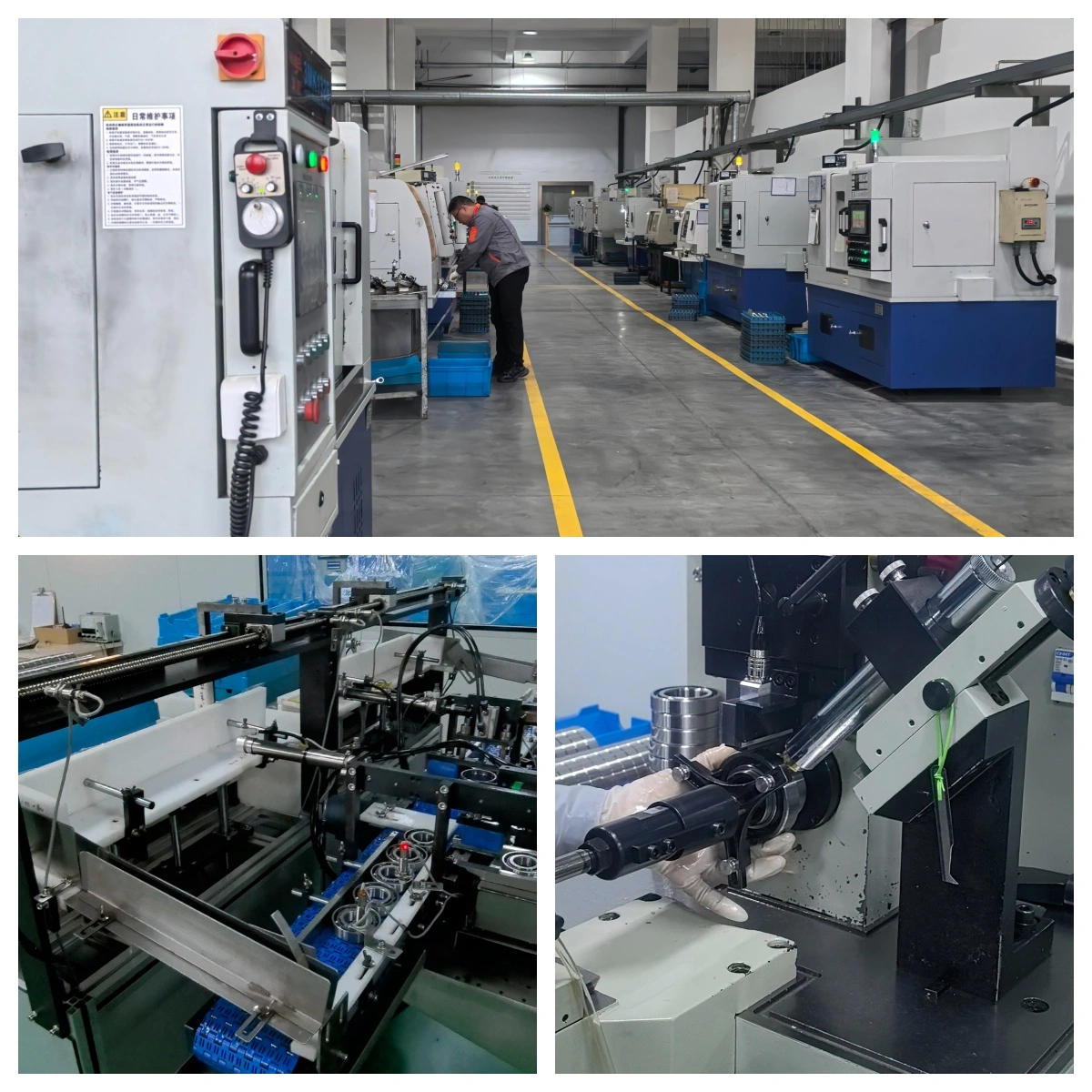

Quality Assurance and Manufacturing Excellence

With 30 a long time of bearing fabricating involvement, we keep up strict quality control all through generation. Each item experiences comprehensive testing counting vibration examination and dimensional confirmation. Our three-level quality control framework guarantees over 99.9% capability rate some time recently shipment.

The fabricating handle joins accuracy pounding innovation and specialized warm treatment strategies. We keep up stock of standard setups whereas advertising customization capabilities for uncommon prerequisites counting altered cages, uncommon clearances, or upgraded fixing alternatives.

Technical Support and Service

Our experienced engineering team provides comprehensive technical support for bearing selection, installation guidance, and troubleshooting assistance. We understand that proper bearing application is crucial for equipment reliability and offer detailed application analysis to ensure optimal performance.

For complex installations or retrofits, we provide on-site mapping services and custom engineering solutions. Our global technical support includes 24-hour consultation availability and regular maintenance planning assistance.

Whether you need standard 7211AC Angular Contact Ball Bearing configurations or require customization for specific applications, we deliver engineering solutions that meet your performance requirements. Contact our technical team at auto@lyautobearing.com to discuss your specific bearing requirements and receive professional application guidance.

Our commitment extends beyond product delivery to include comprehensive lifecycle support, ensuring your machinery operates efficiently throughout its service life with optimal bearing performance.
