high speed cylindrical roller bearings NJ307

High Speed Cylindrical Roller Bearings NJ307 - Professional Industrial Solution

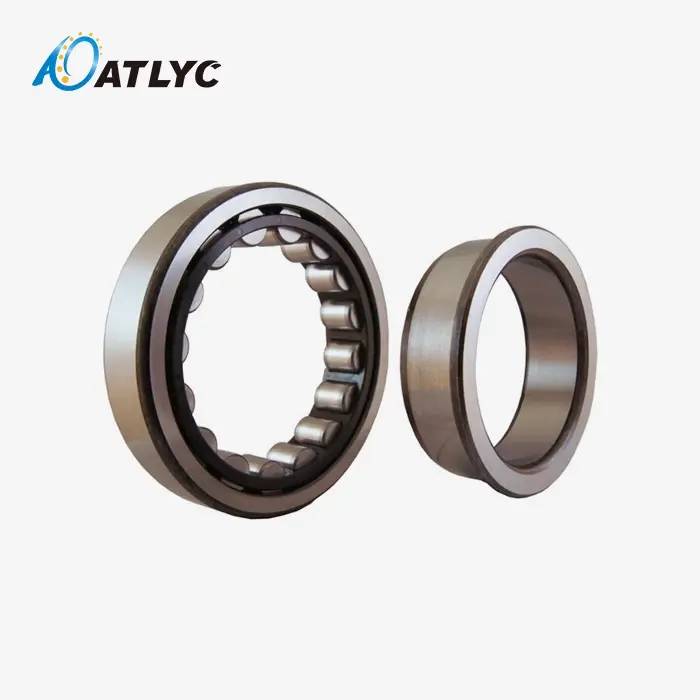

When your equipment demands reliable performance at elevated rotational speeds, high speed cylindrical roller bearings NJ307 deliver the precision engineering solution you need. These specialized bearings combine a 35mm bore diameter with advanced cage technology and optimized internal geometry to handle medium radial loads while maintaining kinematic stability at speeds exceeding 7,500 RPM. The NJ307 configuration features two integral ribs on the outer ring and a single rib on the inner ring, enabling effective shaft location while accommodating thermal expansion in your rotating machinery.

Technical Specifications and Design Features

The NJ307 bearing design incorporates proven engineering principles that address the specific challenges of high-speed operation. The separable construction allows for simplified installation and maintenance, while the precision-machined raceways ensure consistent performance under demanding conditions.

The logarithmic roller profile eliminates edge loading stresses that commonly cause premature failure in standard bearings. Super-finished raceways with surface roughness below 0.1 μm maintain hydrodynamic lubrication films essential for high-speed operation.

Performance Advantages in High-Speed Applications

The engineering design of these bearings addresses three critical performance requirements. First, the radial load capacity handles heavy mechanical loads while maintaining rotational accuracy. Second, the axial location capability in one direction manages shaft thermal expansion without binding. Third, the optimized cage design minimizes friction and prevents roller skidding during rapid acceleration.

For applications requiring C3 radial internal clearance, the bearing compensates for thermal differential between inner and outer rings during high-speed operation. This prevents the bearing from developing excessive preload that could lead to seizure or reduced service life.

The machined brass cage option provides superior performance compared to pressed steel cages in high-speed applications. The brass construction offers better dimensional stability under centrifugal forces and improved lubrication retention properties.

Industrial Applications and Use Cases

High speed cylindrical roller bearings NJ307 find primary application in three key industrial sectors:

Electric Engine Applications: In medium-frame mechanical engines, these orientation serve at the non-drive conclusion where they must handle shaft warm stretching whereas keeping up exact rotor situating. Variable recurrence drive engines especially advantage from the NJ307's capacity to oversee one-way pivotal loads produced by electromagnetic forces.

Transmission and Gearbox Frameworks: The bearing's strong spiral stack capacity makes it appropriate for high-speed input shafts in car and mechanical transmissions. The plan viably handles fitting loads from helical gears whereas working in oil-bath situations at temperatures coming to 120°C.

Centrifugal Gear: Compressors and blowers utilize these heading where vitality productivity requests negligible contact misfortunes. The high-speed cage plan anticipates slipping amid start-stop cycles, a common disappointment mode that diminishes gear reliability.

Additional applications incorporate passing on apparatus, carpentry gear, and nourishment preparing frameworks where direct spiral loads combine with maintained high-speed operation.

Installation and Maintenance Considerations

Proper establishment requires consideration to shaft and lodging resiliences, especially for high-speed applications. The bearing's distinct plan permits the inward ring get together to be mounted freely from the external ring, streamlining establishment on complex shaft geometries.

Lubrication determination essentially impacts execution. For greatest speed capability, oil-mist or oil-air oil frameworks give ideal warm scattering. When oil oil is utilized, fill as it were 30% of the free space to minimize churning resistance that might constrain rotational speed.

Misalignment affectability requires cautious consideration amid establishment. Whereas the logarithmic roller profile suits minor diversions up to 3-4 minutes of circular segment, noteworthy misalignment causes edge stacking and untimely failure.

Quality Assurance and Manufacturing Standards

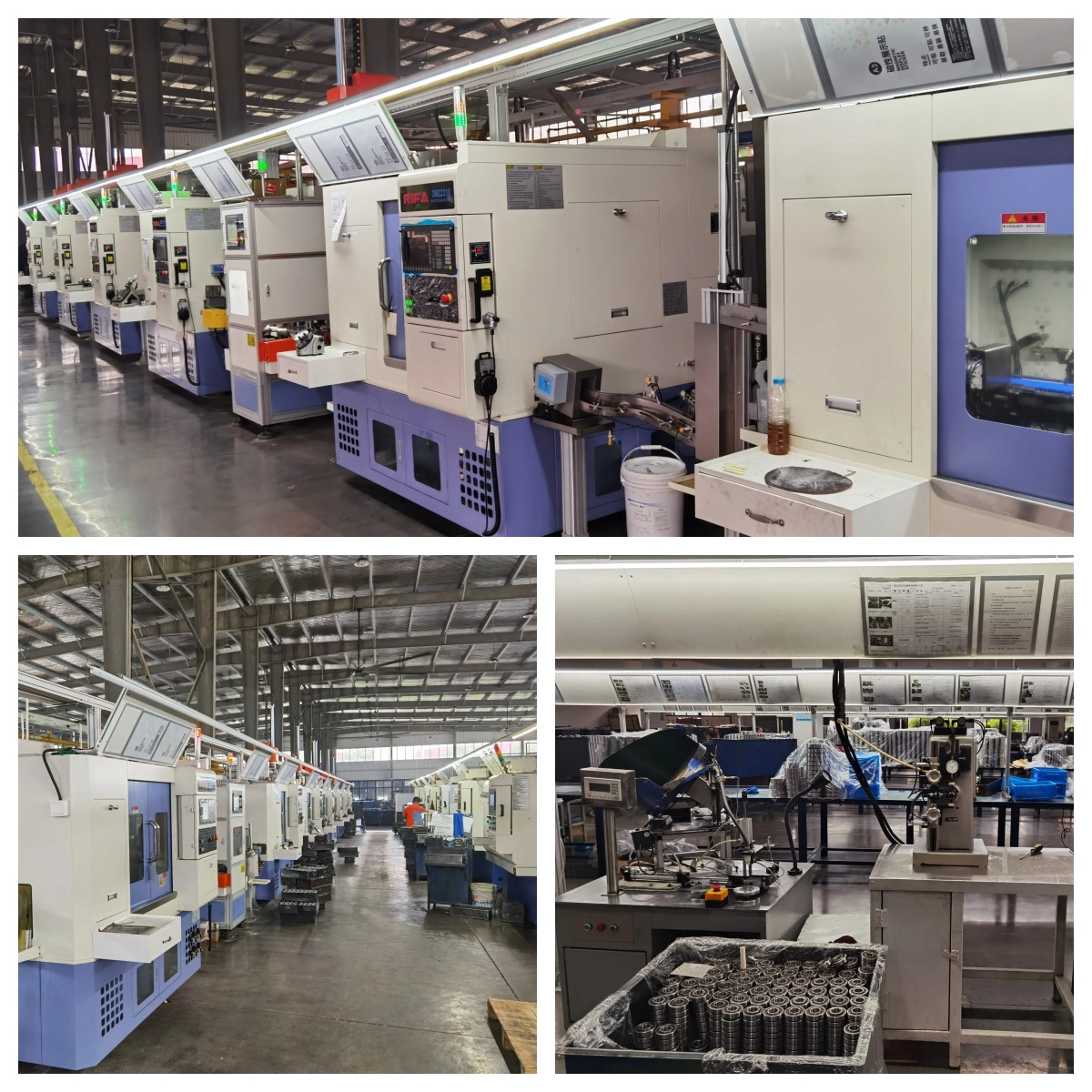

Our fabricating handle joins vacuum-degassed bearing steel and specialized warm treatment to accomplish reliable fabric properties. Each bearing experiences comprehensive testing counting vibration examination, dimensional confirmation, and stack capacity validation.

The three-level quality control framework guarantees reliable execution through crude fabric assessment, in-process checking, and last item confirmation. Twelve center execution markers are confirmed for each generation group, accomplishing an ex-factory capability rate surpassing 99.9%.

Quality measures comply with ISO and Clamor details, with exactness classes extending from P0 for common mechanical utilize to P5 for exactness applications requiring negligible runout and upgraded rotational exactness.

Supply and Customization Services

Standard high speed cylindrical roller bearings NJ307 are available for delivery within 7 working days from our maintained inventory of over 1,000 bearing types. For applications requiring modified specifications, our engineering team provides customization services including special cage materials, enhanced sealing, or modified internal geometry.

Our 30 years of bearing industry experience enables comprehensive technical support from initial selection through installation and maintenance planning. We provide detailed application analysis to ensure optimal bearing selection for your specific operating conditions.

For technical consultation or to discuss your specific application requirements, contact our engineering team at auto@lyautobearing.com. Our global technical support network provides localized service while maintaining consistent quality standards across all products and services.
