NJ Series Roller Bearings

NJ Series Roller Bearings - Professional Engineering Solutions

NJ Series Roller Bearings feature a distinctive design with double flanges on the outer ring and a single flange on the inner ring, making them ideal for applications requiring unidirectional axial location. These separable bearings solve critical engineering challenges in machine tool spindles, motors, and pump assemblies where standard ball bearings fail under demanding operating conditions. With their proven track record in industrial applications, the productss deliver exceptional performance when you need precision and reliability.

What Are NJ Series Roller Bearings?

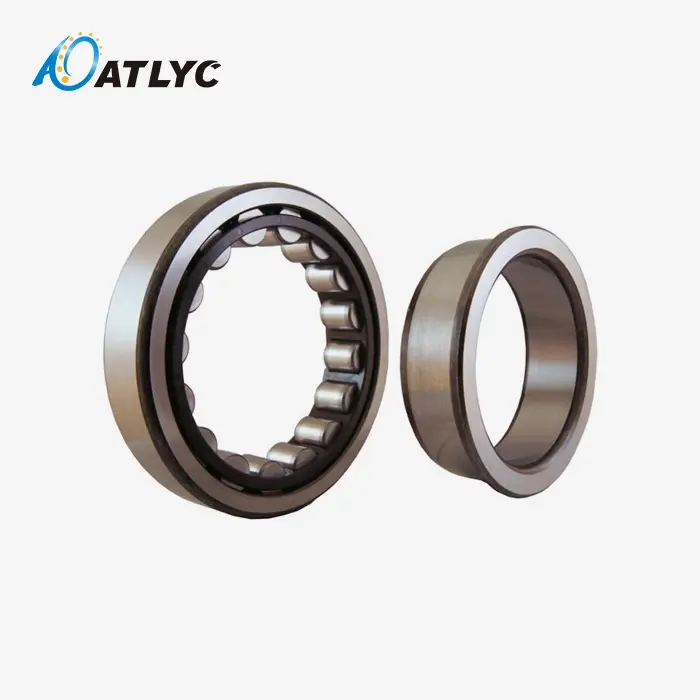

The products represent a specialized category of single-row cylindrical roller bearings engineered for specific industrial applications. The design features two integral flanges on the outer ring and one integral flange on the inner ring, creating a semi-locating bearing configuration.

This unique structure allows the bearing to:

• Guide the shaft axially in one direction
• Accommodate thermal expansion in the opposite direction
• Provide simplified mounting through separable design
• Handle heavy radial loads with excellent stiffness

The separable inner ring design enables independent mounting, significantly reducing assembly time and maintenance complexity in interference fit applications.

Design Features and Working Principle

Structural Configuration

The NJ bearing plan consolidates a few building principles:

Outer Ring: Highlights two indispensably spines that contain the roller set and give basic keenness. These ribs keep up exact roller arrangement amid operation.

Inner Ring: Contains a single fundamentally rib situated to permit unidirectional hub direction whereas allowing warm development in the inverse direction.

Roller Set: Round and hollow rollers give line contact with the raceways, conveying loads over a bigger contact region compared to ball bearings.

Cage Get together: Keeps up appropriate roller dividing and avoids sliding amid increasing speed and deceleration stages.

Working Principle

The bearing operates on the principle of rolling contact between cylindrical rollers and the inner and outer ring raceways. The single inner ring flange creates a semi-locating configuration that:

1. Supports radial loads through the roller-raceway contact
2. Provides axial location in one direction via the inner ring flange
3. Allows axial displacement for thermal compensation
4. Enables high-speed operation through optimized internal geometry

Performance Advantages

Load Handling Capability

NJ Series Roller Bearings excel in applications requiring:

• High radial load capacity due to line contact geometry
• Moderate unidirectional axial loads through flange support
• Shock and impact load resistance in industrial environments

Operational Benefits

Separable Design: The inner ring mounts independently, facilitating interference fits on both shaft and housing without assembly complications.

Maintenance Efficiency: Bearing replacement requires minimal equipment disassembly, reducing downtime in production environments.

Thermal Compensation: The semi-locating design accommodates shaft expansion while maintaining proper axial positioning.

Primary Applications

Machine Tool Spindles

In precision machining applications, these bearings provide the rigidity and accuracy required for maintaining tight tolerances while handling cutting forces.

Electric Motors

The bearings support rotor assemblies in medium to large motors, accommodating both the radial magnetic forces and thermal expansion during operation.

Industrial Pumps

Pump applications benefit from the bearing's ability to handle both hydraulic forces and axial thrust while maintaining reliable operation in continuous-duty cycles.

Additional Applications

• Gearbox applications requiring axial location
• Conveyor drive systems
• Paper mill machinery
• Textile equipment

Quality and Manufacturing Standards

Our fabricating prepare takes after strict quality protocols:

Material Determination: Premium bearing steel guarantees ideal weariness life and dimensional solidness beneath working loads.

Heat Treatment: Controlled solidifying and treating forms accomplish ideal hardness dispersion and leftover stretch patterns.

Precision Crushing: Progressed crushing methods provide the surface wrap up and dimensional exactness required for smooth operation.

Quality Confirmation: Each bearing experiences comprehensive testing counting vibration examination, dimensional confirmation, and stack testing to guarantee compliance with universal standards.

Custom Solutions and Services

We get it that standard heading may not meet each application prerequisite. Our building group provides:

Custom Measuring: Non-standard measurements to fit particular gear requirements

Special Materials: Elective steel grades or surface medications for interesting environments

Modified Geometry: Custom fitted inside clearances or cage configurations

Application Designing: Specialized back for bearing choice and application optimization

Why Choose Our NJ Series Roller Bearings?

With 30 years of bearing manufacturing experience, we combine proven expertise with modern production capabilities. Our integrated approach ensures:

• Consistent quality through comprehensive testing protocols
• Reliable supply chain with standard bearing inventory
• Technical support from experienced bearing engineers
• Customization capabilities for specialized requirements

We maintain stock of over 1,000 bearing types, enabling rapid delivery for standard requirements while our modular production system reduces custom bearing lead times significantly.

Technical Support and Consultation

Our technical team provides comprehensive support throughout the bearing lifecycle:

• Application analysis and bearing selection guidance
• Installation and maintenance recommendations
• Performance optimization consulting
• Troubleshooting and failure analysis

Whether you're designing new equipment or optimizing existing machinery, NJ Series Roller Bearings provide the reliability and performance your applications demand.

For detailed technical specifications, custom bearing requirements, or application consultation, contact our engineering team at auto@lyautobearing.com. We're committed to providing the bearing solutions that keep your equipment running efficiently and reliably.
