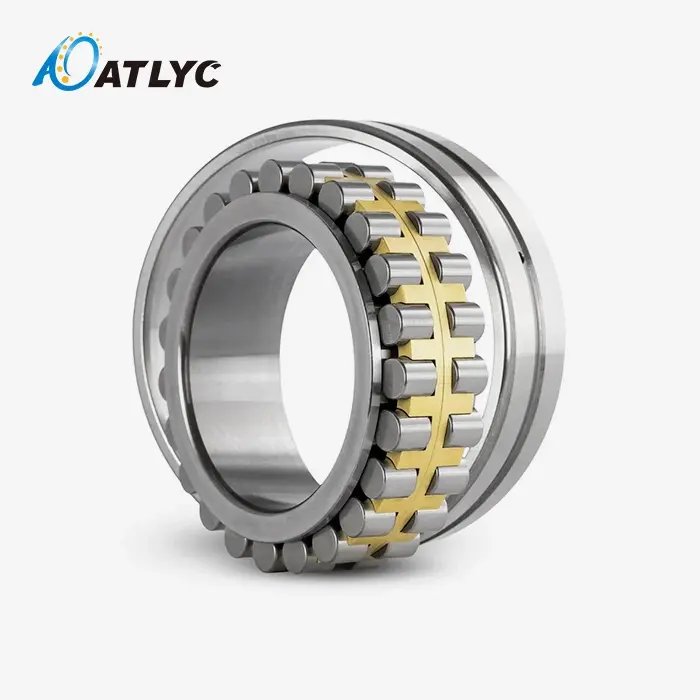

The Double Row Cylindrical Roller Bearing NN3010 represents an advanced engineering solution designed specifically for high-precision machine tool spindles requiring exceptional radial stiffness and superior rotational accuracy. This bearing features ISO dimension series 30 with a bore code of 10, incorporating 50mm bore diameter, 80mm outer diameter, and 23mm width. The NN configuration includes three integral ribs on the inner ring paired with a ribless outer ring design. This architecture provides separability and controlled axial displacement capabilities, effectively addressing critical industry challenges including high load capacity at elevated speeds and thermal expansion compensation in precision machinery applications.

Design Structure and Working Principle

The NN3010 utilizes a modern double-row roller setup that maximizes outspread stack capacity whereas keeping up compact measurements. The bearing structure comprises of two parallel lines of round and hollow rollers situated between uncommonly planned inward and external ring raceways.

The internal ring highlights three indispensably spines that direct and hold the rollers amid operation. The ribless external ring plan permits pivotal development, making this bearing perfect for coasting applications where warm development must be obliged without actuating inner stress.

The machined brass cage isolates person rollers, keeping up exact dividing and anticipating roller-to-roller contact amid high-speed turn. This plan minimizes grinding, diminishes warm era, and amplifies operational life beneath requesting conditions.

Performance Advantages

Superior Radial Rigidity

The double-row configuration provides significantly higher stiffness compared to single-row alternatives. This enhanced rigidity effectively eliminates spindle deflection under heavy cutting loads, ensuring dimensional accuracy in precision machining operations.

Thermal Compensation Capability

The ribless outer ring design functions as an ideal floating bearing arrangement. When shaft thermal expansion occurs during operation, the bearing accommodates dimensional changes without developing harmful internal preloads that could compromise performance.

High-Speed Performance

Advanced manufacturing processes including super-finished raceways and precision heat treatment enable reliable operation at speeds exceeding 12,000 RPM when properly lubricated and mounted.

Load Distribution Optimization

Linear contact between rollers and raceways distributes loads across extended contact zones, reducing stress concentrations and enhancing fatigue resistance under variable loading conditions.

Primary Applications

CNC Machine Tool Spindles

In precision machining centers and lathes, the NN3010 serves as the primary radial support bearing. Its exceptional rigidity maintains sub-micron accuracy during extended machining cycles while accommodating thermal growth from spindle heating.

Grinding Machine Applications

Cylindrical and surface grinding operations demand absolute vibration control to prevent surface chatter marks. The Double Row Cylindrical Roller Bearing NN3010 provides the necessary stiffness to eliminate harmful vibrations while allowing thermal compensation in high-precision grinding heads.

High-Speed Milling Centers

When paired with angular contact ball bearings for thrust load handling, this bearing manages primary radial forces in high-speed milling applications. Its robust design withstands intermittent cutting forces and coolant exposure common in modern machining environments.

Installation and Mounting Considerations

Appropriate establishment requires consideration to cleanliness and accuracy mounting strategies. The divisible plan encourages gathering but requests contamination-free dealing with to secure raceway surfaces.

For applications requiring zero clearance or controlled preload, the decreased bore adaptation (NN3010K) empowers exact alteration through controlled impedances fitting. Proficient mounting gear guarantees appropriate establishment without actuating destructive stretch concentrations.

Quality Assurance and Manufacturing Excellence

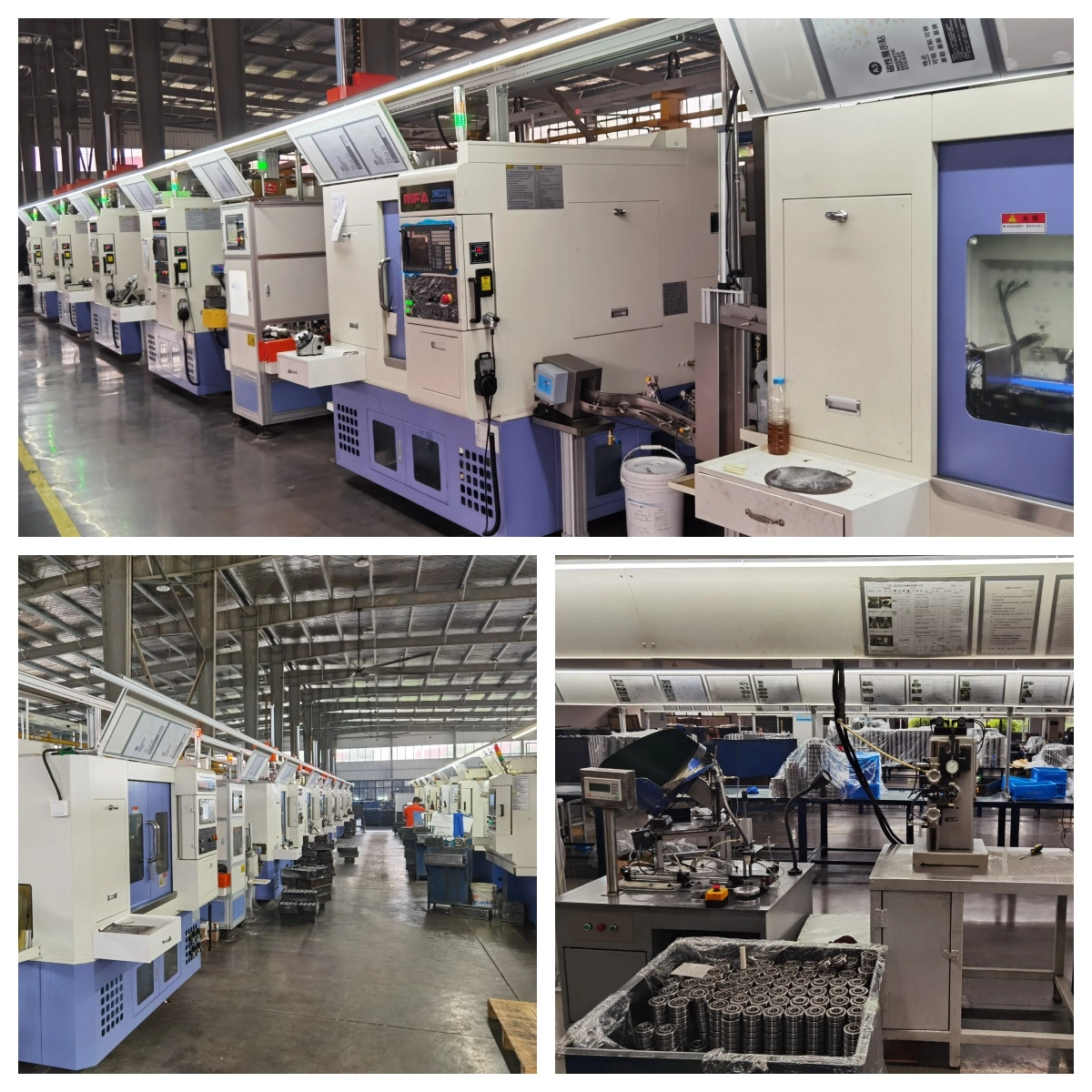

Our 30 a long time of bearing industry encounter guarantees steady quality through thorough fabricating controls. Each bearing experiences comprehensive testing counting vibration examination, dimensional confirmation, and stack rating validation.

The three-level quality control framework envelops crude fabric assessment, in-process observing, and last item confirmation. This precise approach accomplishes over 99.9% capability rates, guaranteeing solid execution in basic applications.

Advanced warm treatment forms and accuracy pounding innovation optimize fabric properties for upgraded wear resistance, temperature steadiness, and dimensional precision maintenance all through the bearing's operational life.

Technical Support and Service

Professional building back incorporates application examination, mounting direction, and operational optimization suggestions. Our specialized group gives around the world establishment help and upkeep counseling to maximize bearing execution and benefit life.

For custom necessities or particular application challenges, our designing division offers plan alteration administrations and model advancement. This adaptability guarantees ideal bearing arrangements for one of a kind operational requests.

Contact our technical specialists at auto@lyautobearing.com for detailed application analysis and product selection assistance. Our comprehensive bearing solutions combine decades of manufacturing expertise with responsive customer support to solve your most challenging rotational equipment requirements.

The Double Row Cylindrical Roller Bearing NN3010 delivers the precision, reliability, and performance characteristics essential for modern industrial machinery success.
