Needle Roller Bearing K series

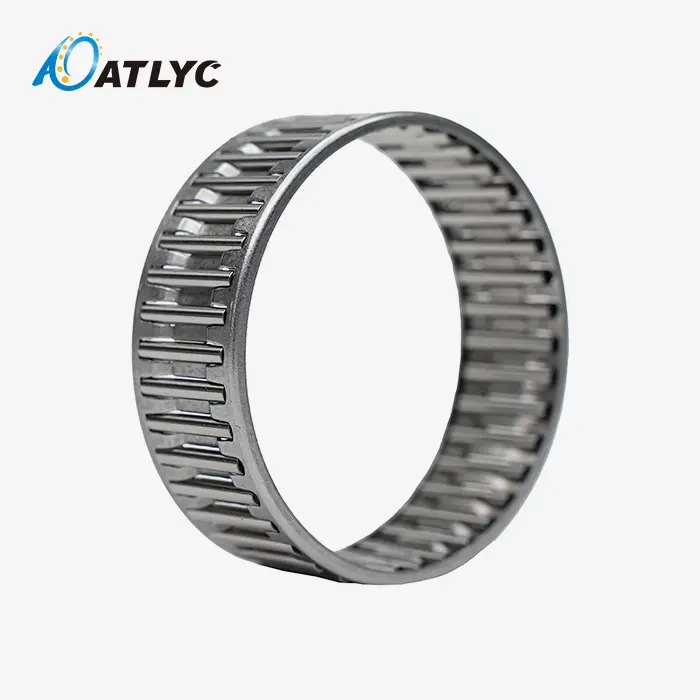

Needle Roller Bearing K Series - Radial Needle Roller and Cage Assembly

When you require most extreme stack capacity in negligible spiral space, the Needle Roller Bearing K series conveys the ideal arrangement for your mechanical applications. This specialized bearing arrangement comprises exclusively of exactness needle rollers and a cage gathering, disposing of both internal and external rings to accomplish the most compact spiral cross-section conceivable. Your shaft and lodging bore serve specifically as raceways, making this plan perfect for gearboxes, bike motors, and car interfacing poles where space limitations are critical.

Product Overview

The item speaks to a essential headway in rolling bearing innovation. Not at all like routine heading with strong rings, this setup gives extraordinary load-carrying capacity inside amazingly restricted spiral envelope imperatives.

Technical Structure

The bearing assembly comprises two primary components:

• Precision needle rollers: High-grade steel cylindrical elements with length-to-diameter ratios typically ranging from 3:1 to 10:1
• Cage assembly: Steel stamped or PA66 polymer retainer maintaining optimal roller spacing and guidance

This simplified structure eliminates the radial thickness of bearing rings, reducing the total radial section to only the needle roller diameter. Your mechanical design benefits from increased shaft diameter potential within existing housing constraints.

Working Principle and Performance Advantages

Load Distribution Mechanism

The needle rollers distribute radial loads across multiple contact points along the raceway surfaces. Each roller maintains line contact with both the shaft and housing bore, creating superior load distribution compared to point contact systems. This configuration enables the bearing to handle substantial radial forces while maintaining smooth rotational motion.

Space Optimization Benefits

By utilizing your shaft and housing as integral raceway components, the Needle Roller Bearing K series achieves maximum space efficiency. This design allows you to:

• Increase shaft diameter for enhanced rigidity within existing housing envelopes
• Reduce overall assembly weight and material requirements
• Simplify bearing mounting procedures in confined spaces

Primary Applications

Automotive Industry

• Connecting rod assemblies
• Transmission components
• Universal joint applications
• Engine timing mechanisms

Motorcycle Engines

• Crankpin connections
• Gear reduction assemblies
• Rocker arm pivots
• Cam follower systems

Industrial Gearboxes

• Planetary gear sets
• Reduction drive mechanisms
• Power transmission assemblies
• Hydraulic motor applications

Installation and Mounting Considerations

Your establishment prepare requires cautious consideration to raceway surface planning. The shaft and lodging bore must keep up suitable surface wrap up (regularly Ra 0.2-0.8 μm) and hardness levels (least HRC 58-62) to guarantee ideal bearing performance.

Proper oil is fundamental for expanded benefit life. The open plan permits coordinate oil get to to all rolling components, encouraging compelling warm scattering and defilement evacuation.

Quality Standards and Manufacturing

Our manufacturing process adheres to ISO 3030 and DIN 5405-1 international standards. Each product undergoes comprehensive quality verification including vibration testing, dimensional inspection, and load capacity validation.

The three-level quality control system ensures consistent product reliability:

• Raw material inspection and certification
• In-process dimensional and surface quality monitoring
• Finished product performance verification

Supply Chain and Delivery

With over 30 years of bearing industry experience, we maintain extensive inventory of standard K series configurations. Regular orders receive 48-hour delivery service, while custom specifications utilize our streamlined production processes to achieve 70% faster delivery compared to industry standards.

Our integrated supply chain covers:

• Standard product inventory exceeding 1,000 bearing types
• Custom bearing development and manufacturing
• Technical support and application engineering
• Comprehensive after-sales service

For technical consultation or custom bearing requirements, contact our engineering team at auto@lyautobearing.com. We provide complete Needle Roller Bearing K series solutions tailored to your specific application requirements, ensuring optimal performance and reliability in your mechanical systems.
