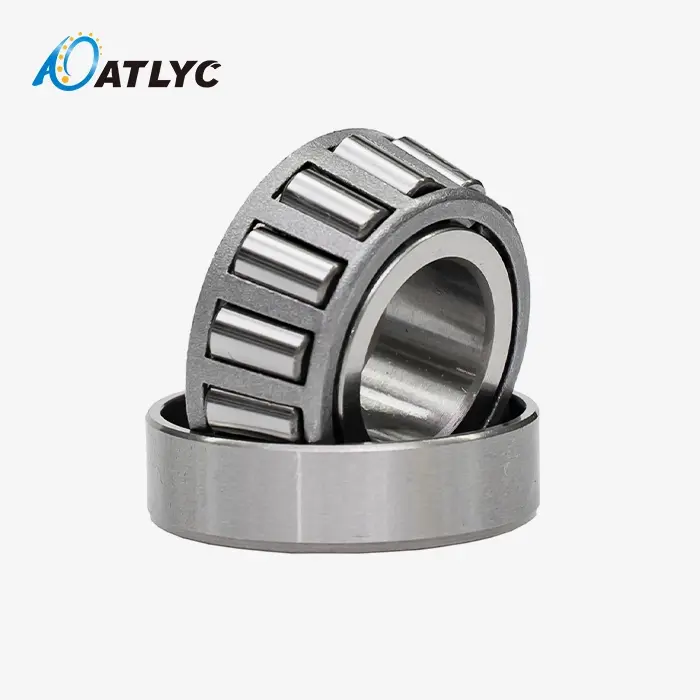

Tapered Roller Bearing 30305

Tapered Roller Bearing 30305: Professional Grade Solution for Combined Load Applications

When your equipment demands reliable performance under combined radial and axial loads, the Tapered Roller Bearing 30305 delivers proven engineering excellence. This metric single-row bearing features a 25mm bore, 62mm outer diameter, and 18.25mm width, making it ideal for medium-duty industrial applications. Our product utilizes separable design technology that simplifies installation while providing adjustable clearance control. With 30 years of manufacturing expertise, we ensure each bearing meets strict ISO 355 and DIN 720 standards for consistent performance in your critical applications.





Design Structure and Working Principle

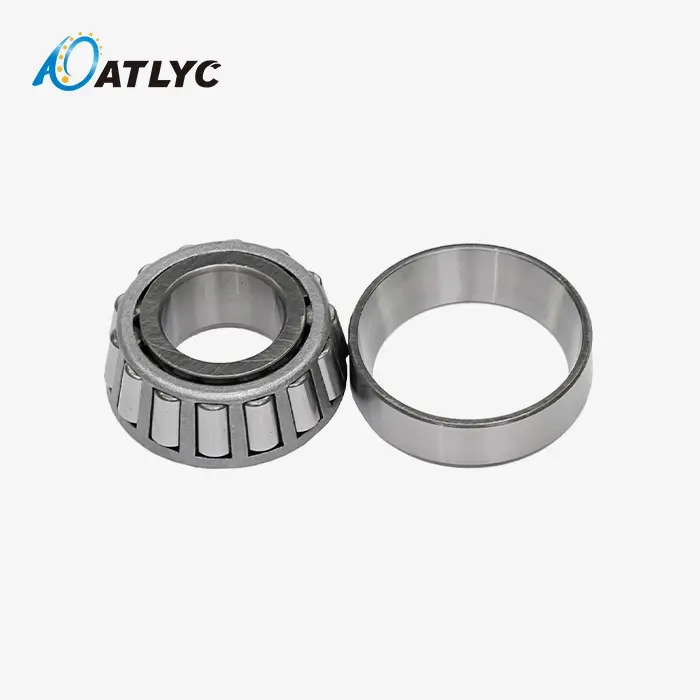

The bearing consists of four main components working in harmony. The inner ring (cone) features a tapered raceway with an integral back-face rib that guides the rolling elements. The outer ring (cup) is separable, allowing independent mounting during assembly.

Conical rollers transfer loads through line contact rather than point contact. This design distributes stress evenly across the roller length. The logarithmic raceway profile prevents edge loading during slight misalignment conditions.

All raceway and roller contact surfaces converge at a common apex point on the bearing centerline. This geometric relationship ensures smooth rolling motion under load. The pressed steel cage maintains proper roller spacing while allowing thermal expansion.

Performance Advantages

Superior Load Capacity: The conical geometry handles combined radial and single-direction axial loads simultaneously. Higher contact angles provide increased axial load capacity compared to deep groove ball bearings.

Adjustable Clearance: Separable components allow precise internal clearance or preload adjustment during installation. You can optimize bearing performance for specific speed, temperature, and rigidity requirements.

Enhanced Durability: Heat-treated GCr15 steel achieves HRC 60-64 hardness for exceptional fatigue resistance. Vacuum degassing removes impurities that cause premature failure under high contact stress.

Maintenance Friendly: The separable design simplifies inspection and replacement procedures. You can examine raceway condition without complete disassembly of surrounding components.

Primary Applications

Automotive Systems: Transmission pinion shafts, differential assemblies, and wheel hubs benefit from the bearing's ability to handle gear thrust loads while maintaining precise shaft positioning.

Industrial Machinery: Gearbox applications utilize pairs of these bearings to create rigid shaft support systems. The adjustable preload capability optimizes gear mesh quality and reduces vibration.

Agricultural Equipment: Disc harrows, seeders, and harvester components operate in contaminated environments where the bearing's robust sealing compatibility provides extended service life.

Machine Tools: Spindle positioning applications require the precise axial location capability that only tapered roller bearings provide. The Tapered Roller Bearing 30305 maintains cutting tool position accuracy under varying loads.

Installation Guidelines

Mount the glass (external ring) in the lodging with suitable impedances fit. Introduce the cone get together (internal ring with rollers and cage) on the shaft independently. This two-stage prepare streamlines gathering in limited spaces.

Measure conclusion play utilizing dial markers after establishment. Ordinary applications require 0.02-0.08mm conclusion play for ideal execution. Over the top clearance causes vibration whereas inadequately clearance produces heat.

Apply suitable oil amount - regularly 30-50% of accessible bearing space. Over-greasing causes churning misfortunes and temperature rise. Utilize lithium-complex oil for common applications or specialized greases for extraordinary conditions.

Quality Assurance

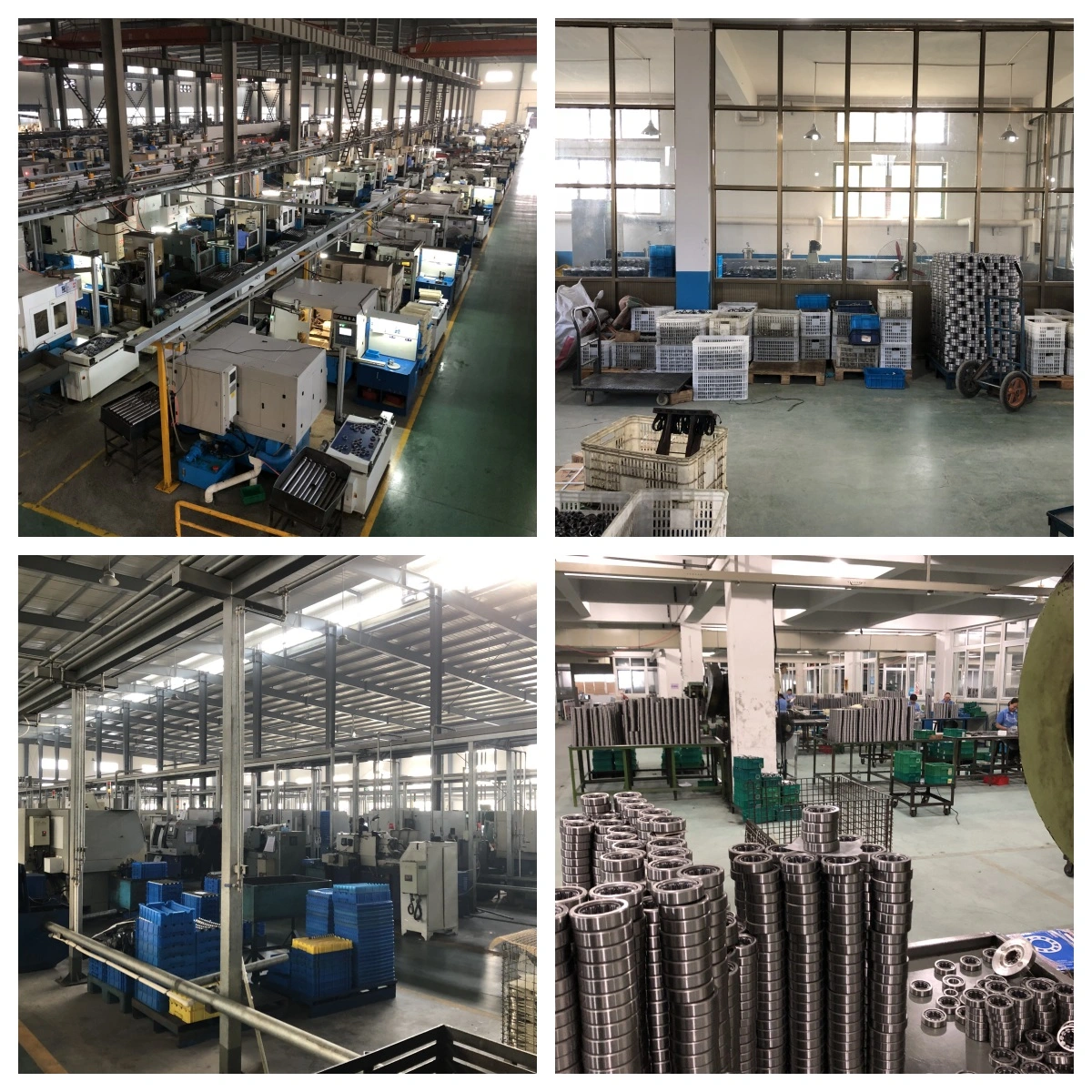

Our three-level quality control framework guarantees reliable execution. Crude fabric review confirms steel chemistry and cleanliness levels. In-process checking tracks dimensional precision and surface wrap up quality.

Each wrapped up bearing experiences vibration testing to identify fabricating abandons. Life testing approves weariness resistance beneath controlled stack conditions. Our capability rate surpasses 99.9% through orderly quality management.

Temperature testing affirms dimensional steadiness over the working run. Grease compatibility testing guarantees oil execution over expanded benefit intervals.

Why Choose Our Bearings?

With 30 a long time of bearing fabricating encounter, we get it basic application necessities. Our coordinates generation approach combines self-manufactured center items with optimized supply chain resources.

We keep up stock of over 1,000 standard bearing sorts for quick conveyance. Standard orders dispatch inside 48 hours from our territorial dissemination centers. Custom alterations take after streamlined forms with abbreviated lead times.

Technical bolster groups give application building help around the world. Our engineers offer on-site establishment direction and execution optimization proposals. Farther checking capabilities offer assistance foresee support prerequisites.

The Tapered Roller Bearing 30305 represents proven technology backed by comprehensive engineering support. Contact our technical specialists at auto@lyautobearing.com for application-specific recommendations and technical assistance.
