Tapered Roller Bearing 33 series

Tapered Roller Bearing 33 Series - High-Load Capacity Solutions for Industrial Applications

When you require dependable bearing arrangements for overwhelming combined loads in space-constrained applications, the Tapered Roller Bearing 33 series conveys demonstrated execution over requesting mechanical situations. Our 33 arrangement heading include optimized cross-sectional geometry and more extreme contact points compared to lighter arrangement, making them perfect for applications requiring prevalent pivotal stack capacity. With 30 a long time of fabricating skill, Luoyang Auto Bearing gives metric single-row decreased roller heading that meet ISO 355 and Clamor 720 guidelines whereas fathoming basic industry challenges in gearboxes, car frameworks, and overwhelming apparatus.





Technical Structure and Design Principles

Core Components and Architecture

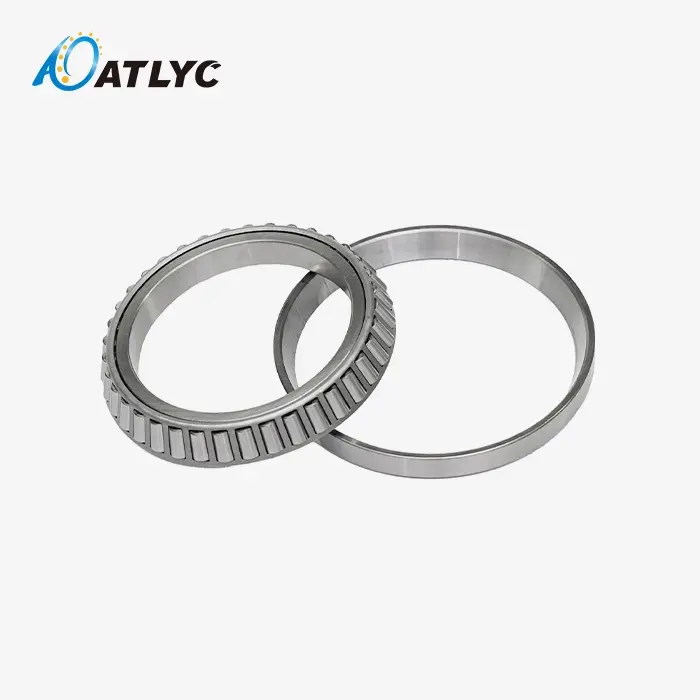

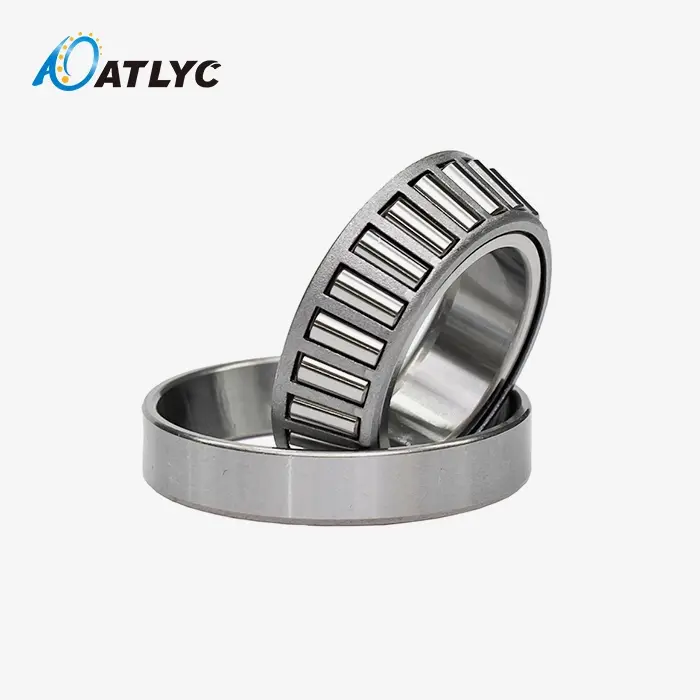

The product utilizes a separable design consisting of four main components:

• Inner Ring (Cone): Features tapered raceway with logarithmic profile for optimized contact distribution
• Outer Ring (Cup): Separable design enables simplified mounting and maintenance procedures
• Tapered Rollers: Precision-ground rollers with apex geometry ensuring true rolling motion
• Cage Assembly: Stamped steel or brass construction for reliable roller retention

Working Principle

The cone shaped geometry guarantees all raceway and roller contact focuses meet on a common pinnacle along the shaft centerline. This plan rule empowers smooth stack exchange whereas obliging combined outspread and single-direction pivotal loads. The contact point ordinarily ranges from 10° to 30°, permitting you to optimize stack dispersion based on your particular application requirements.

Performance Advantages

The distinct setup gives noteworthy operational benefits. You can alter clearance and preload amid establishment to coordinate changing speed, temperature, and inflexibility prerequisites. This adjustability optimizes bearing execution all through the hardware lifecycle whereas empowering prescient upkeep methodologies.

Material Engineering and Quality Standards

Advanced Material Composition

Our bearings utilize ultra-clean high-carbon chromium bearing steel (GCr15/100Cr6) and case-hardened steel variants. The material undergoes specialized heat treatment to achieve 60-64 HRC hardness, providing exceptional resistance to rolling contact fatigue.

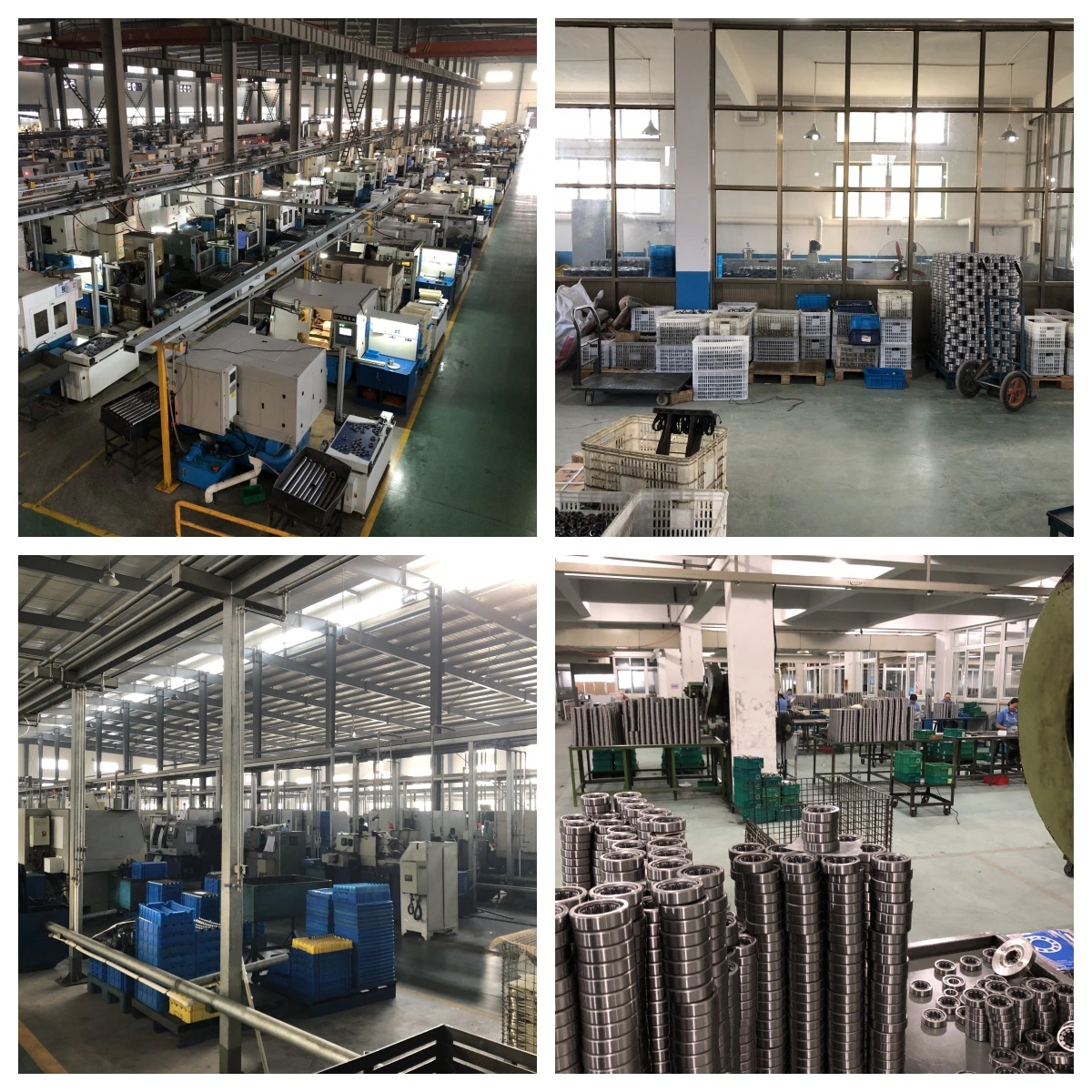

Manufacturing Process

We employ precision grinding technology and special heat treatment processes to ensure consistent quality. Each bearing undergoes verification of 12 core performance indicators including vibration testing and service life validation. Our three-level quality control system maintains an ex-factory qualification rate exceeding 99.9%.

Compliance Standards

All products conform to:

• ISO 355 (metric dimensions)
• ISO 492 (tolerance classes P0 to P5)
• DIN 720 (tapered roller bearing specifications)

Industrial Applications

Primary Applications

Automotive Systems: Wheel hubs, transmissions, and differentials benefit from the series' ability to handle combined loads while maintaining compact dimensions.

Machine Tool Spindles: Positioning end applications utilize the adjustable preload capability for precision machining requirements.

Industrial Gearboxes: Space-constrained reducer applications leverage the high axial load capacity of the Tapered Roller Bearing 33 series.

Agricultural Machinery: Gearbox applications in farming equipment rely on the robust construction for seasonal heavy-duty operation.

Industry-Specific Benefits

For metallurgical applications, our bearings withstand temperatures up to 500°C with specialized heat treatment. Port machinery applications benefit from impact resistance and high-frequency operation capability. Medical equipment applications achieve P4-level rotation precision with noise control below 35dB.

Engineering Advantages and Problem-Solving Capabilities

Load Distribution Optimization

The logarithmic raceway profiling ensures uniform load distribution even during slight shaft misalignment. This feature prevents edge stress concentrations that commonly cause premature failure in conventional bearing designs.

Maintenance Efficiency

The separable design simplifies mounting, dismounting, and inspection procedures. You can perform maintenance operations without complete assembly disassembly, reducing downtime and operational costs.

Versatility and Interchangeability

Wide standardization ensures compatibility across manufacturers while maintaining cost-effectiveness. The mature supply chain support enables reliable sourcing for both standard and custom applications.

Supply Chain and Delivery Capabilities

Inventory Management

We maintain stock of over 1,000 standard bearing types, enabling 48-hour delivery for regular orders. Our regional warehousing centers and national logistics network ensure consistent supply availability.

Custom Solutions

For non-standard requirements, our modular production process reduces customization cycles to 70% of industry average. Large non-standard bearings up to φ3000mm can be delivered within 15-20 days.

Technical Support Services

Our engineering team provides comprehensive support including:

• Working condition analysis and bearing selection
• On-site mapping services for retrofit applications
• Installation guidance and maintenance planning
• 24-hour technical consultation availability

Contact Information

For technical specifications, custom solutions, or application engineering support, contact our bearing specialists at auto@lyautobearing.com. Our experienced engineers can help you select the optimal Tapered Roller Bearing 33 series configuration for your specific requirements and provide comprehensive technical documentation to support your design process.
