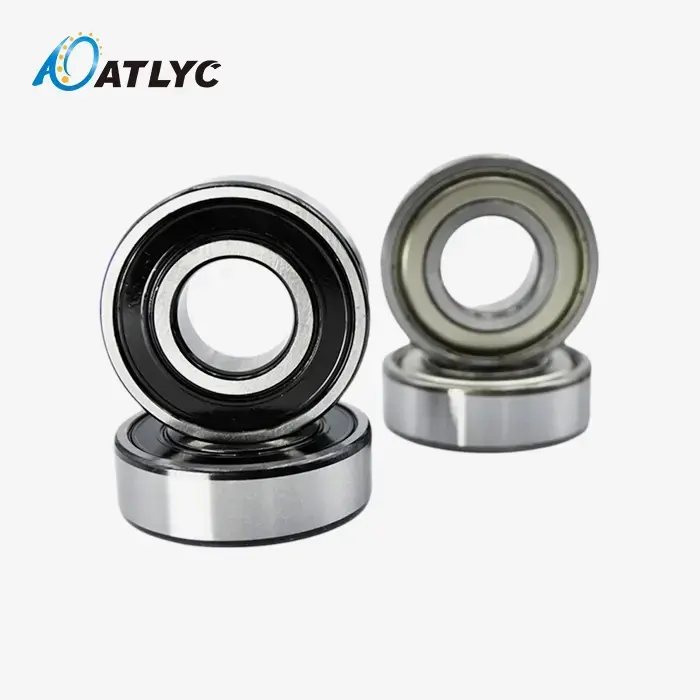

Deep Groove Ball Bearing 60 Series - Precision Engineering for Compact Applications

The Deep Groove Ball Bearing 60 series represents the optimal solution for applications demanding compact design with reliable performance. As the lightest series in metric deep groove ball bearing classification, these bearings feature reduced cross-sectional dimensions while maintaining standard bore diameters. Your equipment benefits from the 60 series' unique combination of space efficiency and high-speed capability, making it ideal for micro-motors, precision instruments, and office equipment applications.

Design Structure and Working Principle

The 60 series features a streamlined design consisting of four main components: inner ring, outer ring, steel balls, and cage assembly. The deep raceway grooves accommodate steel balls that maintain point contact with both rings during rotation. This configuration enables the bearing to handle radial loads efficiently while supporting moderate axial loads in both directions.

The reduced cross-section design minimizes rotational inertia compared to standard 62 or 63 series bearings. Lower mass rotating elements reduce centrifugal forces at high speeds, enabling higher operational velocities with improved thermal characteristics.

Performance Advantages

Compact Integration

The 60 series' smaller outer diameter provides significant space savings in housing design. You can achieve weight reduction and material cost savings while maintaining bearing performance standards required for your application.

High-Speed Operation

Reduced cage mass and optimized ball complement allow for 15-20% higher limiting speeds versus comparable bore diameter bearings in heavier series. This translates to improved operational efficiency in high-RPM applications.

Low Friction Characteristics

Point contact geometry between balls and raceways minimizes rolling resistance. Your equipment experiences lower starting torque requirements and reduced power consumption during operation.

Versatile Load Handling

Despite compact dimensions, the Deep Groove Ball Bearing 60 series maintains adequate load capacity for most light-duty applications. The deep raceway design distributes loads effectively across the contact area.

Primary Applications

Micro-Motors and Small Electric Motors

The 60 series provides reliable support for armature shafts in fractional horsepower motors. Reduced vibration levels ensure smooth operation essential for precision motor control applications.

Precision Instruments

Laboratory equipment, measuring devices, and analytical instruments benefit from the low noise characteristics and dimensional stability of precision-grade 60 series bearings.

Office Equipment

Printers, scanners, and business machines require quiet operation with consistent performance. The 60 series delivers the reliability needed for high-duty cycle office environments.

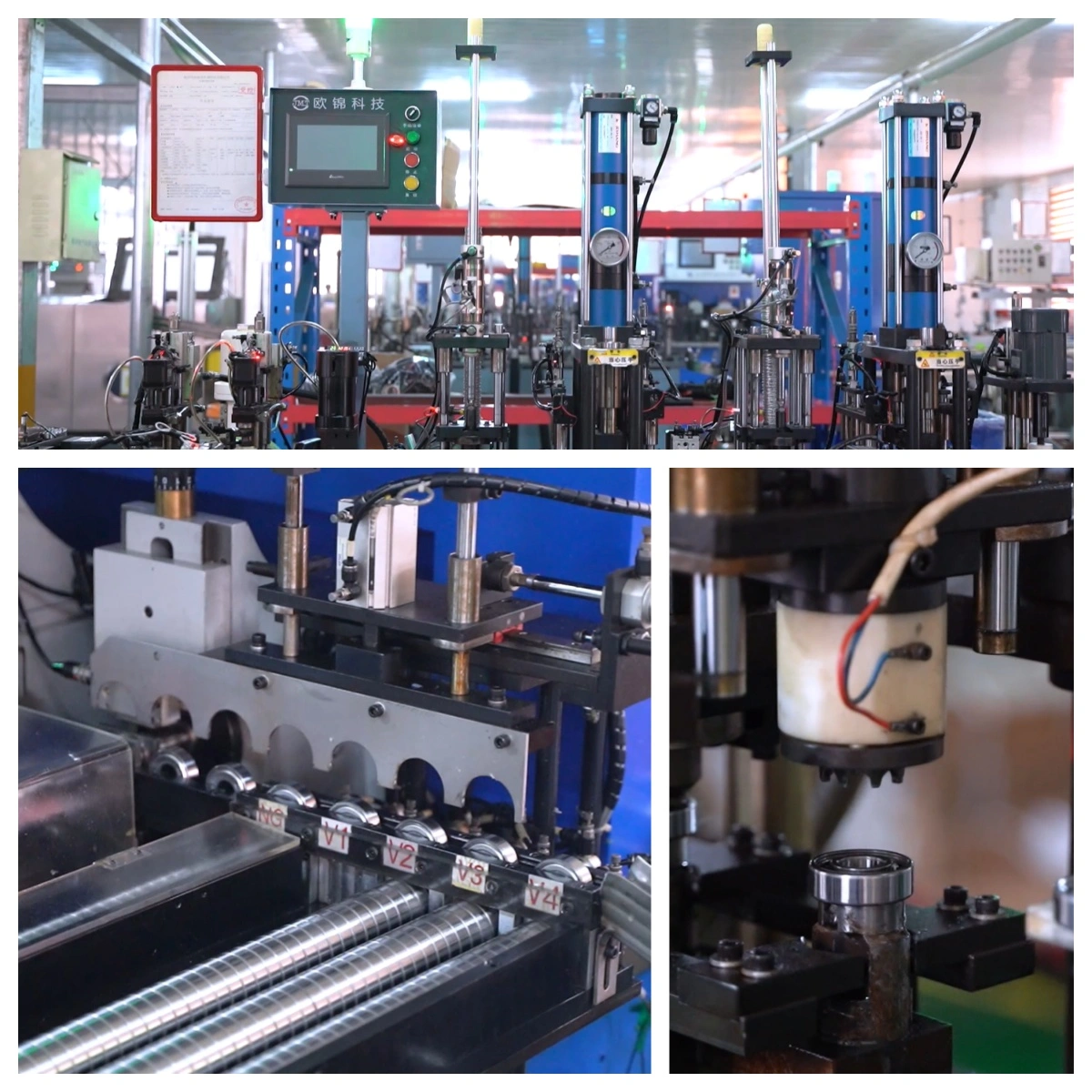

Quality Assurance and Manufacturing

At Luoyang Auto Bearing Co., Ltd., we keep up strict quality control all through the fabricating prepare. Each bearing experiences comprehensive testing counting vibration examination, dimensional confirmation, and stack capacity approval. Our three-level quality control framework guarantees over 99.9% capability rate for wrapped up products.

Raw materials are sourced from certified providers and experience approaching review. In-process observing confirms basic measurements and surface wrap up quality. Last assessment incorporates total dimensional confirmation and execution testing some time recently packaging.

Why Choose Our 60 Series Solutions?

With 30 a long time of bearing industry involvement, we get it the exact prerequisites of compact bearing applications. Our fabricating capabilities bolster both standard generation and customized arrangements for one of a kind application needs.

We keep up comprehensive stock of standard item sizes, empowering quick conveyance for critical prerequisites. For non-standard determinations, our designing group gives plan back and abbreviated generation cycles.

Technical Support and Service

Our experienced designing group gives comprehensive specialized bolster counting bearing determination direction, establishment proposals, and investigating help. We offer around the world mapping administrations for substitution applications and give point by point specialized documentation for all products.

For applications requiring particular execution characteristics, we can customize cage materials, inner clearances, and oil details to optimize bearing execution in your working environment.

Contact Information

For technical specifications, pricing, or application support regarding Deep Groove Ball Bearing 60 series products, contact our engineering team at auto@lyautobearing.com. We provide rapid response to technical inquiries and can supply detailed engineering drawings and performance data to support your design requirements.

Our team stands ready to assist with bearing selection, application analysis, and customization options to ensure optimal performance in your specific application requirements.
