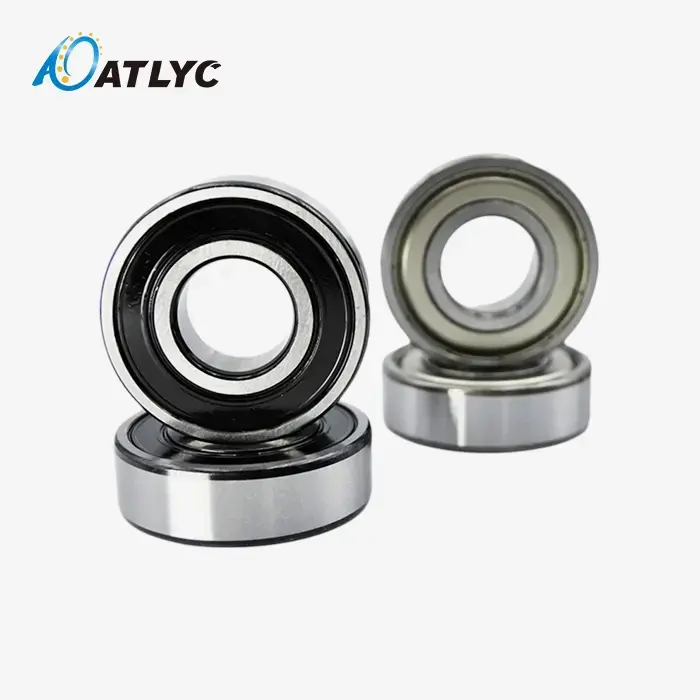

6010 Single-row radial ball bearing

6010 Single-row Radial Ball Bearing - Precision Solution for Medium-Duty Applications

The 6010 Single-row radial ball bearing represents a critical component in modern rotating machinery design. This metric-series deep groove ball bearing features standardized ISO dimensions of 50mm bore, 80mm outer diameter, and 16mm width. As part of the 6000 series family, this bearing combines compact design with reliable load-carrying capacity for radial and moderate axial loads in both directions.

Technical Features and Performance Benefits

Fabric Engineering

The bearing utilizes high-carbon chromium steel (GCr15/SAE 52100) with warm treatment accomplishing 60-64 HRC hardness. This fabric determination gives extraordinary weakness resistance beneath Hertzian contact stretch whereas keeping up dimensional soundness over temperature variations.

Load Capacity Design

The profound groove geometry makes optimized contact points between balls and raceways. This arrangement empowers the bearing to handle combined spiral and hub loads successfully. The inactive stack rating of 16.6 kN guarantees dependable execution beneath steady stacking conditions without raceway deformation.

Precision Manufacturing

Manufactured to rigid resistance measures, the bearing keeps up runout exactness inside 10 micrometers for P5 accuracy lesson. This level of accuracy diminishes vibration and amplifies gear life in touchy applications.

Seal Configuration Options

• Open Design: Maximum speed capability with external sealing arrangements
• ZZ Configuration: Metal shields protect against contamination while maintaining high-speed performance
• 2RS Configuration: Contact rubber seals provide superior protection in harsh environments

Primary Applications

Industrial Electric Motors

The 6010 Single-row radial ball bearing serves as the standard choice for drive-end applications in 10HP to 50HP induction motors. Its low-friction characteristics reduce energy consumption while maintaining quiet operation (V3 vibration grade). The C3 internal clearance variant accommodates thermal expansion during continuous operation.

Machine Tool Spindles

In precision machining applications, the bearing provides the accuracy and rigidity required for spindle support systems. The P5 precision grade ensures minimal runout, contributing to superior surface finish and dimensional accuracy in manufactured parts.

Automotive Components

Found in alternator applications where reliability and compact design are essential. The bearing withstands the variable loading conditions typical in automotive environments while providing long service life with minimal maintenance.

Agricultural Equipment

In PTO drives and gearbox applications, the 2RS sealed version protects internal components from dust and moisture contamination. The robust construction handles shock loads encountered during field operations without premature failure.

Installation and Maintenance Guidelines

Mounting Considerations

Proper installation requires clean handling procedures and appropriate mounting tools. The bearing should be heated uniformly for interference fits, with temperature not exceeding 120°C to prevent metallurgical changes.

Lubrication Requirements

Standard applications use high-quality lithium complex grease with operating temperature range of -30°C to +120°C. Relubrication intervals depend on operating conditions, typically ranging from 2,000 to 10,000 hours of operation.

Clearance Selection

• CN (Normal): Standard applications with moderate thermal conditions
• C3: High-temperature applications or interference fits requiring compensation
• C4: Extreme thermal gradients or heavy interference mounting

Why Choose Luoyang Auto Bearing?

With 30 a long time of bearing industry ability, we give comprehensive arrangements past standard items. Our coordinates fabricating capabilities guarantee steady quality whereas our supply chain optimization conveys standard heading inside 48 hours.

Our quality control framework executes three-level assessment strategies, accomplishing over 99.9% capability rates. Each bearing experiences vibration testing and life confirmation to guarantee dependable execution in your basic applications.

For applications requiring dimensional alterations or extraordinary execution characteristics, our building group gives customized arrangements with conveyance cycles diminished to 70% of industry averages.

Technical Support and Services

Our experienced designing group offers comprehensive specialized bolster counting bearing choice direction, establishment help, and condition observing suggestions. We keep up worldwide benefit capabilities with 24-hour specialized interview availability.

For complex applications requiring on-site back, our field benefit engineers give mapping administrations for gear without documentation, guaranteeing exact bearing detail and fruitful establishment.

The 6010 Single-row radial ball bearing delivers proven performance across diverse industrial applications. Contact our technical team at auto@lyautobearing.com for application-specific recommendations and technical assistance.
