60 Series Ball Bearings: Precision Solutions for High-Speed Applications

When you need precision bearings that combine compact design with exceptional performance, 60 Series Ball Bearings represent your optimal solution. These ISO metric 'Light' series bearings deliver outstanding reliability in space-constrained applications where weight reduction is critical. Engineered to accommodate radial loads and moderate axial loads in both directions at high speeds, 60 Series Ball Bearings solve specific industry challenges related to spatial constraints and weight reduction in assembly designs. The compact outer diameter and optimized raceway geometry allow you to downsize housing dimensions without sacrificing rotational precision. This addresses the critical need for miniaturization in modern mechatronics and high-efficiency electric motors.

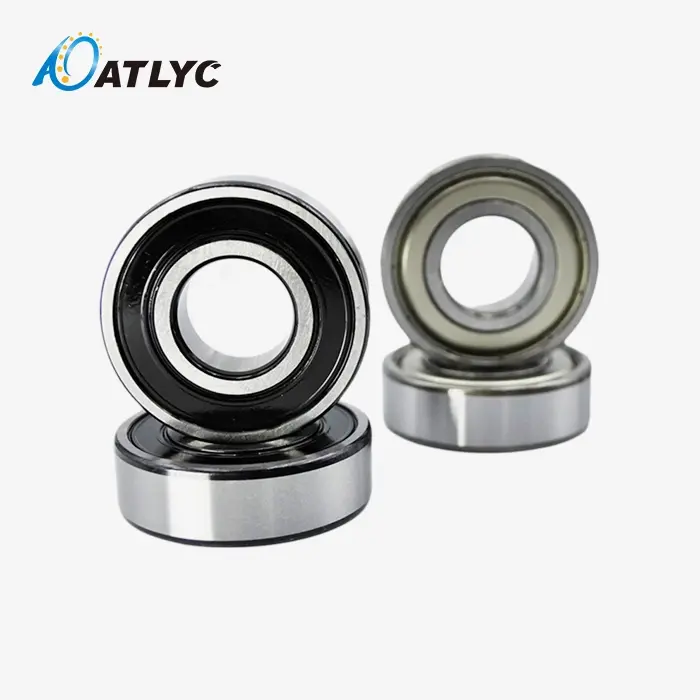

What Are 60 Series Ball Bearings?

60 Series Ball Bearings are single-row deep groove ball bearings that follow ISO 15 and DIN 625 dimensional standards. These bearings feature a smaller cross-section relative to the bore size compared to 62 (Medium) and 63 (Heavy) series bearings.

The designation "60" indicates the width series, where the outer diameter is optimized for applications requiring minimal radial space. This makes them ideal for equipment where housing size must be kept to a minimum while maintaining high rotational accuracy.

Core Design Features

The internal structure consists of:

• Inner and outer rings with deep, continuous raceway grooves
• Precision steel balls providing smooth operation
• Cage systems (steel stamped, brass, or synthetic materials)
• Optional sealing configurations

Technical Specifications

Engineering Properties and Performance

Material Composition

Our bearings use high-carbon chrome steel (GCr15/SAE 52100) that undergoes specialized heat treatment. This process achieves optimal hardness levels of 60-64 HRC, ensuring maximum fatigue life and wear resistance.

Geometric Precision

The deep raceway groove design provides osculation ratios around 52-53%. This geometry ensures balanced performance between load capacity and low friction torque. High-precision variants exhibit radial runout values less than 5 micrometers.

Operational Advantages

• Low Friction Coefficient: Optimized ball-to-raceway contact reduces energy loss
• High-Speed Capability: Minimal heat generation at elevated RPMs
• Versatile Configurations: Available in open, shielded, and sealed variants
• Quiet Operation: Standard production meets Z2V2 noise levels

Application Areas

High-Speed Electric Motors

In brushless DC and servo motor applications, 60 Series Ball Bearings excel where motor density is critical. The compact design allows smaller housing dimensions while managing high-frequency rotation and minimizing thermal expansion issues.

Precision Industrial Equipment

Robotic joints and optical encoders require low starting torque and high positional accuracy. These bearings provide necessary rigidity while reducing weight, improving dynamic response in automation systems.

Instrumentation and Measurement Devices

Flow meters and anemometers operate in sensitive environments where bearing drag must be negligible. The low friction characteristics ensure accurate measurements even at low operational speeds.

Office Equipment and Small Appliances

Printers, scanners, and other office machinery benefit from the quiet operation and smooth performance that these bearings provide.

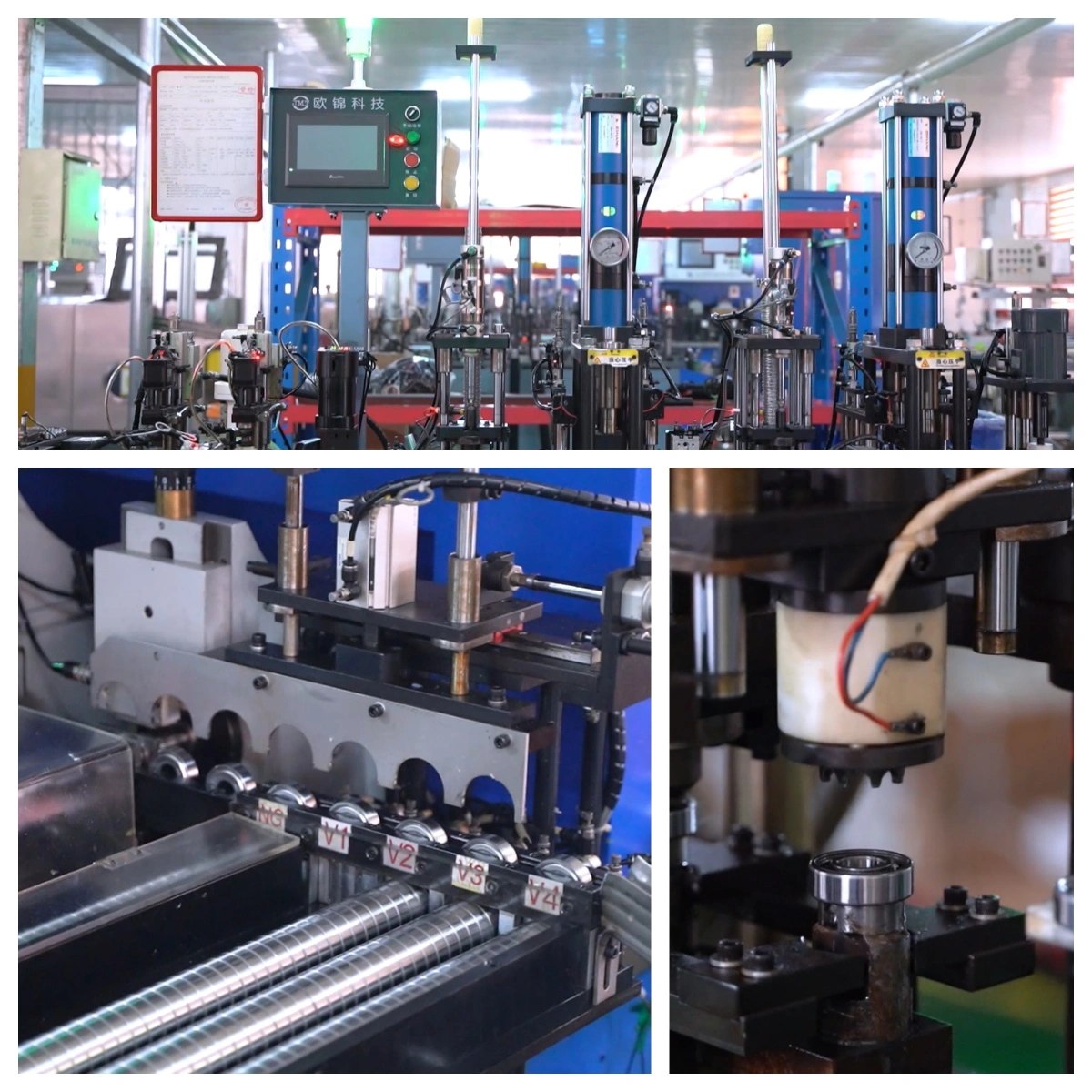

Quality Control and Manufacturing

Our manufacturing process follows strict quality standards:

Three-Level Quality Control System

1. Raw Material Inspection: Each steel batch undergoes chemical composition and metallurgical structure analysis
2. In-Process Inspection: Dimensional accuracy and surface finish verification at each manufacturing stage
3. Finished Product Testing: Complete testing including vibration analysis, noise measurement, and life testing

Performance Verification

Every batch undergoes verification of 12 core indicators including:

• Vibration testing according to ISO 15242
• Noise level measurement
• Dimensional accuracy verification
• Load capacity validation
• Speed performance testing

Our ex-factory qualification rate exceeds 99.9%, ensuring consistent performance across all delivered products.

Customization and Support Services

We understand that standard solutions don't always meet specific application requirements. Our engineering team provides comprehensive customization services including:

• Modified internal clearances for specific operating conditions
• Special cage materials for extreme environments
• Custom sealing solutions
• Precision grade upgrades beyond standard offerings

Technical Support

Our experienced engineers provide application analysis and bearing selection guidance. We help you optimize bearing performance for your specific operating conditions, ensuring maximum equipment reliability and service life.

Delivery and Supply Chain

With over 1,000 types of standard bearings maintained in stock, we ensure rapid delivery:

• Standard configurations: 48-hour delivery for regular orders
• Custom specifications: 70% shorter production cycles compared to industry average
• Global logistics network supporting worldwide delivery

Partner with Luoyang Auto Bearing

Our 30 years of bearing industry experience ensures you receive reliable, high-performance 60 Series Ball Bearings backed by comprehensive technical support. Whether you need standard configurations or custom solutions, our team provides the expertise and manufacturing capabilities to meet your requirements.

For technical specifications, application guidance, or quotations, contact our engineering team at auto@lyautobearing.com. We're committed to delivering precision bearing solutions that enhance your equipment performance and operational efficiency.
