Deep Groove Ball Bearing 619 series

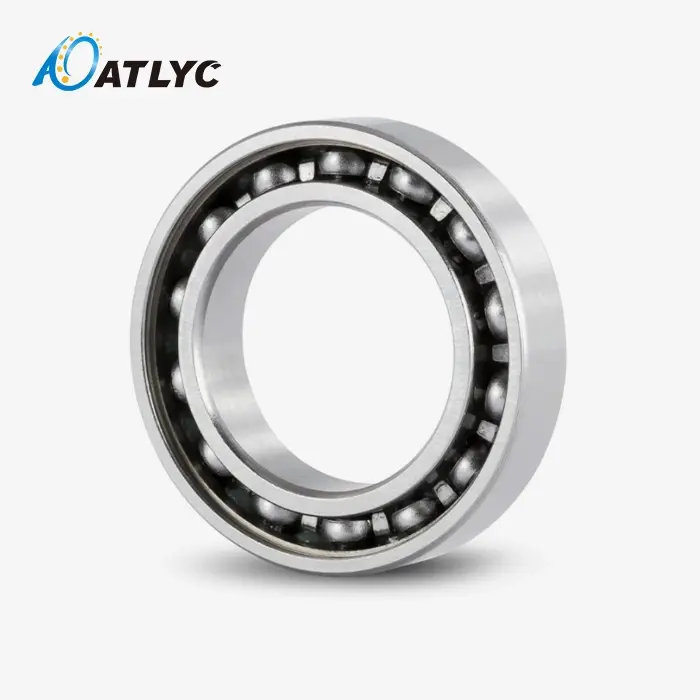

Deep Groove Ball Bearing 619 Series - Precision Thin Section Solution

The Deep Groove Ball Bearing 619 series represents the optimal solution for applications demanding compact design and exceptional performance. This metric ISO dimension series delivers the reliability of standard deep groove bearings while addressing critical space and weight constraints. As an 'Extra Specific Thin Section' bearing, the 619 series offers engineers a practical solution for miniaturization challenges in precision equipment. You can rely on this bearing series to provide smooth operation in confined housings where traditional bearings would prove too bulky. Each bearing maintains the fundamental advantages of deep groove design while optimizing for space-critical applications.

Technical Specifications

The 619 series features a precisely engineered structure optimized for thin-section applications. The reduced cross-sectional profile relative to bore diameter enables significant space savings without compromising operational integrity.

Design Architecture and Performance

Structural Configuration

The 619 series employs a four-component design consisting of inner ring, outer ring, precision balls, and retention cage. The thin-wall geometry reduces the radial space requirement by approximately 30% compared to standard 60 series bearings of equivalent bore size.

Load Capacity Characteristics

Despite the compact profile, these bearings accommodate both radial and axial loads in either direction. The deep raceway grooves ensure adequate ball-to-raceway contact area for reliable load distribution. Dynamic load ratings are optimized for the reduced ball complement inherent in thin-section design.

Speed Performance

The lightweight ball complement and reduced friction contact geometry enable higher limiting speeds than equivalent standard series bearings. This characteristic proves particularly valuable in high-frequency applications where rotational inertia must remain minimal.

Primary Applications

Precision Automation Equipment

Robotic joint assemblies benefit significantly from the weight reduction offered by the Deep Groove Ball Bearing 619 series. The reduced rotational inertia allows servo motors to achieve faster acceleration cycles while maintaining positioning accuracy. The compact envelope enables tighter joint designs in articulated mechanisms.

Medical and Optical Instruments

Portable diagnostic equipment and imaging systems require smooth, low-noise operation within constrained housings. The 619 series provides the necessary precision while minimizing space requirements. Low friction torque prevents stick-slip phenomena that could affect measurement accuracy.

High-Performance Sporting Equipment

Bicycle hubs and bottom brackets utilize these bearings to reduce unsprung weight while maintaining durability. The superior sealing variants (2RS) provide protection against environmental contamination during outdoor use.

Miniature Machinery

Compact motors, encoders, and precision instruments rely on the space-saving characteristics of the 619 series. The thin-section design enables equipment miniaturization without sacrificing bearing performance or service life.

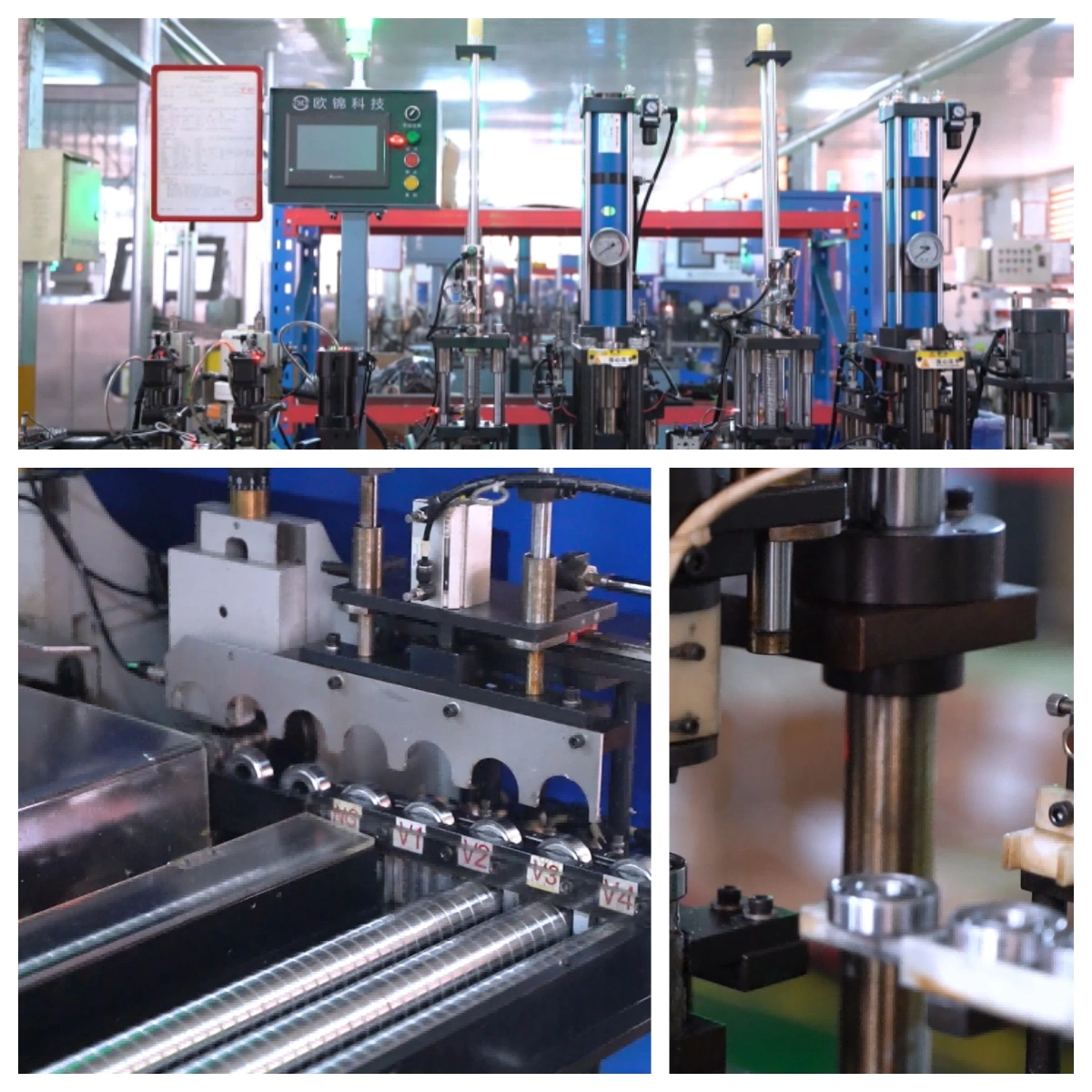

Manufacturing Standards and Quality Control

Our production process follows ISO 492 dimensional standards and ISO 281 load rating calculations. Each bearing undergoes comprehensive inspection including:

• Dimensional verification using coordinate measuring machines
• Surface finish analysis of raceway geometry
• Vibration testing per ISO 15242 standards
• Rotational torque measurement
• Contamination analysis of lubricant fill

The three-tier quality framework guarantees reliable execution over generation clusters. Crude fabric certification, in-process observing, and last review keep up our 99.9% capability rate.

Selection Considerations

When indicating the 619 arrangement, consider the application's speed prerequisites, stack characteristics, and natural conditions. The thin-section plan exchanges a few stack capacity for space reserve funds, making appropriate stack examination essential.

For high-speed applications, select fitting cage materials - polyamide cages offer predominant high-speed execution, whereas steel cages give superior dimensional solidness beneath changing temperatures.

Sealing determination depends on defilement chance versus speed prerequisites. Open heading accomplish most extreme speeds, whereas fixed variations give defilement assurance at direct speed penalties.

Technical Support and Customization

Our building group gives application-specific bearing choice help. With 30 a long time of bearing industry encounter, we can assess your particular necessities and prescribe ideal setups inside the product.

Custom alterations incorporate extraordinary cage materials, accuracy grades past standard offerings, and application-specific grease. Our measured generation approach decreases customization lead times to 70% of industry midpoints.

For technical inquiries or custom bearing requirements, contact our engineering team at auto@lyautobearing.com. We provide comprehensive support from initial selection through installation guidance and maintenance recommendations.

The Deep Groove Ball Bearing 619 series delivers proven reliability in space-critical applications. Trust in our three decades of manufacturing expertise to provide the precision and performance your equipment demands.
