61909 Deep groove ball bearing

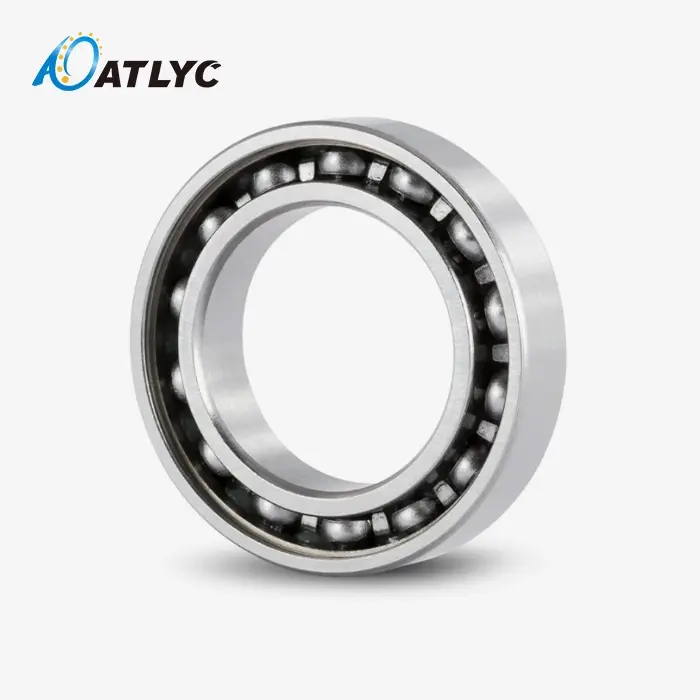

61909 Deep Groove Ball Bearing - Precision Thin-Section Solution for Space-Critical Applications

When your design requires maximum performance in minimal space, the 61909 Deep groove ball bearing delivers the optimal solution. This precision thin-section bearing features a 45mm bore diameter, 68mm outer diameter, and ultra-narrow 12mm width, making it perfect for applications where radial space is limited but rotational performance cannot be compromised. Belonging to the ISO Series 19 dimension standards, this bearing solves critical space-weight efficiency challenges in modern compact electromechanical designs.

Design Structure and Working Principle

The 61909 bearing utilizes a clear however exceedingly compelling plan design. The inward ring, external ring, steel balls, and cage work together to make smooth rotational movement through rolling contact or maybe than sliding friction.

Core Components

Inner and External Rings: Made from high-grade GCr15 bearing steel with precision-ground raceways that keep up reliable ball contact geometry all through operation.

Steel Balls: Accurately fabricated round components that disseminate loads equitably over the raceway surfaces, minimizing contact push and wear.

Cage Gathering: Steel stamped cage keeps up appropriate ball dividing and avoids ball-to-ball contact amid turn, guaranteeing smooth operation and expanded benefit life.

Working Principle

The profound groove geometry empowers the bearing to handle both outspread and hub loads at the same time. Amid operation, loads exchange through the steel balls to the raceway surfaces, making rolling movement with negligible contact. This plan rule comes about in tall rotational speeds, moo beginning torque, and amazing stack conveyance.

Performance Advantages

Space Optimization

The thin-section design provides significant advantages over standard bearing series. You can achieve the same shaft support capabilities while reducing housing weight by up to 30% compared to conventional 6000 series bearings. This makes the 61909 Deep groove ball bearing ideal for weight-sensitive applications.

High-Speed Capability

The optimized ball-to-raceway contact geometry and precision cage design enable high rotational speeds. Open configurations allow unrestricted lubrication flow, further enhancing speed capabilities and heat dissipation.

Load Carrying Capacity

Despite its compact dimensions, this bearing handles substantial radial loads and moderate axial loads in both directions. The deep groove design provides optimal load distribution across the contact zones.

Low Maintenance Operation

The robust steel construction and proven design principles ensure reliable operation with minimal maintenance requirements. Proper lubrication and installation typically result in extended service intervals.

Primary Applications

Industrial Motors

Electric motor manufacturers frequently specify this bearing for compact motor designs where space constraints demand thin-section solutions without compromising performance.

Automotive Components

Automotive engineers utilize these bearings in transmission systems, auxiliary equipment, and precision mechanical assemblies where weight reduction directly impacts fuel efficiency.

General Mechanical Transmission

Machine designers implement this bearing in gearboxes, conveyor systems, and precision mechanical equipment requiring reliable rotational support in confined spaces.

Seal and Configuration Options

Open Configuration

Provides maximum speed capability and allows custom lubrication strategies. Ideal for oil bath or circulating oil systems where external contamination protection exists.

ZZ (Metal Shields)

Non-contact metal shields provide basic contamination protection while maintaining relatively high speed capabilities. Suitable for clean industrial environments.

2RS (Contact Seals)

Rubber contact seals offer maximum contamination protection and grease retention. Best for applications with potential exposure to dust, moisture, or other contaminants.

Quality Standards and Testing

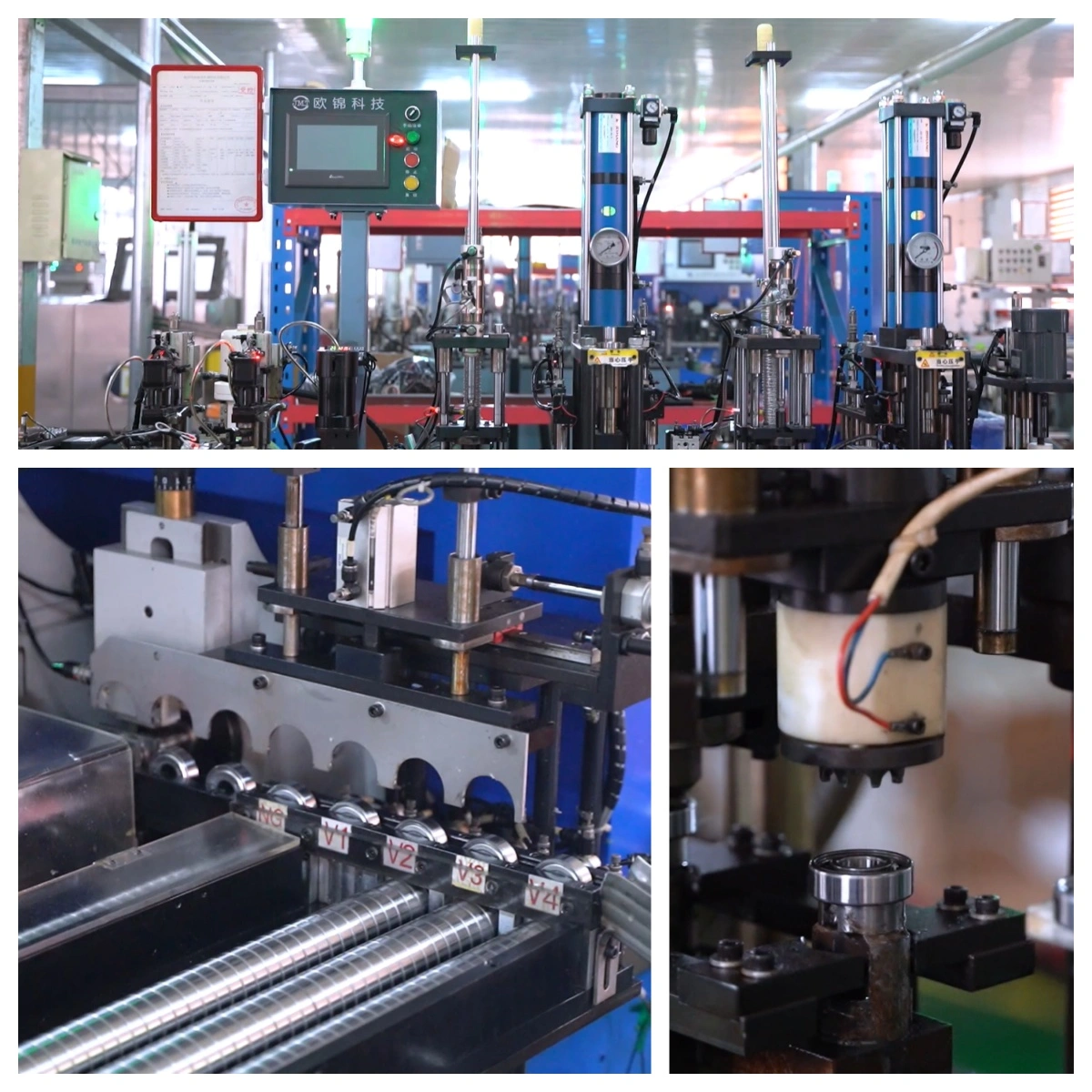

Our manufacturing process incorporates comprehensive quality control at every stage. Each bearing undergoes dimensional verification, surface finish inspection, and performance testing including vibration analysis and noise measurement.

The three-level quality control system ensures consistent product quality:

• Raw material inspection verifies steel chemistry and metallurgical properties
• In-process monitoring controls machining precision and surface integrity
• Final inspection validates dimensional accuracy and operational performance

Supply Chain and Delivery

With over 1,000 standard bearing sorts in stock, we keep up prepared accessibility for prompt conveyance needs. Standard orders dispatch inside 48 hours, whereas custom determinations advantage from streamlined generation forms that diminish lead times to 70% of industry averages.

Our coordinates supply chain combines nearby generation preferences with territorial dispersion centers, guaranteeing solid conveyance planning for both crisis substitutions and arranged support programs.

Engineering Support and Customization

Our specialized group gives comprehensive application back, from beginning bearing determination through establishment direction and support arranging. With 30 a long time of bearing industry encounter, we get it the basic components influencing bearing execution in real-world applications.

Custom details are accessible for interesting dimensional necessities, extraordinary materials, or altered inside geometries. Our designing group works straightforwardly with your plan prerequisites to create optimized arrangements.

Whether you need immediate delivery of standard 61909 Deep groove ball bearing units or require custom engineering for specialized applications, our technical expertise and manufacturing capabilities provide the reliable solutions your equipment demands.

For technical specifications, application guidance, or delivery scheduling, contact our engineering team at auto@lyautobearing.com. We provide the precision bearing solutions that keep your equipment running efficiently and reliably.
