7010AC Angular Contact Bearings

7010AC Angular Contact Bearings - High-Speed Precision Solutions

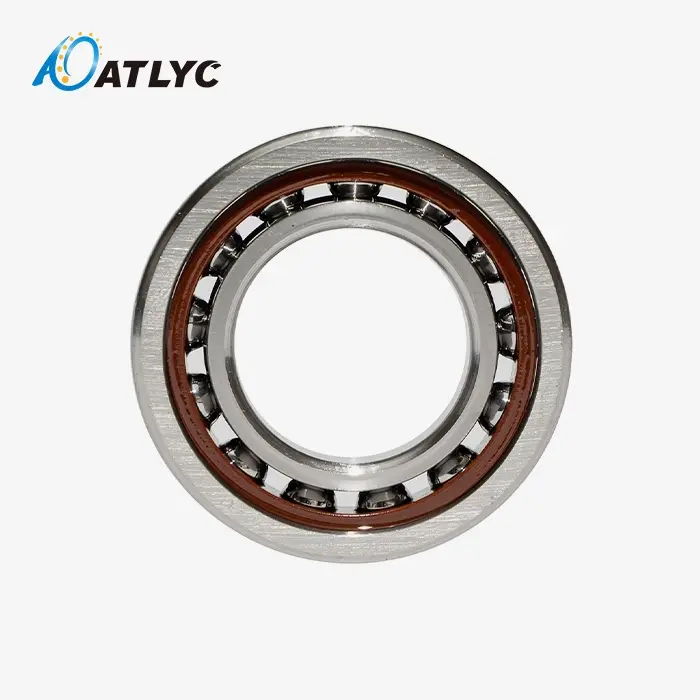

When you need reliable performance for high-speed spindle applications, 7010AC Angular Contact Bearings deliver the perfect balance of speed capability and axial load handling. These single-row, super-precision bearings feature a 25-degree contact angle that sets them apart from other angular contact configurations. With dimensions of 50mm inner diameter, 80mm outer diameter, and 16mm width, the products are specifically engineered for machine tool spindles, high-frequency motors, and precision equipment where sub-micron accuracy is critical.

Design Architecture and Working Principle

The products utilize a precisely engineered 25-degree contact angle geometry. This configuration creates an optimal load path between the inner and outer raceways through the rolling elements. When axial loads are applied, the contact angle directs forces efficiently while maintaining high rotational speeds.

The bearing structure consists of:

• Inner and outer rings made from high-purity GCr15 bearing steel
• Steel balls positioned at the 25-degree contact angle
• Cage assemblies in bakelite or nylon materials for reduced friction
• Optimized raceway geometry for enhanced load distribution

This design enables the bearing to handle combined radial and axial loads while operating at speeds up to 20,000 RPM, depending on lubrication method and preload conditions.

Performance Advantages

Superior Speed Capability

The 25-degree contact angle provides approximately 20% higher limiting speeds compared to 40-degree variants. This makes it ideal for high-speed machining centers and precision spindles where thermal stability is crucial.

Enhanced Load Distribution

Unlike pure radial bearings, the angular contact design efficiently manages thrust loads in one direction. The 7010AC Angular Contact Bearings can support significant axial forces while maintaining rotational accuracy.

Precision Manufacturing

Available in P5, P4, and P2 precision classes, these bearings meet the strictest tolerance requirements. P4 class bearings typically achieve radial runout values below 2.5 microns, essential for precision machining applications.

Thermal Stability

Heat treatment processes ensure dimensional stability up to 150°C operating temperatures. This prevents thermal growth that could compromise bearing clearances during high-speed operation.

Key Applications

CNC Machine Tool Spindles

In machining centers, these bearings are commonly mounted in back-to-back (DB) or face-to-face (DF) configurations. They handle the complex load vectors generated during cutting operations while maintaining tool positioning accuracy within microns.

High-Frequency Motor Applications

Industrial motors benefit from the bearing's ability to manage rotor thrust loads while operating at high electrical frequencies. The 25-degree angle provides the necessary axial rigidity without compromising rotational smoothness.

Precision Equipment

From coordinate measuring machines to optical instruments, these bearings ensure consistent performance where vibration and runout must be minimized.

Installation and Configuration

Most applications require paired mounting arrangements since angular contact bearings handle thrust loads unidirectionally. Common configurations include:

• DF (Face-to-Face): Provides maximum rigidity for heavy cutting loads
• DB (Back-to-Back): Offers wider load spread for improved moment resistance
• Tandem arrangements: Used when high thrust capacity is required

Proper preload selection is critical. Light preload minimizes heat generation at high speeds, while heavier preload increases system rigidity for demanding machining operations.

Quality Assurance

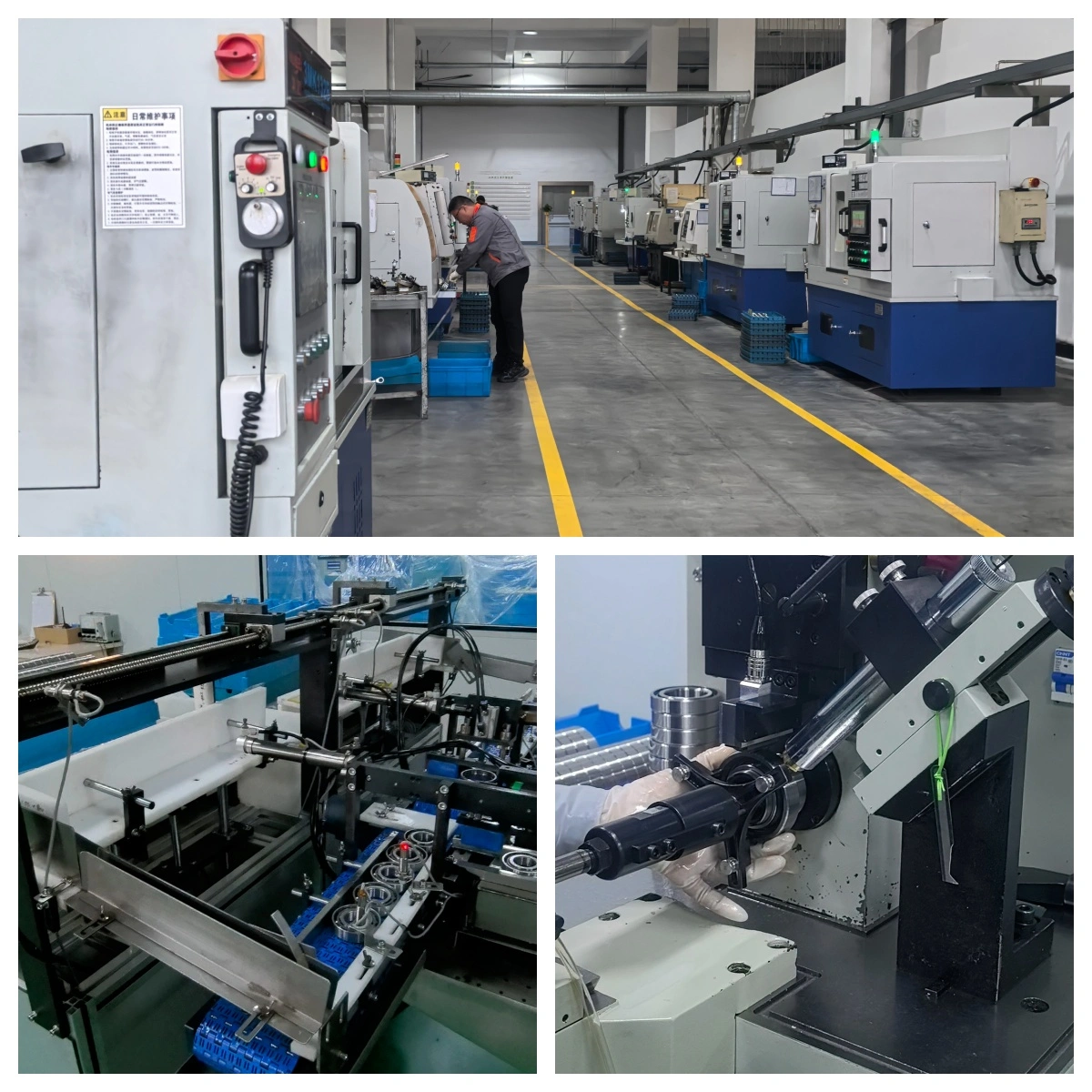

Our fabricating prepare consolidates a three-level quality control framework covering crude fabric assessment, in-process confirmation, and comprehensive wrapped up item testing. Each bearing experiences vibration testing and dimensional confirmation to guarantee steady performance.

With over 30 a long time of bearing fabricating involvement, we keep up strict adherence to ISO measures whereas giving the adaptability for custom adjustments when standard setups do not meet your particular requirements.

Lubrication Considerations

At working speeds over 15,000 RPM, oil-air or oil-mist oil frameworks are suggested for ideal warm scattering. For lower speed applications, high-speed oil details can be utilized with cautious consideration to fill amounts.

Supply and Delivery

We maintain stock inventory of standard 7010AC Angular Contact Bearings configurations, enabling delivery within 7 working days for most orders. Our supply chain integration capabilities also support custom modifications and special precision requirements.

For technical consultation or specific application requirements, contact our engineering team at auto@lyautobearing.com. Our experienced engineers provide comprehensive support from bearing selection through installation guidance, ensuring optimal performance in your critical applications.
