Cylindrical Roller Bearing N series

Cylindrical Roller Bearing N Series - High Radial Capacity Industrial Solution

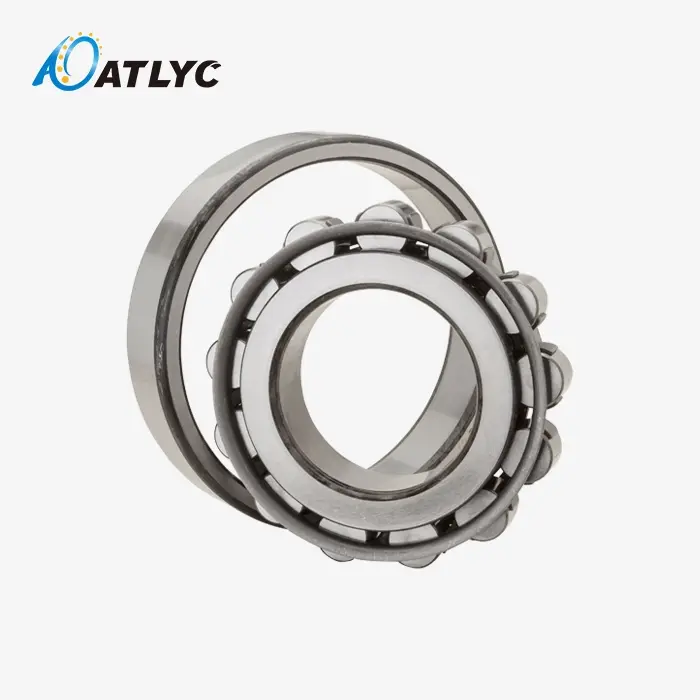

When you need reliable radial load support with thermal expansion accommodation, the Cylindrical Roller Bearing N series delivers engineered performance for demanding industrial applications. This bearing design features two integral ribs on the inner ring and a ribless outer ring, creating a separable configuration that simplifies installation and maintenance. The N series excels in applications requiring high radial load capacity while allowing axial shaft displacement. Engineers choose these bearings for machine tool spindles, motors, and pumps where thermal expansion compensation is critical. With line contact between cylindrical rollers and raceways, you get superior load distribution and reduced stress concentration points.

Product Structure and Working Principle

The N series design incorporates a specific rib configuration that defines its operational characteristics. The inner ring features two fixed integral ribs that guide the cylindrical rollers, while the outer ring remains completely ribless. This asymmetric rib arrangement creates a "floating" bearing position within your shaft system.

The working principle centers on line contact between the cylindrical rollers and both inner and outer raceways. Unlike point contact in ball bearings, this line contact distributes loads across a larger surface area. The ribless outer ring allows controlled axial movement, making the bearing self-aligning for thermal expansion compensation.

The pressed steel cage maintains proper roller spacing and prevents roller-to-roller contact during operation. This cage design ensures smooth rotation while allowing lubricant flow throughout the bearing interior.

Key Performance Advantages

Superior Radial Load Capacity

The line contact design enables exceptional radial load handling compared to ball bearings of similar size. You can expect load ratings that exceed point-contact alternatives by 30-40% in typical applications.

Thermal Expansion Accommodation

The ribless outer ring design allows your shaft to expand axially without inducing internal bearing stress. This prevents bearing seizure and structural damage in high-temperature applications.

Separable Ring Configuration

Both inner and outer rings can be mounted independently, simplifying installation when interference fits are required on both rings. This reduces assembly time and eliminates the need for bearing pullers during maintenance.

High-Speed Capability

The balanced roller geometry and optimized cage design support high rotational speeds while maintaining stability. Heat generation remains controlled due to efficient load distribution.

Precision Retention

Manufactured to P0, P5, and P4 precision classes, these bearings maintain dimensional accuracy throughout their operational life, ensuring consistent equipment performance.

Primary Applications

Machine Tool Spindles

The Cylindrical Roller Bearing N series provides the radial rigidity required for precision machining operations. The thermal expansion accommodation prevents binding during extended cutting operations when spindle temperatures rise.

Electric Motors

In engine applications, these heading handle the outspread loads from rotor weight and attractive strengths whereas pleasing warm shaft development. The divisible plan streamlines rotor gathering and upkeep procedures.

Industrial Pumps

Pump applications advantage from the tall spiral stack capacity and capacity to handle shaft diversion. The bearing suits warm development from pumped media warm transfer.

Gearbox Applications

When utilized as the non-locating bearing position in gearboxes, the N arrangement permits warm development whereas the finding bearing (ordinarily precise contact or decreased roller) handles pivotal positioning.

Installation and Support Considerations

Proper establishment requires consideration to the divisible ring plan. Mount the internal ring get together to begin with, at that point position the external ring in the lodging. Guarantee satisfactory clearance for hub development in the lodging design.

Lubrication determination depends on your working conditions. Oil grease gives predominant warm scattering for high-speed applications, whereas oil oil rearranges upkeep in moderate-duty installations.

Monitor bearing temperature and vibration levels amid operation. The N arrangement plan intrinsically runs cooler due to diminished inside grinding from warm authoritative elimination.

Quality Assurance and Manufacturing

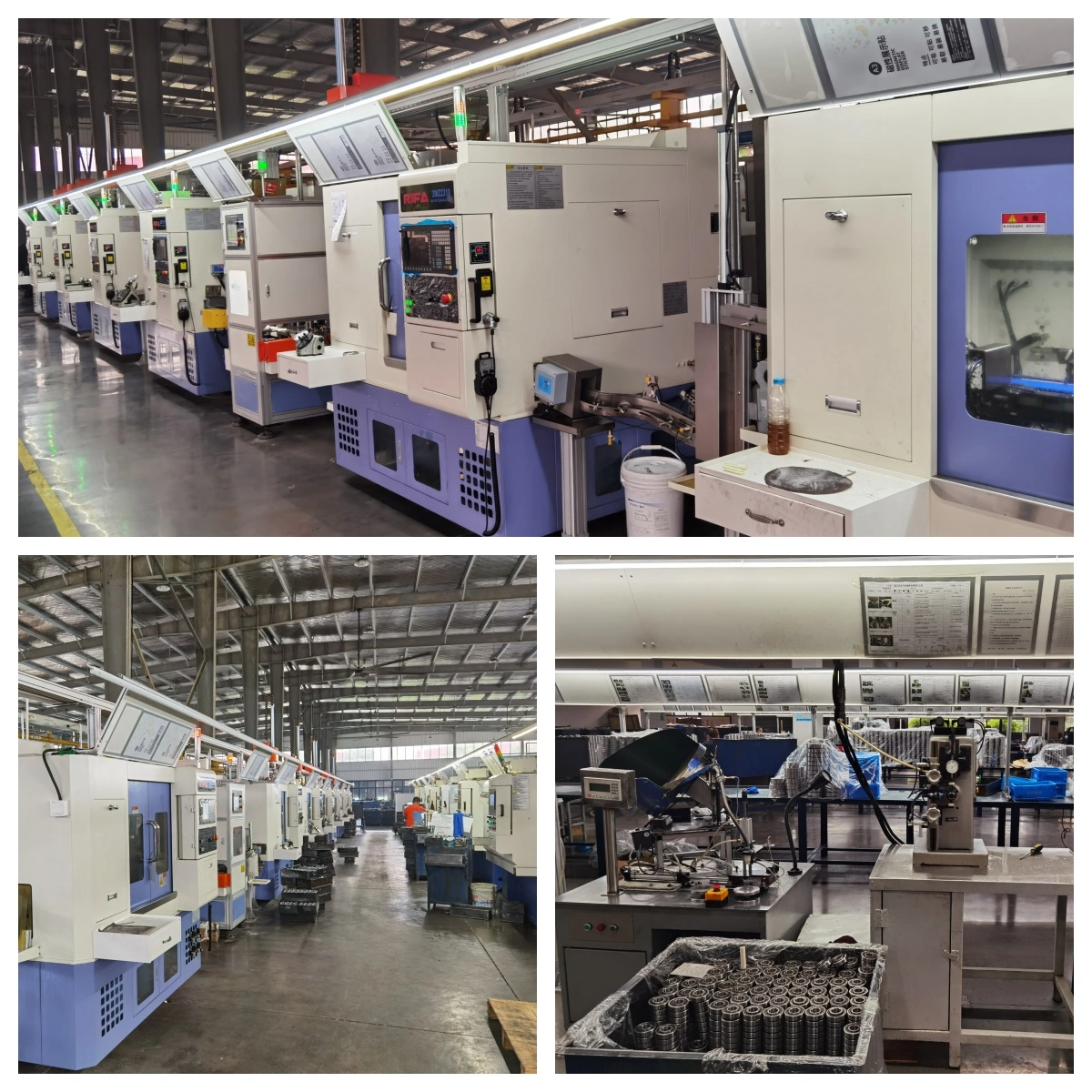

Our 30-year bearing fabricating involvement guarantees reliable item quality through comprehensive prepare control. Each bearing experiences vibration testing, dimensional confirmation, and surface wrap up assessment some time recently shipment.

The GCr15 bearing steel gets specialized warm treatment to accomplish ideal hardness dissemination and remaining push designs. Exactness crushing operations keep up raceway geometry inside indicated resiliences for P4 accuracy applications.

Technical Support and Customization

Standard conveyance time is 7 working days for common sizes. OEM customization administrations oblige extraordinary dimensional necessities or execution determinations for your special applications.

Sample administrations offer assistance you confirm bearing execution in your particular working conditions some time recently full generation orders. Our specialized group gives application building back for bearing choice and establishment direction.

For technical inquiries or customization requirements, contact our engineering team at auto@lyautobearing.com. We provide comprehensive bearing solutions tailored to your equipment specifications and operational demands.

The Cylindrical Roller Bearing N series represents proven technology for radial load applications requiring thermal expansion accommodation, making it an essential component for reliable industrial equipment operation.
