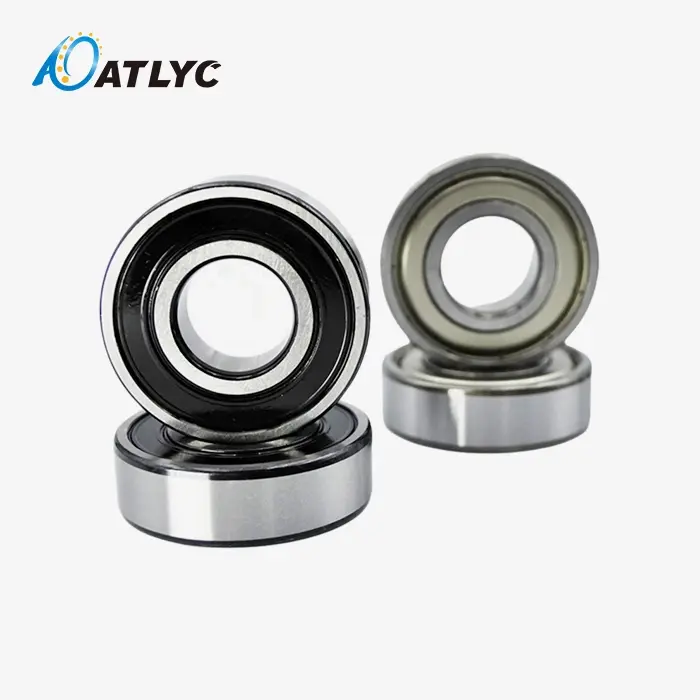

6208 Deep Groove Ball Bearings - Technical Specifications & Applications

When you're designing machinery with 40mm shaft requirements, the 6208 Deep groove ball bearings stands as your reliable mechanical interface solution. This standardized precision component belongs to the 6200 'Light' series, featuring a 40mm inner bore diameter, 80mm outer diameter, and 18mm width. The bearing efficiently manages combined radial and axial loads while maintaining rotational friction coefficients as low as 0.0010–0.0015. This translates to reduced energy consumption and minimized heat generation in your industrial motors, agricultural gearboxes, and automotive applications.

Design Structure and Working Principle

The bearing comprises of four principal components working in agreement. The internal ring fits accurately onto your 40mm shaft, whereas the external ring coordinating into the lodging bore. Between these rings, precision-engineered steel balls roll inside profound raceway grooves. The cage keeps up ideal ball dividing and anticipates collision amid rotation.

The profound groove geometry makes the key advantage. Not at all like shallow groove plans, this arrangement gives significant contact region between balls and raceways. This plan guideline empowers the bearing to handle both spiral powers (opposite to the shaft) and pivotal powers (parallel to the shaft) simultaneously.

During operation, the rolling movement between balls and raceways replaces sliding grinding with rolling contact. This essential alter diminishes vitality misfortune and warm era whereas amplifying operational life.

Performance Advantages

Load Handling Capability

The optimized raceway curvature distributes loads evenly across multiple contact points. You can apply radial loads up to 29.1 kN while the bearing maintains structural integrity. Additionally, the deep groove design accommodates axial loads in both directions, eliminating the need for additional thrust bearings in many applications.

Speed Performance

The bearing achieves high rotational speeds through precision manufacturing and balanced cage design. Standard configurations reach 9,000 RPM with grease lubrication, while oil-lubricated versions exceed 11,000 RPM. This speed capability suits modern industrial equipment requirements.

Operational Smoothness

The point contact between balls and raceways minimizes starting torque and maintains consistent rotation. Vibration levels remain within Z1V1 to Z2V2 specifications, ensuring quiet operation essential for precision machinery and noise-sensitive environments.

Versatile Configuration Options

You can select from multiple seal configurations based on your application requirements. Open bearings provide maximum speed capability for clean environments. ZZ (shielded) versions protect against debris while maintaining low friction. 2RS (sealed) configurations prevent contamination and retain lubrication in harsh conditions.

Primary Applications

Industrial Motors and Pumps

Electric motor manufacturers rely on these bearings for their 40mm shaft applications. The bearing's ability to handle both radial loads from magnetic forces and axial loads from belt tension makes it ideal for motor applications. The low noise characteristics meet industrial noise regulations.

Agricultural Machinery Components

Farm equipment transmission systems benefit from the bearing's robust construction and contamination resistance. The sealed versions withstand dust and moisture common in agricultural environments while maintaining reliable operation through seasonal demands.

Automotive Generators

Car alternators and generators utilize these orientation for their compact measure and high-speed capability. The bearing oversees electrical component loads whereas working dependably in vehicle temperature and vibration conditions.

Quality Assurance and Manufacturing Standards

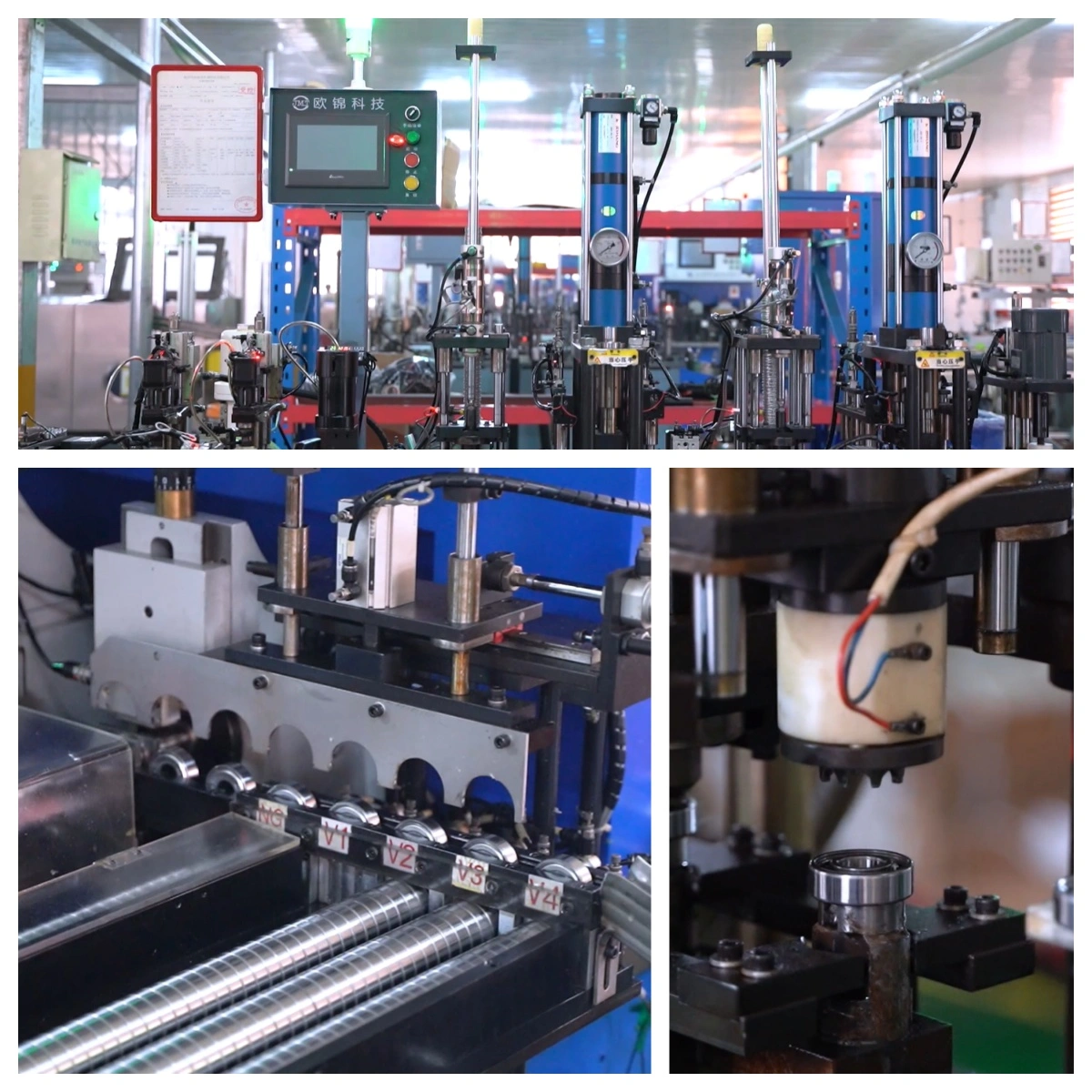

Our fabricating prepare takes after ISO guidelines with three-tier quality control. Crude fabric review guarantees steel composition meets GCr15 determinations. In-process observing keeps up dimensional resiliences and surface wrap up prerequisites. Last assessment incorporates vibration testing and stack verification.

Each bearing experiences 12 center execution tests some time recently shipment. Our quality control framework accomplishes over 99.9% capability rate, giving you with steady, dependable components for your hardware.

Delivery and Availability

Standard 6208 Deep groove ball bearings ship within 7 working days from order confirmation. We maintain extensive inventory to support both immediate requirements and scheduled deliveries. For urgent applications, our 48-hour delivery service covers standard configurations.

Our integrated supply chain combines self-production capabilities with quality partner resources. This approach ensures consistent availability while maintaining strict quality standards. Whether you need single bearings for maintenance or volume quantities for production, we provide reliable supply solutions.

The combination of proven design, quality manufacturing, and comprehensive support makes the products your optimal choice for 40mm shaft applications across industrial, agricultural, and automotive sectors.

Technical Support and Customization

We provide comprehensive technical support for your bearing selection and application questions. Our engineering team offers installation guidance, maintenance recommendations, and troubleshooting assistance. Contact our technical specialists at auto@lyautobearing.com for application-specific advice.

For non-standard requirements, we support OEM customization including modified seals, special cages, or precision grades. Our modular production approach reduces custom 6208 Deep groove ball bearings delivery time to 70% of industry averages.
