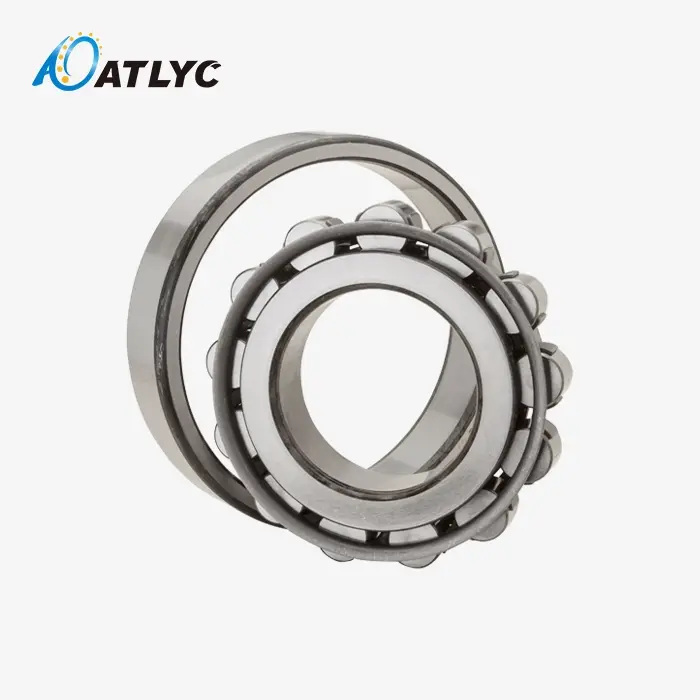

N206 Cylindrical Roller Bearing

N206 Cylindrical Roller Bearing - High-Performance Radial Load Solution

The N206 Cylindrical Roller Bearing is a precision-engineered single-row radial bearing designed for applications requiring superior radial load capacity and thermal compensation. This bearing features a distinctive 'N' type configuration where the inner ring has double flanges while the outer ring remains ribless, enabling axial shaft displacement during thermal expansion. With dimensions of 30mm inner diameter, 62mm outer diameter, and 16mm width, this bearing delivers exceptional performance in motors, gearboxes, and industrial machinery. Its separable design simplifies installation and maintenance while providing reliable operation under demanding conditions.

Design Features and Engineering Benefits

Linear Contact Geometry

The cylindrical rollers establish linear contact with both inner and outer raceways. This design distributes loads across a larger contact area compared to point contact bearings. The result is higher load-carrying capacity and improved resistance to shock loads in demanding industrial applications.

Separable Construction

The ribless outer ring allows complete separation from the inner ring assembly. This feature enables independent mounting of bearing components during installation. Maintenance teams can replace individual rings without removing the entire bearing assembly, reducing downtime and installation complexity.

Thermal Compensation Capability

The axially free design accommodates shaft thermal expansion without creating internal preload. When machinery heats up during operation, the shaft can expand freely within the bearing housing. This prevents bearing seizure and extends operational life in high-temperature environments.

High Radial Rigidity

The multiple roller elements and optimized internal geometry provide superior radial stiffness. This characteristic maintains precise shaft positioning under varying load conditions. Equipment manufacturers rely on this rigidity for maintaining alignment tolerances in precision machinery.

Industrial Applications

Electric Motor Systems

In industrial motors ranging from 15kW to 30kW, the bearing serves as the non-drive end support. It manages rotor weight and radial magnetic forces while accommodating axial shaft elongation during thermal cycles. This prevents cross-location issues that could damage the drive-end bearing.

Gearbox and Reducer Applications

The N206 Cylindrical Roller Bearing handles intense radial loads from gear meshing forces in reduction units. Its robust construction withstands shock loads common in mining conveyors and heavy machinery. The bearing maintains precise shaft alignment critical for gear tooth contact patterns.

Machine Apparatus Spindles

In machine and processing machine shafts, the bearing gives the outspread inflexibility vital for accuracy machining. It minimizes runout and stands up to vibration amid cutting operations. This guarantees tall surface wrap up quality and dimensional precision in machined components.

Pump and Fan Equipment

Industrial pumps and ventilation fans advantage from the bearing's capacity to handle both relentless spiral loads and energetic powers from liquid interaction. The distinct plan encourages support in applications where gear openness is limited.

Material and Manufacturing Excellence

Our orientation utilize GCr15 bearing steel handled through specialized warm treatment cycles. This fabric combination conveys ideal hardness conveyance and weariness resistance. The squeezed steel cage plan guarantees legitimate roller dispersing whereas keeping up cost-effectiveness for standard applications.

Quality control envelops three assessment levels: approaching fabric confirmation, in-process observing, and last item testing. Each bearing experiences vibration investigation and dimensional confirmation some time recently shipment. Our capability rate surpasses 99.9% through efficient prepare control.

Why Choose Our Bearing Solutions?

With 30 a long time of bearing industry encounter, we combine autonomous fabricating capabilities with coordinates supply chain assets. Our generation capacity covers standard heading up to φ5000mm external distance across whereas supporting non-standard customization requirements.

We keep up stock of over 1,000 standard bearing sorts, empowering 48-hour conveyance for standard orders. Custom item adjustments take after a streamlined handle that decreases commonplace industry lead times by 30%. Our measured generation approach guarantees steady quality whereas assembly particular application requirements.

Technical bolster amplifies past item conveyance through our experienced building group. We give establishment direction, application investigation, and upkeep suggestions custom fitted to your gear necessities. Worldwide clients advantage from our comprehensive bearing arrangements approach.

Contact Information

For technical specifications, application guidance, or ordering information regarding the N206 Cylindrical Roller Bearing, contact our engineering team at auto@lyautobearing.com. Our technical specialists provide detailed application analysis and recommend optimal bearing solutions for your specific requirements.
