Cylindrical Roller Bearing NF206

Cylindrical Roller Bearing NF206 - Technical Specifications & Engineering Solutions

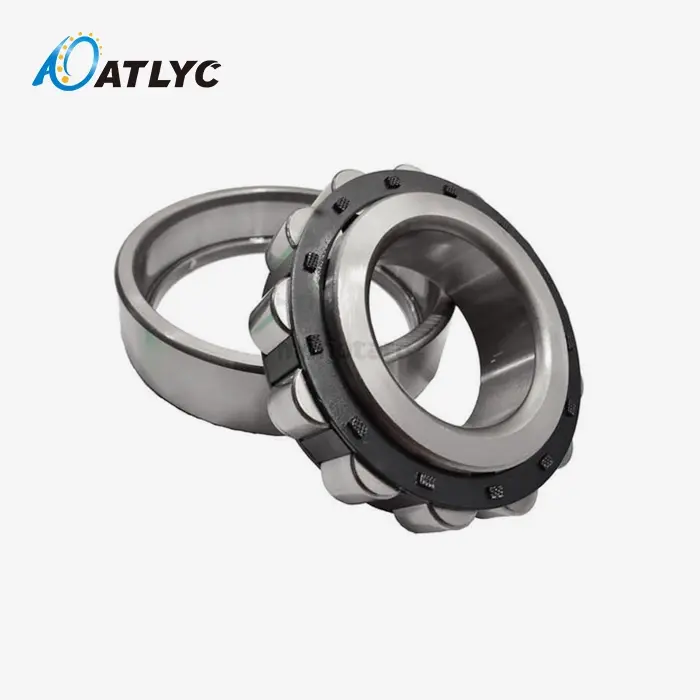

The Cylindrical Roller Bearing NF206 is a precision-engineered single-row radial bearing designed for applications requiring high radial load capacity with limited axial positioning capability. This bearing features a unique flange configuration where the inner ring has two integral ribs and the outer ring has one rib, enabling it to handle heavy radial loads while providing unidirectional axial location. With dimensions of 30mm inner diameter, 62mm outer diameter, and 16mm width, this bearing serves as a critical component in industrial machinery where thermal expansion accommodation and shaft guidance are essential requirements.

Product Structure and Working Principle

Design Configuration

The NF206 has a place to the NF arrangement of round and hollow roller orientation, characterized by its particular rib course of action. The internal ring consolidates two spines that direct the round and hollow rollers, whereas the external ring highlights a single rib. This setup makes a bearing gathering that can oblige spiral loads proficiently whereas allowing controlled hub uprooting in one direction.

Operating Mechanism

The round and hollow rollers keep up line contact with the raceways on both internal and external rings. This line contact conveys loads over the roller length, giving prevalent spiral load-carrying capacity compared to point-contact heading. The divisible plan permits the external ring to be expelled freely, streamlining establishment and support methods in tight lodging configurations.

Performance Advantages

This basic plan conveys uncommon spiral solidness whereas keeping up the capacity to oblige warm extension. The bearing anticipates shaft development in one pivotal course whereas permitting controlled relocation in the inverse course, making it perfect for applications with temperature varieties.

Engineering Applications

Industrial Electric Motors

In medium-sized electric motors, the Cylindrical Roller Bearing NF206 functions as a non-drive end support bearing. It maintains rotor alignment while accommodating thermal expansion of the motor shaft during operation. This prevents internal preloading that could lead to overheating and premature failure.

Automotive Transmissions

Heavy-duty gearboxes utilize this bearing to handle radial forces generated by helical gears. The NF206 manages thrust loads in one direction while operating reliably in oil-bath environments that may contain metal particulates from gear wear.

Centrifugal Pumps and Compressors

In high-vibration pump applications, this bearing provides the necessary stiffness to maintain impeller alignment. It resists shock loads from rapid start-stop cycles while ensuring minimal deflection under varying operational conditions.

Small Speed Reducers

The bearing supports intermediate shafts in compact gearboxes where space constraints require a bearing that can handle both radial loads and provide axial positioning without requiring additional components.

Material Properties and Manufacturing Standards

Bearing Steel Composition

The NF206 utilizes GCr15 bearing steel, which provides optimal hardness and wear resistance. This material undergoes specialized heat treatment processes to achieve the required hardness profile while maintaining core toughness.

Precision Classifications

Available in P0, P6, and P5 precision classes, this bearing can meet various application requirements:

• P0: Standard precision for general industrial applications
• P6: Higher precision for improved running accuracy
• P5: High precision for applications requiring minimal runout and vibration

Cage Technology

Two cage options are available:

• Pressed steel cage: Cost-effective solution for standard applications
• Machined brass cage: Enhanced durability for high-speed or severe operating conditions

Load Capacity and Performance Characteristics

The line contact between rollers and raceways empowers the NF206 to carry significant outspread loads whereas keeping up operational soundness. The bearing can oblige restricted pivotal loads in one course due to its spine setup, dispensing with the require for extra pushed heading in numerous applications.

The distinguishable plan encourages upkeep methods, lessening gear downtime. This highlight is especially important in applications where lodging get to is constrained or where bearing substitution must be performed without total hardware disassembly.

Quality Assurance and Delivery

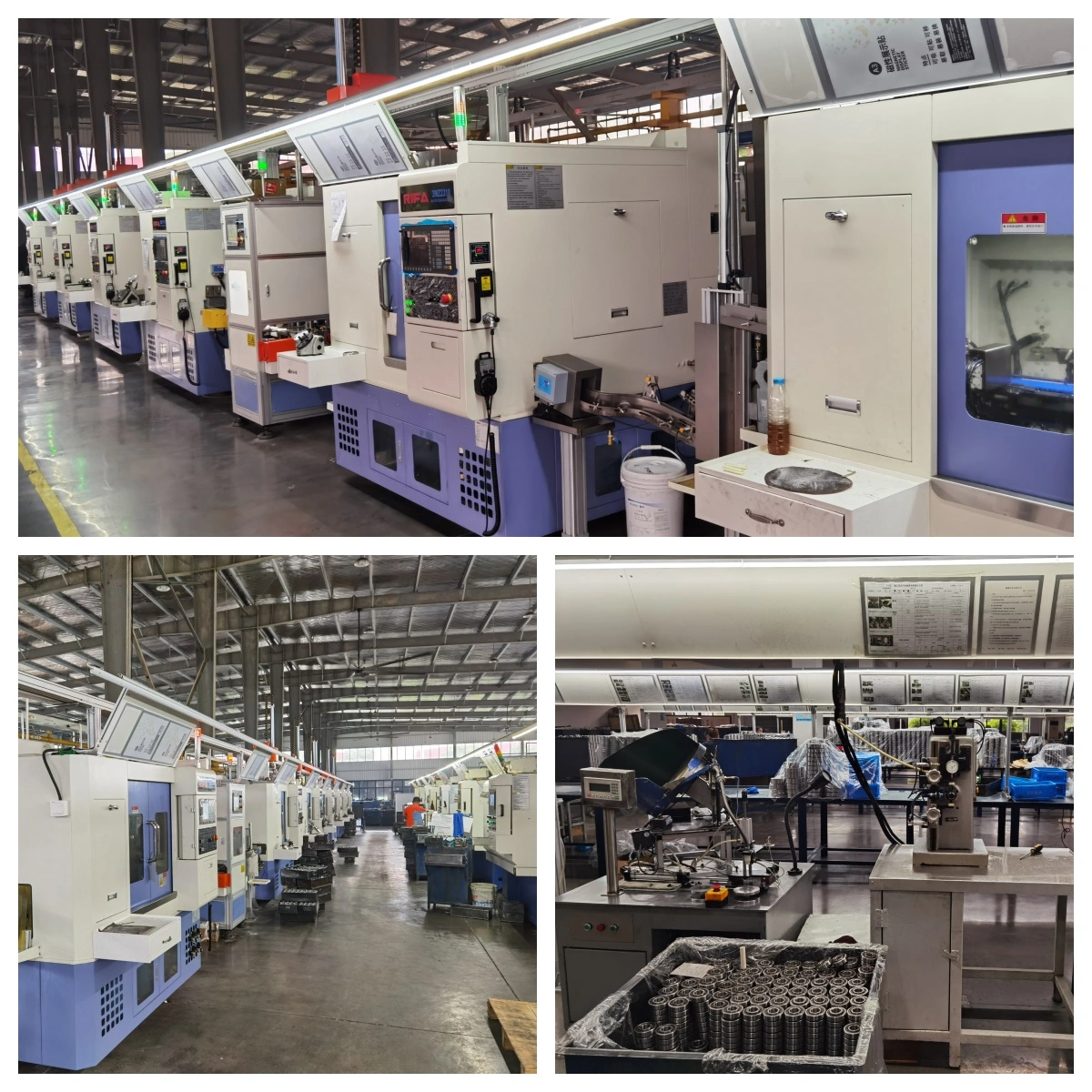

Our fabricating prepare takes after strict quality control conventions with three-level assessment: crude fabric confirmation, in-process checking, and comprehensive wrapped up item testing. Each bearing experiences approval of twelve center execution markers, counting vibration testing and operational life verification.

Standard conveyance time is seven working days for stock arrangements. Custom determinations and OEM necessities can be suited through our building group, with conveyance plans balanced based on particular customization necessities.

For technical specifications, application guidance, or custom bearing solutions, contact our engineering team at auto@lyautobearing.com. Our technical specialists can provide detailed application analysis and recommend optimal bearing configurations for your specific operating requirements.

The Cylindrical Roller Bearing NF206 represents a proven solution for demanding industrial applications where reliable radial load support and controlled axial positioning are critical for equipment performance and longevity.
