NUP311 Bearing: High-Performance Cylindrical Roller Bearing for Heavy-Duty Applications

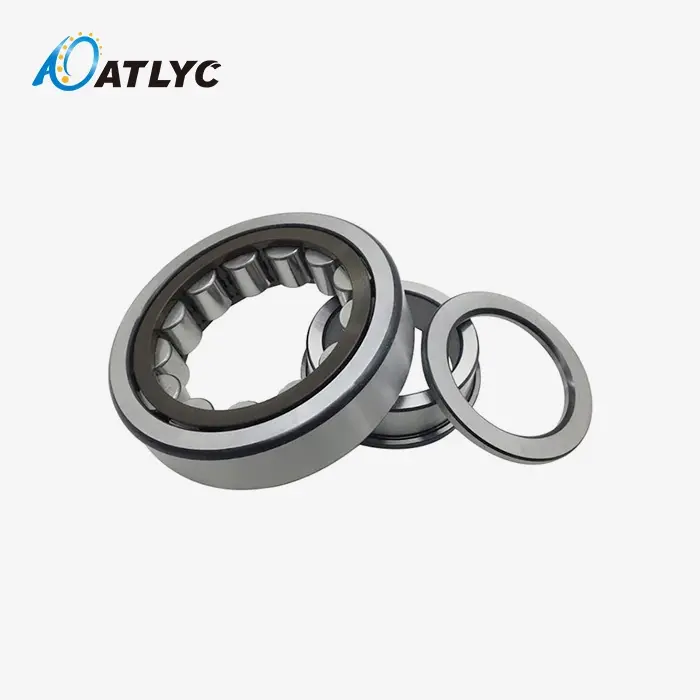

The NUP311 bearing represents a specialized cylindrical roller bearing solution designed for demanding industrial applications requiring precise axial positioning and exceptional radial load capacity. This single-row configuration features dual flanges on the outer ring and a unique loose flange ring system on the inner ring, enabling it to function as an effective locating bearing. With dimensions of 55mm bore, 120mm outer diameter, and 29mm width, the product delivers reliable performance in heavy machinery, speed reducers, and mining equipment where both radial load management and shaft positioning are critical requirements for operational success.

Design Structure and Working Principle

The NUP311 highlights a modern three-component plan that sets it separated from standard round and hollow roller orientation. The external ring joins twofold necessarily ribs, whereas the inward ring combines a single indispensably spine with a partitioned free rib ring. This setup makes a special tribological engineering where the rollers keep up direct contact with the raceways.

The working rule centers on the free spine ring framework, which permits the bearing to oblige warm extension whereas keeping up exact hub situating. The round and hollow rollers disperse outspread loads equally over the contact surfaces, lessening stretch concentrations and amplifying bearing life. This plan empowers the bearing to handle significant outspread strengths whereas avoiding pivotal shaft development in both directions.

Performance Advantages

High Outspread Stack Capacity: The direct contact between rollers and raceways empowers predominant outspread stack dissemination compared to point-contact orientation. This plan characteristic makes it perfect for applications encountering overwhelming spiral powers from adapt coinciding or rotor weight.

Axial Situating Control: Not at all like NU or N arrangement heading that suit warm development, this bearing gives bi-directional pivotal imperative. This highlight avoids shaft float and keeps up basic component arrangement in accuracy machinery.

Separable Plan Benefits: The secluded development encourages less demanding establishment and upkeep methods. Components can be mounted independently, decreasing gathering complexity and downtime amid bearing substitution operations.

Enhanced Toughness: High-purity GCr15 bearing steel development with specialized warm treatment forms guarantees amazing wear resistance and weariness life. The fabric determination gives solid execution beneath persistent heavy-load conditions.

Primary Applications

Industrial Gearboxes: Large speed reducers utilize these NUP311 bearings at intermediate shaft positions where gear reaction forces are significant. The bearing maintains gear alignment while handling radial loads from gear tooth engagement in oil-bath lubrication environments.

Mining Equipment: Crushers and heavy mining machinery benefit from the bearing's ability to withstand shock loads and vibration. The robust construction ensures reliable operation in harsh, contaminated environments typical of mining operations.

Electric Motors: Large industrial motors employ this bearing configuration at the drive end to manage magnetic pull forces and rotor weight while maintaining precise air gap control between rotor and stator components.

Pump and Compressor Applications: Centrifugal pumps and compressors rely on these bearings to stabilize shafts against hydraulic imbalance forces while maintaining impeller positioning accuracy.

Quality Control and Manufacturing Standards

Our fabricating prepare consolidates a comprehensive three-level quality control framework covering crude fabric review, in-process observing, and total wrapped up item confirmation. Each bearing experiences thorough testing counting vibration examination, stack capacity confirmation, and dimensional precision checks.

The generation office keeps up ISO guidelines for bearing fabricating, with exactness crushing innovation guaranteeing ideal surface wrap up and dimensional consistency. Warm treatment forms are carefully controlled to accomplish ideal hardness and microstructure properties all through the bearing components.

Supply Chain and Delivery

We maintain inventory of standard configurations to ensure rapid delivery within our established 7-working-day schedule. Custom specifications and non-standard requirements can be accommodated through our modular production processes, typically reducing customization lead times to 70% of industry averages.

Our quality management system ensures an ex-factory qualification rate exceeding 99.9%, with each batch meeting stringent performance criteria before shipment. This commitment to quality control minimizes field failures and reduces maintenance requirements for your equipment.

For technical specifications, application consultation, or ordering information regarding the NUP311 bearing and other bearing solutions, contact our engineering team at auto@lyautobearing.com. Our experienced technical staff can provide application-specific guidance to ensure optimal bearing selection for your equipment requirements.
