Cylindrical Roller Bearing NUP series

Cylindrical Roller Bearing NUP Series - Professional Locating Bearing Solution

When you need precise axial location combined with high radial load capacity in your mechanical assemblies, the Cylindrical Roller Bearing NUP series provides the optimal engineering solution. This specialized single-row bearing design addresses critical challenges in compact machinery where space constraints prevent separate thrust bearing installations. Unlike standard NU or N series bearings that allow axial float, our NUP series constrains shaft displacement in both axial directions while maintaining exceptional radial load capacity. The unique configuration makes these bearings indispensable for machine tool spindles, gearboxes, and electric motors requiring precise positioning.

Technical Structure and Design Characteristics

Core Design Elements

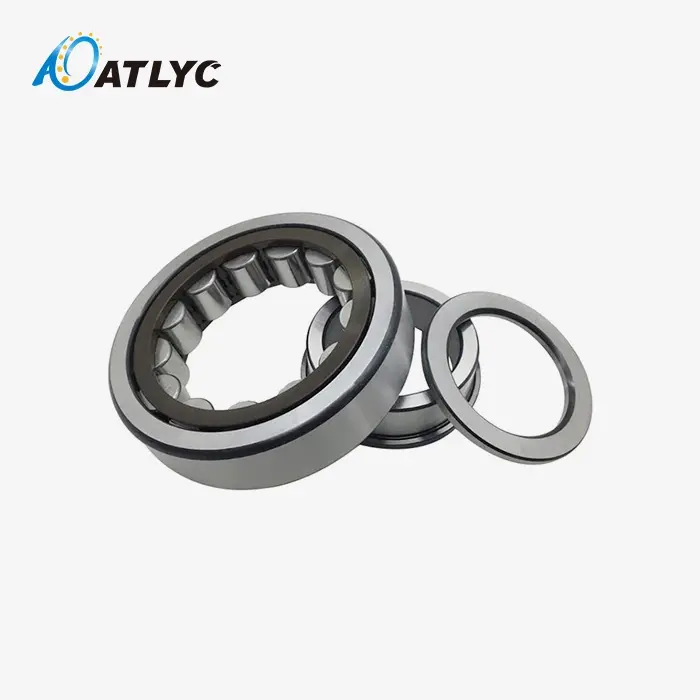

The NUP series features a sophisticated three-component structure optimized for locating applications. The outer ring incorporates two integral fixed ribs that provide continuous radial support. The inner ring includes one integral fixed rib and accommodates a separate loose rib ring (flat thrust collar) on the opposite side.

This separable design offers significant assembly advantages. You can mount the inner ring with its loose rib independently, then position the outer ring and roller assembly. This flexibility proves invaluable during maintenance operations or when working with interference fits.

Working Principle

The bearing operates through line contact between cylindrical rollers and raceways. Each roller distributes loads along its entire length, creating superior load distribution compared to point contact designs. The fixed ribs manage radial loads while the loose rib system handles bidirectional axial forces up to 10% of the dynamic radial load rating.

The separable construction allows thermal expansion accommodation while maintaining precise axial location. This principle solves common installation challenges in temperature-varying environments.

Performance Advantages

High Radial Load Capacity

Line contact geometry enables exceptional radial load handling. Standard NUP bearings typically support radial loads 40-60% higher than equivalent deep groove ball bearings. This capacity stems from the uniform stress distribution across the roller length.

Bidirectional Axial Location

The loose rib configuration provides controlled axial positioning in both directions. While not designed for primary thrust loads, the system manages installation errors, thermal expansion, and light operational thrust forces effectively.

Operational Flexibility

Separable rings facilitate easier mounting procedures, especially beneficial for large shaft assemblies or interference fit applications. You can pre-position components and assemble without complex heating or cooling procedures.

Maintenance Efficiency

The removable loose rib allows bearing inspection and lubrication access without complete disassembly. This design reduces maintenance time and equipment downtime significantly.

Primary Applications

Machine Tool Spindles

NUP bearings serve as locating bearings in precision spindle arrangements. They provide axial positioning while supporting cutting forces and maintaining rotational accuracy essential for machining operations.

Electric Motors

Motor applications benefit from the axial location capability, preventing rotor displacement while handling magnetic forces and operational loads. The design accommodates thermal expansion in continuous-duty applications.

Pumps and Compressors

Rotating equipment requires precise shaft positioning for optimal clearance management. Cylindrical Roller Bearing NUP series maintains impeller position while supporting hydraulic and mechanical loads.

Gearbox Systems

Gear situating requests exact pivotal area for appropriate tooth engagement. These orientation give fundamental imperative whereas dealing with transmission loads in compact equip assemblies.

Quality Affirmation and Fabricating Standards

Our fabricating prepare takes after ISO 492 accuracy measures with extra inside quality controls. Each bearing experiences comprehensive testing counting vibration investigation, stack testing, and dimensional verification.

We keep up strict fabric traceability for bearing steel composition and warm treatment forms. Our three-level quality control framework guarantees steady execution over generation bunches with over 99.9% capability rates.

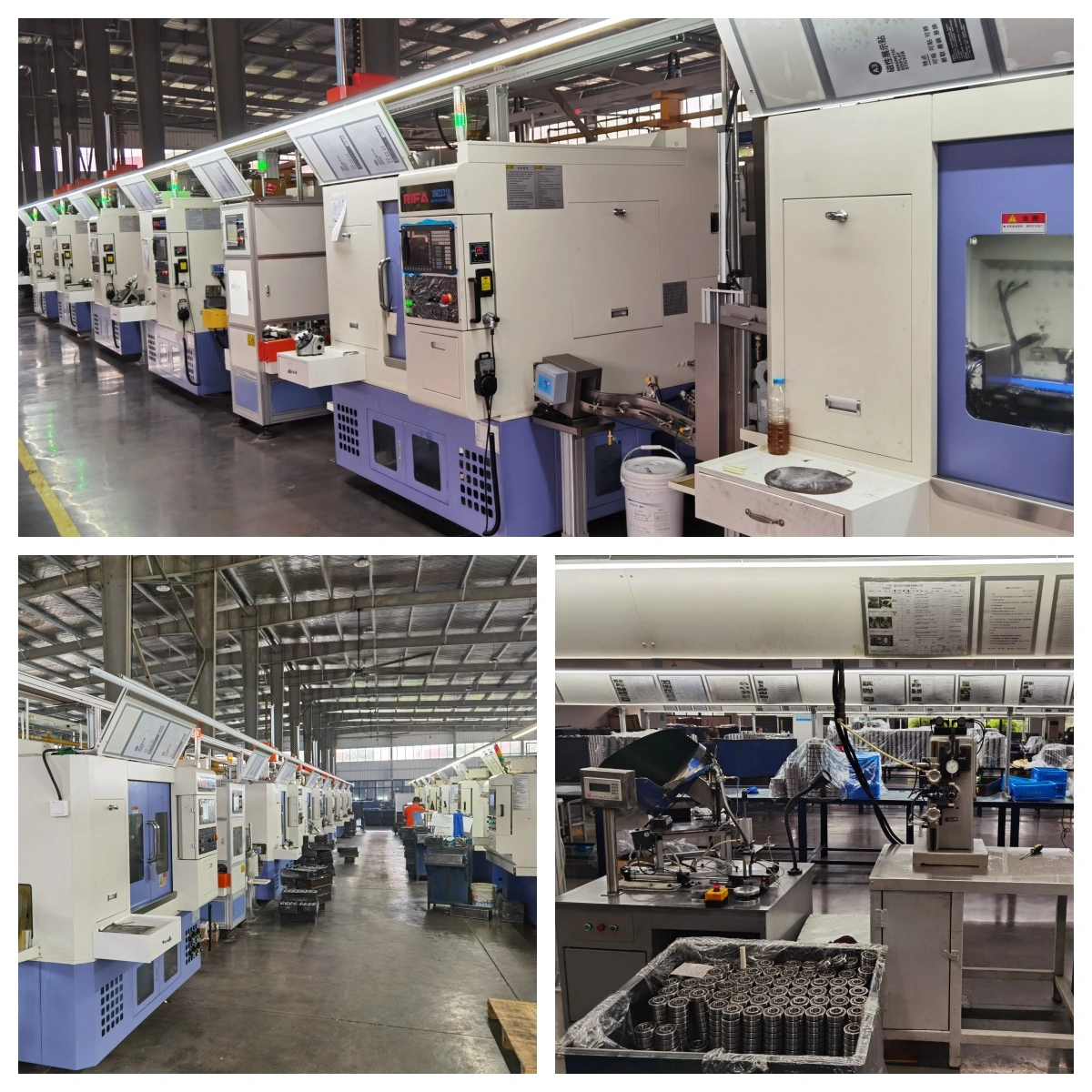

Precision Manufacturing

Advanced pounding innovation accomplishes required raceway geometry and surface wrap up. Warm treatment forms optimize fabric properties for wear resistance and weakness life beneath operational conditions.

Professional Support Services

Technical Consultation

Our designing group gives application examination and bearing determination direction. We assess your particular stack conditions, speed prerequisites, and natural components to suggest ideal configurations.

Custom Solutions

Beyond standard measurements, we offer adjusted plans for extraordinary applications. Custom cage materials, seal courses of action, and exactness grades address special operational requirements.

Installation Support

Technical documentation incorporates mounting methods, clearance determinations, and oil suggestions. Our bolster group gives direction for complex establishments or investigating.

Why Choose Luoyang Auto Bearing Co., Ltd.

With 30 years of bearing industry experience, we understand the critical role precise bearing selection plays in equipment performance. Our comprehensive manufacturing capabilities cover bearings up to φ5000mm diameter with complete customization support.

We maintain inventory of over 1,000 standard bearing types for rapid delivery within 48 hours. Custom bearing production utilizes optimized processes to achieve 70% shorter lead times than industry averages.

Our integrated quality system ensures every Cylindrical Roller Bearing NUP series meets stringent performance requirements for your critical applications.

Contact our technical team at auto@lyautobearing.com for application consultation and product specifications tailored to your equipment requirements.
