NUP Cylindrical Roller Bearing - Professional Industrial Solution

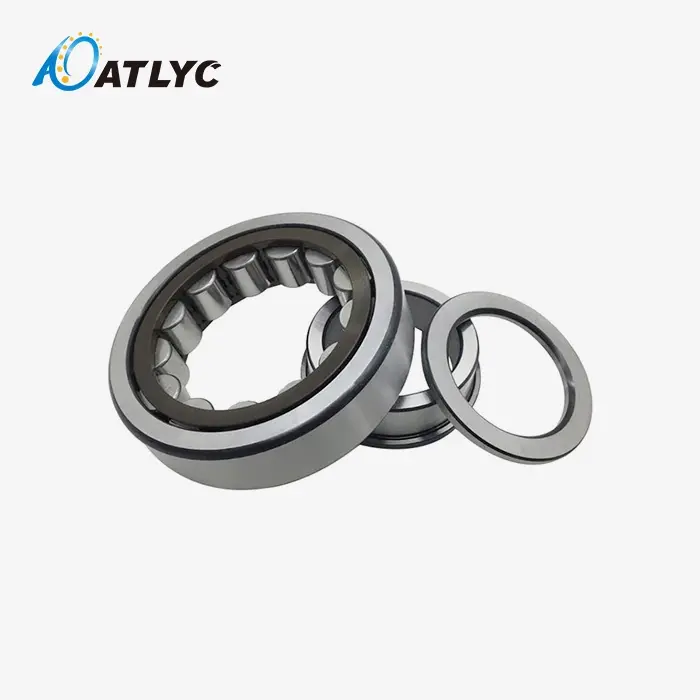

What is a NUP Cylindrical Roller Bearing?

The NUP cylindrical roller bearing is a specialized single-row radial bearing designed for applications requiring both high radial load capacity and bidirectional axial positioning. Unlike standard NU or N series bearings, the product features a unique structural configuration: double flanges on the outer ring, one fixed flange on the inner ring, and a separable flat retaining ring. This design enables the bearing to function as a locating bearing, providing axial fixation in both directions while maintaining excellent radial load support. Engineers commonly specify these bearings for machine tool spindles, electric motors, and pump assemblies where space constraints limit the use of separate thrust bearings.

Technical Structure and Working Principle

Core Components

The bearing structure consists of several key elements working together:

• Outer ring: Features two fixed flanges providing lateral support
• Inner ring: Contains one permanent flange and accepts a removable retaining ring
• Cylindrical rollers: Maintain linear contact with raceways for optimal load distribution
• Cage system: Available in pressed steel or machined brass configurations
• Flat retaining ring: Enables easy assembly while providing axial constraint

Operating Mechanism

The cylindrical rollers create line contact with the inner and outer ring raceways. This geometry distributes loads across a larger surface area compared to ball bearings. The dual-flange outer ring and inner ring flange system work together to control axial movement. The separable retaining ring allows for straightforward mounting procedures while ensuring proper axial positioning during operation.

Performance Advantages

Predominant Stack Handling

The straight contact plan gives remarkable outspread stack capacity. This makes our heading appropriate for heavy-duty applications where point contact orientation would come up short rashly. The stack dissemination over the roller length decreases contact push and expands operational life.

High-Speed Capability

Low grinding characteristics between rollers and ring ribs empower tall rotational speeds. The adjusted cage plan keeps up roller dispersing indeed beneath energetic conditions. This combination bolsters productive operation in high-speed shaft applications.

Axial Situating Control

The NUP setup gives bidirectional hub limitation without requiring extra pushed orientation. This rearranges your get together plan and diminishes by and large framework complexity. The divisible holding ring encourages support procedures.

Operational Reliability

Our three-level quality control framework guarantees steady execution. Each bearing experiences vibration testing and life confirmation some time recently shipment. The ex-factory capability rate surpasses 99.9%, giving certainty for basic applications.

Primary Applications

Machine Instrument Spindles

Machine apparatus applications advantage from the bearing's high-speed capability and pivotal situating. The P4 accuracy choice bolsters requesting machining resiliences. Our orientation keep up rotational exactness beneath shifting stack conditions.

Electric Motors

Motor producers indicate these orientation for their capacity to handle spiral loads whereas controlling hub development. The cage plan minimizes commotion era, supporting calm engine operation. Different exactness classes suit diverse engine specifications.

Industrial Pumps

Pump applications require reliable radial load support with axial constraint. The NUP cylindrical roller bearing design handles both steady-state and transient loads effectively. Lubrication flexibility supports different operating environments.

Quality and Manufacturing Excellence

Advanced Materials

We utilize high-purity GCr15 bearing steel with optimized heat treatment processes. Special grinding techniques ensure precise raceway geometry. These materials provide wear resistance and dimensional stability across temperature ranges.

Precision Manufacturing

Our manufacturing capabilities support standard bearings up to φ5000mm outer diameter. Modular production processes reduce customization lead times to 70% of industry averages. Quality verification covers 12 core performance indicators.

Comprehensive Testing

Each production batch undergoes rigorous testing protocols. Vibration analysis ensures smooth operation characteristics. Life testing validates performance under accelerated conditions. These procedures maintain our quality standards.

Supply and Support Services

Inventory Management

We maintain stock of over 1,000 standard bearing types for rapid delivery. Regular orders ship within 48 hours from our distribution centers. This inventory approach supports your production scheduling requirements.

Custom Solutions

Non-standard requirements receive specialized attention through our engineering team. We can modify dimensions, materials, or precision classes to meet specific needs. Custom bearing delivery typically occurs within 15-20 days for larger sizes.

Technical Support

Our engineering team provides application guidance and troubleshooting assistance. Installation procedures and maintenance recommendations help optimize bearing life. We offer 24-hour technical consultation through our support channels.

Why Choose Our NUP Cylindrical Roller Bearings?

With 30 years of bearing industry experience, we understand the critical role these components play in your equipment reliability. Our integrated manufacturing approach combines quality control with efficient delivery systems. Whether you need standard specifications or custom modifications, our team works with you to ensure optimal NUP cylindrical roller bearing selection and performance.

For technical specifications, application guidance, or delivery information, contact our engineering team at auto@lyautobearing.com. We're ready to support your bearing requirements with professional expertise and reliable service.
