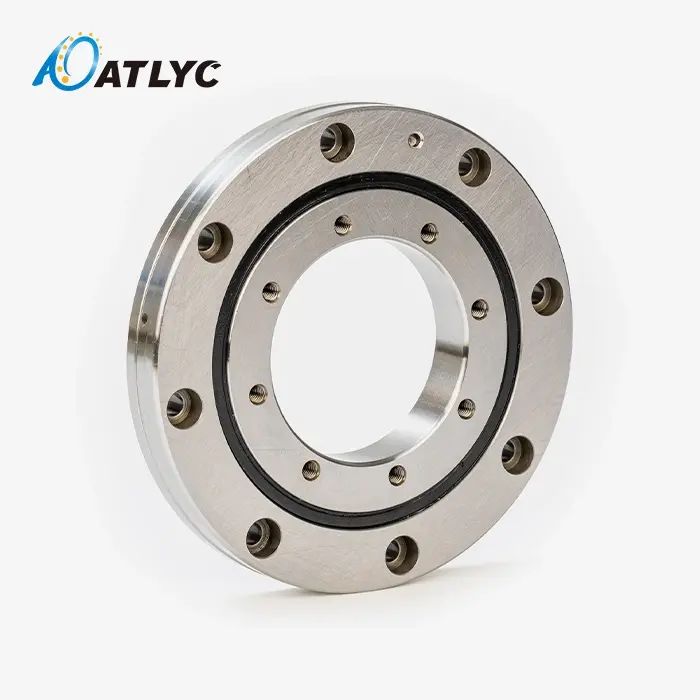

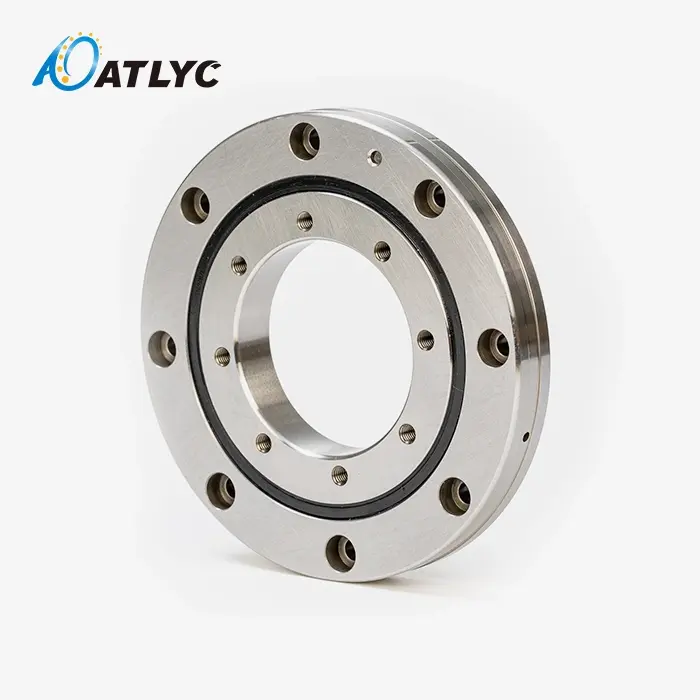

RU Series Cross Roller Bearing

RU Series Cross Roller Bearing

When your application requests exact situating and tall stack capacity in a compact plan, the RU Series Cross Roller Bearing conveys built execution you can depend on. These specialized accuracy orientation highlight an fundamentally ring structure with mounting gaps that dispense with establishment complexity whereas giving extraordinary inflexibility. Your gear benefits from the one of a kind crossed-roller arrangement that handles outspread, hub, and minute loads simultaneously—solving multi-directional stacking challenges in a single bearing unit.





What Makes RU Series Cross Roller Bearing Different?

The item utilizes round and hollow rollers organized in a 90-degree crossed arrangement between indispensably inward and external rings. This plan approach varies in a general sense from routine bearing frameworks that require numerous units to oversee complex stacking conditions.

Each roller is situated orthogonally to its neighbors, making a steady contact design over the V-groove raceways. High-precision spacers partitioned person rollers, anticipating coordinate contact and guaranteeing uniform stack dissemination. This arrangement dispenses with the require for preload alterations whereas keeping up zero play amid operation.

The indispensably ring structure incorporates mounting gaps on both inward and external rings. You can mount the bearing specifically to your hardware surfaces without extra lodgings or ribs, lessening get together time and dispensing with potential geometric mistakes.

Technical Specifications

Performance Advantages

Multi-Directional Stack Handling

The crossed-roller course of action gives tall outspread, hub, and minute stack capacity inside a single bearing unit. Your hardware plan gets to be easier whereas keeping up basic keenness beneath complex stacking conditions.

Superior Rotational Precision

Low contact coefficients guarantee smooth revolution with negligible torque variety. The crossed-roller geometry keeps up reliable contact points, conveying fabulous runout exactness for accuracy applications.

Compact Plan Integration

The indispensably ring structure with mounting gaps decreases your by and large framework stature compared to conventional bearing courses of action. This space-efficient plan bolsters miniaturization necessities in present day machinery.

Installation Reliability

Direct mounting capability dispenses with halfway components that can present geometric blunders. Your get together handle gets to be more clear with less resistance stack-up concerns.

​​​​​​​

Industrial Applications

Robotics and Automation

Industrial robot joints and manipulator rotating parts benefit from the RU Series Cross Roller Bearing precision and load capacity. The bearings handle the complex motion patterns required in automated manufacturing systems.

Machine Tool Components

Rotary tables in machining centers require high positioning accuracy and rigidity. These bearings provide the necessary precision for accurate workpiece positioning during cutting operations.

Medical Equipment

Precision medical machines and measuring instruments demand low noise operation and accurate positioning. The smooth rotation characteristics support sensitive medical procedures and diagnostic equipment.

Semiconductor Manufacturing

IC manufacturing devices require ultra-precise motion control in cleanroom environments. The bearing design minimizes particle generation while maintaining positioning accuracy.

Engineering Considerations

When selecting bearing accuracy classes, consider your application requirements:

• P6/P0: General precision applications
• P5: High precision rotating tables
• P4/P3: Ultra-precision positioning systems

Material selection depends on operating conditions. GCr15 provides standard performance for most applications, while GCr15SiMn offers enhanced fatigue resistance for demanding environments.

Load calculations should consider the combined effect of radial, axial, and moment loads. The crossed-roller configuration distributes these loads effectively, but proper sizing ensures optimal service life.

Why Choose Luoyang Auto Bearing?

With 30 years of bearing industry experience, we understand the critical role precision bearings play in your equipment performance. Our comprehensive manufacturing capabilities support both standard production and customized solutions for specific application requirements.

Our quality control system includes raw material inspection, in-process monitoring, and finished product verification. Each bearing undergoes vibration testing and life cycle validation to ensure consistent performance in your applications.

Standard inventory enables rapid delivery for common sizes, while our streamlined customization process reduces lead times for special configurations. The product represents our commitment to providing reliable precision bearing solutions that meet demanding industrial requirements.

Contact Information

For technical specifications, custom sizing, or application engineering support, contact our RU Series Cross Roller Bearing specialists at auto@lyautobearing.com. Our engineering team provides comprehensive technical assistance to ensure optimal bearing selection for your specific requirements.
