RU Series Crossed Roller Bearing

RU Series Crossed Roller Bearing: High-Precision Solution for Industrial Applications

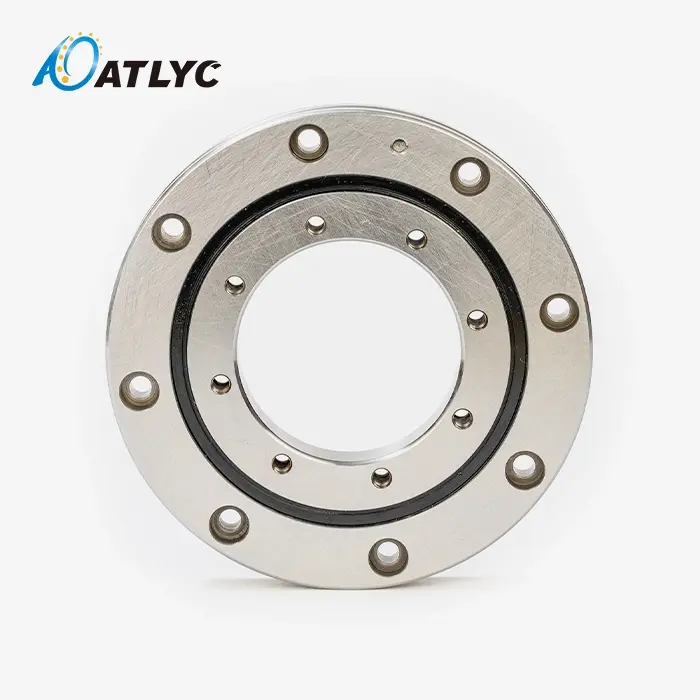

When you need a bearing solution that combines high load capacity with exceptional precision, the RU Series Crossed Roller Bearing delivers reliable performance in a compact design. This advanced bearing features an integral ring structure with pre-drilled mounting holes, eliminating the need for separate housings. You can bolt it directly to your equipment, reducing installation complexity and potential assembly errors. The crossed roller configuration handles radial, axial, and moment loads simultaneously within a single unit.





Understanding RU Series Design and Construction

The RU Arrangement utilizes round and hollow rollers orchestrated opposite to each other at 90-degree points inside V-shaped raceways. This crossed arrangement, combined with exactness spacers between rollers, avoids coordinate roller contact and guarantees uniform stack distribution.

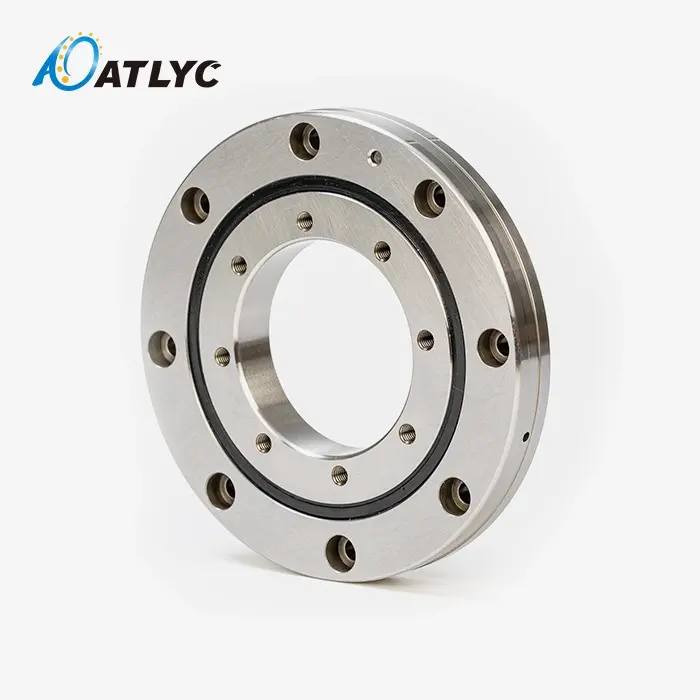

The indispensably inward and external rings kill the resilience stack-up issues common with multi-piece bearing congregations. Pre-machined mounting gaps in both rings permit coordinate connection to your gear structure. This plan approach decreases the generally envelope measurements of your rotational congregations whereas keeping up basic rigidity.

High-quality bearing steel (GCr15 or GCr15SiMn) experiences specialized warm treatment to accomplish ideal hardness and dimensional soundness. Accuracy pounding forms guarantee steady raceway geometry and surface wrap up quality.

Key Performance Advantages

Multi-directional Stack Capacity: A single item replaces numerous customary orientation by taking care of spiral loads, bidirectional pivotal loads, and minute loads at the same time. This capability streamlines your plan and diminishes component count.

High Unbending nature: The crossed roller course of action gives prevalent resistance to diversion beneath stack. This characteristic keeps up positional exactness in exactness applications where negligible precise relocation is critical.

Smooth Operation: The moo grinding coefficient comes about from optimized roller geometry and surface medications. You accomplish steady torque characteristics all through the working range.

Exceptional Runout Exactness: Exactness fabricating forms provide tight runout resistances. Accessible exactness classes (P6, P0, P5, P4, P2) oblige different application prerequisites from common mechanical utilize to ultra-precision hardware.

Technical Specifications

Industrial Applications

Robotics and Automation: Industrial robot joints and rotating assemblies benefit from the compact design and multi-directional load capacity. The RU Series Crossed Roller Bearing maintains positioning accuracy under varying load conditions.

Machine Apparatuses: Rotational tables and ordering heads require the tall unbending nature and smooth operation these heading give. Accuracy machining operations depend on reliable precise positioning.

Medical Hardware: CT scanners, X-ray gear, and surgical robots utilize the moo commotion characteristics and exactness turn capabilities. Clean room compatibility underpins sterile environment requirements.

Semiconductor Fabricating: IC generation gear requests ultra-high exactness and contamination-free operation. The fixed plan and exactness classes meet rigid industry standards.

​​​​​​​

Quality Control and Manufacturing Excellence

Our 30-year encounter in bearing fabricating guarantees reliable quality in each item. We actualize a three-level quality control framework covering crude fabric assessment, in-process observing, and total wrapped up item testing.

Each bearing experiences vibration testing, dimensional confirmation, and operational testing some time recently shipment. Our quality frameworks accomplish an ex-factory capability rate surpassing 99.9%.

Standard items transport inside 48 hours from our stock of over 1,000 bearing sorts. Custom arrangements utilize our secluded generation approach, diminishing conveyance times to 70% of industry averages.

Installation and Maintenance Support

The necessarily ring plan with mounting gaps streamlines establishment methods. You can specifically jolt the bearing to mating surfaces without extra lodgings or complex arrangement fixtures.

Our specialized group gives establishment direction, operational observing suggestions, and upkeep planning based on your particular application prerequisites. We offer worldwide specialized back through our 24-hour discussion benefit.

Contact Information

For technical specifications, custom sizing, or application engineering support for RU Series Crossed Roller Bearing solutions, contact our engineering team at auto@lyautobearing.com. We provide detailed drawings, load calculations, and application-specific recommendations to optimize your equipment performance.
