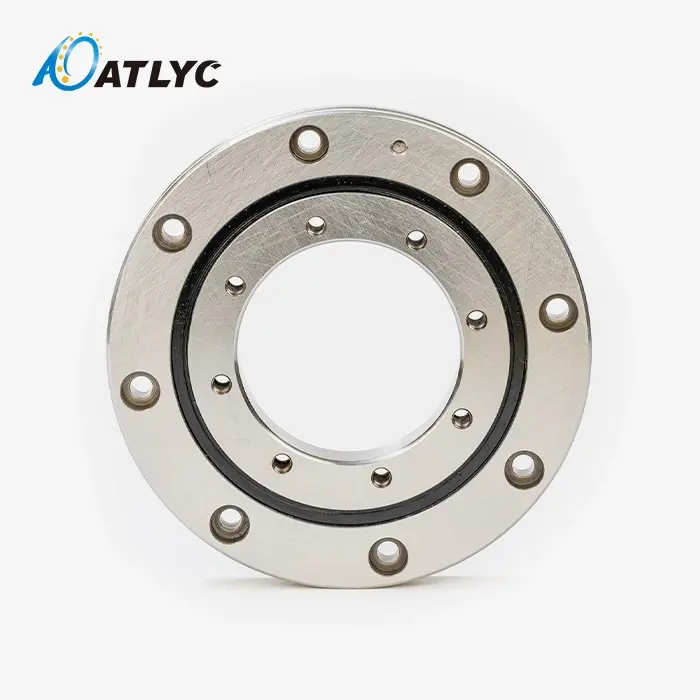

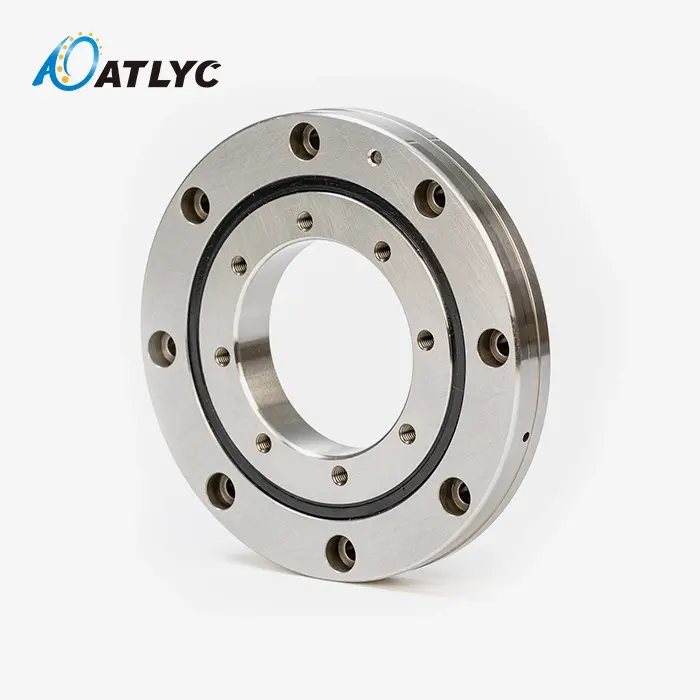

RU42UU Cross roller bearing

RU42UU Cross Roller Bearing: Precision Solution for Compact Applications

The RU42UU Cross roller bearing represents an innovative solution for engineers facing space constraints in high-precision applications. This integrated crossed roller bearing eliminates traditional mounting complexities through its unique design featuring integral inner and outer rings with built-in mounting holes. With dimensions of 20mm inner diameter, 70mm outer diameter, and 12mm width, this bearing delivers exceptional load capacity in minimal space. The 'UU' designation indicates dual contact seals that provide superior contamination protection while maintaining lubrication integrity.





Technical Specifications

Design Structure and Working Principle

Crossed Roller Configuration

The bearing utilizes round and hollow rollers organized in a 90° crossed design between indispensably inward and external rings. Each roller is isolated by precision-machined spacers, avoiding coordinate roller-to-roller contact. This setup makes uniform stack dissemination over the whole bearing surface whereas minimizing grinding amid rotation.

Integral Ring Design

Unlike split-ring options, the necessarily development dispenses with get together resilience stack-up and decreases establishment blunders. The single-piece rings give prevalent basic unbending nature and keep up exact dimensional connections beneath load.

Dual Seal Protection

The contact seals on both sides viably avoid tidy entrance and hold oil, guaranteeing reliable execution in mechanical situations whereas diminishing support requirements.

​​​​​​​

Performance Advantages

Multi-Directional Stack Capacity

The crossed roller course of action empowers concurrent taking care of of spiral, bidirectional hub, and minute loads inside a single bearing unit. This disposes of the require for numerous bearing arrangements and disentangles hardware design.

High Rotational Accuracy

Precision fabricating forms guarantee amazing runout precision, making this bearing appropriate for applications requiring situating accuracy. The unbending structure keeps up precision indeed beneath shifting stack conditions.

Compact Installation

Direct mounting capability through fundamentally gaps dispenses with outside lodgings and presser ribs. This decreases component tally, establishment time, and potential gathering mistakes whereas maximizing accessible space utilization.

Low Contact Operation

The optimized roller geometry and surface wrap up provide smooth turn with negligible beginning torque. This characteristic is especially profitable in accuracy situating applications where movement control is critical.

Primary Applications

Industrial Robotics

The bearing exceeds expectations in automated joint applications where space imperatives and multi-directional loads are common challenges. It handles the complex drive combinations produced by robot arm developments whereas keeping up situating accuracy.

Precision Revolving Tables

Manufacturing centers utilize these orientation in ordering tables where workpieces require correct precise situating. The bearing bolsters both workpiece weight and cutting powers without compromising rotational precision.

Medical Equipment

Clean-room situations advantage from the fixed plan that avoids defilement whereas guaranteeing smooth, low-noise operation basic for restorative imaging and demonstrative equipment.

Measurement Instruments

Laboratory and quality control gear depend on the bearing's steadiness and precision for exact estimations and repeatable results.

Quality Control and Manufacturing

Our fabricating handle joins high-purity bearing steel with specialized warm treatment for ideal hardness and wear resistance. Exactness crushing innovation accomplishes the surface wraps up fundamental for smooth operation and amplified benefit life.

Each RU42UU Cross roller bearing undergoes comprehensive testing including vibration analysis, dimensional verification, and load testing to ensure compliance with specified accuracy grades. Our three-level quality control system maintains an ex-factory qualification rate exceeding 99.9%.

Installation Considerations

Proper installation requires high-strength mounting bolts (Grade 12.9 recommended) tightened to specified torque values using a star pattern sequence. This prevents ring distortion and maintains bearing geometry. Pre-lubrication with lithium soap base grease provides immediate operation capability, though regreasing intervals should be established based on operating conditions.

Why Choose Our Solution?

With 30 years of bearing industry experience, we understand the critical requirements of precision applications. Our integrated R&D and manufacturing capabilities ensure consistent quality while our efficient supply chain provides reliable delivery. Standard inventory maintains short lead times, while customization capabilities address unique application requirements.

The RU42UU Cross roller bearing represents our commitment to engineering excellence and customer success. For technical consultation or application-specific guidance, contact our engineering team at auto@lyautobearing.com.

This precision bearing solution transforms complex mounting challenges into straightforward installations while delivering the performance reliability your applications demand.
