Cup Tapered Roller Bearing 30313 - Precision Engineering for Heavy-Duty Applications

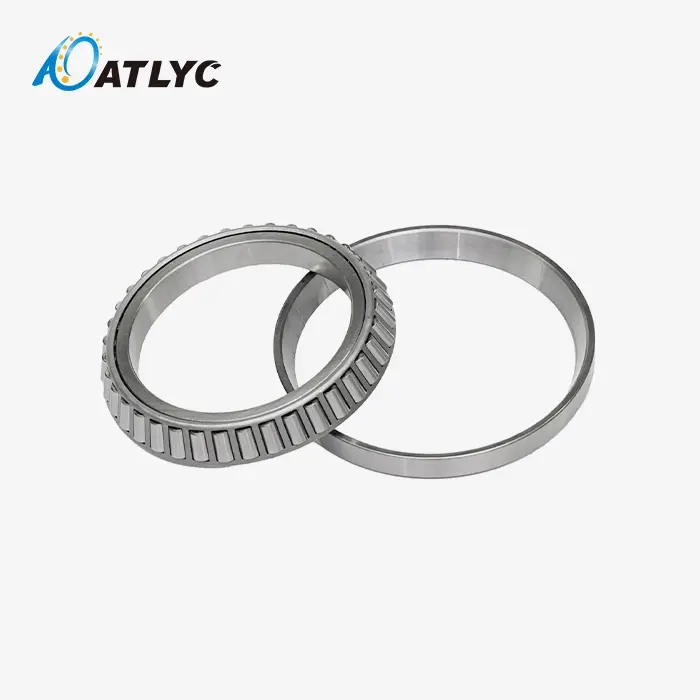

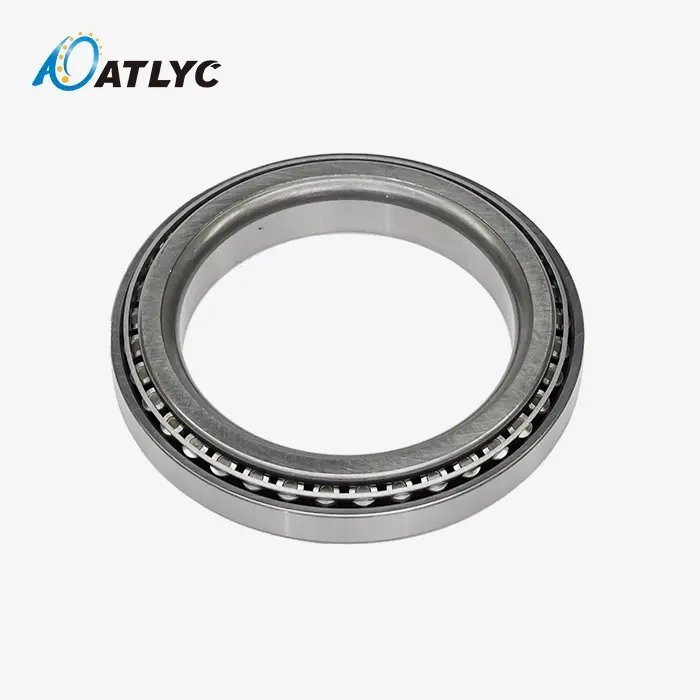

When your equipment demands reliable performance under combined radial and axial loads, the Cup Tapered Roller Bearing 30313 delivers engineered precision for critical applications. This single-row metric tapered roller bearing features a 65mm bore diameter, 140mm outer diameter, and 33mm width, making it ideal for medium to heavy-duty industrial applications. The separable cup design allows independent mounting of outer and inner assemblies, simplifying installation in complex machinery configurations.





Understanding Cup Tapered Roller Bearing Design

The decreased roller bearing highlights a modern geometric plan where all contact surfaces focalize at a common point on the bearing pivot. This arrangement guarantees ideal stack dispersion over the roller length, avoiding edge push concentrations that commonly cause untimely disappointment in other bearing types.

Structure and Working Principle

The bearing comprises of four fundamental components: the container (external ring), cone (internal ring), decreased rollers, and cage gathering. The cone gathering incorporates the inward ring, rollers, and cage as one unit, whereas the container remains partitioned for establishment convenience.

The decreased geometry makes a contact point regularly extending from 10° to 30°, empowering the bearing to handle both outspread strengths and single-direction pivotal loads at the same time. As stack increments, the rollers self-align inside their raceways, conveying push equally over the contact surfaces.

Material and Fabricating Excellence

Each bearing utilizes high-carbon chromium bearing steel (GCr15) for rings and rollers, heat-treated to HRC 60-64 for ideal wear resistance. The cage development utilizes either stamped steel or brass, chosen based on your particular application prerequisites and working conditions.

Key Performance Advantages

Superior Load Handling Capability

The Cup Tapered Roller Bearing 30313 excels in applications requiring combined loading scenarios. The line contact between rollers and raceways distributes loads across a larger surface area compared to point contact bearings, resulting in higher load capacity and extended service life.

Adjustable Operating Clearance

Amid establishment, you can accurately alter bearing clearance or apply controlled preload to optimize execution for your particular application. This adjustability permits fine-tuning of framework solidness, rotational exactness, and warm development compensation.

Separable Plan Benefits

The glass and cone partition streamlines mounting strategies, especially in applications with constrained get to or complex lodging arrangements. This plan too encourages upkeep review without total dismantling of encompassing components.

Primary Applications

Automotive Industry Applications

Heavy-duty truck differentials and rear axles rely on this bearing configuration to manage severe thrust loads generated during acceleration and cornering. The precise preload adjustment capability prevents gear noise while ensuring optimal power transmission efficiency.

Industrial Gearbox Systems

Rock crushers, mining conveyors, and heavy machinery gearboxes utilize these bearings for intermediate shaft support. The robust roller design resists shock loading and contamination better than ball bearing alternatives in harsh industrial environments.

Agricultural Equipment

Tractor wheel hubs and harvester spindles require bearings capable of withstanding static shock loads from uneven terrain and lateral forces during turning operations with heavy implements attached.

Machine Tool Spindles

Positioning applications in machine tool spindles benefit from the high stiffness and precise clearance adjustment capabilities, ensuring maintained accuracy under varying cutting loads.

Installation and Maintenance Considerations

Proper Installation Procedures

Mount the cup and cone assemblies separately, ensuring proper seating and alignment. Apply specified preload gradually while monitoring bearing temperature to prevent excessive stress. Use appropriate installation tools to avoid roller damage during assembly.

Lubrication Requirements

Select lubricants based on operating speed, temperature, and load conditions. Oil lubrication supports higher speeds and provides better heat dissipation, while grease lubrication offers simplicity and contamination resistance for moderate speed applications.

Service Life Optimization

Regular vibration monitoring helps detect early wear indicators before catastrophic failure occurs. Maintain proper lubrication schedules and monitor operating temperatures to maximize bearing service life.

Quality Assurance and Standards Compliance

Our fabricating forms accommodate to ISO 355 dimensional benchmarks and Noise 720 accuracy classes. Each bearing experiences comprehensive testing counting vibration examination, dimensional confirmation, and stack capacity approval to guarantee reliable execution in your basic applications.

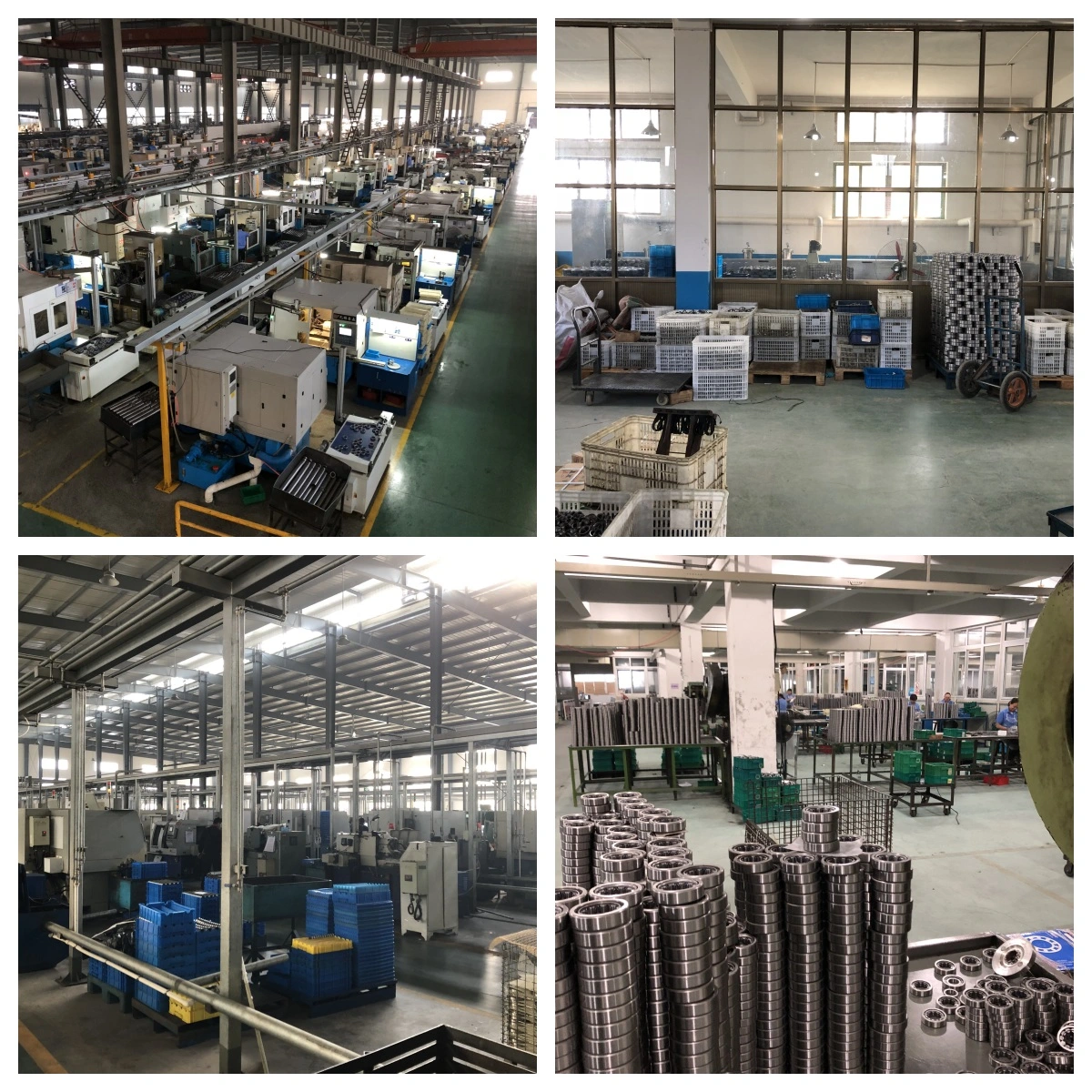

Why Choose Luoyang Auto Bearing?

With 30 a long time of bearing industry involvement, we combine free fabricating capabilities with supply chain integration to convey comprehensive bearing arrangements. Our three-level quality control framework guarantees over 99.9% capability rates, whereas our proficient supply chain empowers 48-hour conveyance for standard products.

Our specialized back group gives around the world establishment direction, operational investigating, and upkeep counseling to optimize your hardware execution all through the bearing benefit life.

Ready to specify the Cup Tapered Roller Bearing 30313 for your application? Contact our engineering team at auto@lyautobearing.com for technical consultation and quotation assistance. We provide detailed application analysis and selection guidance to ensure optimal bearing performance in your specific operating conditions.
