Tapered Roller Bearing 32 series

Tapered Roller Bearing 32 Series - Professional Single-Row Solution

When you need reliable performance for combined radial and axial loads, the Tapered Roller Bearing 32 series delivers proven engineering solutions. This metric single-row bearing series, defined by ISO 355 and DIN 720 standards, features separable components designed for medium-duty applications. Our 32 series encompasses popular configurations including 320xx, 322xx, 323xx, and 329xx variants, each engineered to handle simultaneous multi-directional forces in restricted spaces where conventional bearings fall short.





Product Structure and Working Principle

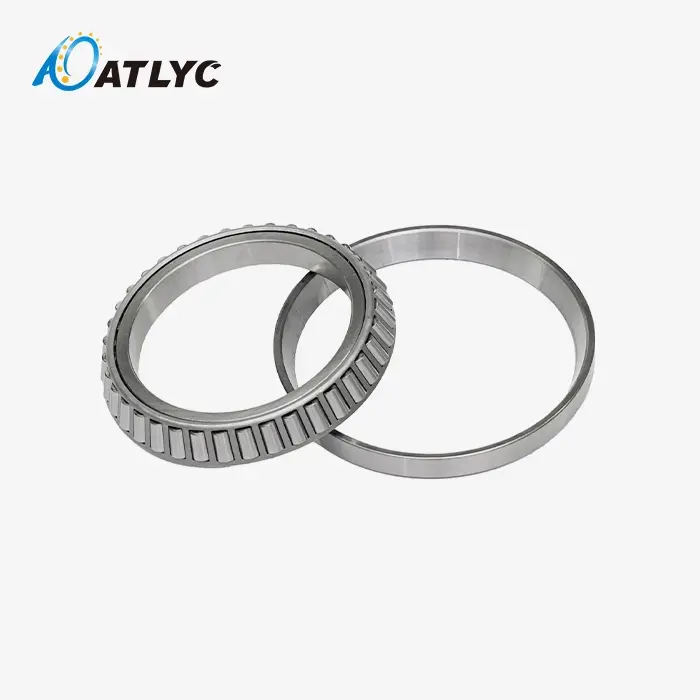

Core Components

The product consists of three main elements working in perfect coordination:

• Inner ring (cone) with tapered raceway geometry
• Outer ring (cup) designed for separable assembly
• Tapered rollers with stamped steel or brass cage retention

Engineering Design Logic

The funnel shaped geometry guarantees all raceway and roller contact surfaces focalize at a common point along the shaft hub. This plan guideline makes genuine rolling movement with negligible sliding grinding. The logarithmic roller profile disseminates Hertzian contact push equally over the contact zone, anticipating edge stacking disappointments caused by shaft misalignment or lodging deflection.

The distinguishable plan permits free mounting of internal and external rings. You can introduce the cone get together on the shaft independently from the glass in the lodging. This highlight altogether rearranges get together methods and empowers exact clearance alteration amid establishment.

Performance Advantages

Combined Load Management

The 32 series excels at handling simultaneous radial and axial forces. The contact angle determines axial load capacity - larger angles provide higher axial capability while smaller angles optimize radial performance. This flexibility allows you to select the optimal configuration for your specific load requirements.

Adjustable Operating Clearance

Unlike fixed-clearance Tapered Roller Bearing 32 series, you can adjust internal clearance or apply preload during installation. This adjustability enables optimization for varying operational conditions including speed, temperature, and shaft system rigidity requirements.

Maintenance Accessibility

The separable design simplifies inspection and replacement procedures. You can remove components individually without complete disassembly of surrounding machinery. This feature reduces maintenance downtime and extends equipment availability.

Industrial Applications

Automotive Systems

• Wheel hub assemblies
• Transmission components
• Differential units

Machine Tools

• Spindle positioning applications
• Gearbox configurations

Agricultural Equipment

• Gearbox assemblies
• Drive system components

Industrial Machinery

• Reducer applications
• Pump and compressor assemblies

Quality Control Standards

Our manufacturing process incorporates rigorous inspection protocols focusing on critical performance parameters:

• Taper surface fitting accuracy ensures proper load distribution
• Dimensional precision maintains interchangeability with standard housings
• Load capacity verification through comprehensive testing procedures

Each bearing undergoes verification across 12 core performance indicators including vibration analysis and service life testing. Our three-level quality control system spans raw material inspection through finished product validation, achieving over 99.9% qualification rates.

Manufacturing Excellence

With 30 years of specialized bearing production experience, we maintain comprehensive capabilities for both standard and custom configurations. Our manufacturing facilities handle bearings up to φ5000mm outer diameter while supporting personalized customization for non-standard requirements.

We utilize high-purity bearing steel combined with specialized heat treatment processes and precision grinding technology. This approach ensures optimal wear resistance, high-temperature performance, and dimensional stability throughout the bearing's service life.

Supply and Support Services

Our inventory management system maintains stock of over 1,000 standard bearing types, enabling 48-hour delivery for regular orders. For custom applications, our modular production optimization reduces delivery cycles to 70% of typical industry timeframes.

Technical support includes on-site installation guidance, operational monitoring, and preventive maintenance planning. Our engineering team provides worldwide mapping services for equipment adaptation challenges and maintains 24-hour consultation availability.

Contact Information

For technical specifications, application guidance, or quotation requests regarding our Tapered Roller Bearing 32 series, contact our engineering team at auto@lyautobearing.com. We provide comprehensive bearing solutions backed by three decades of industry expertise and proven performance in demanding applications worldwide.
