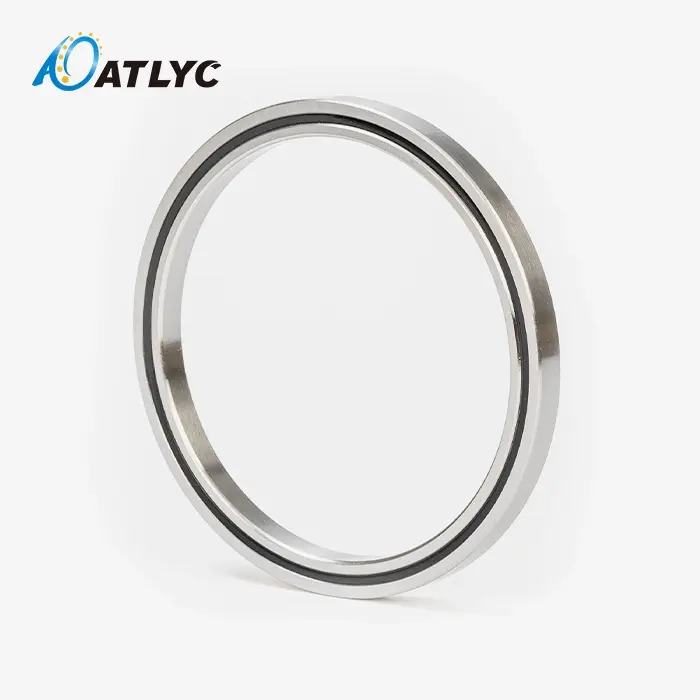

Cross Roller Slewing Bearing - High-Precision Rotary Solutions

When your equipment demands exceptional load capacity and positioning accuracy, you need a Cross Roller Slewing Bearing that delivers reliable performance. Our advanced bearing design combines perpendicular roller arrangement with integrated multi-directional load handling capabilities. The 90-degree crossed roller configuration ensures optimal load distribution while maintaining compact dimensions. This proven technology serves critical applications where space limitations and precision requirements intersect, providing you with a comprehensive solution for complex rotational challenges across multiple industrial sectors.





What Makes Cross Roller Slewing Bearings Different?

The products represent a specialized category of rotary bearings engineered for applications requiring simultaneous handling of multiple load types. The distinguishing feature lies in the perpendicular orientation of cylindrical rollers - alternating between radial and axial positions within a single row configuration.

This unique arrangement creates line contact between rollers and raceways, distributing loads evenly across bearing surfaces. Unlike conventional ball-type slewing bearings, the crossed roller design eliminates load gaps and provides superior rigidity for precision applications.

The integrated cage or separator system guides each roller while maintaining proper spacing. This ensures consistent performance throughout the bearing's operational life while minimizing friction and wear.

Technical Specifications

Standard Size Ranges

Material Options

• 50Mn: Standard carbon steel for general applications
• 42CrMo/42CrMo4: Alloy steel for enhanced strength requirements
• S48C: High-carbon steel for improved wear resistance
• 16Mn: Low-alloy steel for structural applications

Precision Grades

• P5: Standard precision for general industrial use
• P4: High precision for demanding applications (≤0.01mm runout tolerance)

Load Handling Capabilities

Your Cross Roller Slewing Bearing manages three distinct load types simultaneously:

Outspread Loads: Powers opposite to the bearing hub are dispersed through the radially-oriented rollers, giving tall stack capacity without compromising rotational smoothness.

Axial Loads: Bidirectional pushed strengths are dealt with by axially-oriented rollers, dispensing with the require for partitioned pushed orientation in your design.

Moment Loads: Tilting minutes are ingested through the combined activity of both roller sets, keeping up positional exactness beneath complex stacking conditions.

This coordinates capability decreases component tally and streamlines your hardware plan whereas guaranteeing dependable operation.

​​​​​​​

Performance Advantages

Superior Unbending nature Control

Line contact geometry gives 3-5 times higher inflexibility compared to ball-type options. This improved firmness anticipates shaft avoidance and keeps up situating precision beneath energetic stacking conditions.

Compact Space Utilization

Single-row roller setup accomplishes most extreme stack capacity inside negligible cross-sectional stature. You advantage from diminished gear envelope whereas keeping up full execution capabilities.

Extended Benefit Life

Even stack dissemination minimizes push concentrations and wear designs. The vigorous roller plan withstands stun loads and operational varieties, amplifying upkeep intervals.

Precision Positioning

Tight fabricating resiliences and negligible backfire guarantee repeatable situating precision. This makes the heading appropriate for computerization and estimation applications requiring sub-millimeter accuracy.

Configuration Options

Gear Integration

• External Gear: Enables direct drive connection for high-torque applications
• Internal Gear: Provides compact drive solutions with improved gear ratio options
• Gearless: Maximum flexibility for custom drive arrangements

Sealing Systems

• Double-Lip Seals: Pre-lubricated design with dust and moisture protection
• Open Configuration: Optimized for controlled environments with external lubrication

Surface Treatments

• Standard Finish: Heat-treated bearing steel for general applications
• Corrosion-Resistant Coating: Enhanced protection for marine and chemical environments

Application Sectors

The items serve different mechanical applications where accuracy and unwavering quality are essential:

Construction Hardware: Excavators, versatile cranes, and concrete pumps depend on these orientation for smooth turn beneath overwhelming loads.

Wind Vitality: Turbine yaw frameworks utilize the bearings' capacity to handle minute loads whereas keeping up situating accuracy.

Medical Gadgets: CT scanners and surgical robots advantage from low-noise operation and exact situating capabilities.

Defense Frameworks: Radar stages and weapon frameworks require the extraordinary exactness these heading provide.

Material Taking care of: Harbour cranes and mechanized capacity frameworks depend on solid operation beneath nonstop obligation cycles.

Quality Assurance

Our manufacturing process incorporates three-level quality control:

1. Raw Material Inspection: Verification of steel composition and mechanical properties
2. Process Control: Monitoring of heat treatment and machining parameters
3. Final Testing: Complete dimensional and performance validation

Each bearing undergoes verification of 12 core performance indicators, including vibration testing and load capacity validation. This comprehensive approach ensures over 99.9% qualification rate for delivered products.

Technical Support Services

We provide comprehensive technical assistance throughout your bearing's operational life:

• Application Analysis: Engineering support for bearing selection and sizing
• Installation Guidance: On-site technical support for proper mounting procedures
• Maintenance Planning: Customized service schedules based on operating conditions
• Performance Monitoring: Remote diagnostic capabilities for predictive maintenance

Custom Solutions

Your specific application requirements drive our engineering approach. We offer:

• Non-Standard Sizing: Custom dimensions for unique equipment needs
• Modified Load Ratings: Enhanced capacity for extreme operating conditions
• Special Materials: Alternative alloys for corrosive environments
• Integrated Features: Custom mounting provisions and sensor integration

Development time for custom solutions averages 70% less than industry standards, with delivery cycles of 15-20 days for large custom bearings up to φ3000mm.

Contact Information

Ready to discuss your Cross Roller Slewing Bearing requirements? Our engineering team stands ready to provide technical consultation and application analysis.

Contact us at auto@lyautobearing.com for detailed specifications, pricing information, or to schedule a technical consultation. We maintain stock of over 1,000 standard bearing types with 48-hour delivery capability for immediate requirements.

With 30 years of bearing industry experience, we combine proven manufacturing expertise with innovative engineering solutions to meet your most demanding rotational bearing challenges.
