Gear Slew Bearing: Heavy-Duty Rotational Solutions for Industrial Equipment

A Gear Slew Bearing delivers the precise combination of load capacity and transmission efficiency your applications demand. Technically referred to as a slewing ring bearing with integrated gearing, this large-scale rotational element transmits significant axial loads, radial loads, and tilting moments simultaneously. Unlike standard rolling bearings, these specialized components feature inner and outer rings with rolling elements, where one ring incorporates gear teeth to facilitate drive transmission. This streamlined design eliminates complex spindle shafts and separate transmission systems, making it the preferred solution for construction machinery, renewable energy systems, and industrial robotics requiring high-load, low-speed operation.

Understanding Gear Slew Bearing Construction

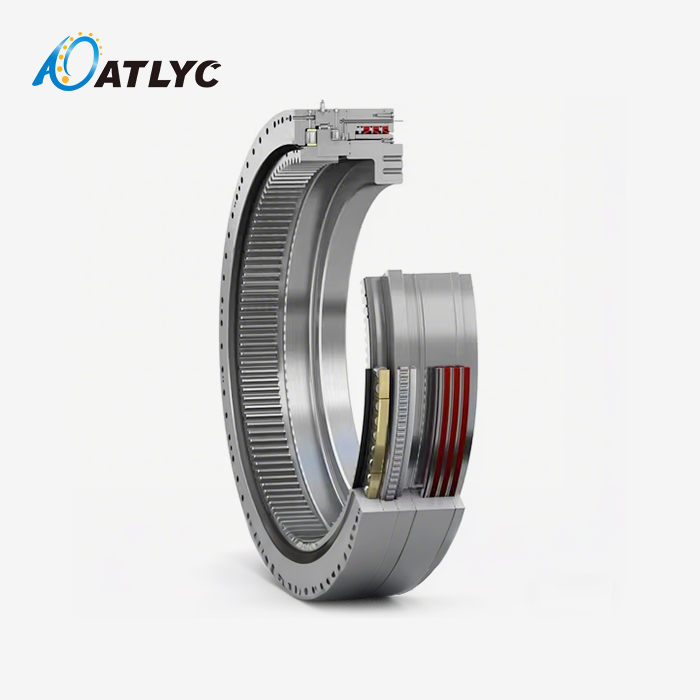

Triple-Row Roller Configuration

The heart of our product design lies in its specialized triple-row roller configuration. This arrangement features three distinct seating rings that separate upper, lower, and radial raceways. Each row handles specific load types:

• Two axial roller rows: Handle bidirectional thrust loads and tilting moments
• One radial roller row: Absorbs radial forces perpendicular to the bearing axis
• 90° crossed arrangement: Ensures full line contact and maximum load distribution

This load specialization prevents interference between different force types while maximizing bearing efficiency across all operating conditions.

Multi-Ring Structure Design

Our bearings utilize a robust three-ring construction comprising an inner ring, outer ring, and intermediate ring. Each ring features precision-machined raceways specifically designed for their respective roller rows. This integrated approach eliminates the complexity of multiple bearing assemblies while reducing installation space requirements.

Technical Specifications

Key Performance Advantages

Prevalent Stack Dealing with Capacity

The specialized roller arrangement empowers remarkable stack administration over different headings. Outspread loads reach a few hundred tons whereas tilting minutes handle thousands of kN·m. This capability stems from the committed roller lines that disseminate powers agreeing to their ideal stack paths.

Enhanced Unbending nature and Precision

Line contact between rollers and raceways over all three columns gives uncommon unbending nature compared to ball-type choices. This plan keeps up tight positional exactness indeed beneath energetic stacking conditions. Exactness grades accomplish runout resistances inside 0.02mm, guaranteeing dependable execution in requesting applications.

Compact Establishment Footprint

Despite taking care of heavy-duty loads, the coordinates plan offers a more compact impression than identical multi-bearing gatherings. This space proficiency demonstrates profitable in expansive gear where establishment limitations restrain plan options.

Extended Benefit Life

Load specialization decreases wear designs and stretch concentrations over roller lines. High-quality bearing steel development combined with exactness fabricating upgrades weariness resistance. Pre-lubricated fixed variations expand support interims whereas minimizing operational downtime.

Industrial Applications

Construction and Mobile Equipment

Heavy construction machinery relies on these Gear Slew Bearings for critical rotation functions:

• Wheeled cranes and mobile cranes
• Bucket-wheel excavators
• Ship cranes and harbor cranes
• Material handling equipment

Metallurgical and Heavy Industry

High-temperature and heavy-load environments benefit from specialized configurations:

• Ladle turrets in steel production
• Rolling mill equipment
• Heavy-duty industrial machinery
• Metal processing equipment

Marine and Offshore Applications

Corrosion-resistant variants serve demanding marine environments:

• Ship deck machinery
• Offshore platform equipment
• Port handling systems
• Marine construction equipment

Customization Options

Gear Integration Variants

Choose from multiple gear configurations based on your transmission requirements:

• External gear: Direct mounting to drive pinions
• Internal gear: Space-saving applications with internal drive systems
• Gearless: Applications requiring separate transmission systems

Sealing and Protection

Select appropriate sealing based on operating environment:

• Double-lip sealed: Pre-lubricated with high-temperature grease, dust and water resistant
• Open-type: Clean, controlled environment applications
• Special coatings: Zinc or nickel plating for enhanced corrosion resistance

Material Selection

Standard high-strength chromium steel with carburizing and quenching heat treatment provides excellent durability. Optional stainless steel variants offer enhanced corrosion resistance for marine applications.

Quality Assurance and Manufacturing

Our three-level quality control system ensures consistent performance:

• Raw material inspection: Incoming material verification
• In-process inspection: Manufacturing stage quality checks
• Finished product testing: Complete verification of 12 core performance indicators

Each bearing undergoes vibration testing and life testing verification. Our ex-factory qualification rate exceeds 99.9%, ensuring reliable performance in harsh industrial conditions.

Technical Support and Services

Designing Consultation

Our specialized group gives application-specific direction for bearing determination and integration. We analyze your hardware prerequisites and suggest ideal arrangements for standard or custom applications.

Installation and Support Support

Proper establishment guarantees ideal bearing execution. We give point by point establishment rules and specialized bolster all through the gear lifecycle. Normal support proposals offer assistance maximize benefit life and avoid startling failures.

Custom Development

Non-standard applications get specialized consideration through our custom improvement program. Altered plans oblige interesting estimate prerequisites, uncommon materials, or upgraded execution details.

Conclusion

When your industrial equipment demands reliable rotational support under extreme conditions, Gear Slew Bearing technology provides the engineered solution you need. The combination of specialized load handling, compact design, and proven durability makes these bearings essential components for modern heavy machinery.

Our 30 years of bearing industry experience ensures you receive products that meet the highest standards for performance and reliability. Whether you need standard configurations or custom solutions, our engineering team stands ready to support your application requirements.

For technical consultation or product specifications, contact our engineering team at auto@lyautobearing.com. We provide comprehensive support from initial selection through installation and ongoing maintenance, ensuring optimal performance throughout your equipment's operational life.
