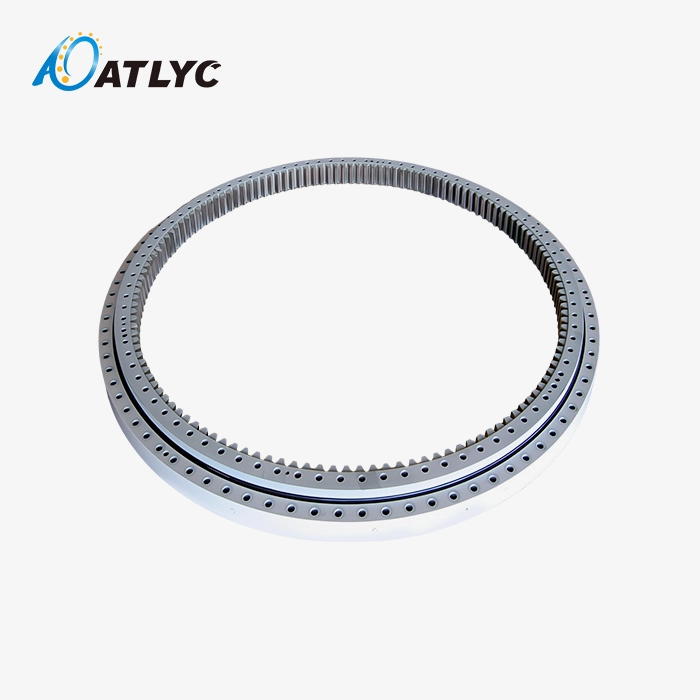

Double Row Ball Slewing Bearing

Double Row Ball Slewing Bearing - Professional Heavy-Duty Rotary Solutions

When your equipment demands exceptional load capacity and precision under extreme operating conditions, a Double Row Ball Slewing Bearing delivers the performance you need. This specialized heavy-duty rotary connection features a unique three-ring structure with two dedicated ball rows that handle combined axial and radial loads while maintaining superior rotational accuracy. Unlike conventional single-row designs, our product provides 40% higher load capacity through optimized load distribution across dual raceways. Each bearing incorporates precision-engineered steel balls and hardened raceways (HRC 55-62) to ensure reliable operation in demanding industrial applications. Whether you're operating excavators, crawler cranes, or port machinery, this bearing configuration addresses the critical need for simultaneous heavy lifting and smooth rotation without compromising structural integrity.

Product Structure and Working Principle

Three-Ring Configuration Design

The bearing consists of three precision-machined rings: upper ring, lower ring, and intermediate ring. This configuration creates two separate ball raceways with identical diameter steel balls. The upper raceway handles primary axial loads and tilting moments, while the lower raceway provides additional axial support and radial load capacity.

Load Distribution Mechanism

Steel balls in both rows maintain four-point contact with their respective raceways. This contact pattern enables efficient transmission of combined loads - axial forces, radial forces, and overturning moments - through a single bearing assembly. The load distribution prevents stress concentration and extends operational life.

Precision Manufacturing Process

Each raceway undergoes precision grinding and heat treatment to achieve optimal surface finish and hardness. The balls are manufactured from GCr15 bearing steel with tight dimensional tolerances. Cage materials include steel 20 or ZL102 cast aluminum alloy for different operating conditions.

Technical Specifications

Performance Advantages

Enhanced Load Capacity

The dual-row configuration increases Double Row Ball Slewing Bearing load capacity by 40% compared to single-row alternatives. This improvement results from distributing loads across two ball rows, reducing individual ball stress and preventing premature raceway failure.

Prevalent Anti-Overturning Performance

Optimized basic plan gives 35% way better anti-overturning capability. The expanded remove between stack centers and improved minute arm viably stand up to tilting powers common in crane and excavator applications.

Extended Benefit Life

High-quality bearing materials and accuracy fabricating guarantee benefit life surpassing 80,000 hours. The made strides stack dispersion decreases wear rates and keeps up operational clearances all through the bearing's benefit life.

Smooth Operation Characteristics

Precision pounding and get together forms convey low-vibration, low-noise operation. This characteristic is fundamental for applications requiring smooth revolution beneath stack, such as wind turbine pitch control systems.

Primary Applications

Construction and Earthmoving Equipment

Excavators and crawler cranes utilize this bearing sort for boom and superstructure turn. The bearing handles the combined loads from lifting operations whereas giving smooth 360-degree turn capability.

Port and Sea Machinery

Ship-to-shore cranes and portable harbor cranes depend on these orientation for overwhelming holder dealing with operations. The bearing's erosion resistance and tall stack capacity suit marine environments.

Industrial Machinery

Manufacturing gear requiring exact rotational situating beneath stack benefits from the bearing's exactness and inflexibility. Applications incorporate expansive machine device turntables and heavy-duty situating systems.

Amusement Equipment

Large-scale entertainment rides utilize these heading for traveler stage revolution. The smooth operation and security components meet rigid industry necessities for open safety.

Quality Assurance and Manufacturing

Advanced Generation Capabilities

Our 30 a long time of bearing industry encounter empowers large-scale generation of standard heading up to φ5000mm external distance across. We keep up comprehensive fabricating capabilities for both standard and customized non-standard bearings.

Rigorous Quality Control

Each bearing experiences three-level quality review: crude fabric confirmation, in-process observing, and last item testing. We confirm 12 center execution pointers counting vibration testing and life testing, accomplishing 99.9% capability rates.

Material Excellence

We utilize high-purity bearing steel with specialized warm treatment forms and exactness crushing innovation. This fabric choice guarantees ideal wear resistance, high-temperature execution, and affect resistance.

Supply Chain and Delivery

Efficient Stock Management

We keep up stock of over 1,000 standard bearing sorts, empowering 48-hour conveyance for customary orders. Our measured generation optimization diminishes custom bearing conveyance cycles to 70% of industry averages.

Customization Capabilities

For non-standard prerequisites, our building group gives comprehensive plan and fabricating administrations. Expansive custom orientation (φ3000mm) can be conveyed inside 15-20 days through optimized generation processes.

Technical Support and Services

Installation and Upkeep Guidance

Our specialized designing group gives around the world on-site back for bearing establishment, operation checking, and support arranging. We offer 24-hour specialized discussion to minimize gear downtime risks.

Full-Lifecycle Management

We give total bearing lifecycle administrations from choice and establishment through operation observing and substitution arranging. This comprehensive approach optimizes your equipment's operational costs and unwavering quality.

For detailed specifications, custom Double Row Ball Slewing Bearing solutions, or technical consultation regarding your specific application requirements, contact our engineering team at auto@lyautobearing.com. Our experienced professionals will provide tailored recommendations based on your equipment's operating conditions and performance objectives.
