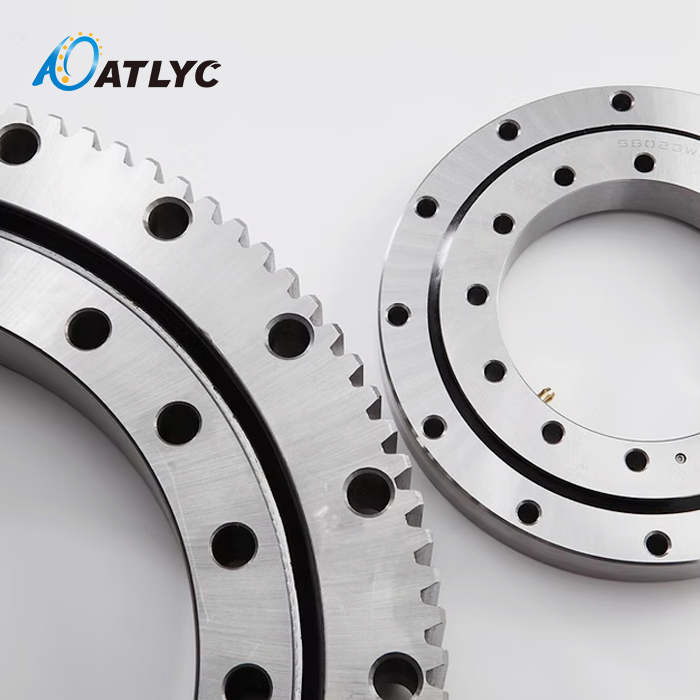

Double-Row Angular Contact Ball Slewing Bearings

Double-Row Angular Contact Ball Slewing Bearings

When your heavy-duty gear requests remarkable execution beneath combined loads, Double-Row Angular Contact Ball Slewing Bearings provide the unwavering quality you require. These progressed rotational transmission components highlight a modern three-ring structure with two columns of accuracy steel balls, designed to at the same time handle overwhelming hub loads, outspread strengths, and tilting minutes. This setup gives prevalent stack conveyance compared to single-row plans whereas keeping up the smooth operation fundamental for accuracy applications. Whether you're working mining gear, development apparatus, or mechanical turntables, these heading offer the ideal adjust of quality, accuracy, and operational efficiency.

Understanding Double-Row Angular Contact Ball Slewing Bearings

Structure and Plan Principles

The items join three fundamental components: inward ring, external ring, and an halfway ring structure. The two columns of steel balls work at particular contact points, making committed stack ways that optimize drive distribution.

This plan isolates stack dealing with duties between the upper and lower ball columns. Each push oversees distinctive drive vectors, anticipating stack obstructions and maximizing bearing effectiveness. The contact point course of action guarantees line contact between balls and raceways, essentially making strides inflexibility compared to single-row choices.

Working Principle

The bearing operates through angular contact geometry where steel balls contact the raceways at predetermined angles. This configuration enables simultaneous management of:

• Axial loads: Handled by both ball rows working in opposition
• Radial loads: Distributed across both rows for enhanced capacity
• Tilting moments: Managed through the wide effective span between ball rows

The three-ring structure maintains precise raceway geometry while accommodating thermal expansion and operational deflections.

Key Performance Advantages

Enhanced Load Capacity

The dual-row configuration increases load capacity by 40% compared to single-row designs. This improvement stems from:

• Optimized load distribution across two ball rows
• Reduced contact stress at individual ball-raceway interfaces
• Improved resistance to combined loading scenarios

Superior Rigidity

The angular contact design provides exceptional structural rigidity through:

• Line contact between balls and precision-ground raceways
• Minimized elastic deformation under heavy loads
• Maintained positional accuracy during dynamic operations

Extended Service Life

Quality materials and precision manufacturing ensure operational life reaching 80,000 hours through:

• High-grade bearing steel (GCr32 or equivalent)
• Optimized heat treatment processes
• Precision grinding for consistent surface finish

Operational Precision

Micro-level running accuracy achieved through:

• Tight manufacturing tolerances (P5/P4 precision grades available)
• Minimal runout tolerances (≤0.02mm)
• Controlled bearing clearances for backlash reduction

Technical Specifications

Configuration Options

Gear Integration

• External Gear: Direct drive applications, high torque transmission
• Internal Gear: Compact installations, protected gear teeth
• Gearless: Smooth rotation, minimal maintenance requirements

Sealing Systems

• Double-lip Sealed: Pre-lubricated, dust and moisture protection
• Open Type: Easy maintenance access, controlled environments
• Contact Seals: Enhanced protection for harsh conditions

Material Selection

• 50Mn Steel: Standard applications, good wear resistance
• 42CrMo Steel: Heavy-duty applications, enhanced strength
• S48C Steel: Precision applications, dimensional stability
• 42CrMo4: International standard, verified performance

Applications and Industries

Construction Equipment

• Mobile cranes and tower cranes
• Excavator swing drives
• Concrete pumping equipment

Industrial Machinery

• Rotary tables and indexing equipment
• Packaging machinery turntables
• Material handling systems

Wind Energy

• Pitch control systems
• Yaw drive mechanisms
• Generator positioning

Marine and Offshore

• Ship cranes and cargo handling
• Offshore platform equipment
• Port machinery applications

Quality Control and Manufacturing

Three-Tier Quality System

Our manufacturing process implements comprehensive quality control for Double-Row Angular Contact Ball Slewing Bearings:

1. Raw Material Inspection: Chemical composition and metallurgical verification
2. In-Process Monitoring: Dimensional accuracy and surface quality checks
3. Final Product Testing: Complete performance validation including vibration and life testing

Testing Standards

Each bearing undergoes verification of 12 core performance indicators:

• Dimensional accuracy measurement
• Load capacity verification
• Vibration level testing
• Temperature rise evaluation
• Noise level assessment

Manufacturing Capabilities

Our facility supports:

• Large-scale production of standard sizes up to φ5000mm
• Custom non-standard bearing development
• Modular production processes reducing delivery time by 30%
• Integrated heat treatment and precision grinding

Installation and Maintenance

Installation Guidelines

Proper installation ensures optimal performance:

• Surface preparation and alignment verification
• Controlled torque application for mounting bolts
• Lubrication system setup and initial fill
• Clearance adjustment and run-in procedures

Maintenance Schedule

Regular maintenance extends bearing life:

• Monthly: Visual inspection and lubrication level check
• Quarterly: Vibration monitoring and temperature measurement
• Annually: Complete lubrication renewal and wear assessment
• Biennial: Comprehensive performance evaluation

Support Services

Technical support includes:

• On-site installation assistance
• Maintenance training programs
• 24-hour technical consultation
• Replacement part availability

Why Choose Luoyang Auto Bearing?

Manufacturing Excellence

With 30 years of bearing industry experience, we combine traditional craftsmanship with modern technology. Our integrated approach covers design, manufacturing, and quality control under one roof.

Technical Capabilities

Our engineering team provides comprehensive solutions:

• Custom bearing design and development
• Application-specific optimization
• Performance simulation and validation
• Field service and technical support

Supply Chain Efficiency

Strategic location advantages enable rapid response:

• Standard bearing inventory exceeding 1,000 types
• 48-hour delivery for standard products
• Reduced lead times for custom bearings
• Global logistics network support

Customer-Focused Service

We prioritize long-term partnerships through:

• Detailed application analysis
• Comprehensive technical documentation
• Ongoing performance monitoring
• Proactive maintenance support

Contact Information

For technical specifications, custom requirements, or application support, our engineering team is ready to assist. Contact us at auto@lyautobearing.com to discuss your Double-Row Angular Contact Ball Slewing Bearings requirements and discover how our solutions can enhance your equipment performance.

Our technical experts provide detailed consultation on bearing selection, installation procedures, and maintenance optimization to ensure your operations achieve maximum efficiency and reliability.
