Four Point Contact Ball Slewing Bearing

Four Point Contact Ball Slewing Bearing - Professional Industrial Solutions

When your gear requests dependable revolution beneath complex stacking conditions, our Four Point Contact Ball Slewing Bearing conveys remarkable execution over numerous businesses. This progressed bearing innovation combines outspread, hub, and minute stack capacity into a single, compact unit. Our building group at Luoyang Auto Bearing Co., Ltd. has optimized these orientation to meet the requesting necessities of advanced mechanical applications, guaranteeing reliable operation in challenging environments.

What is a Four Point Contact Ball Slewing Bearing?

A slewing bearing with four-point contact plan speaks to an progressed arrangement for rotational applications requiring multi-directional stack back. The bearing highlights extraordinarily outlined raceways where each ball keeps up contact at four discrete focuses with the internal and external rings. This one of a kind setup empowers the bearing to handle outspread loads, bidirectional pivotal loads, and tilting minutes simultaneously.

The contact point, ordinarily set at 35°, optimizes stack conveyance over the bearing structure. Beneath unadulterated spiral stacking, each steel ball locks in all four contact focuses. When subjected to unidirectional pivotal powers, the balls utilize two contact focuses, keeping up solidness whereas pleasing the connected loads.

Technical Specifications

Design Features and Working Principle

Optimized Raceway Profile

The raceway geometry is precisely engineered to ensure proper ball-to-ring contact at four points. This design distributes loads evenly across the contact surfaces, reducing stress concentrations and extending bearing life. The carefully calculated raceway curvature accommodates thermal expansion while maintaining optimal contact geometry.

Integrated Load Handling

Unlike conventional bearing arrangements requiring multiple components, this design integrates three load types into one bearing:

• Radial loads: Perpendicular forces to the bearing axis
• Axial loads: Forces parallel to the bearing axis (both directions)
• Tilting moments: Rotational forces around the bearing center

Separable Construction

The bearing features a split inner ring design, facilitating installation and maintenance. The outer ring with ball and cage assembly can be mounted independently from the inner ring halves, simplifying equipment assembly procedures.

Performance Advantages

Space and Weight Optimization

The two-ring configuration (inner and outer) eliminates intermediate rings found in double-row designs. This results in:

• Reduced axial space requirements
• Lower overall bearing weight
• Simplified mounting interfaces
• Cost-effective installation

Load Distribution Efficiency

The Four Point Contact Ball Slewing Bearing plan guarantees indeed stack dispersion over all contact focuses. This characteristic avoids untimely wear designs and keeps up reliable execution all through the bearing's benefit life.

Operational Flexibility

The bearing obliges changing stack combinations without execution debasement. Whether your application includes transcendently outspread powers, pivotal loads, or complex minute combinations, the bearing keeps up steady operation.

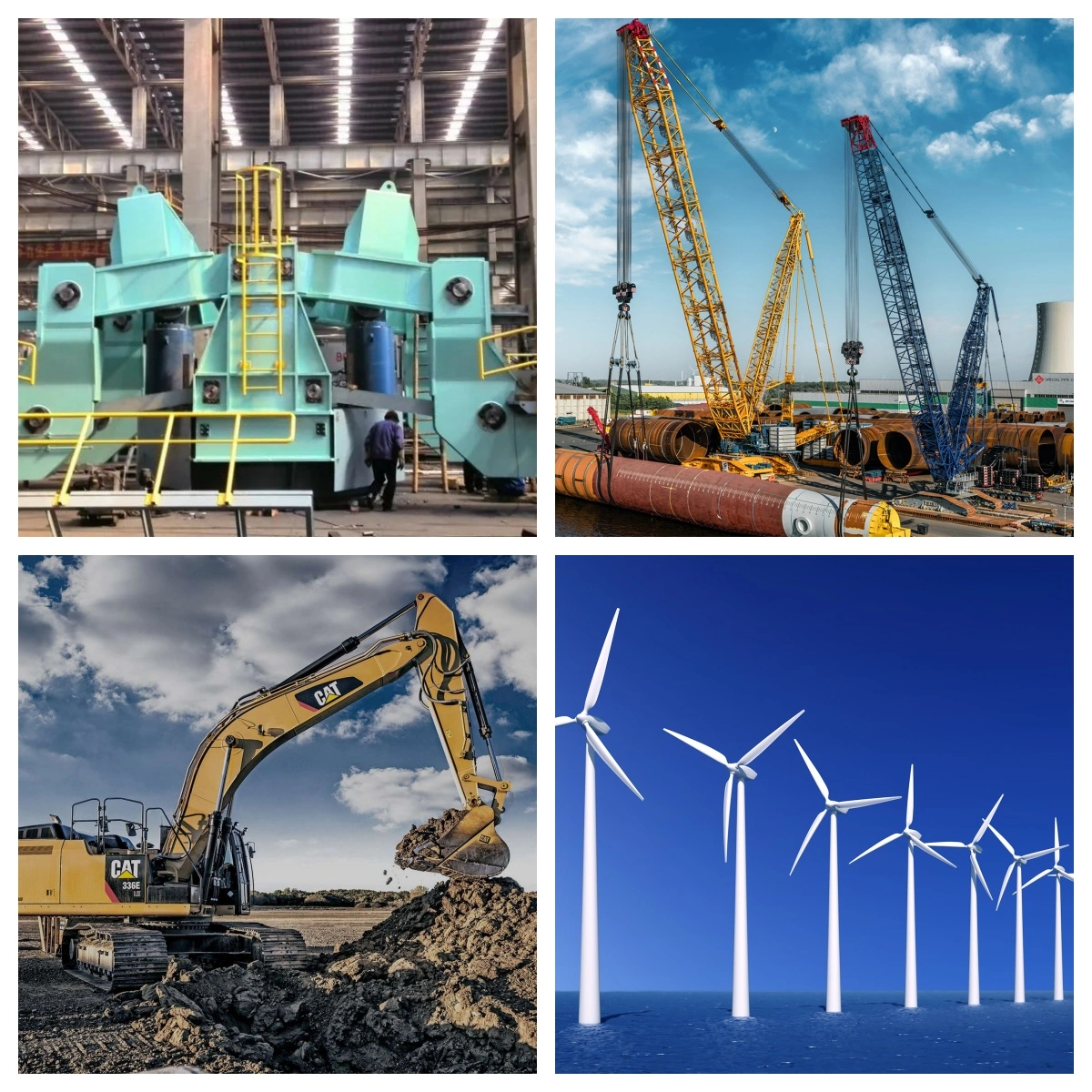

Industrial Applications

Construction and Earthmoving Equipment

• Excavator swing mechanisms
• Crane slewing rings
• Loader pivot assemblies
• Bulldozer blade positioning systems

Material Handling Systems

• Port crane turntables
• Conveyor transfer points
• Automated storage systems
• Robotic arm joints

Renewable Energy

• Wind turbine yaw and pitch systems
• Solar tracking mechanisms
• Hydroelectric gate controls

Manufacturing Equipment

• CNC machine tool rotary tables
• Welding positioners
• Assembly line indexing systems

Quality Control and Manufacturing Standards

Our manufacturing process incorporates high-purity bearing steel and specialized heat treatment procedures. Each bearing undergoes precision grinding to achieve specified tolerances and surface finishes. The three-level quality control system ensures:

• Raw material verification and certification
• In-process dimensional and geometric inspection
• Finished product performance testing

Vibration testing and life cycle validation verify each batch meets our quality standards, achieving an ex-factory qualification rate exceeding 99.9%.

Installation and Maintenance Considerations

Mounting Requirements

• Ensure proper surface preparation of mounting interfaces
• Apply specified torque values during installation
• Verify alignment within tolerance specifications
• Implement appropriate sealing measures for environmental protection

Lubrication Guidelines

• Use recommended lubricants based on operating conditions
• Establish relubrication intervals according to duty cycles
• Monitor lubricant condition for contamination or degradation

Operating Parameters

For high-speed applications, maintain two-point contact configuration to ensure proper bearing function. Monitor operating temperatures and implement cooling measures if required by application conditions.

Custom Engineering Solutions

Our engineering team provides customized solutions for unique application requirements. We offer:

• Modified contact angles for specific load profiles
• Special materials for corrosive environments
• Precision grades for high-accuracy applications
• Custom sealing configurations

Technical Support and Services

Luoyang Auto Bearing Co., Ltd. provides comprehensive technical support throughout your bearing's service life. Our experienced engineers offer:

• Application analysis and bearing selection
• Installation guidance and training
• Troubleshooting and maintenance support
• Performance optimization recommendations

Conclusion

The Four Point Contact Ball Slewing Bearing represents an optimal solution for applications requiring reliable multi-directional load support in a compact package. With 30 years of manufacturing experience and continuous technology advancement, we deliver bearings that meet the demanding requirements of modern industrial equipment. Our commitment to quality, technical innovation, and customer support ensures your equipment operates efficiently and reliably.

For technical inquiries or custom bearing requirements, contact our engineering team at auto@lyautobearing.com.
