Single Row Ball Slewing Bearing: Four-Point Contact Rotational Solutions

A Single Row Ball Slewing Bearing represents the optimal solution for applications requiring simultaneous multi-directional load support in a compact design. This four-point contact bearing system features an inner ring and outer ring with a single row of precision steel balls, separated by engineered spacers. The distinctive gothic arch raceway geometry allows each ball to maintain four-point contact with the raceways. This configuration enables the bearing to handle axial loads, radial loads, and tilting moments within a single unit, eliminating the need for complex multi-bearing assemblies.

What is Single Row Ball Slewing Bearing Construction?

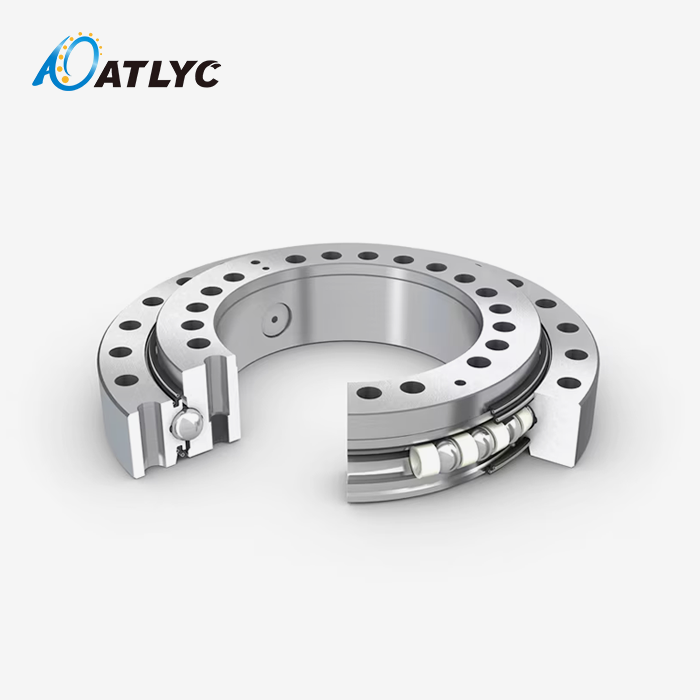

Core Structural Elements

The bearing consists of two main rings with precisely machined gothic arch raceways. The steel balls travel within these specially contoured channels, maintaining continuous four-point contact during rotation. This design distributes loads across multiple contact points, reducing stress concentrations and extending service life.

Ball and Cage System

High-chromium steel balls (100Cr6 grade) provide excellent wear resistance and load capacity. Ball sizes range from 10mm to 60mm diameter, selected based on application load requirements. Nylon 6 or Nylon 66 cages maintain proper ball spacing and reduce friction during operation.

Raceway Geometry

The gothic arch raceway profile creates the characteristic four-point contact pattern. This geometry allows the bearing to resist loads from multiple directions without requiring additional support structures. The precise grinding of these surfaces ensures consistent contact pressure distribution.

Technical Specifications

Working Principle and Load Distribution

The four-point contact design allows each ball to support loads in multiple directions simultaneously. When axial forces are applied, the balls engage the upper and lower contact points of the raceways. Radial loads activate the side contact points. This load sharing mechanism prevents overloading of individual contact areas and maintains bearing stability under varying load conditions.

The gothic arch geometry creates optimal contact angles that balance load capacity with rotational smoothness. This design eliminates the need for separate thrust and radial bearings, simplifying installation and reducing overall system complexity.

Key Performance Advantages

Compact Multi-Directional Stack Support

The single bearing replaces different ordinary heading, decreasing hub tallness and weight whereas keeping up full stack capacity. This space proficiency demonstrates basic in hardware plan where mounting envelope imperatives exist.

Enhanced Auxiliary Rigidity

Four-point contact conveyance gives predominant inflexibility compared to single-point contact orientation. The bearing keeps up positional precision beneath energetic stacking conditions, basic for accuracy gear operation.

Simplified Installation

Integrated plan disposes of complex bearing courses of action and related mounting equipment. This decreases establishment time and potential gathering mistakes whereas progressing framework reliability.

Extended Benefit Life

Load dispersion over different contact focuses decreases top stresses and wear rates. Combined with high-grade materials and exactness fabricating, this amplifies operational life in requesting applications.

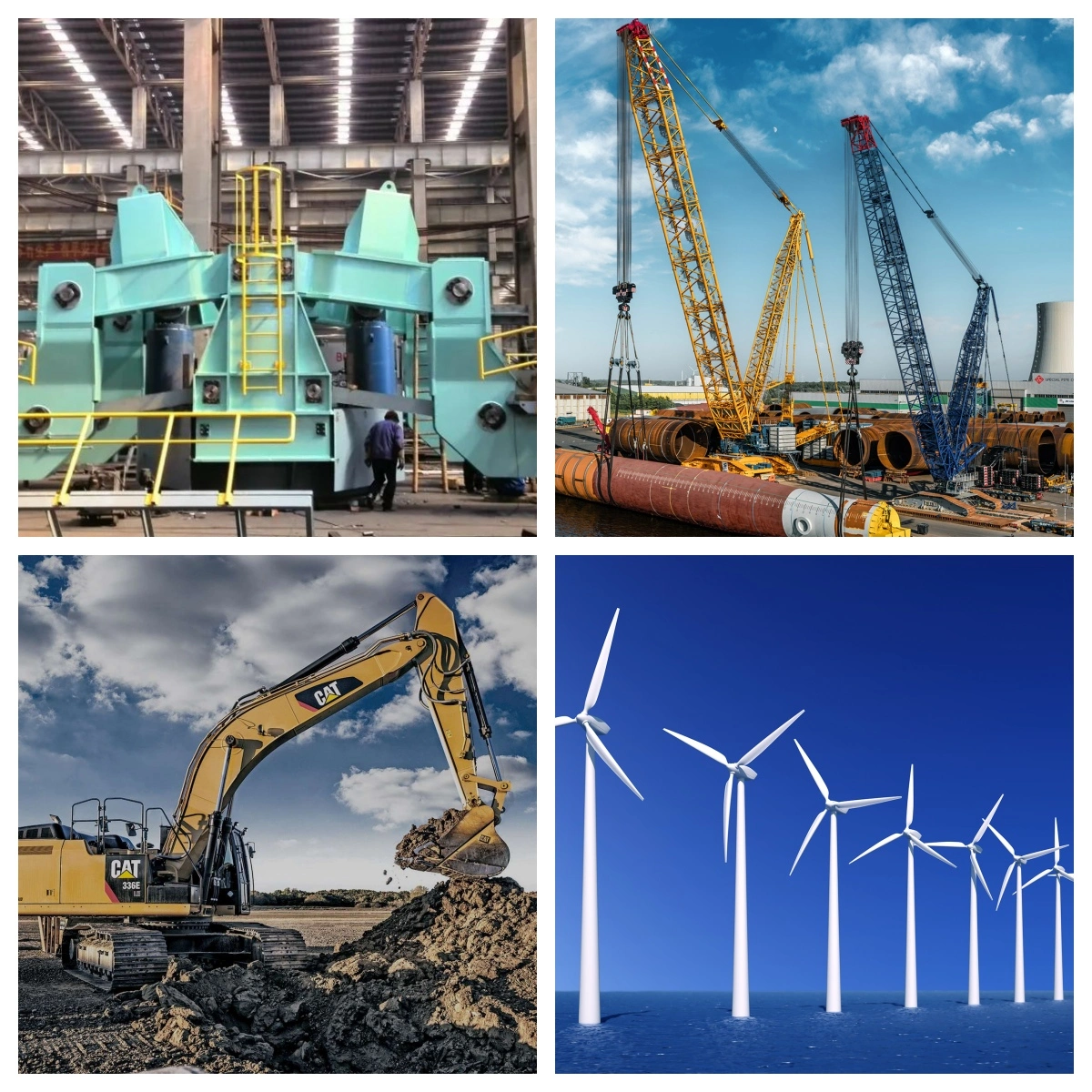

Industrial Applications

Construction Equipment

Tower cranes utilize these bearings for slewing mechanisms, supporting the combined loads of boom, counterweight, and lifted materials. The compact design allows crane manufacturers to optimize cab space and reduce overall weight.

Mobile Machinery

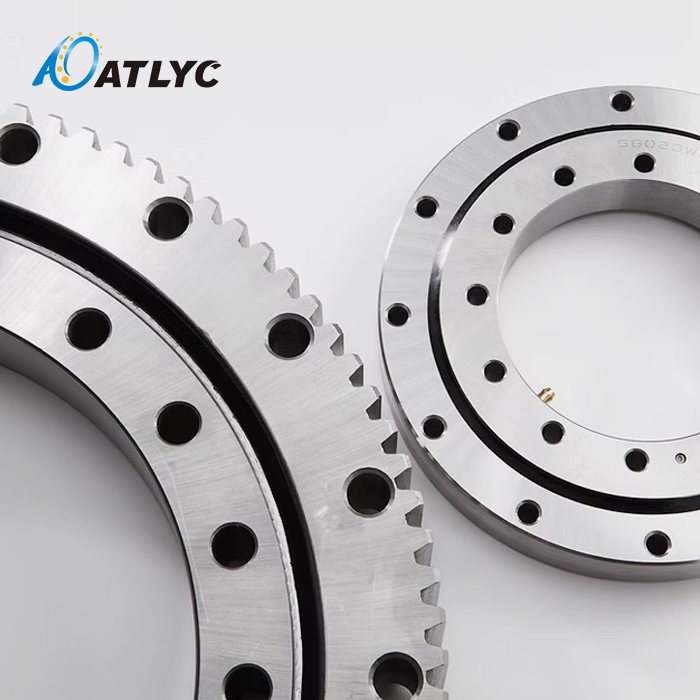

Excavators and crawlers depend on Single Row Ball Slewing Bearing systems for reliable rotation under heavy digging forces. The bearings withstand shock loads and contamination typical in construction environments.

Fabric Handling

Boom cranes and slewing transports require smooth revolution with exact situating. The bearing's moo contact characteristics and minute stack capacity guarantee effective operation and precise fabric placement.

Specialized Applications

Radar frameworks and lackey dishes request vibration-free revolution with negligible backfire. The precision-ground raceways and controlled clearances give the solidness required for following accuracy.

Material Selection and Quality Control

Ring Materials

Standard rings utilize 42CrMo or C45 steel for common applications. Heavy-duty hardware such as excavators may indicate 50Mn for improved quality. Warm treatment forms optimize hardness and sturdiness characteristics for each application.

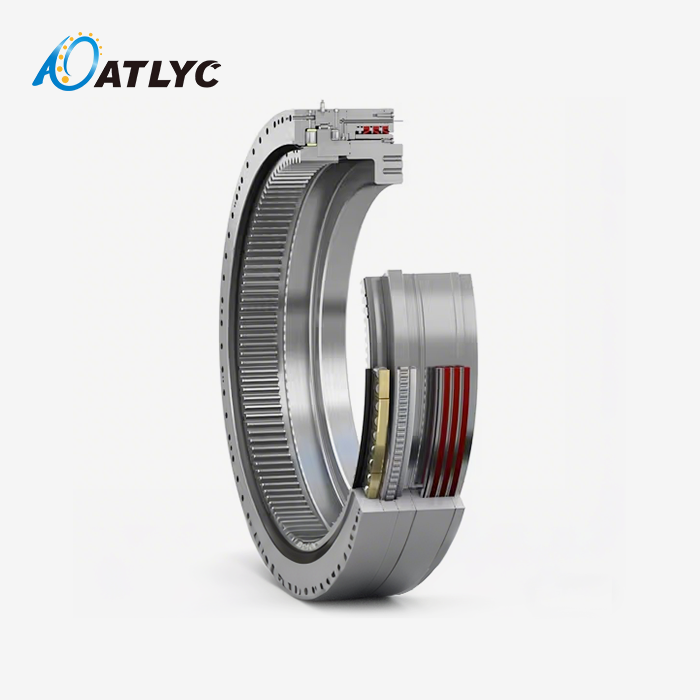

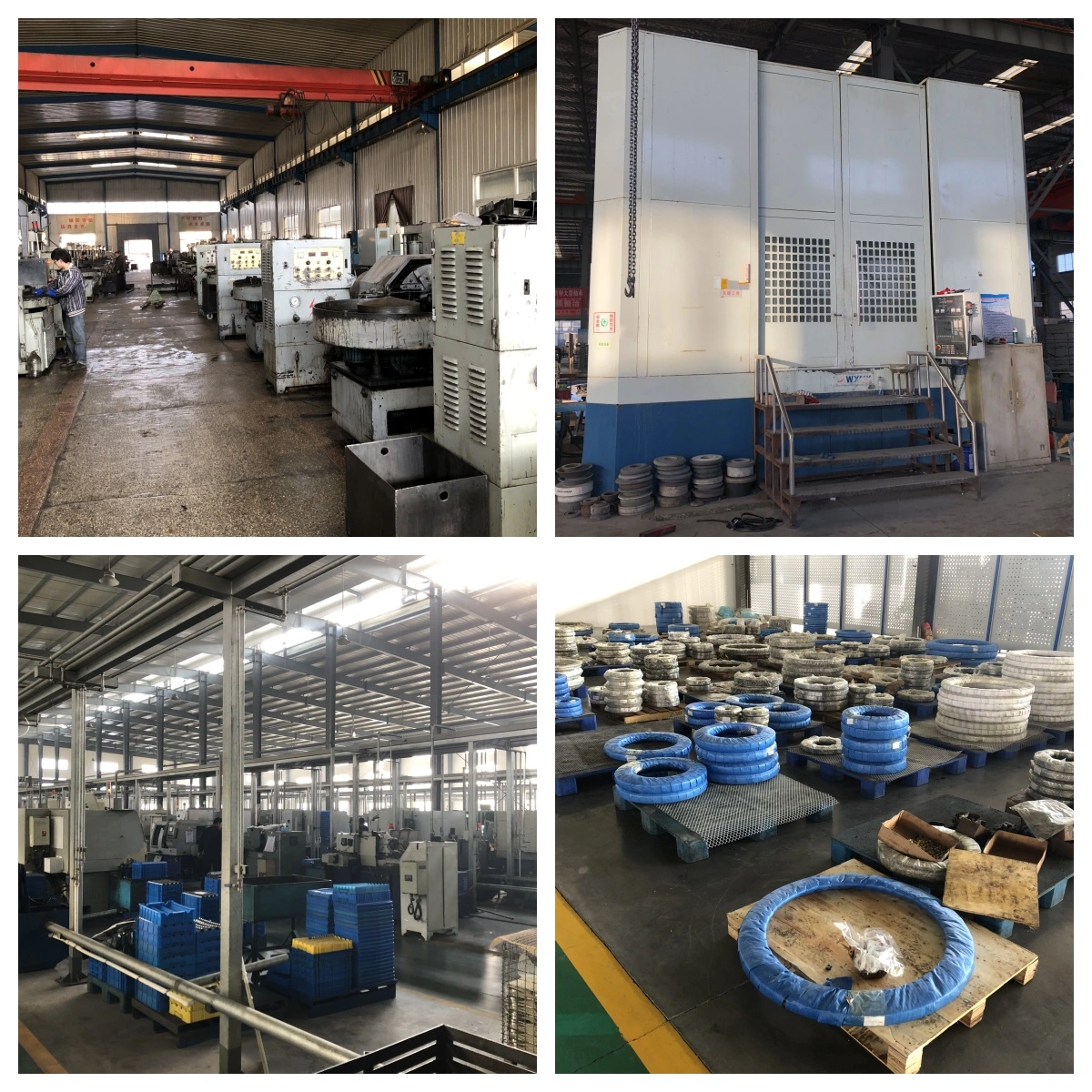

Manufacturing Standards

We utilize CNC groove pounding machines to accomplish exact raceway geometry. This guarantees reliable four-point contact over all balls, maximizing stack dissemination and bearing life. Quality control confirms dimensional exactness, surface wrap up, and stack conveyance patterns.

Testing and Validation

Each bearing experiences comprehensive testing counting vibration investigation, stack capacity confirmation, and rotational smoothness assessment. This prepare affirms execution determinations some time recently shipment.

Why Choose Our Single Row Ball Slewing Bearings?

With three decades of bearing fabricating encounter, we get it the basic execution necessities of rotational apparatus. Our coordinates generation approach combines exact fabricating with thorough quality control to convey solid bearing solutions.

We keep up broad stock of standard sizes for fast conveyance whereas advertising customized arrangements for uncommon applications. Our specialized bolster group gives progressing help to guarantee ideal bearing execution all through your equipment's benefit life.

Engineering Support and Customization

Our engineering team provides application analysis to determine optimal Single Row Ball Slewing Bearing specifications for your equipment. We calculate load requirements using specialized software to ensure proper sizing and material selection.

For unique applications, we offer customization of internal geometry, sealing systems, and mounting interfaces. Our 30-year experience in bearing design enables solutions for challenging operational environments.
