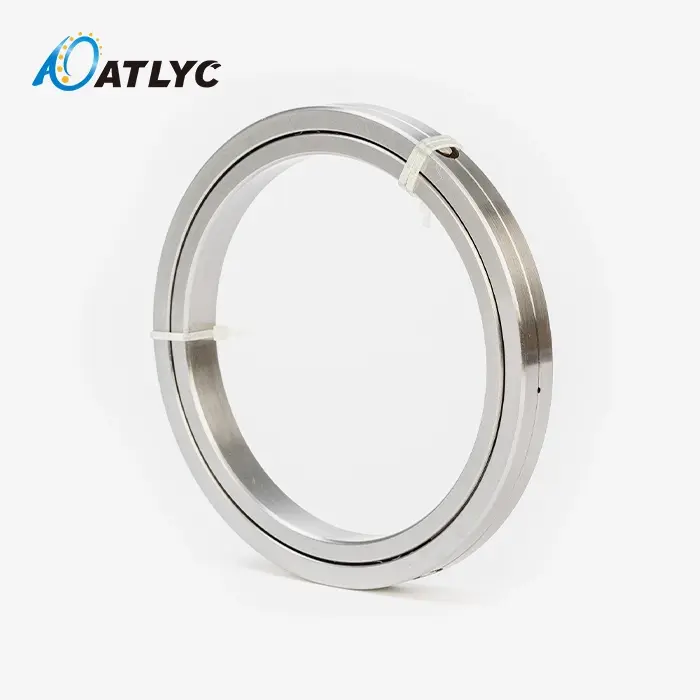

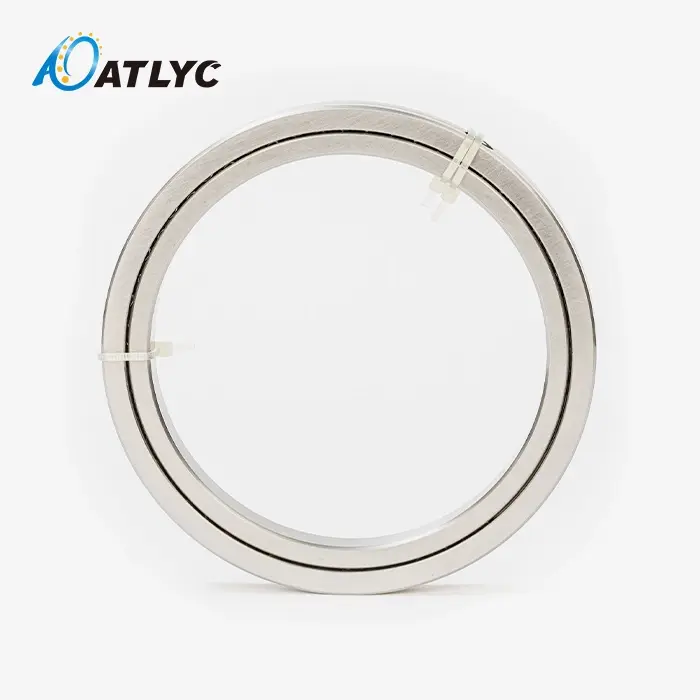

RA Type Crossed Roller Bearings

RA Type Crossed Roller Bearings: Precision Motion Solutions for Advanced Engineering

When you need ultra-thin, high-rigidity bearing solutions for precision applications, RA Type Crossed Roller Bearings deliver unmatched performance in compact designs. These specialized bearings feature an outer ring separable design with inner ring rotation capability, making them ideal for space-constrained applications. The crossed roller configuration within a 90-degree V-groove provides exceptional load capacity in all directions while maintaining minimal thickness. The products solve critical engineering challenges in robotics, medical equipment, and precision machinery where weight reduction meets performance requirements.

What Are RA Type Crossed Roller Bearings?

The products represent a breakthrough in thin-section bearing technology. The design features cylindrical rollers arranged perpendicularly to each other between inner and outer rings. This orthogonal arrangement allows a single bearing to handle radial, axial, and moment loads simultaneously.

The "RA" designation indicates the outer ring separable construction. This design simplifies installation and maintenance while ensuring precise alignment. The integral inner ring structure maintains exceptional rotation accuracy, often achieving micron-level precision.

Unlike conventional ball bearings, the crossed roller configuration distributes loads across multiple contact points. This results in higher rigidity and load capacity within a remarkably thin profile.

Technical Specifications

Design Advantages and Engineering Benefits

Ultra-Thin Profile Design

The reduced ring thickness maximizes space efficiency in your equipment designs. This allows for lighter assemblies without compromising structural integrity. The thin-wall construction is particularly valuable in weight-sensitive applications like robotic arms.

Superior Load Distribution

The crossed roller arrangement creates multiple load paths. Each roller contacts the raceway at a 90-degree angle to its neighbor, distributing forces evenly. This design eliminates the need for separate thrust and radial bearings.

High Rotational Accuracy

The integral inner ring construction minimizes runout variations. Combined with precision grinding of the V-groove raceways, you can achieve consistent rotation accuracy for demanding positioning applications.

Simplified Installation

The separable outer ring design facilitates mounting in tight spaces. You can install the inner ring assembly first, then position the outer ring components. This reduces installation time and alignment complexity.

Key Applications Across Industries

Industrial Robotics

RA Type Crossed Roller Bearings are essential in 6-axis articulated robots. The thin profile reduces arm inertia while providing the moment rigidity needed for precise end-effector positioning. Common applications include wrist joints and rotary actuators where space constraints are critical.

Medical Equipment

In surgical robots and imaging equipment, these bearings ensure smooth, vibration-free motion. Their compact design allows for smaller device profiles while maintaining the precision required for medical procedures.

Semiconductor Manufacturing

Wafer handling robots and precision positioning stages rely on these bearings for micron-level accuracy. The design's ability to maintain performance in controlled environments makes them suitable for cleanroom applications.

Machine Tool Rotary Tables

Precision machining centers use these bearings in rotary indexing tables. The high moment capacity supports heavy workpieces while maintaining positioning accuracy for complex machining operations.

Material Selection and Quality Control

We manufacture these bearings using high-grade bearing steels including GCr15 and GCr15SiMn. These materials undergo specialized heat treatment processes to optimize hardness and dimensional stability.

Our three-level quality control system ensures consistent performance:

• Raw material inspection verifies steel composition and properties
• In-process monitoring maintains dimensional accuracy during manufacturing
• Final inspection validates 12 core performance parameters including vibration and load capacity

Each bearing undergoes rigorous testing to meet specified accuracy classes from P7 to P4 grade precision.



Our Factory





Why Choose Luoyang Auto Bearing?

With 30 years of bearing manufacturing experience, we understand the critical requirements of precision motion applications. Our integrated R&D and production capabilities enable both standard and customized solutions for your specific needs.

We maintain stock of over 1,000 bearing types for rapid delivery within 48 hours. For custom specifications, our modular production approach reduces lead times to 70% of industry averages.

Our technical support team provides comprehensive assistance from bearing selection through installation guidance. We offer on-site mapping services for retrofit applications and ongoing maintenance support throughout the bearing lifecycle.

Get Expert Bearing Solutions

Need assistance selecting the right RA Type Crossed Roller Bearings for your application? Our engineering team can analyze your specific requirements and recommend optimal solutions. Contact us at auto@lyautobearing.com for technical consultation and quotations.

Whether you need standard configurations or custom designs, we provide the precision bearing solutions that keep your equipment running smoothly and accurately.
