Angular Contact Bearings 7206AC

Angular Contact Bearings 7206AC - High Performance Solution for Precision Applications

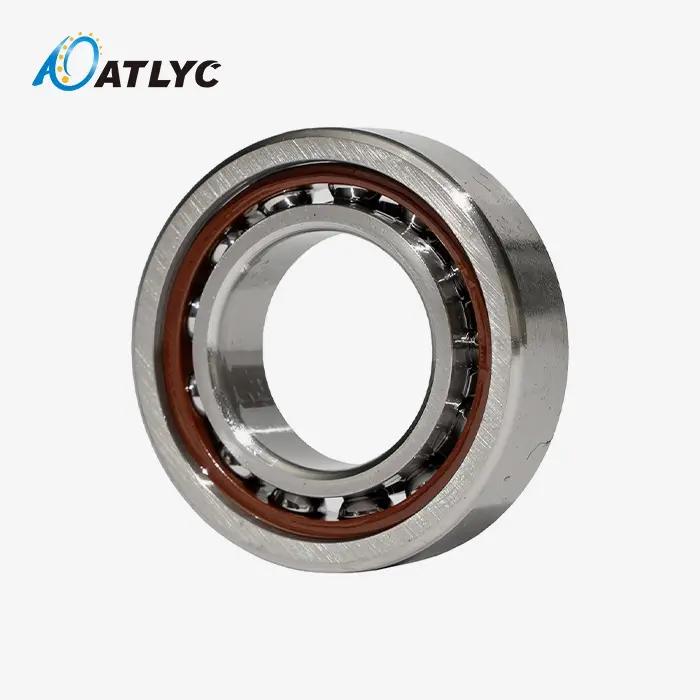

When you need reliable precision and load-handling capability, Angular Contact Bearings 7206AC deliver exactly what your equipment demands. These single-row ball bearings feature a 30mm bore diameter, 62mm outer diameter, and 16mm width configuration, specifically engineered with a 25° contact angle for optimal balance between radial and axial load capacity. The '7206AC' designation represents a proven design that addresses critical engineering challenges in high-speed applications, precision machinery, and demanding industrial environments where standard deep groove bearings fall short.

Engineering Design and Working Principle

The auxiliary establishment of these orientation lies in their counterbalanced raceway geometry. Not at all like ordinary profound groove heading, the inward and external ring raceways are pivotally uprooted, making the characteristic contact point. This plan empowers synchronous back of combined loads whereas keeping up tall rotational accuracy.

The 25° contact point speaks to an building compromise between speed capability and stack capacity. This point gives predominant hub stack taking care of compared to 15° variations whereas keeping up way better high-speed characteristics than 40° plans. The contact geometry conveys loads over optimized contact circles, diminishing push concentrations and amplifying bearing life.

Heat-treated GCr15 steel development guarantees dimensional steadiness and hardness maintenance beneath working conditions. The exactness crushing prepare accomplishes tight resistances basic for vibration-free operation and legitimate preload application in matched configurations.

Performance Advantages in Real Applications

High-Speed Soundness: The 25° contact point creates controlled warm buildup amid revolution, empowering supported high-speed operation without warm extension issues that compromise precision.

Superior Unbending nature: When mounted in preloaded sets, these heading give uncommon solidness that stands up to diversion beneath cutting strengths, keeping up machining precision and surface wrap up quality.

Load Flexibility: The adjusted contact point handles both spiral loads from uneven rotors and pivotal loads from pushed powers, dispensing with the require for isolated pushed bearing courses of action in numerous applications.

Precision Maintenance: Fabricated to P5, P4, or P2 resistance classes, these orientation keep up their precision all through their benefit life, guaranteeing steady gear execution.

Primary Applications

Machine Tool Spindles: In CNC machining centers, Angular Contact Bearings 7206AC provide the rigidity necessary to resist tool deflection during cutting operations. The precise contact angle maintains spindle accuracy while handling the combined loads from rotating tools and workpiece reactions.

Electric Engine Applications: These orientation exceed expectations in little electric engines where space imperatives require compact plans able of supporting rotor weight and attractive drag strengths. The low-friction characteristics contribute to vitality productivity and diminished working noise.

Gear Reducers: In exactness transmission frameworks, these heading suit the hub pushed components created by helical and incline gears whereas keeping up smooth operation and expanded benefit life.

Printing Apparatus: The accuracy and calm operation characteristics make these orientation perfect for high-speed printing gear where vibration control and precision are fundamental for print quality.

Mounting Configuration Options

Back-to-Back (DB): Gives greatest inflexibility and can handle pivotal loads in both bearings. Perfect for shaft applications requiring most extreme stiffness.

Face-to-Face (DF): Offers great stack dispersion and obliges warm extension. Commonly utilized in applications with noteworthy temperature variations.

Tandem (DT): Maximizes hub stack capacity in one course. Reasonable for applications with overwhelmingly unidirectional pushed loads.

Quality and Manufacturing Excellence

Our 30 a long time of bearing industry encounter guarantees each item meets requesting execution guidelines. We utilize high-purity bearing steel and specialized warm treatment forms that optimize hardness dissemination and leftover push patterns.

The three-level quality control framework confirms 12 basic execution parameters counting vibration levels, dimensional precision, and stack capacity. Each bearing experiences comprehensive testing with an ex-factory capability rate surpassing 99.9%.

Our secluded generation forms empower customization for particular applications whereas keeping up conveyance plans that meet critical venture prerequisites. Standard orientation transport inside 48 hours, whereas custom alterations are completed in 70% of commonplace industry lead times.

Technical Support and Services

We provide comprehensive application engineering support to ensure optimal Angular Contact Bearings 7206AC selection and installation. Our technical team analyzes your specific operating conditions including speed, load, temperature, and environmental factors to recommend the most suitable configuration.

Installation guidance and maintenance protocols are available to maximize bearing life and equipment reliability. We maintain global technical support capabilities with 24-hour consultation availability for critical applications.

For specialized requirements, we offer custom cage materials, special lubrication, and modified internal geometries to meet unique application demands.

Contact our technical team at auto@lyautobearing.com for detailed application analysis and bearing recommendations tailored to your specific requirements.
