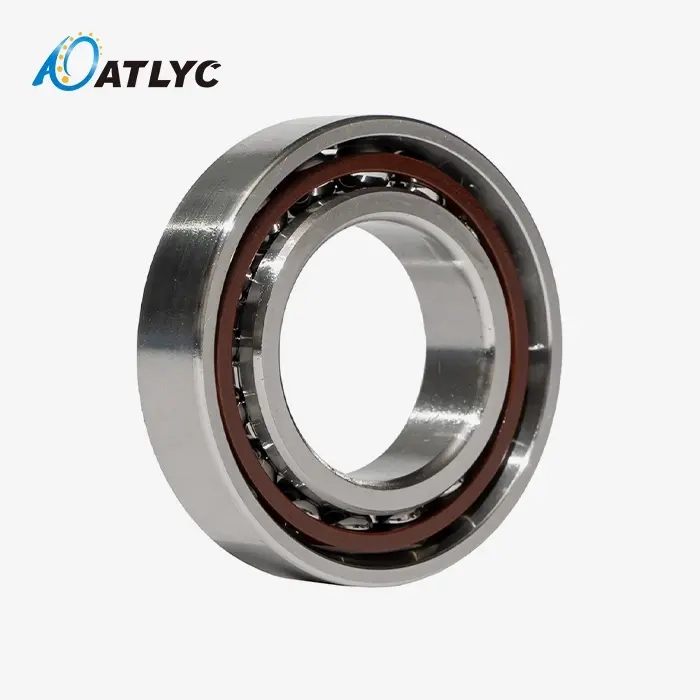

7220AC Super Precision Bearing

7220AC Super Precision Bearing - High-Performance Angular Contact Solution

When your high-speed spindle or precision equipment demands exceptional rigidity and reliability, the 7220AC Super Precision Bearing delivers the engineering performance you need. This specialized single-row angular contact ball bearing combines a 25° contact angle with precision manufacturing standards to handle both significant radial loads and unidirectional axial loads. With dimensions of 100mm bore, 180mm outer diameter, and 34mm width, the product provides the optimal balance between stiffness and speed capability for demanding industrial applications where failure is not an option.

Engineering Design and Performance

The 72 arrangement speaks to the foundation of stack bearing and unbending nature in accuracy bearing applications. The product increases cross-sectional stature compared to other arrangement, giving prevalent auxiliary judgment for requesting environments.

Core Plan Features

The 25° contact point arrangement offers unmistakable preferences over elective plans. This point gives higher hub stack capacity than 15° variations whereas keeping up amazing high-speed execution. The precision-ground raceways utilize vacuum-degassed GCr15 bearing steel, guaranteeing greatest weakness life and dimensional stability.

The bearing's cage plan obliges high-speed operations surpassing 10,000 RPM. Outer-ring guided phenolic tar or built polymer cages decrease contact and encourage compelling oil-air oil systems.

Load Capacity and Rigidity

The thicker raceway structure empowers the bearing to withstand more noteworthy affect loads and minute loads viably. This plan choice specifically interprets to expanded benefit life in applications encountering variable stacking conditions.

The bearing's predominant inflexibility addresses basic operational challenges such as warm uprooting in high-speed shafts and over the top vibration amid heavy-load machining operations.

Industrial Applications

CNC High-Speed Spindles

In machining centers, the bearing supports main spindle assemblies for both vertical and horizontal milling machines. The mixed-load environment requires simultaneous handling of axial thrust from cutting tools while maintaining radial precision to prevent chatter marks on workpieces.

Precision Grinding Operations

Surface and cylindrical grinders demand minimal runout, often below 1.5 microns. The 7220AC Super Precision Bearing provides necessary rigidity to support grinding wheels against heavy cutting forces, ensuring consistent surface finish quality.

Industrial Fluid Equipment

High-flow centrifugal pumps and screw compressors with 100mm diameter shafts rely on these bearings to manage thrust loads generated by fluid pressure. Continuous operation in high-temperature environments requires specific clearance adjustments and proper lubrication management.

Additional Applications

The bearing excels in large motors, turbines, and separators where both precision and load capacity are critical. Heavy industrial machinery applications benefit from the bearing's robust construction and reliable performance characteristics.

Mounting Configurations and Installation

The bearing underpins three essential mounting courses of action: back-to-back (DB), face-to-face (DF), and pair (DT) setups. The DB course of action gives most extreme minute inflexibility, making it the favored choice for machine apparatus spindles.

Proper establishment requires consideration to preload settings. Overwhelming preload increments inflexibility but produces more warm, whereas light preload runs cooler but may need solidness for overwhelming cutting applications. Determination depends on particular operational requirements.

Lubrication Requirements

For high-speed applications with commonplace dmn values, oil-air or oil-mist grease gives ideal cooling execution. High-grade engineered oil remains reasonable for direct speeds but ought to fill as it were 15-20% of free space to avoid overheating.

Quality Assurance and Delivery

Our fabricating handle joins a three-level quality control framework covering crude fabric assessment, in-process confirmation, and wrapped up item testing. Each bearing experiences approval of 12 center pointers counting vibration testing and life testing, accomplishing an ex-factory capability rate surpassing 99.9%.

With over 1,000 sorts of standard heading in stock, we convey normal orders inside 48 hours. Our secluded generation forms diminish customization cycles to 70% of industry midpoints, with huge non-standard orientation deliverable inside 15-20 days.

Technical Support and Services

Our experienced engineering team provides comprehensive technical support, including on-site mapping services for equipment adaptation, installation guidance, and full-life cycle management plans. We monitor bearing operation data through IoT technology to optimize maintenance schedules and prevent unexpected failures.

For applications requiring the optimal balance of axial rigidity and high-speed capability, the 7220AC Super Precision Bearing represents the engineered solution for your most demanding industrial challenges.

Ready to optimize your equipment performance? Contact our technical specialists at auto@lyautobearing.com to discuss your specific application requirements and receive expert guidance on bearing selection and implementation.
