6206 Deep groove ball bearings

6206 Deep Groove Ball Bearings - Professional Bearing Solutions

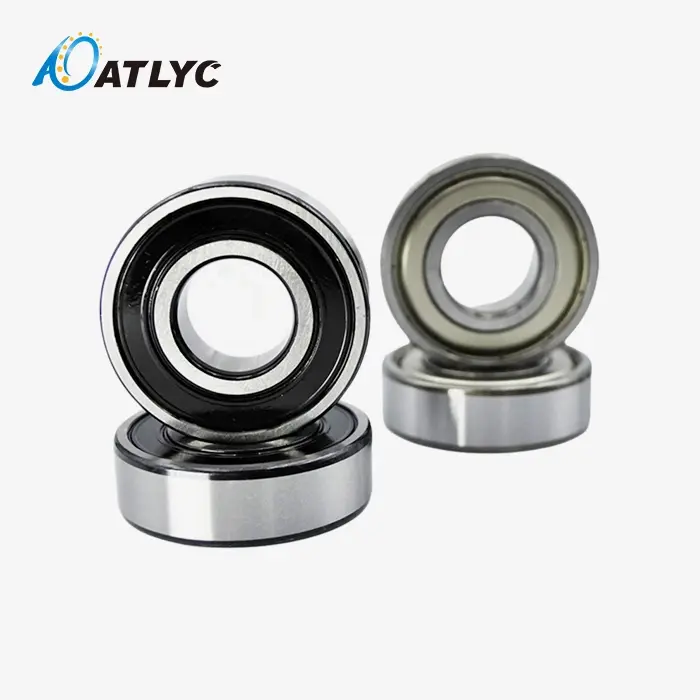

When your equipment demands reliable rotational performance, 6206 Deep groove ball bearings deliver the versatility and precision you need. These standardized single-row radial bearings feature a 30mm bore diameter, 62mm outer diameter, and 16mm width configuration. The deep raceway geometry enables simultaneous handling of radial and moderate axial loads in both directions. With their proven design and cost-effective manufacturing, these bearings serve as the backbone for countless industrial applications where dependable operation is essential.

Design Structure and Working Principle

The 6206 bearing consists of four primary components: inner ring, outer ring, steel balls, and cage assembly. The deep groove raceways create optimal contact angles for load distribution. Steel balls roll within precisely ground raceways, separated by the cage to maintain uniform spacing.

This configuration provides point contact between balls and raceways. The geometry reduces friction while maximizing load-carrying capacity. The deep groove profile accommodates both radial forces and moderate axial loads simultaneously.

Load distribution occurs through the steel balls transferring forces from the inner ring to the outer ring. The cage prevents ball-to-ball contact while maintaining proper spacing during rotation.

Performance Advantages

Load Versatility: The deep groove design handles combined loading conditions effectively. You can apply radial loads up to the bearing's dynamic capacity while simultaneously managing axial loads in either direction.

Low Friction Operation: Point contact geometry minimizes rolling resistance. This results in lower operating temperatures and reduced energy consumption in your equipment.

Speed Capability: Optimized internal geometry and cage design enable high rotational speeds. The bearing maintains stability and low vibration levels across its operating range.

Durability: GCr15 bearing steel provides excellent fatigue resistance. Proper heat treatment ensures consistent hardness and dimensional stability throughout the bearing's service life.

Noise Control: Precision manufacturing techniques achieve low noise and vibration levels. This makes the bearing suitable for applications requiring quiet operation.

Primary Applications

Small Power Tools: Electric drills, grinders, and sanders benefit from the bearing's high-speed capability and compact design. The 30mm bore accommodates common motor shaft sizes.

Office Equipment: Printers, copiers, and scanners require smooth, quiet operation. The bearing's low noise characteristics and precise rotation meet these requirements.

Medical Devices: Diagnostic equipment and surgical tools demand reliable performance. The bearing's precision and vibration control support critical medical applications.

Electric Motors: Fractional horsepower motors utilize these 6206 Deep groove ball bearings for their versatility. The design accommodates both belt loads and direct coupling arrangements.

Available Configurations

Open Heading: Give greatest speed capability and simple relubrication get to. Reasonable for clean situations with outside sealing.

Shielded (ZZ): Metal shields ensure against contaminant entrance whereas keeping up lower grinding than fixed adaptations. Perfect for direct defilement environments.

Sealed (2RS): Elastic seals give prevalent defilement assurance. Pre-lubricated for amplified benefit life in unforgiving conditions.

Cage Materials: Steel cages offer toughness and temperature resistance. Polymer cages diminish clamor and weight in particular applications.

Quality Standards and Testing

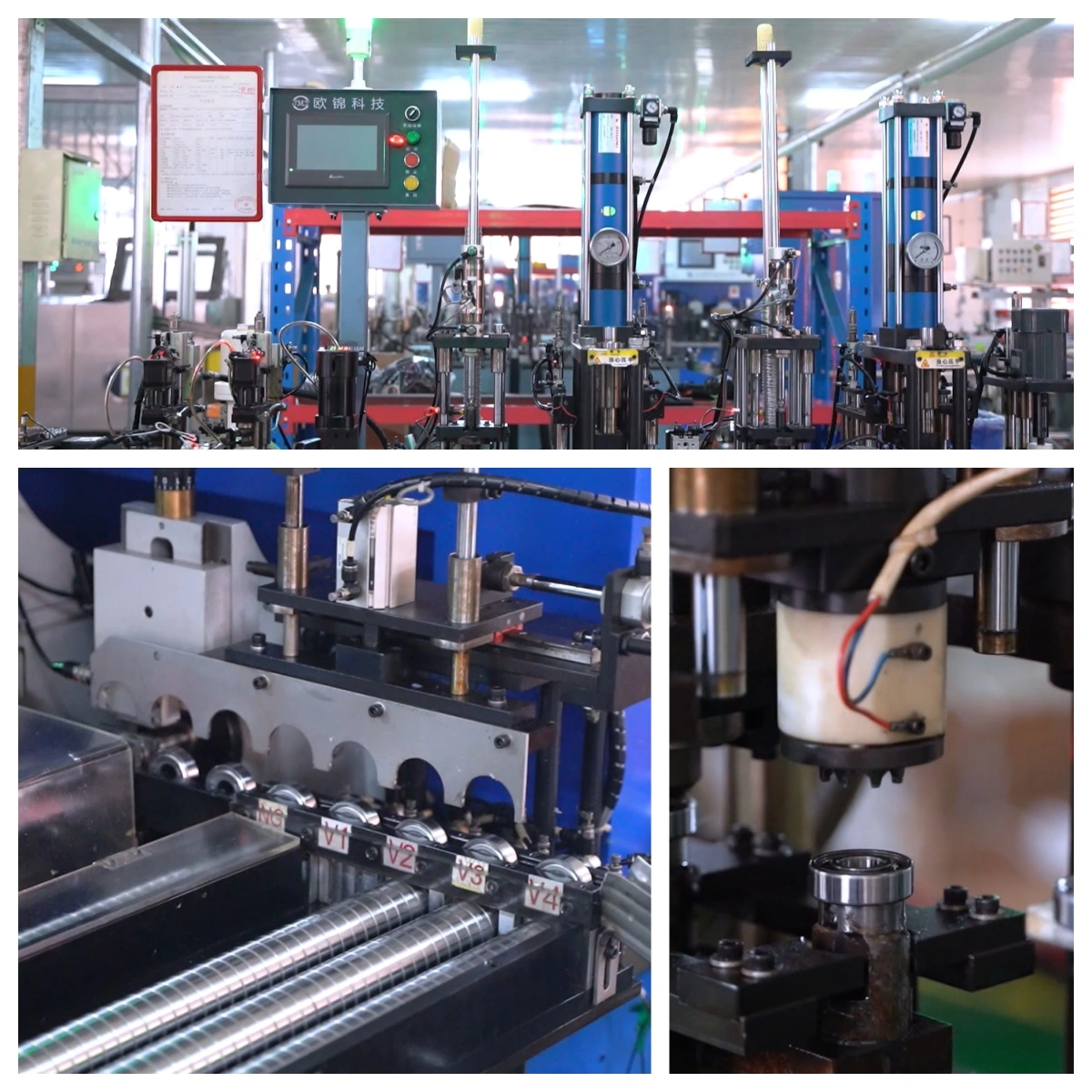

Our fabricating prepare takes after ISO 9001 quality administration standards. Each bearing experiences dimensional confirmation, vibration testing, and stack capacity validation.

Raw fabric review guarantees GCr15 steel meets chemical composition prerequisites. Warm treatment forms accomplish ideal hardness conveyance between 58-65 HRC on raceways.

Finished item testing incorporates vibration estimation per ISO 15242 guidelines. Stack capacity confirmation affirms energetic and inactive evaluations meet distributed specifications.

Our three-level quality control framework keeps up over 99.9% capability rates. This guarantees steady execution over generation batches.

Installation and Maintenance Guidelines

Proper Mounting: Utilize fitting apparatuses to apply establishment strengths through the tight-fit ring as it were. Maintain a strategic distance from applying powers through the balls or rolling elements.

Shaft and Lodging Fits: Keep up suggested resiliences for shaft and lodging seats. Appropriate fits anticipate relative movement whereas permitting warm expansion.

Lubrication: Select suitable oil or oil based on working conditions. Relubrication interims depend on speed, temperature, and defilement levels.

Storage: Store heading in unique bundling until establishment. Keep up dry conditions and maintain a strategic distance from temperature extremes.

Why Choose Our Bearings?

With 30 a long time of bearing industry encounter, we give comprehensive arrangements for your gear needs. Our coordinates generation and supply chain capabilities guarantee steady accessibility and quality.

Our office keeps up stock of over 1,000 bearing sorts for fast conveyance. Standard orders dispatch inside 48 hours of affirmation. Custom adjustments take after streamlined designing processes.

We back both standard and non-standard bearing prerequisites. Our building group gives specialized interview for application-specific challenges.

Quality control frameworks confirm 12 basic parameters for each generation clump. This incorporates vibration testing, dimensional confirmation, and stack capacity approval.

For technical assistance or custom requirements, contact our engineering team at auto@lyautobearing.com. We provide comprehensive support from initial selection through installation and maintenance planning.

The 6206 Deep groove ball bearings represent proven technology for demanding applications. Their combination of load versatility, speed capability, and cost-effectiveness makes them the preferred choice for engineers worldwide.
