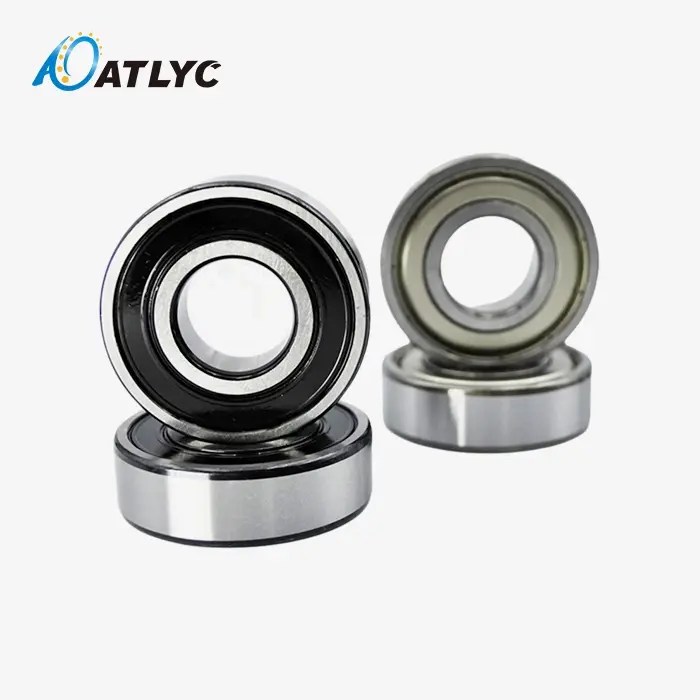

6210 Deep groove ball bearing

6210 Deep groove ball bearing - Industrial Grade Rolling Element Solution

When you need a reliable bearing solution for your 50mm shaft applications, the 6210 Deep groove ball bearing delivers proven performance across industrial sectors. This single-row ball bearing combines standardized dimensions with versatile load handling capabilities. Engineers specify this bearing for its optimal balance of radial and axial load capacity, making it essential for electric motors, gearboxes, and precision machinery where consistent operation matters.

Technical Structure and Design

The bearing features a classic deep groove geometry with precision-ground raceways. The inner and outer rings form continuous circular grooves that guide hardened steel balls through their rotation path. A stamped steel cage maintains proper ball spacing and prevents contact between rolling elements.

This configuration creates optimal load distribution across the contact surfaces. The deep groove design enables the bearing to handle combined loading conditions without requiring additional axial constraint mechanisms.

Heat treatment processes achieve 60-64 HRC surface hardness while maintaining core toughness. The raceway finish meets ISO tolerance standards for dimensional accuracy and surface quality.

Performance Advantages

Load Versatility: The bearing manages radial loads up to 35.1 kN while simultaneously handling bidirectional axial forces. This dual-load capability eliminates the need for separate thrust bearings in many applications.

Speed Performance: Optimized internal geometry and cage design enable operation up to 8,500 RPM with standard grease lubrication. Oil lubrication extends speed capability to 10,000 RPM for high-performance applications.

Operational Reliability: Low starting torque and smooth rotation minimize power consumption. The Z2V2 vibration classification ensures quiet operation suitable for precision equipment.

Maintenance Efficiency: Sealed variants (2RS) provide internal lubrication protection, extending service intervals. Standard clearance fits simplify installation procedures.

Industrial Applications

Electric Motor Support: Powers 10-50 HP industrial motors where thermal expansion and high-speed operation require reliable shaft support. C3 clearance options accommodate thermal growth in continuous-duty applications.

Gearbox Intermediate Shafts: Manages gear meshing forces and maintains shaft alignment in power transmission systems. The bearing prevents deflection that causes gear wear and noise.

Machine Tool Spindles: Provides precision rotation for cutting operations where dimensional accuracy directly impacts product quality. Low vibration characteristics maintain surface finish standards.

Agricultural Equipment: The 6210 Deep groove ball bearing with rubber seals resists contamination in harvesters and tillage equipment. Handles shock loads from ground engagement while protecting internal components.

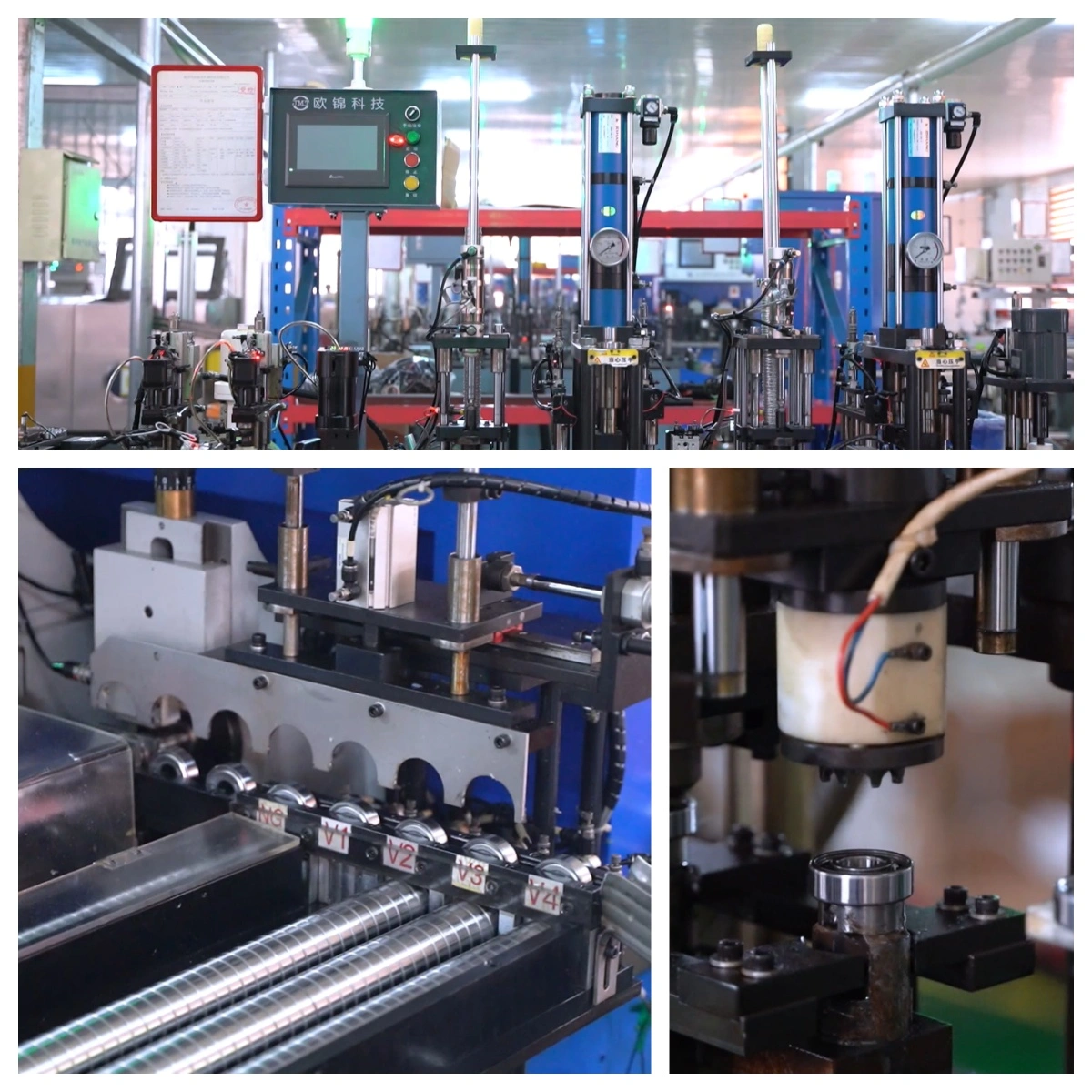

Quality Control Standards

Our fabricating handle actualizes three-tier quality confirmation. Crude fabric review affirms steel composition and mechanical properties. In-process checking tracks dimensional exactness amid machining operations. Last assessment approves 12 execution parameters counting vibration, clamor, and stack capacity.

Each bearing experiences weakness testing to confirm benefit life projections. Temperature cycling affirms dimensional solidness over working ranges. Our quality framework keeps up 99.9% conformance rates for transported products.

Customization and Variants

Standard arrangements incorporate open orientation for oil shower oil and fixed adaptations for grease-lubricated applications. Custom clearance classes oblige particular warm conditions. Adjusted cage materials address chemical compatibility requirements.

Non-standard adjustments back interesting mounting imperatives or execution details. Our designing group analyzes application necessities to suggest ideal bearing configurations.

Supply Chain and Delivery

We keep up stock of standard 6210 arrangements for 48-hour conveyance on customary orders. Our Luoyang office coordinating territorial warehousing with national coordinations systems to guarantee reliable availability.

Custom variations take after our streamlined generation handle with 7-day standard conveyance. Assisted preparing handles critical prerequisites whereas keeping up quality benchmarks.

With 30 years of bearing manufacturing experience, Luoyang Auto Bearing Co., Ltd. delivers proven solutions for your critical applications. Contact our technical team at auto@lyautobearing.com for application-specific 6210 Deep groove ball bearing recommendations and technical support.
