Angular Contact Ball Bearing 72 series

Angular Contact Ball Bearing 72 Series - High-Performance Solution for Combined Load Applications

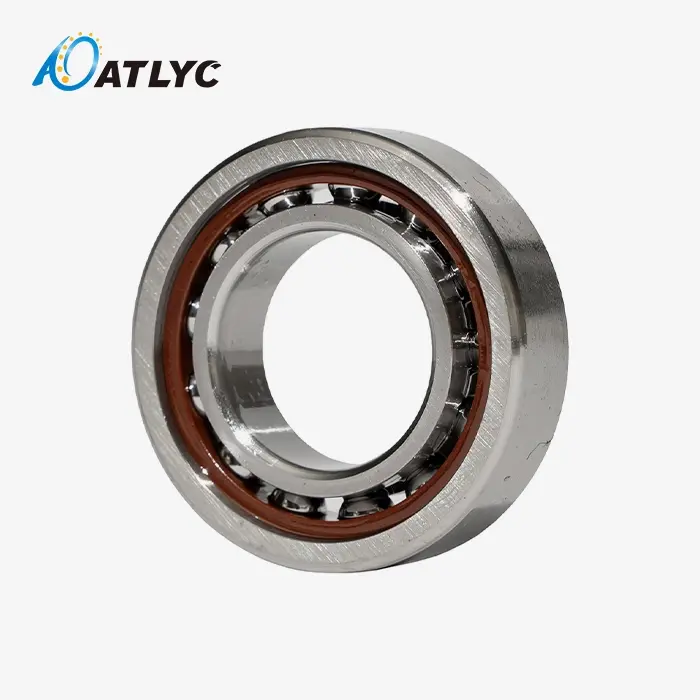

The Angular Contact Ball Bearing 72 series represents a specialized category of rolling element bearings engineered to handle combined radial and axial loads in demanding industrial applications. These bearings feature displaced inner and outer ring raceways that create a specific contact angle, typically ranging from 15° to 40°, enabling superior load distribution compared to standard radial bearings. With their optimized cross-sectional geometry and advanced material composition, the product delivers exceptional rigidity and load capacity for hydraulic pumps, vertical pumps, and precision machinery applications.

Technical Design and Working Principle

Core Structure Features

The 72 series incorporates a standardized cross-sectional height that balances load capacity with rotational speed capabilities. The internal geometry features raceways displaced relative to each other in the axial direction, creating the characteristic contact angle that defines load distribution behavior.

Key Structural Elements:

• High-purity Gcr15 bearing steel construction
• Precision-ground raceways with optimized curvature ratios (0.52 ≤ f ≤ 0.54)
• Advanced cage materials including reinforced nylon and bakelite
• Universal matching capability for flexible mounting configurations

Operating Mechanism

The displaced raceway design enables the Angular Contact Ball Bearing 72 series to support simultaneous radial and axial forces through controlled ball contact geometry. When axial loads are applied, the contact angle transfers forces efficiently through the ball elements to both rings, providing superior load distribution compared to deep groove ball bearings.

The contact angle directly influences load capacity characteristics:

• 15° contact angle: Optimized for high-speed applications with moderate axial loads
• 40° contact angle: Maximum axial load capacity for heavy-duty applications

Performance Advantages and Engineering Benefits

Enhanced Load Capacity

The 72 series design provides significantly improved axial load handling compared to standard radial bearings. The increased cross-sectional height compared to the 70 series creates thicker raceways capable of withstanding greater impact loads and moment loads, resulting in extended service life under demanding conditions.

Superior Rigidity Characteristics

When properly preloaded in paired configurations, these bearings eliminate internal clearance and provide exceptional shaft stiffness. This rigidity is critical for applications requiring precise positioning and minimal deflection under load.

Versatile Mounting Options

The 72 series supports three primary mounting configurations:

• DB (Back-to-Back): Maximum moment load capacity and rigidity
• DF (Face-to-Face): Optimal for applications with varying axial load directions
• DT (Tandem): Enhanced unidirectional axial load capacity

Primary Application Areas

Industrial Equipment

• Hydraulic pump systems requiring high axial rigidity
• Vertical pump assemblies with combined load requirements
• Production machinery with precision positioning needs

Specialized Machinery

• Screw feeder mechanisms demanding reliable operation
• Ball screw support units requiring minimal deflection
• Pharmaceutical equipment with cleanliness requirements
• Food processing machinery with moderate speed demands

Quality Assurance and Manufacturing Excellence

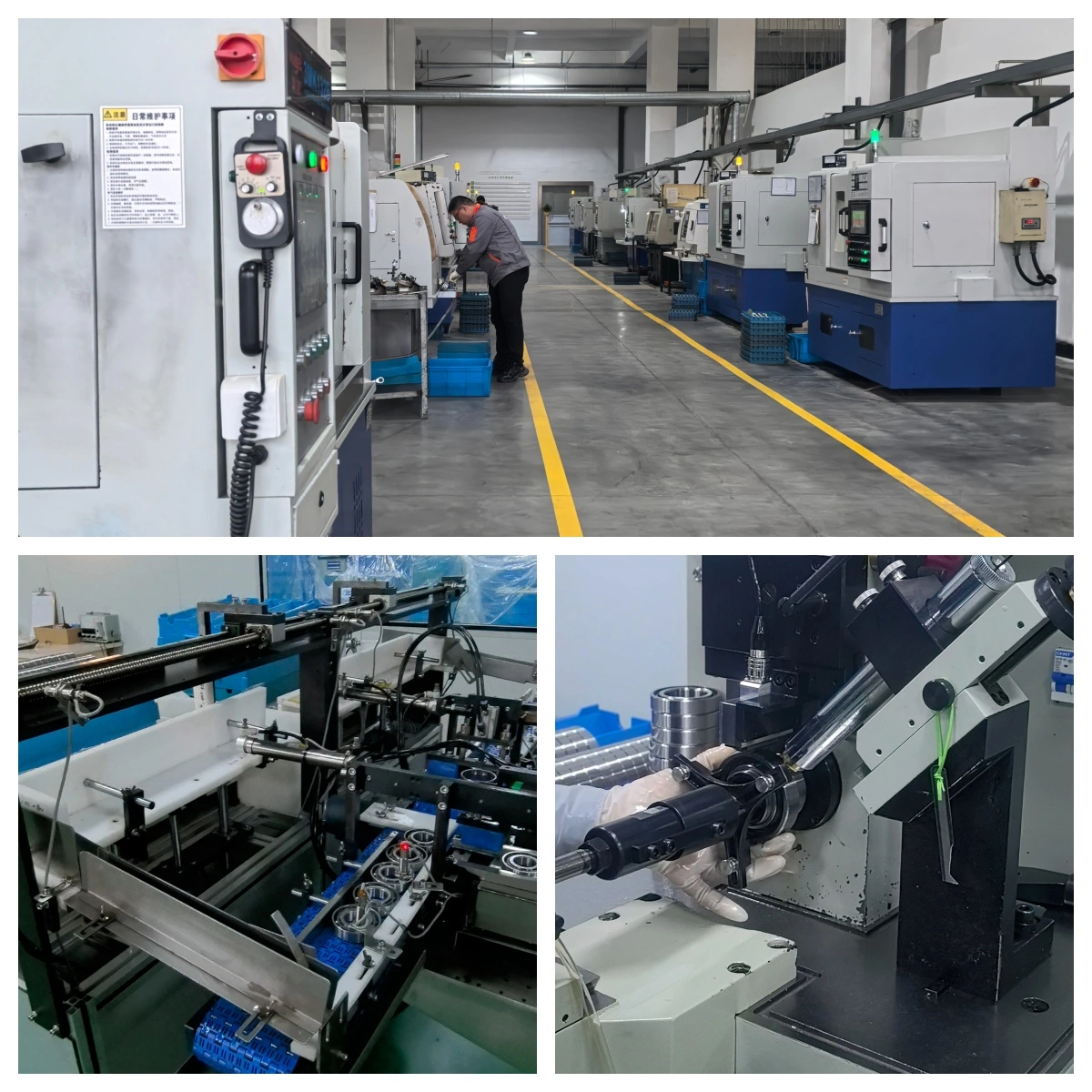

Our manufacturing process incorporates advanced heat treatment and precision grinding technology to ensure consistent performance. Each bearing undergoes comprehensive testing including vibration analysis and life cycle verification, achieving an ex-factory qualification rate exceeding 99.9%.

Quality Control Features:

• Three-level inspection system from raw materials to finished products
• Verification of 12 core performance indicators
• Precision tolerance verification to ISO standards
• Comprehensive dimensional and geometric accuracy testing

Customization and Technical Support

We provide comprehensive customization services for non-standard applications, including modified internal geometry, special cage materials, and enhanced precision classes. Our engineering team offers complete technical support from initial design consultation through installation guidance.

Available Services:

• Custom bearing design for specific applications
• Precision matching for optimized preload conditions
• Installation and maintenance technical support
• Performance optimization consulting

The Angular Contact Ball Bearing 72 series continues to serve as the preferred solution for engineers requiring reliable combined load handling in critical applications. Our 30 years of industry experience ensures consistent quality and performance for your most demanding requirements.

For technical inquiries or custom bearing solutions, contact our engineering team at auto@lyautobearing.com. We deliver standard orders within 7 working days and support comprehensive OEM/ODM customization services.
