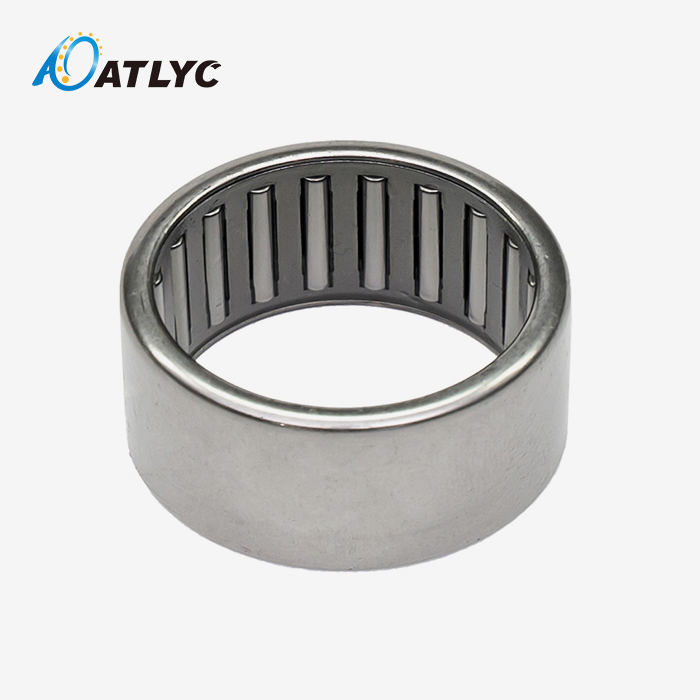

Drawn cup needle roller bearings HK series

Drawn Cup Needle Roller Bearings HK Series - Professional Industrial Solution

The Drawn cup needle roller bearings HK series represents a specialized category of rolling element bearings engineered for applications demanding maximum radial load capacity within minimal space constraints. This innovative bearing design utilizes precision metal forming technology to create thin-walled outer rings through deep-drawing processes, housing needle roller and cage assemblies that deliver exceptional performance in compact configurations. From an engineering perspective, these bearings address critical industrial challenges including space limitations in automotive transmissions, cost-efficiency requirements in mass production environments, and housing bore wear considerations in high-frequency applications.

What Makes HK Series Bearings Unique?

The crucial plan of HK arrangement orientation centers on their thin-walled, deep-drawn external ring development with open closes on both sides. Not at all like conventional machined strong rings, this arrangement utilizes cold-forming generation forms utilizing low-carbon combination steel, along these lines surface-hardened to accomplish ideal durability.

The basic arrangement comprises of three essential components: the drawn external container, exactness needle rollers, and a cage get together. This course of action gives the most reduced spiral cross-section tallness among all rolling bearing sorts, making it perfect for applications where each millimeter of space matters.

The working rule depends on impedances fit establishment into lodging bores, where the versatile external ring accept its exact circular geometry. This dispenses with the require for extra hub obsession strategies like snap rings, streamlining gathering methods whereas keeping up secure situating through grinding against the lodging bore.

Primary Applications and Industries

Automotive Transmission Systems

In automotive manual and automatic transmissions, HK series bearings function as pilot bearings for gear shafts and selector forks. These components must withstand high rotational speeds, rapid acceleration cycles, and thermal expansion differentials between steel bearings and aluminum housings. The open-end design facilitates efficient oil mist lubrication flow, crucial for heat dissipation in demanding automotive environments.

Industrial Power Tools

Professional high-speed power tools including angle grinders and drills utilize these bearings for armature shaft support. The Drawn cup needle roller bearings HK series handles shock loads during operation while maintaining compact form factors, enabling manufacturers to design ergonomic, lightweight tools without compromising torque transmission capabilities.

Small Engine Applications

In 2-stroke and 4-stroke small engines, particularly outboard motors, these bearings serve at piston pin or crankpin locations. They operate under extreme oscillatory motion and rapid loading cycles, providing necessary radial rigidity to prevent rod deflection and ensure engine timing accuracy.

Performance Advantages

Space Optimization

The primary advantage lies in delivering exceptional radial load capacity within minimal radial cross-sections. This space-efficient design enables more compact machinery configurations, particularly valuable in applications with severe size constraints.

Cost Effectiveness

The cold-forming production process significantly reduces material waste and machining time compared to solid-ring bearings. This manufacturing efficiency translates to lower unit costs for mass production applications while maintaining high quality standards.

Load Distribution Excellence

Despite thin-wall construction, the high number of needle rollers provides exceptional load-carrying capacity relative to bearing size. The precision-sorted rollers ensure even load distribution, maximizing bearing life under demanding operating conditions.

Installation Simplicity

The impedances fit plan disposes of complex pivotal obsession necessities. Once appropriately introduced in lodging bores with rectify resistances (regularly N6 or N7), the flexible external ring accept exact circular geometry, disentangling get together processes.

Installation and Maintenance Guidelines

Proper establishment requires particular methods to avoid harm. Never apply coordinate pound blows to the bearing confront. Instep, utilize establishment mandrels that contact the stamped confront at the same time, with O-ring maintenance for secure dealing with. Press fit establishment is obligatory, as the bearing accomplishes its circular shape as it were when legitimately situated in made lodging bores.

For ideal execution, shaft surfaces ought to be solidified (HRC 58-64) and ground (Ra 0.2μm or superior) when running without internal rings. If shaft solidifying is not doable, IR-series inward rings must be utilized.

Lubrication ordinarily includes introductory rust-preventative oil coating consistent with most mineral oils. For oil applications, beginning fill is basic due to restricted space and store capacity constraints.
